The MediaTek MT6737 is a 64-bit ARM-based SoC announced in 2016 primarily designed for smartphones (mainly Android devices). It is manufactured in a 28 nm process and consists of four CPU cores based on the 64-bit Cortex-A53 architecture clocked at up to 1.35 GHz. The GPU is an ARM Mali-720 MP2. It integrates a Cat.4 LTE modem with CDMA200 as well as a video de- and encoder for 1080p30 videos (H.264 and H.265).

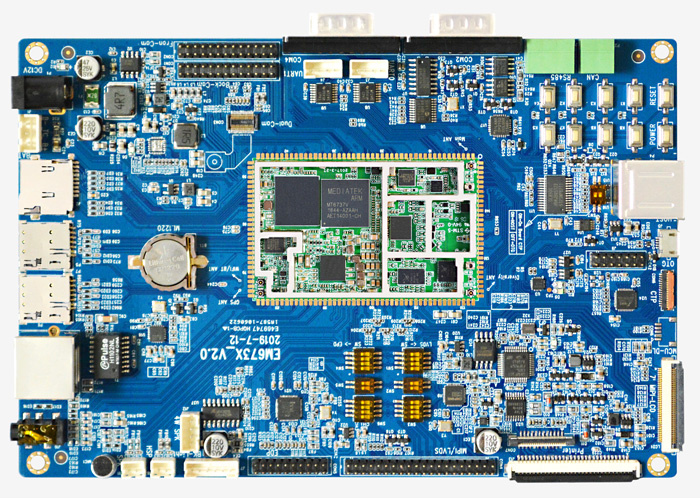

Boardcon EM-MT6737 is a fanless embedded system powered by MediaTek MT6737, equipped with 1GB RAM and 4GB eMMC flash, and designed for smart terminal, in-vehicle, medical electronics, smart homes, smart security, POS machines and other industry applications.

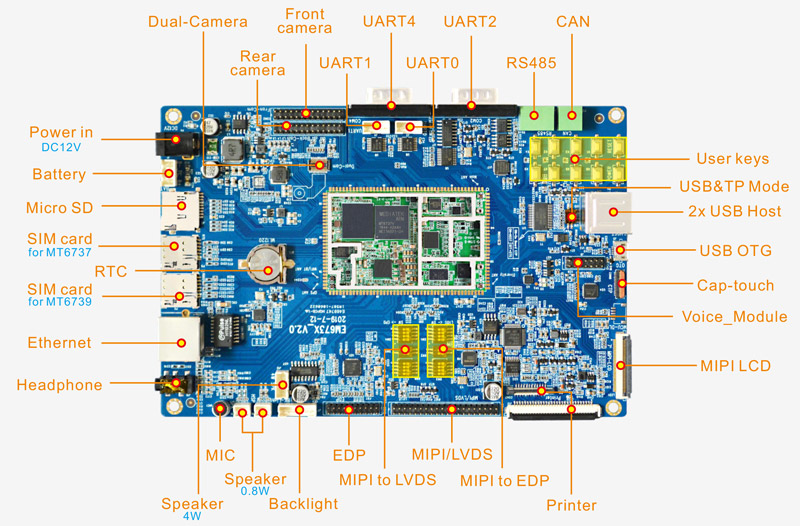

This MT6737 SBC supports MIPI/LVDS/eDP LCD, offers three connectors for camera (2x header, 1x FPC/FCC connector), two USB2.0 Host, four UART ports, printer, Audio out, MIC, as well as 4G, WiFi/Bluetooth/GPS module.

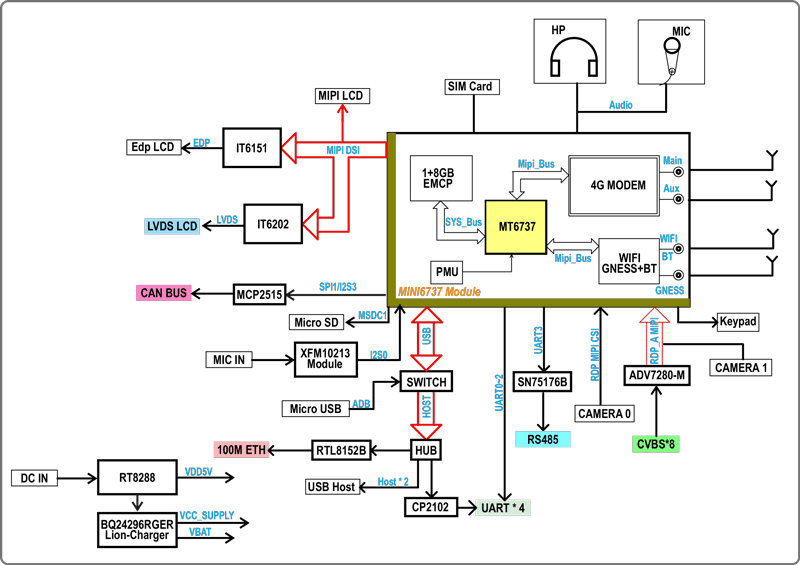

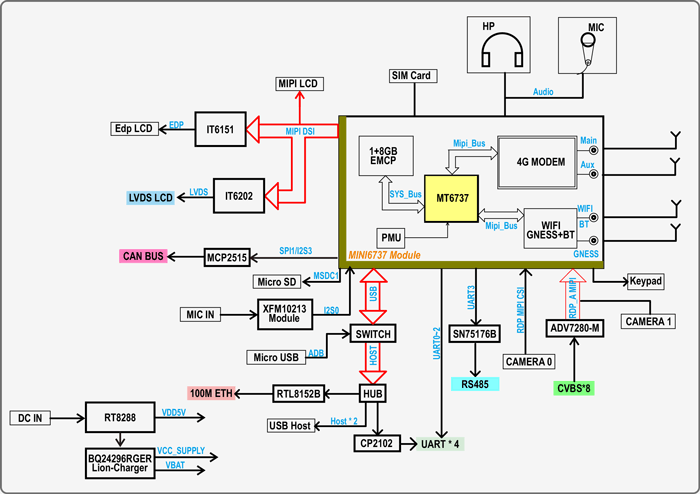

 Block Diagram

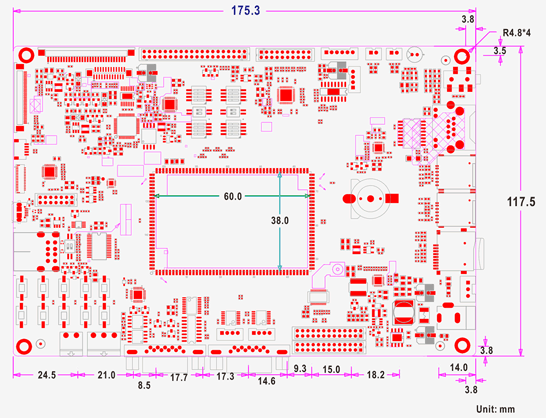

 PCB Dimension

 If you order the kit or any question, please feel free to contact us at market@armdesigner.com
