* Processor: Rockchip RK3128, Quad Core Cortex-A7 @1.2GHz
* RAM: 512MB
* Storage: 4GB eMMC

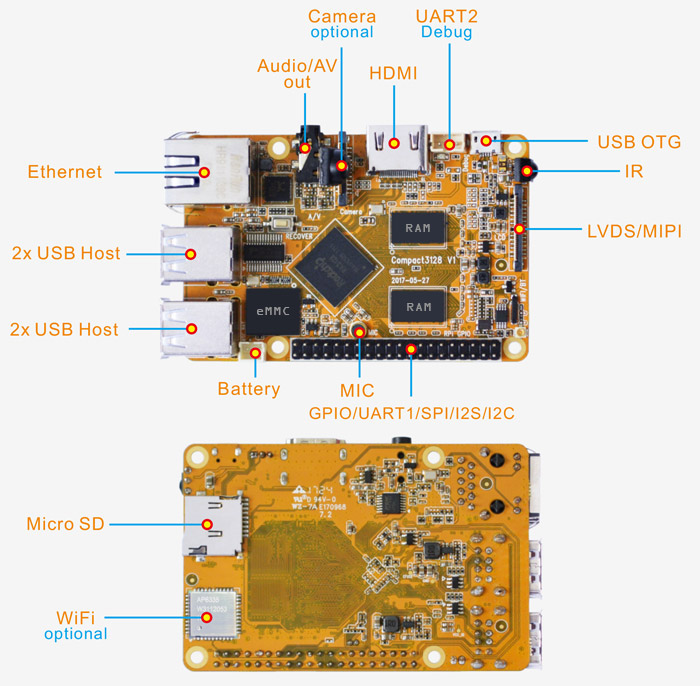

* Interfaces: 4x USB Host, 1x USB OTG, 1x debug connector, LCD(LVDS/MIPI), Ethernet, HDMI, Audio/CVBS(AV) out, SD, GPIO, Camera, battery connector
* Operating system: Android6.0
* Board size: 85mm x 56mm
Compact3128 is designed with the more power efficient Rockchip RK3128 Cortex A7 processor compared with RK3288.

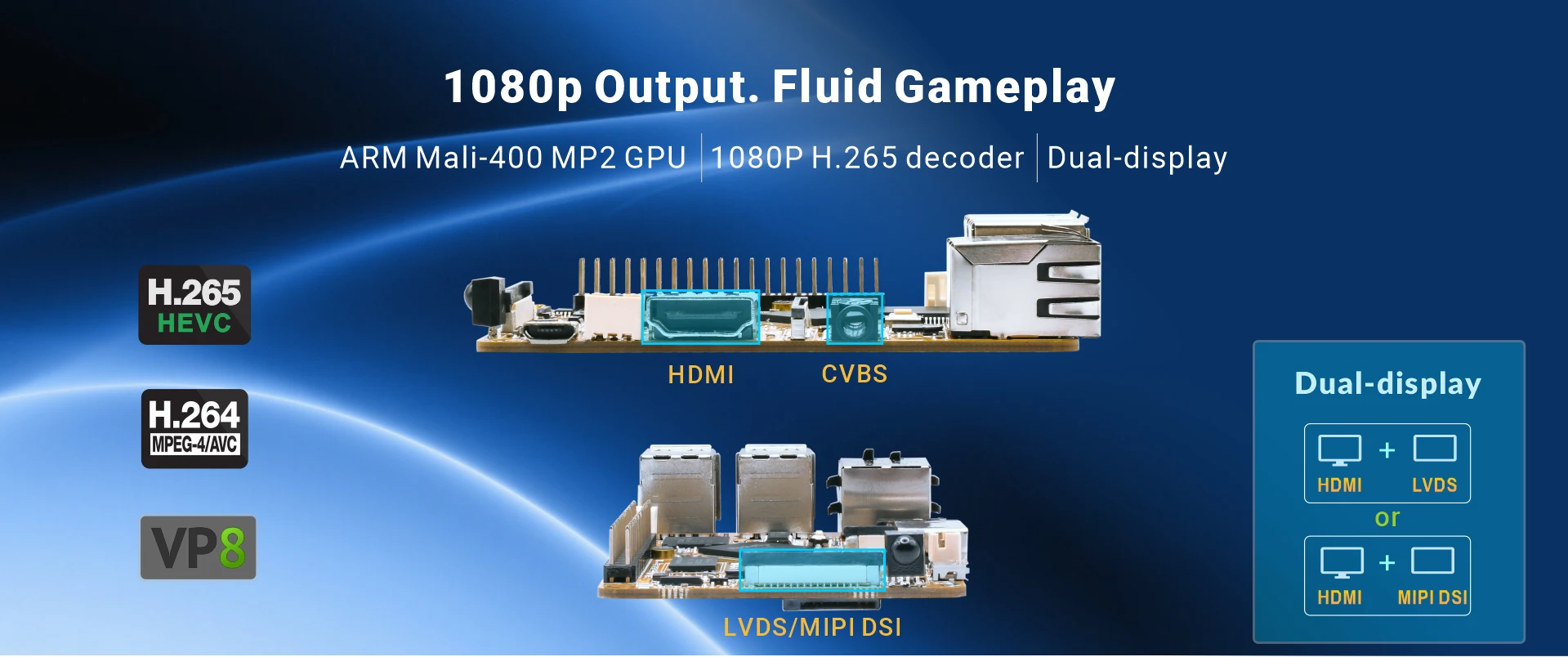

RK3128 is a Quad-core application processor for smart TV-Box. Especially it is a high-integration and cost efficient SOC for 1080P H.265 TV-Box. Quad-core Cortex-A7 is integrates with separately Neon and FPU coprocessor, also shared 256KB L2 Cache. Mali400 MP2 GPU is embedded to support smoothly high-resolution (1080p) display and mainstream game. Lots of high-performance interface to get very flexible solution, such as multi-pipe display with HDMI1.4, TV Encoder.

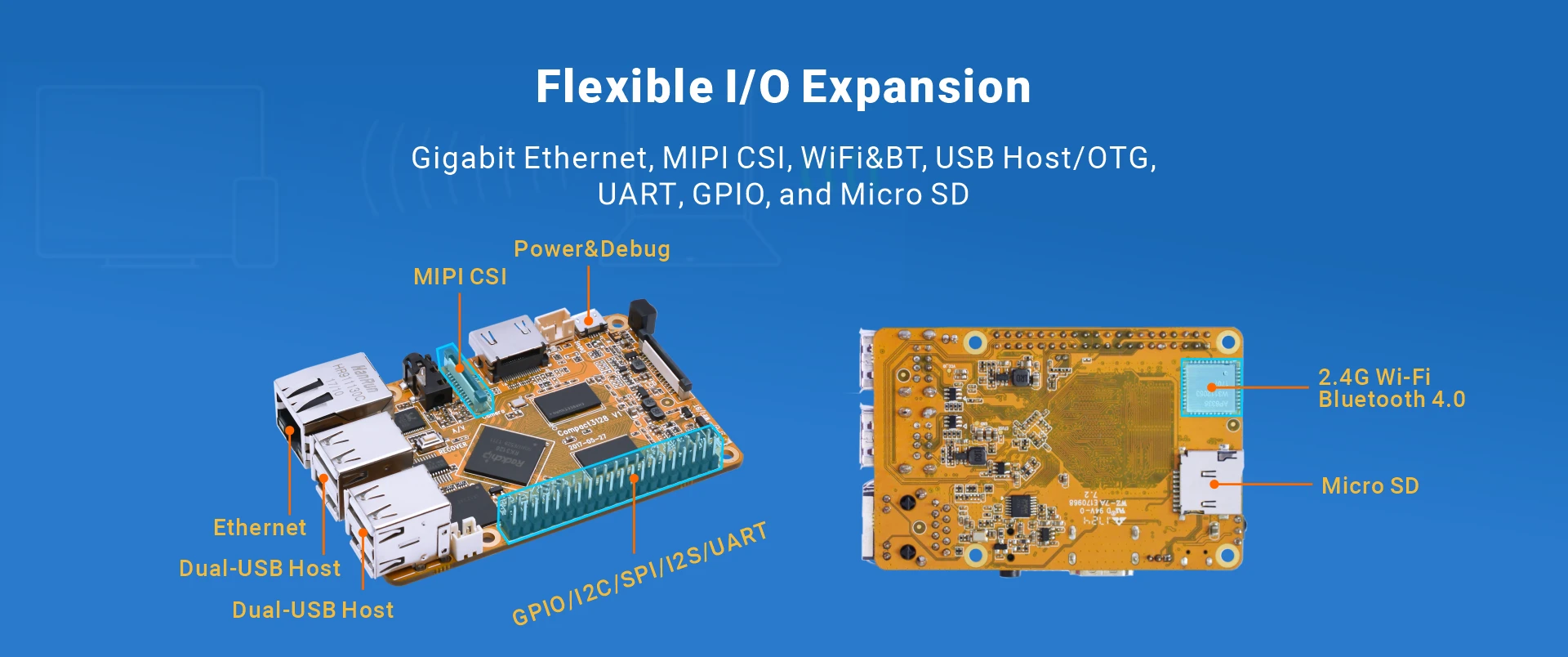

Compact3128 comes with 512MB RAM, 4GB eMMC Flash, Gigabit Ethernet, Wi-Fi and Bluetooth, and various other ports and expansion headers. And besides a data link, the USB2.0 OTG also provides 5V to power the board. Compact3128 is especially suitable for applications that must be contained in a limited space control systems, such as medical, IoT gateway, imaging and Industrial control systems.
|Rockchip RK3128 quad core ARM Cortex A7 @ 1.2GHz
|· Mali-400MP2 GPU, support OpenGL ES1.1/2.0
· High performance dedicated 2D processor
|4GB eMMC Flash
|5V/2A via USB OTG (Require USB power adapter)
|Gigabit Ethernet, RJ45 interface. RTL8211E-VB-CG controller
|4x USB2.0 Host, 1x USB2.0 OTG
|HDMI V1.4, support 1080P
UART1 lead out from the 40-pin header(GPIO)
UART2 for debug, 3-pin connector
|1x Micro SD card slot
|3.5mm audio jack. The CVBS supports 480i/576i resolution. TPF632 audio codec
|2-Pin connector for external battery (3V)
|1x 30pin FPC connector for LVDS/MIPI Cap-touch panel (required adapter).
|1x 40-pin header. Lead out signals include GPIO0~4, 2-CH I2C, SPI/I2S, UART1
|Bluetooth 4.0 + 2.4GHz WiFi, support 802.11 a/b/g/n/ac (AP6335 module)
|24pin FPC connector. OV5640 model, 5 Megapixels.

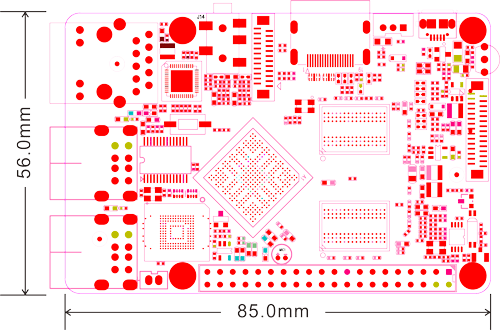

|85.0 x 56.0 mm
|Support 1080P, 720P resolution
|Audio out, MIC
|Micro SD card
|4x USB2.0 Host and 1x USB2.0 OTG
|10/100/1000 Mbit/s Ethernet
|5 Megapixels, OV5640 model
|Support 480i/576i resolution
|Recover, Power on/off (system)
|1x RS232 serial port for debugging
|IR Remote control
|Support IR Remote control
|1x 40Pin(2.0mm pitch) connector for GPIOS and power
|Support Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, video player, Music etc.
|VMware V7+ ubuntu-12.04, java-7-openjdk-amd64.tar.bz2
|SecureCRT, AndroidTool.exe, ADB
Rockchip RK3128 datasheet.pdf (3.0MB)
