CM3399

* Processor: Rockchip RK3399, Dual-core Cortex-A72 @1.8GHz + Quad-core Cortex-A53 @1.4GHz
* RAM: 1/2/4GB LPDDR4
* Storage: 8/16/32/64/128GB
* Pin out: USB2.0 Host, USB3.0 host, USB OTG, UART, MIPI, Ethernet, SPI, HDMI out, I2C, I2S, PCI-E, SDIO, SDMMC, eDP, Camera, PWM, ADC IN
* Operating system: Android 7.1.2, Debian 10, buildroot
* Board size: 55mm x 50mm
* Package: 202-pin, 1.0mm pitch
pdf icon Certificate of conformity, Test Report

Overview
Hardware
Software
Download
Price&Order
FAQ

The Boardcon CM3399 system-on-module is equipped with Rockchip RK3399 dual-core Cortex-A72 + Quad-core Cortex-A53 processor, Mali-T864 GPU, 4GB LPDDR4 and 8GB eMMC.
This System On Module is designed specifically for the AI devices such as IoT devices, intelligent interactive devices, personal computers and robots. The high performance and low power solution can help customers to introduce new technologies more quickly and enhance the overall solution efficiency.

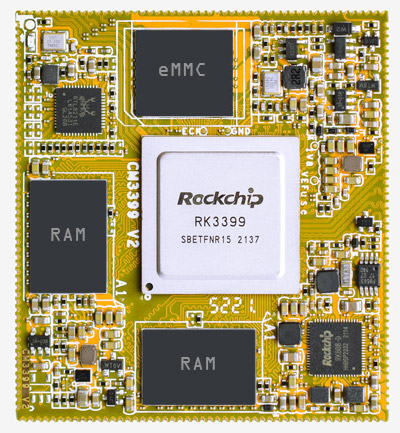

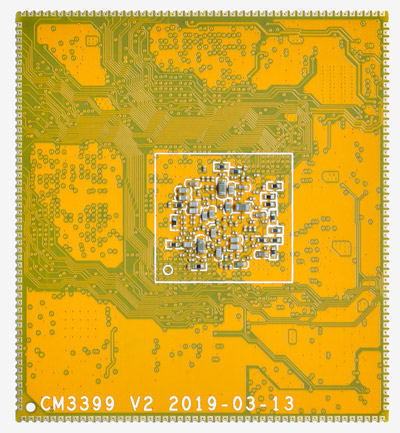

CM3399-rk3399-system-on-module CM3399-system-on-module

Specifications
CPU	Rockchip RK3399, Dual 64-bit Cortex-A72@1.8GHz + Quad Cortex-A53 @ 1.4GHz

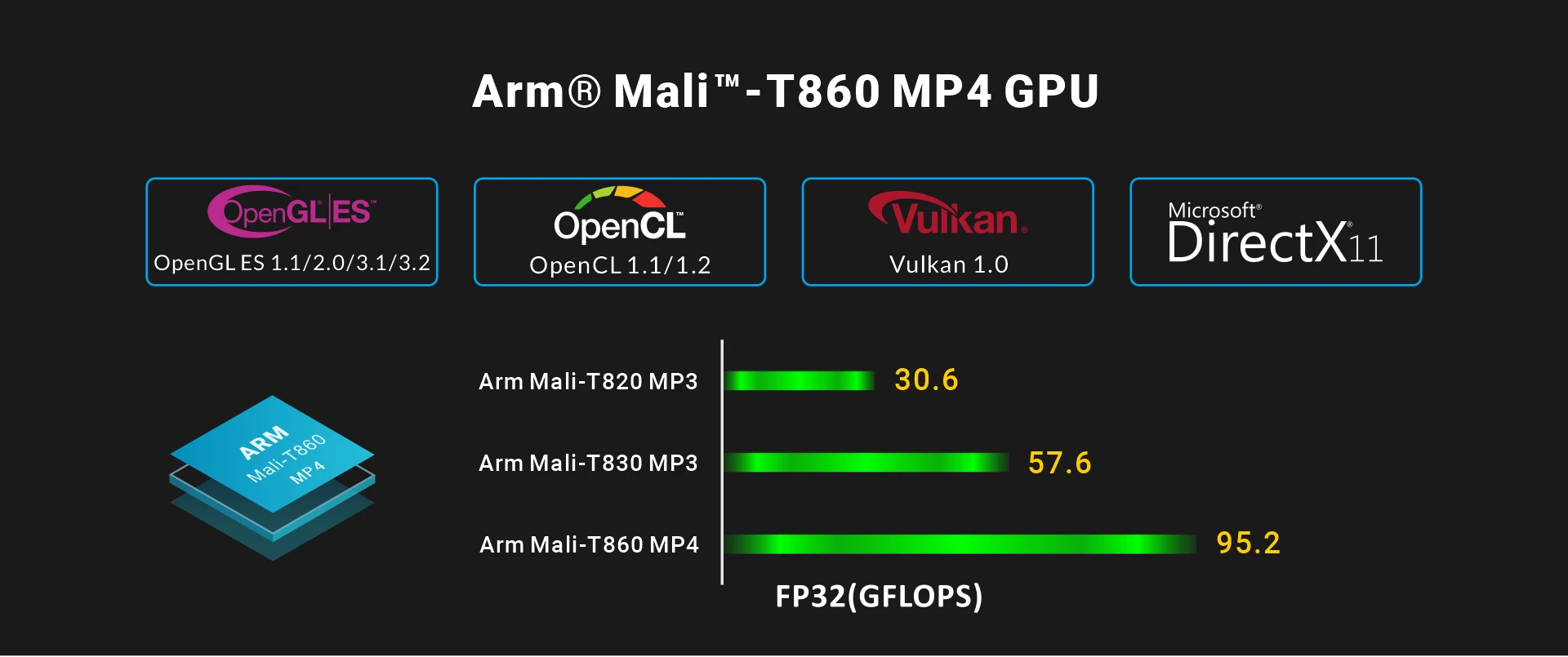

GPU	ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 etc.
Memory	1/2/4GB LPDDR4
Storage	8/16/32/64/128GB eMMC
Supply Voltage	DC 5V

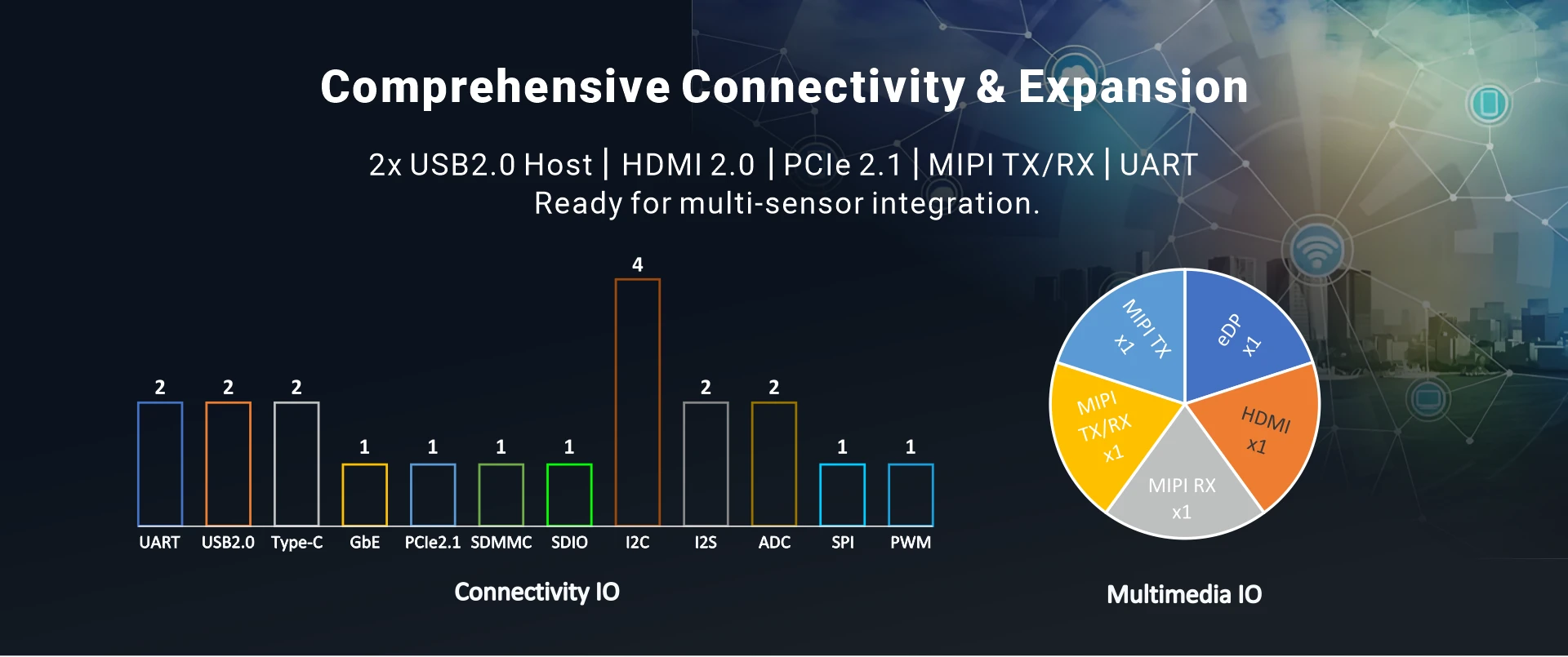

Pin out	USB2.0 Host, USB3.0 host, USB OTG, UART, MIPI, Ethernet, SPI, HDMI out, I2C, I2S, PCI-E, SDIO, SDMMC, eDP, Camera, PWM, ADC IN, etc.
PCB Layer	8
Dimensions	55 x 50 mm
Package	202-pin, 1.0mm pitch
Application	AI devices such as IoT devices, intelligent interactive devices, personal computers and robots
Development Board	Idea3399

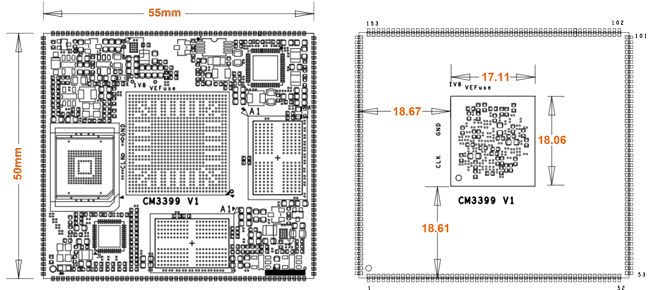

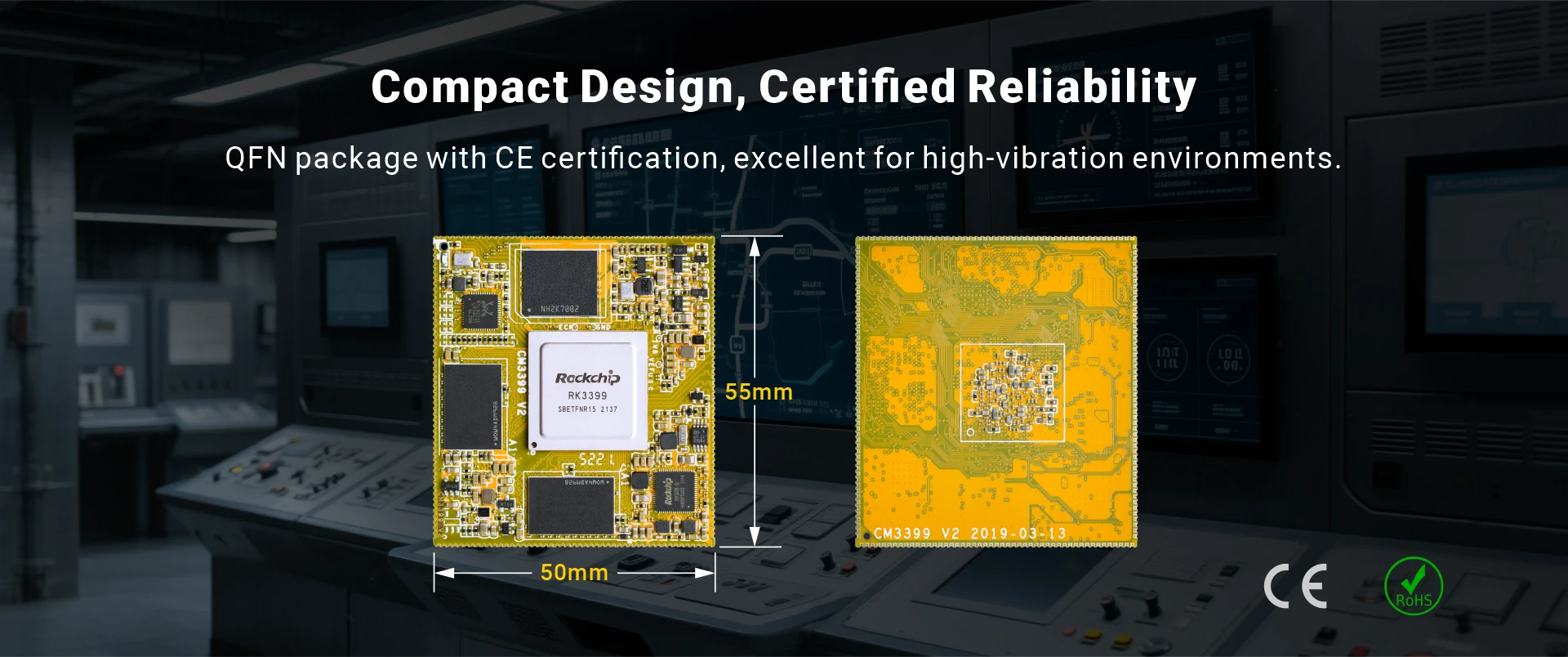

icon Board Dimension

CM3399-PCB-dimension

icon Pin Definition

Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	SDMMC_CMD	53	I2S0_SDO0	102	VCC_SYS	154	GND
2	SDMMC0_DET_L	54	I2S0_SDO1	103	VCC_SYS	155	TYPEC0_DP
3	SDMMC_D0	55	I2S0_SDO2	104	VCC3V3_SYS	156	TYPEC0_DM
4	SDMMC_D1	56	I2S0_SDO3	105	VCC3V3_SYS	157	TYPEC0_RX2N
5	SDMMC_D2	57	I2S0_SDI0	106	GND	158	TYPEC0_RX2P
6	SDMMC_D3	58	LCD_BL_PWM	107	RTC_CLKO_WIFI	159	VBUS_TYPEC0
7	ADKEY_IN	59	PCIE_PRSNT	108	VCCA1V8_CODEC	160	TYPEC1_DM
8	ADC_IN2	60	UART2DBG_RX	109	VBuck	161	TYPEC1_DP
9	LED1_AD1	61	UART2DBG_TX	110	VCC_RTC	162	TYPEC1_U2VBUSDET
10	LED0_AD0_SPDIF-TX	62	I2C_SCL_HDMI	111	VCC3V3_S0	163	HOST1_DP
11	GND	63	I2C_SDA_HDMI	112	VCCA3V0_CODEC	164	HOST1_DM
12	MDI0+_UART1-TX	64	3V_GPIO4_D4	113	VCC1V8_DVP	165	GND
13	MDI0-_UART1-RX	65	PCIE_PERST#	114	VCC3V0_TOUCH	166	TYPEC1_TX1P
14	MDI1+_SPI0-TXD	66	3V_GPIO4_C5	115	MIPI_TX_D3N	167	TYPEC1_TX1N
15	MDI1-_SPI0-CSn0	67	3V_GPIO4_D2	116	MIPI_TX_D3P	168	TYPEC1_RX2N
16	MDI2+_SPI0-CLK	68	TOUCH_RST_L	117	MIPI_TX_D2N	169	TYPEC1_RX2P
17	MDI2-_SPI0-RXD	69	3V_GPIO4_D0	118	MIPI_TX_D2P	170	TYPEC1_RX1P
18	MDI3+_UART3-TX	70	HDMI_CEC	119	MIPI_TX_CLKN	171	TYPEC1_RX1N
19	MDI3-_UART3-RX	71	3V_GPIO4_D3	120	MIPI_TX_CLKP	172	TYPEC1_TX2P
20	BT_HOST_WAKE_L	72	3V_GPIO4_D1	121	MIPI_TX_D1N	173	TYPEC1_TX2N
21	GPIO1_A2	73	GND	122	MIPI_TX_D1P	174	TYPEC1_AUXM
22	WIFI_REG_ON_H	74	SDIO0_CLK	123	MIPI_TX_D0N	175	TYPEC1_AUXP
23	WIFI_HOST_WAKE_L	75	SDIO0_CMD	124	MIPI_TX_D0P	176	GND
24	CIF_CLKOUT	76	SDIO0_D0	125	GND	177	PCIE_RX1_P
25	OTP_OUT_H	77	SDIO0_D1	126	MIPI_RX_D3P	178	PCIE_RX1_N
26	I2C4_SCL	78	SDIO0_D2	127	MIPI_RX_D3N	179	PCIE_TX1P
27	ALRT_H	79	SDIO0_D2	128	MIPI_RX_D2P	180	PCIE_TX1N
28	I2C4_SDA	80	BT_WAKE_L	129	MIPI_RX_D2N	181	PCIE_RX0_P
29	SPI1_CSn0	81	UART0_RXD	130	MIPI_RX_CLKP	182	PCIE_RX0_N
30	SPI1_TXD	82	UART0_RTS	131	MIPI_RX_CLKN	183	PCIE_TX0P
31	GPIO1_A1	83	UART0_CTS	132	MIPI_RX_D1P	184	PCIE_TX0N
32	BT_REG_ON_H	84	UART0_TXD	133	MIPI_RX_D1N	185	PCIE_REF_ CLKN
33	SPI1_CLK	85	HDMI_HPD	134	MIPI_RX_D0P	186	PCIE_REF_CLKP
34	SPI1_RXD	86	TYPEC0_ID	135	MIPI_RX_D0N	187	GND
35	CIF_PDN0	87	POWER_KEY	136	GND	188	HOST0_DP
36	I2C2_SCL	88	Reset_KEY	137	TX_C-	189	HOST0_DM
37	I2C2_SDA	89	PMIC_EXT_EN	138	TX_C+	190	GND
38	I2C6_SCL	90	GND	139	TX_0-	191	eDP_TX3P
39	I2C6_SDA	91	MIPI_TX/RX_D0P	140	TX_0+	192	eDP_TX3N
40	GPIO1_A3	92	MIPI_TX/RX_D0N	141	TX_1-	193	eDP_TX2P
41	GPIO1_A0	93	MIPI_TX/RX_D1P	142	TX_1+	194	eDP_TX2N
42	PWM3_IRIN	94	MIPI_TX/RX_D1N	143	TX_2-	195	eDP_TX1P
43	PCIE_WAKE#	95	MIPI_TX/RX_CLKP	144	TX_2+	196	eDP_TX1N
44	I2C1_SCL	96	MIPI_TX/RX_CLKN	145	GND	197	eDP_TX0P
45	I2C1_SDA	97	MIPI_TX/RX_D2P	146	TYPEC0_AUXP	198	eDP_TX0N
46	I2S1_LRCK	98	MIPI_TX/RX_D2N	147	TYPEC0_AUXM	199	eDP_AXUP
47	I2S1_SDO0	99	MIPI_TX/RX_D3P	148	TYPEC0_RX1P	200	eDP_AXUN
48	I2S_CLK	100	MIPI_TX/RX_D3N	149	TYPEC0_RX1N	201	GND
49	I2S1_SDI0	101	GND	150	TYPEC0_TX1N	202	SDMMC_CLK
50	I2S1_SCLK			151	TYPEC0_TX1P
51	I2S0_LRCK			152	TYPEC0_TX2P
52	I2S0_SCLK			153	TYPEC0_TX2N

OS	Item	Feature	Description
Android7.1.2	Boot	uboot 2014.10	rk3399_loader_v1.17.115.bin
	Kernel	Version	Linux 4.4.126
	Drivers	HDMI	Support 4K, 1080P, 720P, 480P resolution
		Audio	Audio in/out
		SD card	Micro SD card
		USB	USB mouse, USB keyboard, USB storage etc.

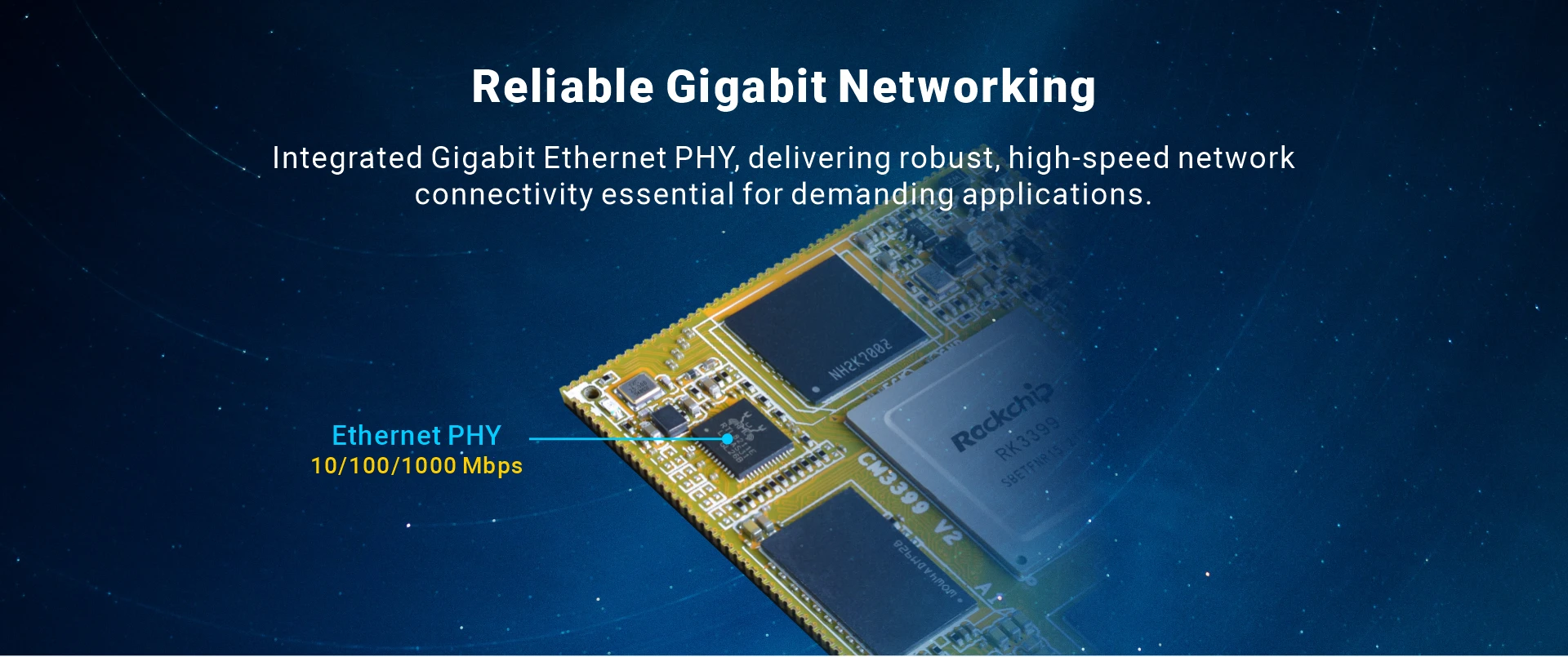

		Ethernet	10/100/1000 Mbit/s Ethernet
		mDP	Support
		Camera	13 Megapixels, OV13850 model
		WiFi	Wireless-2.4GHz/5GHz 802.11 a/b/g/n/ac
		Bluetooth	Bluetooth 4.1, AP6356 module
		Serial Port	Debug serial
		PCI-E	Support SSD
		GPU	Support AFBC
		eMMC	Support eMMC 5.1
		4G	EC20 LTE
		GPS	EC20
		Type-c *2	convert to HDMI/USB3.0/USB2.0.
		IR	IR in
		LCD	10.1-inch MIPI LCD with touch screen
	Embedded GUI	Android7.1.2	Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, video player, Music etc.
	Cross-compiler Environment	ubuntu-16.04, java-8-openjdk-amd64.tar.bz2
	Debug Tools	SecureCRT, AndroidTool.exe, ADB

OS	Item	Feature	Description
Buildroot	Boot	U-Boot 2017.09	rk3399_loader_v1.24.126.bin
	Kernel	Version	Linux 4.19.193
	Drivers	HDMI OUT	Support up to 4K@60Hz
		MIPI DSI	Support up to 1080@60Hz
		Audio	headphone(in/out)
		USB2.0	Support
		USB Type-C	2x USB Type-C. Support convert to HDMI/USB
		Ethernet	Gigabit Ethernet
		SD card	Micro SD card
		WiFi	Wireless-2.4GHz/5GHz 802.11 a/b/g/n/ac
		Camera	OV13850 model
		PCIE	PCIE NVME SSD
		FAN	Support
		Serial Port	Debug serial
		RTC	PCF8563TS
	Embedded GUI	QT	qfm, qplayer, qsetting, multivideoplayer, qcamera
	Cross-compiler Environment	ubuntu-18.04
	Debug Tools	SecureCRT, AndroidTool.exe, ADB
