EM3568

* Processor: Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz
* NPU: 1 TOPS
* RAM: 2GB LPDDR4
* Storage: 8GB
* Interfaces: 3x UART, Debug serial port, CAN, RS485, USB3.0 Host, 3x USB2.0 Host, USB2.0 OTG, 2x Gigabit Ethernet, HDMI, SATA3.0, MIPI DSI/LVDS, LCD(RGB), eDP, 2x MIPI Camera, GPIO, SD, PCIe, Audio I/O, etc.
* Operating system: Android 12, Debian 11, Buildroot
* Board size: 135mm x 100mm
* Expansion Module: 4G model, WiFi, Camera, 7-inch LCD, 10.1-inch LCD

     RK3568 system on module

Rockchip RK3568 is a low power quad-core application processor. It made in 22nm process technology, integrated 4-core ARM architecture A55 processor and Mali G52 2EE graphics processor, supporting 4K decoding and 1080P encoding. In addition, it is also equipped with a third-generation AI processor to effectively meet the performance requirements of smart vision, industrial control, and IoT gateway applications
Boardcon EM3568 single board computer is based on RK3568 and designed specifically for AIoT and industrial applications with 2GB RAM (up to 8GB), 8GB storage (up to 128GB), optional WiFi and Bluetooth, Camera and 4G modules.
The SBC features two Gigabit Ethernet port to meet the high-speed network requirements, as well as High-speed expansion interface such as SATA3.0, USB3.0 port. Multi-screen different display is also supported, and EM3568 integrates eDP/MIPI/LVDS/RGB interfaces.
In addition, the SBC provides some general data interfaces such as UART(TTL), RS485, and CAN.

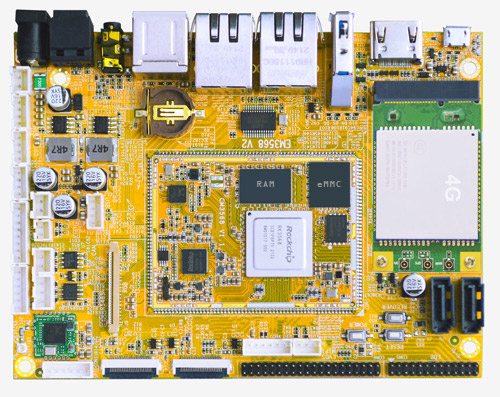

RK3568 single board computer

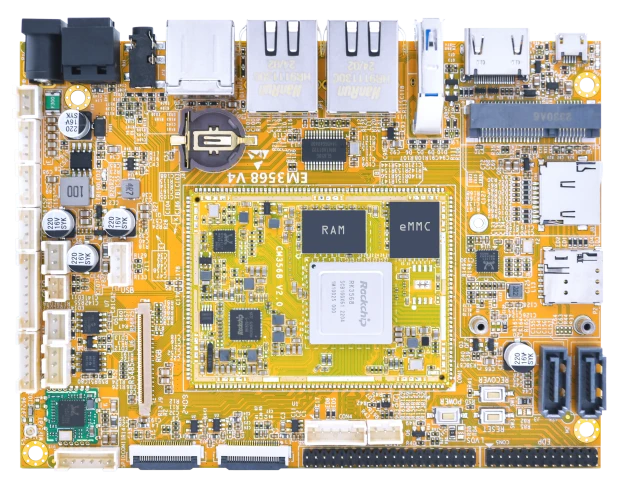

       RK3568 SBC
