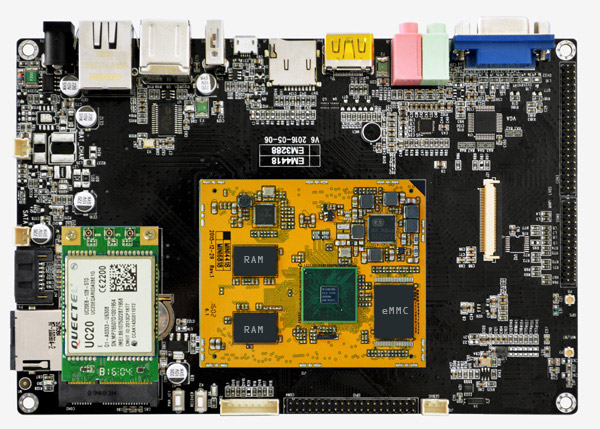

Boardcon EM4418 SBC uses the Cortex-A9 quad core, which is 50% overall performance higher than Cortex-A8 core. It provides 6.4GB/s memory bandwidth for heavy traffic operations such as 1080p video encoding and decoding, 3D graphics display and high resolution image signal processing with Full HD display. The application processor supports dynamic virtual address mapping, which helps software engineers to fully utilize the memory resources with ease.
EM4418 provides the best 3D graphics performance with wide range of APIs, such as OpenGL ES 1.1, 2.0.Superior 3D performance fully supports Full HD display. The native dual display, in particular, supports Full HD resolution of a main LCD display and 1080p 60frame HDTV display throughout HDMI, simultaneously.

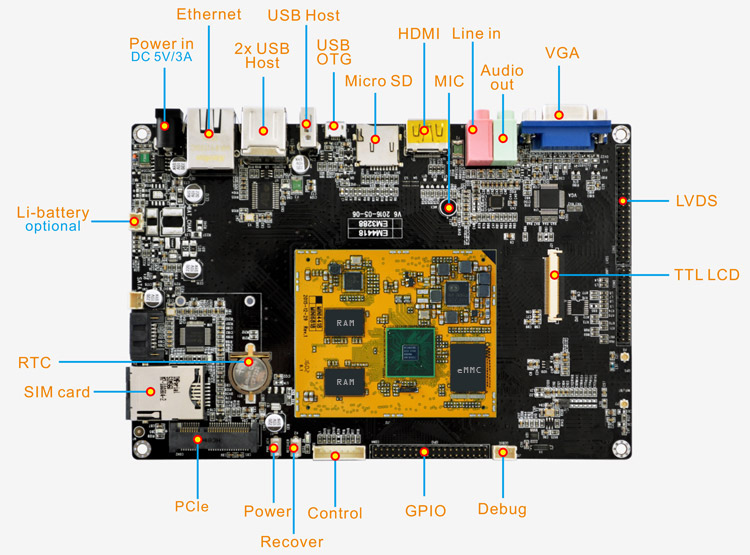

The EM4418 SBC provides mounting and power for the cpu SOM, and adds signal conditioning and connectors for functions including 3x USB 2.0 host ports, 1x USB2.0 OTG port, 1x debug serial port, and display interfaces. It also includes a microSD slot and optional 3G module.
The EM4418 is pre-installed with Android 4.4.2 and offer Linux 3.4.39 kernel with uboot, and it can provide cost - effective of embedded solutions for MID, multimedia advertising, intelligent control terminals, and smart instrumentation.
Specifications | |
---|---|
CPU | · S5P4418, Cortex-A9 Quad-Core, 1.4GHz · 28nm HKMG process |
Memory | 1GB DDR3 |
Storage | 8GB eMMC Flash |
Power | 5V/3A |
USB | 3x USB2.0 Host, 1x USB2.0 OTG |
LCD | 1x 40-pin LVDS |
VGA | 1x VGA connector |
Ethernet | Support Gigabit Ethernet, RJ45 interface. RTL8211E-VB-CG controller |
Serial port | 1x 3pin connector, for debug |
HDMI | HD Video/Audio output interface, HDMI1.4a |
Audio | 3.5mm jacks, MIC. ES8388 audio codec |
SD card | 1x Micro SD card slot |
3G (Option) | MF210 |
USB camera (Option) | Supporting most of USB CMOS camera on the market |
RTC | Real Time Clock, powered by external lithium battery |
Button | Power, Recover |
GPIO | 1x 8-pin Control; 1x 40-pin GPIO |
Other interfaces | 1x 3G Module, 1x SIM Card, 1x Lithium battery interface |
Dimension | 117.5 x 175.3mm |
PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Android4.4 | Bootloader | version | Uboot-2014.07 |
Main functions | 1.Supporting iNand erase/write/read 2.Supporting USB download Image 3.Supporting print, set, save Environment Variables 4.Supporting bootm, bootargs setting |
||
Image update | Support updating image from SD card or USB, sd0boot.vhd | ||
Kernel and drivers | version | Linux 3.4.39 | |
Serial ports | Support | ||
RTC | Support | ||
LCD | Support. 7-, 10.1-inch LCD including Touch Screen | ||
SD card | Support | ||
USB Host | Support | ||
USB OTG | Support | ||
LEDs | Support | ||
PWM | Support | ||
IIC | Support | ||
SPI | Support | ||
MFC | Support | ||
HDMI | Support | ||
JPEG | Support | ||
Network | Support | ||
3G | Support | ||
VGA | Support | ||
Audio | Support | ||
File System | File System | ext4File System | |
Embedded GUI | Android4.4 | ||
Protocol | Network Protocol | TCP/IP protocol, Telnet, FTP Client/server, boa web server | |
Application | Alarm Clock | A clock that wakes sleeper at preset time | |
Browser | Used to view documents | ||
Gallery | Gallery | ||
Calculator | An expert at calculation | ||
Camera | Equipment for taking photographs | ||
Phone | Telephone set | ||
Electronic communication | |||
Maps | A diagrammatic representation of the earth's surface | ||
ES File Explorer | ES File Explorer | ||
Mediaplayer | private MediaPlayer mPlayer | ||
Music | Musical activity | ||
Cross compiler Environment | JDK1.6 | ||
Debug Tools | DNW, VMware7.0 |
