CM3288

* Processor: Rockchip RK3288 quad core ARM Cortex A17 processor @ 1.8 GHz
* RAM: 1GB/2GB LPDDR3
* Storage: 4/8/16/32GB
* Pin out: USB2.0 Host, USB OTG, UART, MIPI CSI/DSI, Ethernet, SPI, HDMI, I2C, SDIO, SDMMC, PWM, ADC
* Operating system: Android 9, Android7.1.2, Ubuntu16.04
* Board size: 46mm x 60mm

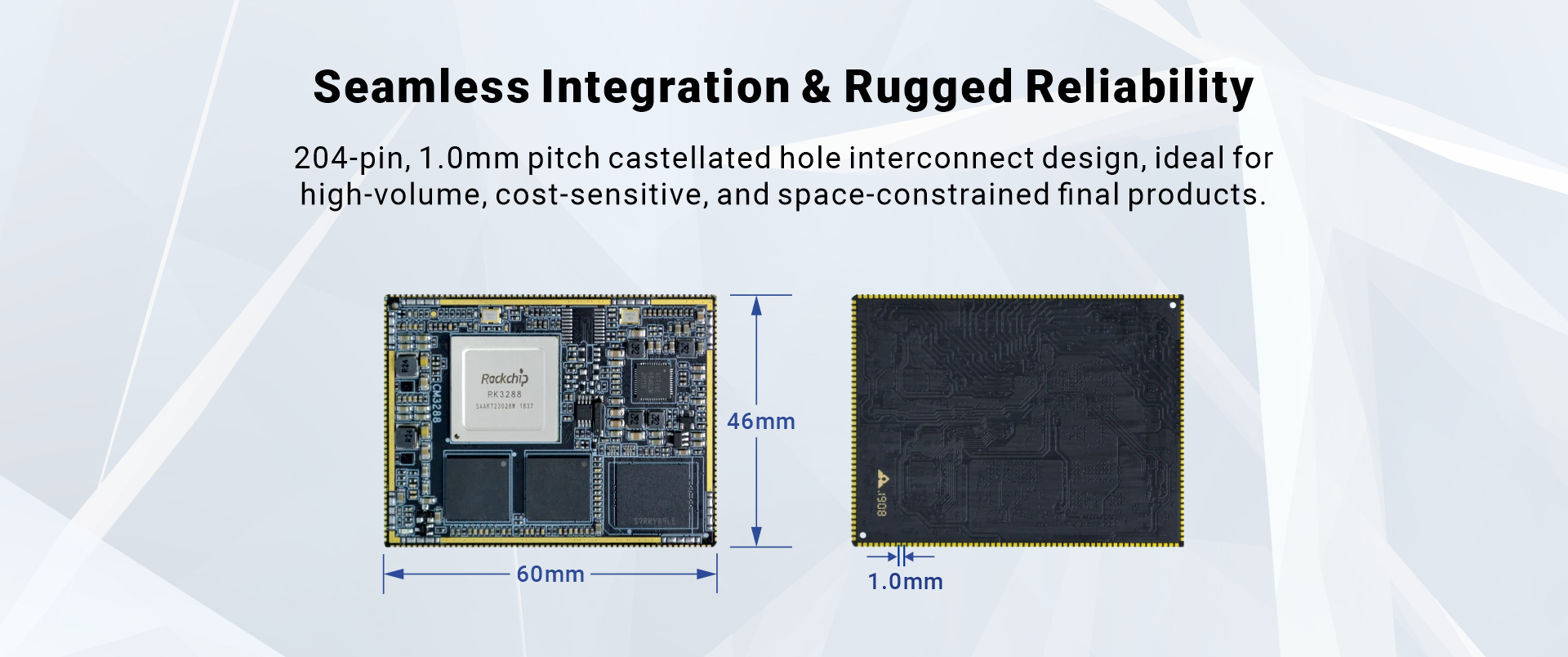

* Package: 204-pin, 1.0mm pitch

Overview
Hardware
Software
Download
Price&Order
FAQ

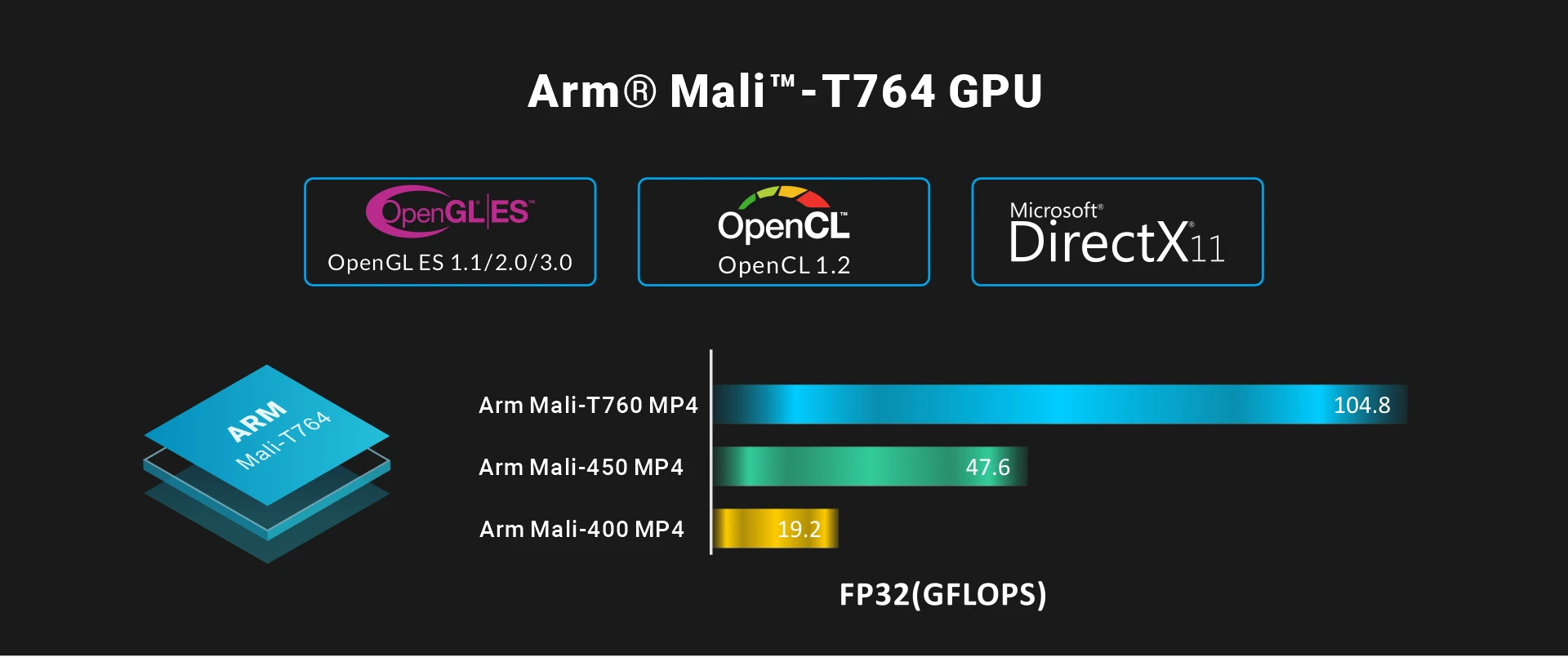

The CM3288 SoM is built around a quad-core ARM-based Rockchip RK3288 processor. To provide the flexibility needed for different builds and projects, CM3288 SoM features 2GB of LPDDR3 dual-channel memory. Powered by an ARM-based Mali™-T764 GPU, this RK3288 SoM allow for a wide range of uses, including Advertising machine, Vending machine, Commercial display device, Intelligent POS machine, Intelligent robot, Education video terminal, Intelligent control, etc.

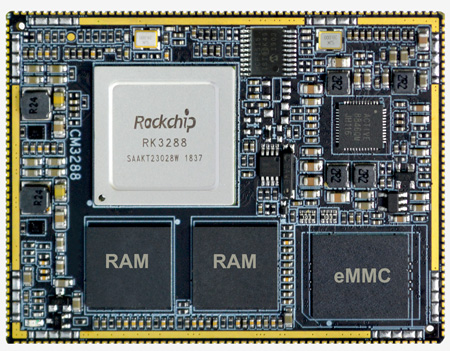

CM3288-system-on-module

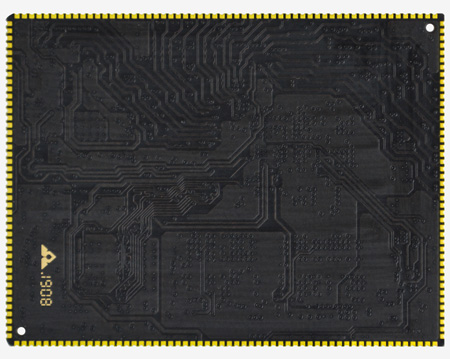

CM3288-RK3288-system-on-module

Specifications
CPU	Rockchip RK3288 quad core ARM Cortex A17 processor, 1.8 GHz

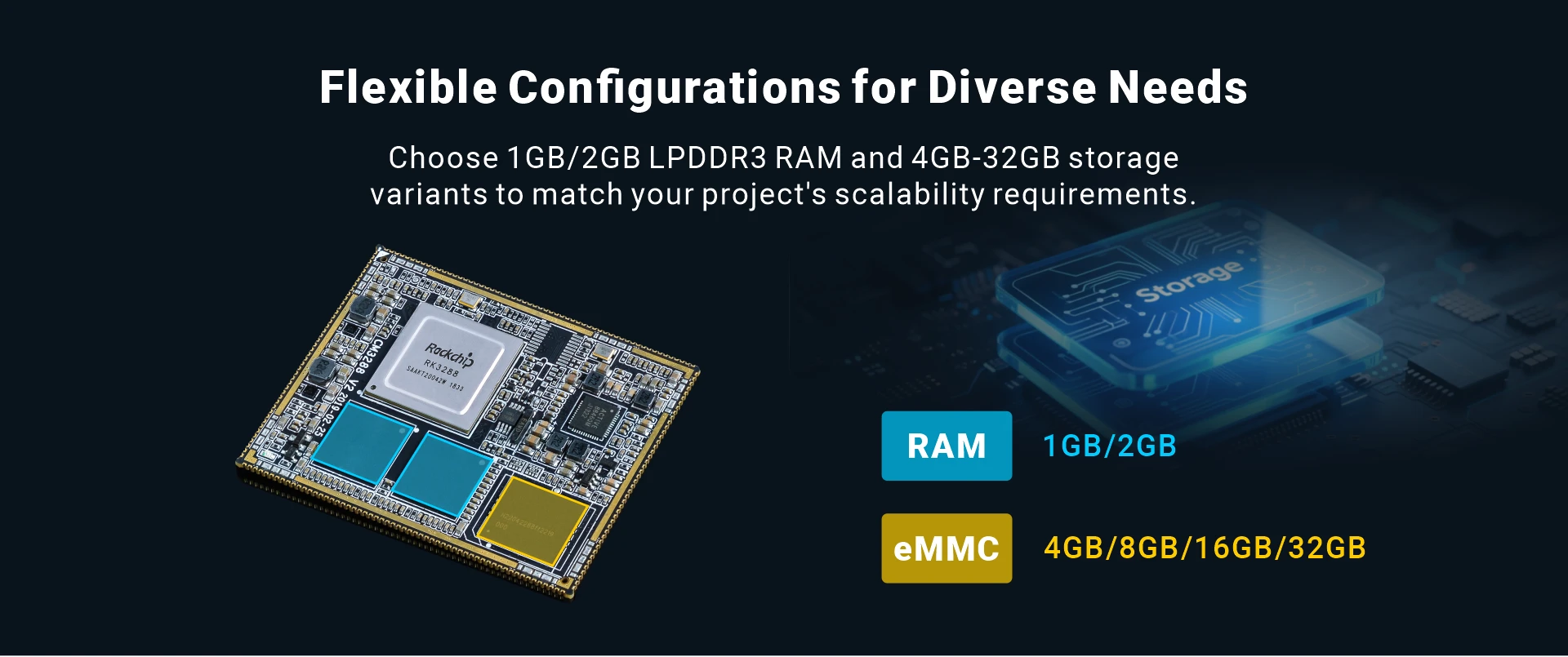

Memory	1GB/2GB LPDDR3
Storage	4/8/16/32GB eMMC
Supply Voltage	DC 5V

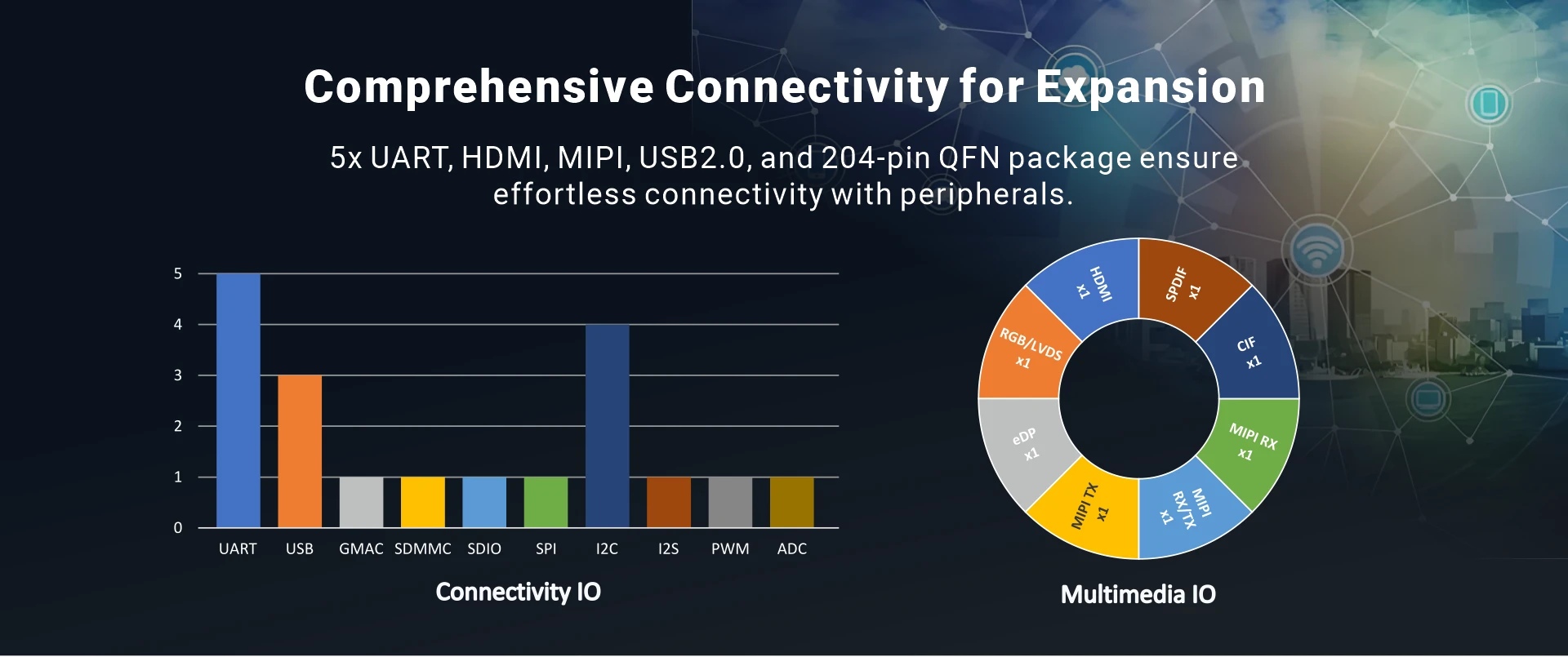

Pin out	USB2.0 Host, USB OTG, UART, MIPI CSI/DSI, eDP, Ethernet, SPI, HDMI, I2C, I2S, GPIO, SDIO, SDMMC, PWM, ADC, etc.
PCB Layer	8
Dimensions	60 x 46 mm
Package	204-pin, 1.0mm pitch
Application	Advertising machine, Vending machine, Commercial display device, Intelligent POS machine, Intelligent robot, Education video terminal, Intelligent control
Development Board	Idea3288

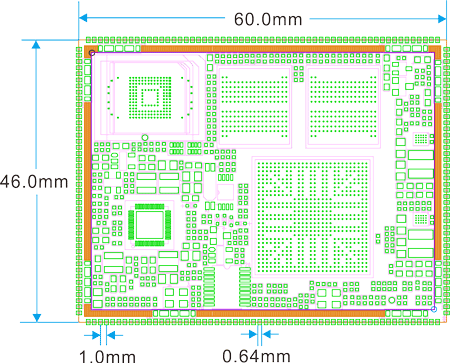

icon PCB Dimension

CM3288 PCB Dimension

icon Pin Definition

Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	OTG_DM	45	MAC_CLK	103	GPIO4_D3_D	147	VCC_SYS
2	OTG_DP	46	PHY_PMEB	104	UART2_RX	148	VCC_SYS
3	OTG_ID	47	MAC_MDIO	105	UART2_TX	149	PWRHOLD
4	PWM0	48	MAC_MDC	106	UART1_RX	150	EDP_TX3N
5	PWM1	49	PHY_RST	107	UART1_TX	151	EDP_TX3P
6	GPIO7_A2_D	50	PHY_TXEN	108	ADC_IN1_RECOVER	152	EDP_TX2N
7	GPIO7_A3_D	51	PHY_TXD3	109	PWR_KEY	153	EDP_TX2P
8	LCD_HSYNC	52	PHY_TXD2	110	RST_KEY	154	EDP_TX1N
9	LCD_VSYNC	53	PHY_TXD1	111	SPDIF_TX	155	EDP_TX1P
10	LCD_DEN	54	PHY_TXD0	112	CIF_D2	156	EDP_TX0N
11	LCD_CLK	55	PHY_TXCLK	113	CIF_D1	157	EDP_TX0P
12	LCD_D8_LD4P	56	PHY_INT	114	CIF_D3	158	EDPAUXN
13	LCD_D9_LD4N	57	MAC_RXCLK	115	CIF_D0	159	EDPAUXP
14	LCD_D20_LD9P	58	MAC_RXD3	116	CIF_D4	160	GND
15	LCD_D21_LD9N	59	MAC_RXD2	117	CIF_CLKIN	161	HDMI_HPD
16	LCD_D0_LD0P	60	MAC_RXD1	118	CIF_D5	162	I2C5_SCL
17	LCD_D1_LD0N	61	MAC_RXD0	119	CIF_D6	163	I2C5_SDA
18	LCD_D2_LD1P	62	MAC_RXDV	120	CIF_CLKOUT	164	HDMI_CEC
19	LCD_D3_LD1N	63	GND	121	CIF_D7	165	TX_C-
20	LCD_D4_LD2P	64	SDMMC_DET	122	VCC18_DVP	166	TX_C+
21	LCD_D5_LD2N	65	SDMMC_D1	123	CIF_HREF	167	TX_0-
22	LCD_D10_LCK0P	66	SDMMC_D0	124	CIF_D11	168	TX_0+
23	LCD_D11_LCK0N	67	SDMMC_CLK	125	CIF_VSYNC	169	TX_1-
24	LCD_D6_LD3P	68	SDMMC_PWR	126	I2C3_SCL	170	TX_1+
25	LCD_D7_LD3N	69	SDMMC_CMD	127	I2C3_SDA	171	TX_2-
26	GND	70	SDMMC_D3	128	GND	172	TX_2+
27	LCD_D12_LD5P	71	SDMMC_D2	129	CIF_D10	173	MIPI_TX/RX_CLKP
28	LCD_D13_LD5N	72	UART0_RTS	130	DVP_PWR	174	MIPI_TX/RX_CLKN
29	LCD_D14_LD6P	73	UART0_TX	131	MIPI_RX_D0N	175	MIPI_TX/RX_D0P
30	LCD_D15_LD6N	74	UART0_RX	132	MIPI_RX_D0P	176	MIPI_TX/RX_D0N
31	LCD_D16_LD7P	75	UART0_CTS	133	MIPI_RX_D1N	177	MIPI_TX/RX_D1P
32	LCD_D17_LD7N	76	BT_RST	134	MIPI_RX_D1P	178	MIPI_TX/RX_D1N
33	LCD_D22_LCK1P	77	VCC_SD0IO	135	MIPI_RX_CLKN	179	MIPI_TX/RX_D2P
34	LCD_D23_LCK1N	78	RTC_CLKOUT	136	MIPI_RX_CLKP	180	MIPI_TX/RX_D2N
35	LCD_D18_LD8P	79	SDIO0_D1	137	MIPI_RX2N_SPI0CLK/ MIPI_RX_D2N	181	MIPI_TX/RX_D3P
36	LCD_D19_LD8N	80	SDIO0_D0	138	MIPI_RX2P_PS2DAT/ MIPI_RX_D2P	182	MIPI_TX/RX_D3N
37	SPI1_CLK	81	SDIO0_CLK	139	MIPI_RX3N_CANRX/ MIPI_RX_D3N	183	MIPI_TX_CLKP
38	SPI1_CSn0	82	SDIO0_CMD	140	MIPI_RX3P_CANTX/ MIPI_RX_D3P	184	MIPI_TX_CLKN
39	SPI1_TXD	83	SDIO0_D3	141	VCC_RTC	185	MIPI_TX_D0P
40	SPI1_RXD	84	SDIO0_D2	142	VCC_IO	186	MIPI_TX_D0N
41	UART3_TX	85	WIFI_HOST_WAKE	143	I2S_SDO2	187	MIPI_TX_D1P
42	UART3_RX	86	WIFI_REG_ON	144	I2S_SDO1	188	MIPI_TX_D1N
43	SPI0_UART4_TXD	87	UART3_CTSn	145	GND	189	MIPI_TX_D2P
44	SPI0_UART4_RXD	88	BT_HOST_WAKE	146	GND	190	MIPI_TX_D2N
		89	BT_WAKE			191	MIPI_TX_D3P
		90	TS0_CLK			192	MIPI_TX_D3N
		91	TS0_ERR			193	I2C4_SDA
		92	I2S_SDI			194	I2C4_SCL
		93	I2S_LRCK_RX			195	GPIO7_A6_U
		94	I2S_LRCK_TX			196	GPIO7_A5_D
		95	I2S_SDO0			197	SPI0_CSn0
		96	I2S_SCLK			198	HOST1_DP
		97	I2S_MCLK			199	HOST1_DM
		98	I2C2_SCL			200	HOST2_DP
		99	I2C2_SDA			201	HOST2_DM
		100	VCCA_CODEC			202	GND
		101	PS2_CLK			203	OTG_VBUS_DRV
		102	GPIO7_C5_D			204	OTG_DET

OS	Item	Feature	Description
Android7.1.2	Boot	Bootloader	MiniLoaderAll.bin
	Kernel	Version	Linux 4.4.112
	Drivers	HDMI	Support 1080P 720P resolution
		Audio	Audio in/out
		SD card	Micro SD
		USB	2x USB2.0 Host, and 1x USB2.0 OTG
		Ethernet	1x 10/100/1000 Mbit/s Ethernet
		mDP	support
		Camera	13-Megapixel, OV13850 module
		WiFi	Wireless - 2.4GHz, 802.11b/g/n
		Bluetooth	Bluetooth4.2
		Serial Port	Debug serial
		PCI-E	Support SSD
		GPU	Support AFBC
		eMMC	Support eMMC 5.1
		4G	EC20 module. Multi-mode LTE/UMTS/GSM Module miniPCIe
		GPS	EC20 combines GPS receiver
		IR	support
		LCD	LVDS
	Embedded GUI	Android7.1.2	Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, video player, Music etc.
	Cross-compiler Environment	ubuntu-16.04, java-8-openjdk-amd64.tar.bz2
	Debug Tools	SecureCRT, AndroidTool.exe, ADB
