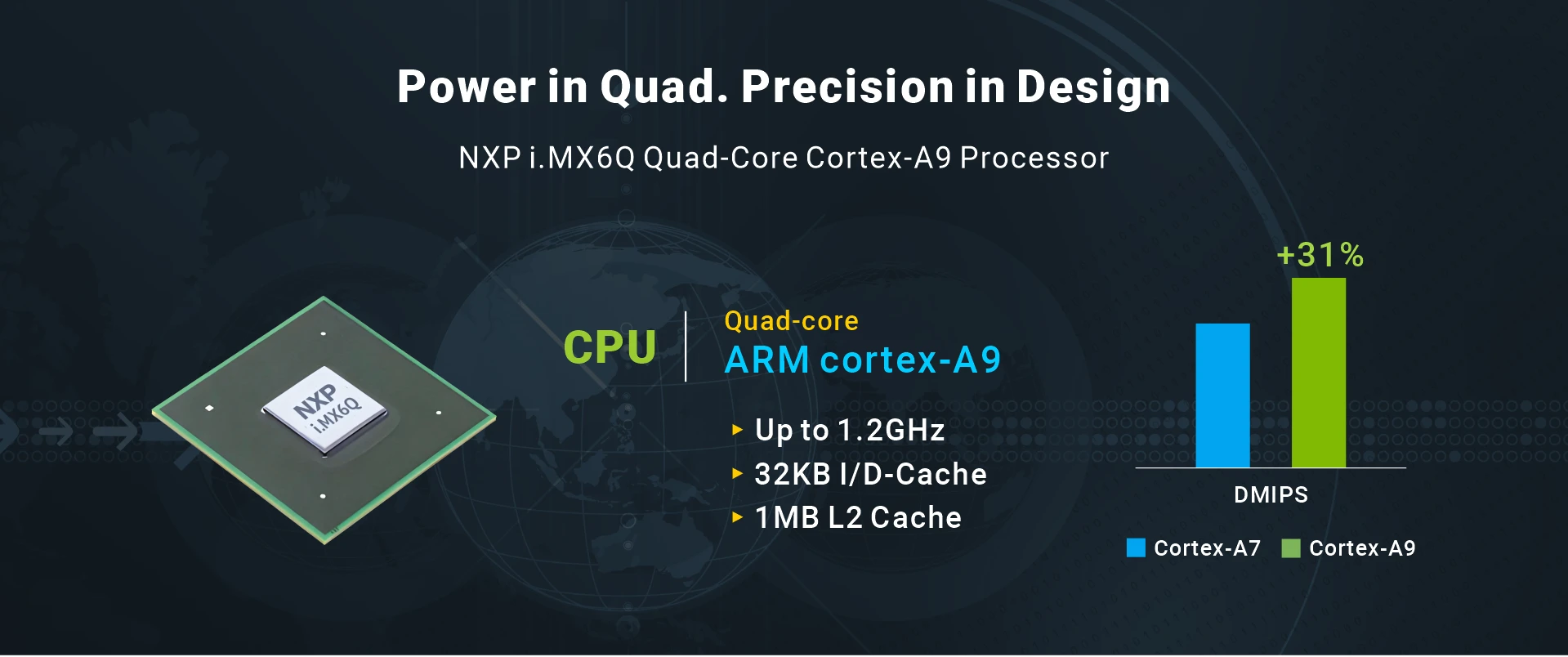

* Processor: Freescale i.MX6Q quad-core ARM® Cortex™-A9 CPU @1.2GHz
* RAM: 1GB/2GB optional
* Storage: 4GB/8GB(32GB extendable) eMMC

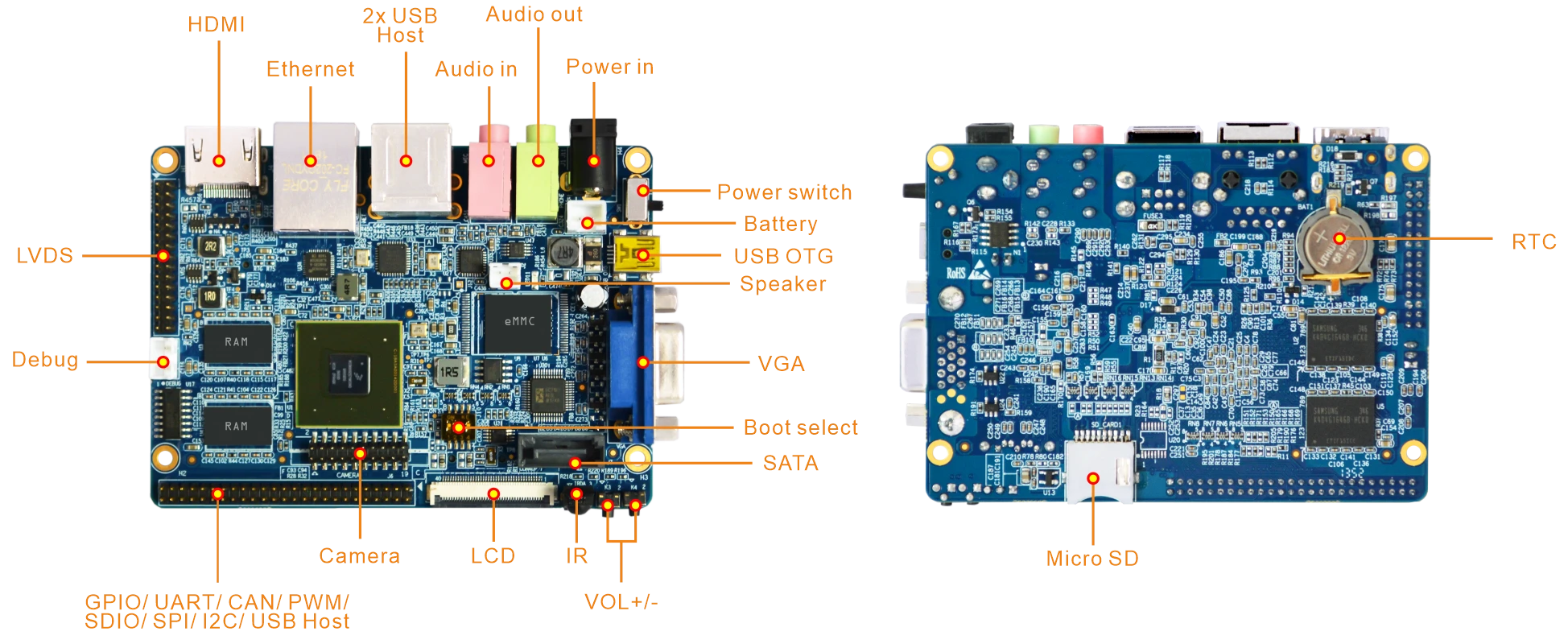

* Interface: 2x USB Host, 1x USB OTG, 1x UART(RS232), HDMI, VGA, Audio, SPK, Ethernet, LCD, LVDS, RTC, TF, SATA, Camera, Battery connector
* Operating system: Android6.0, Ubuntu 16.04, Linux4.1
* Board size: 100mm x 72mm

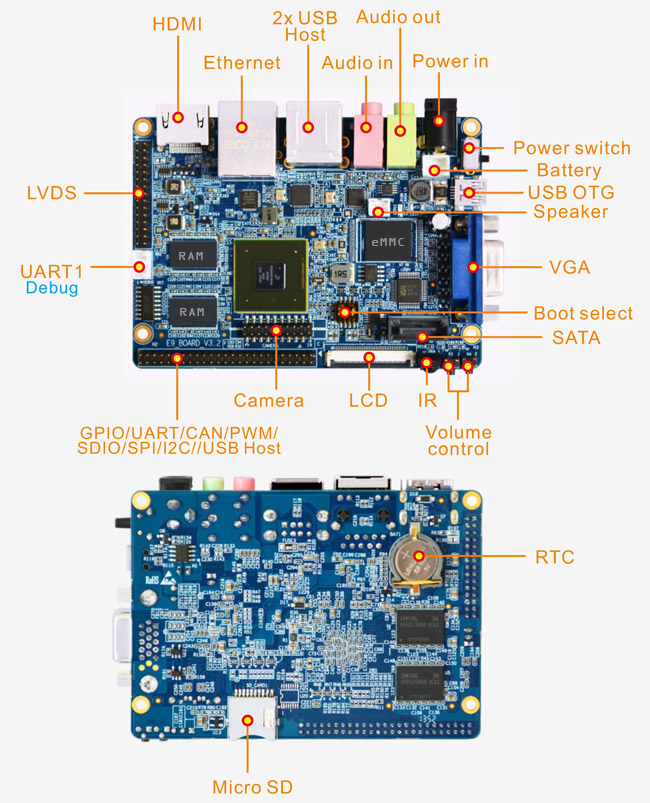

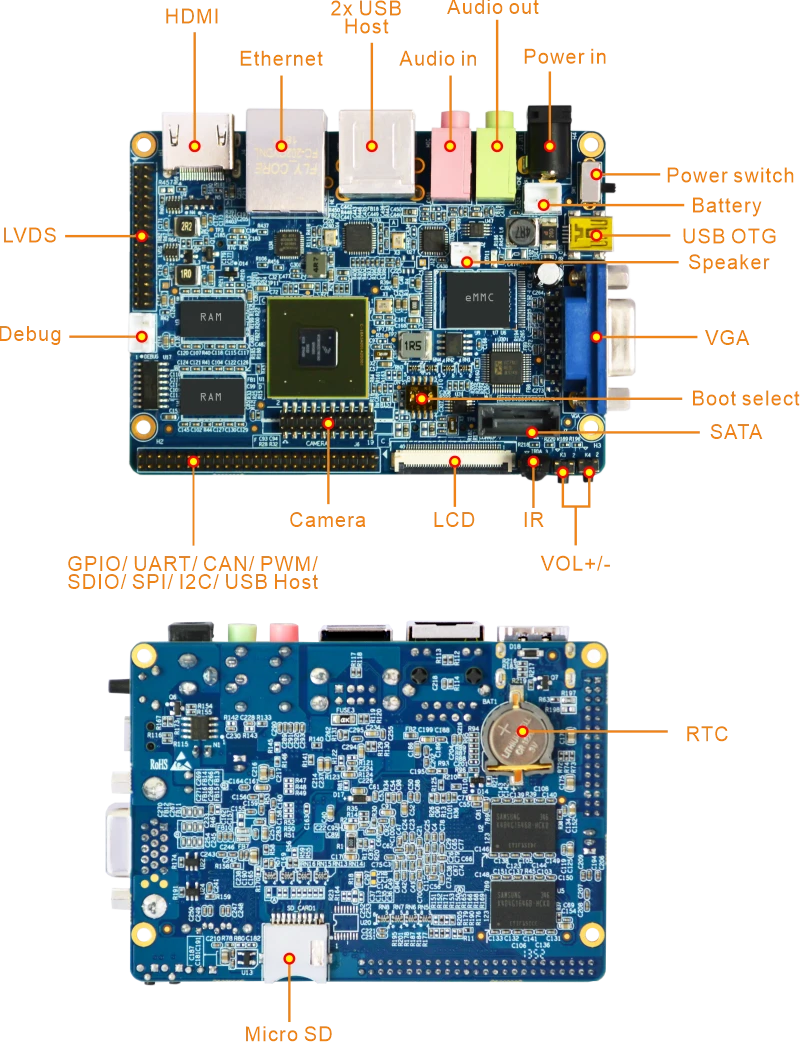

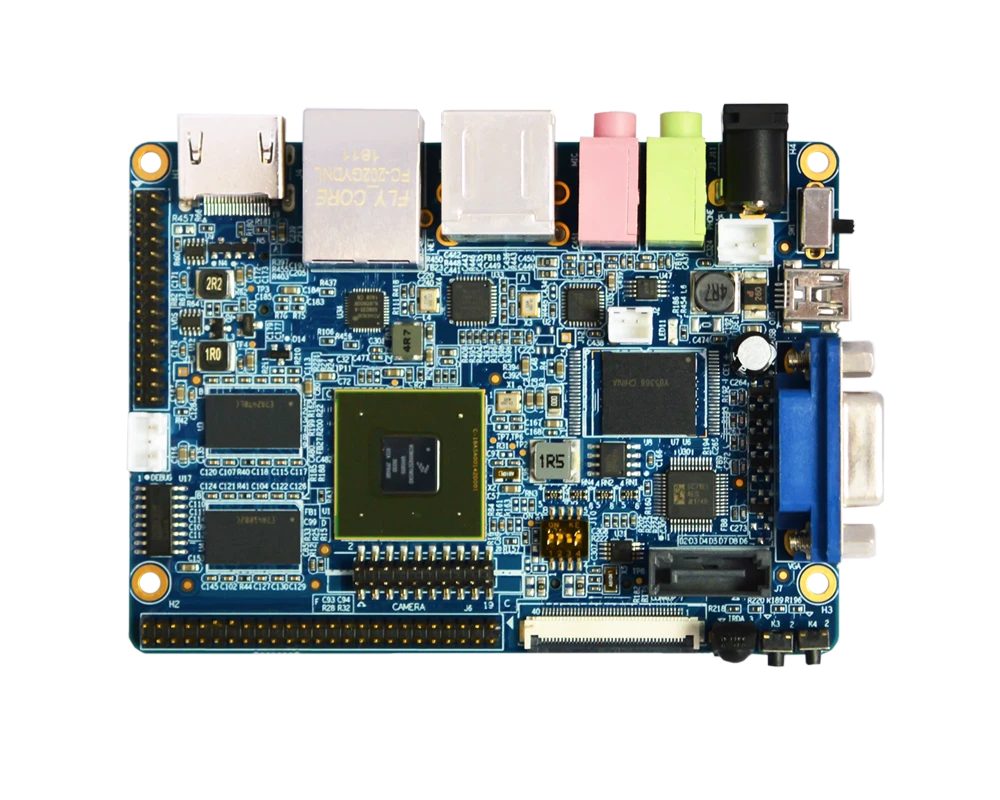

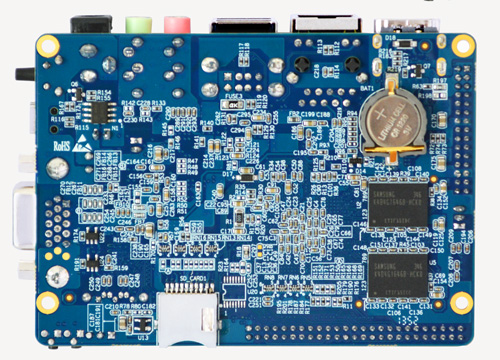

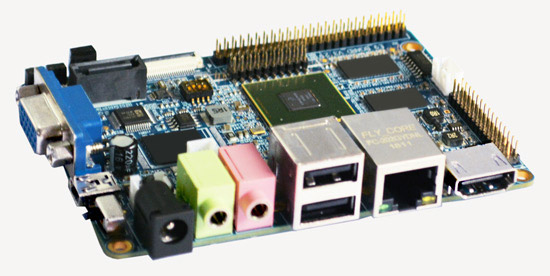

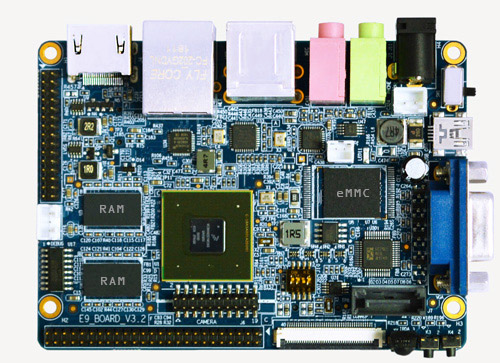

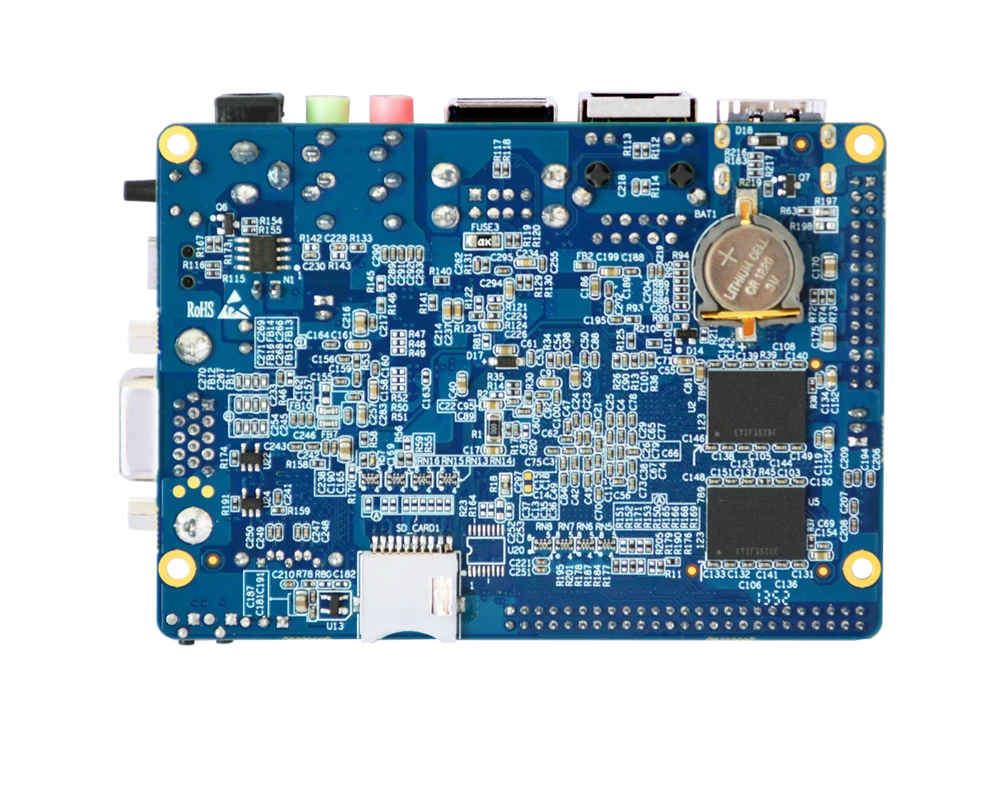

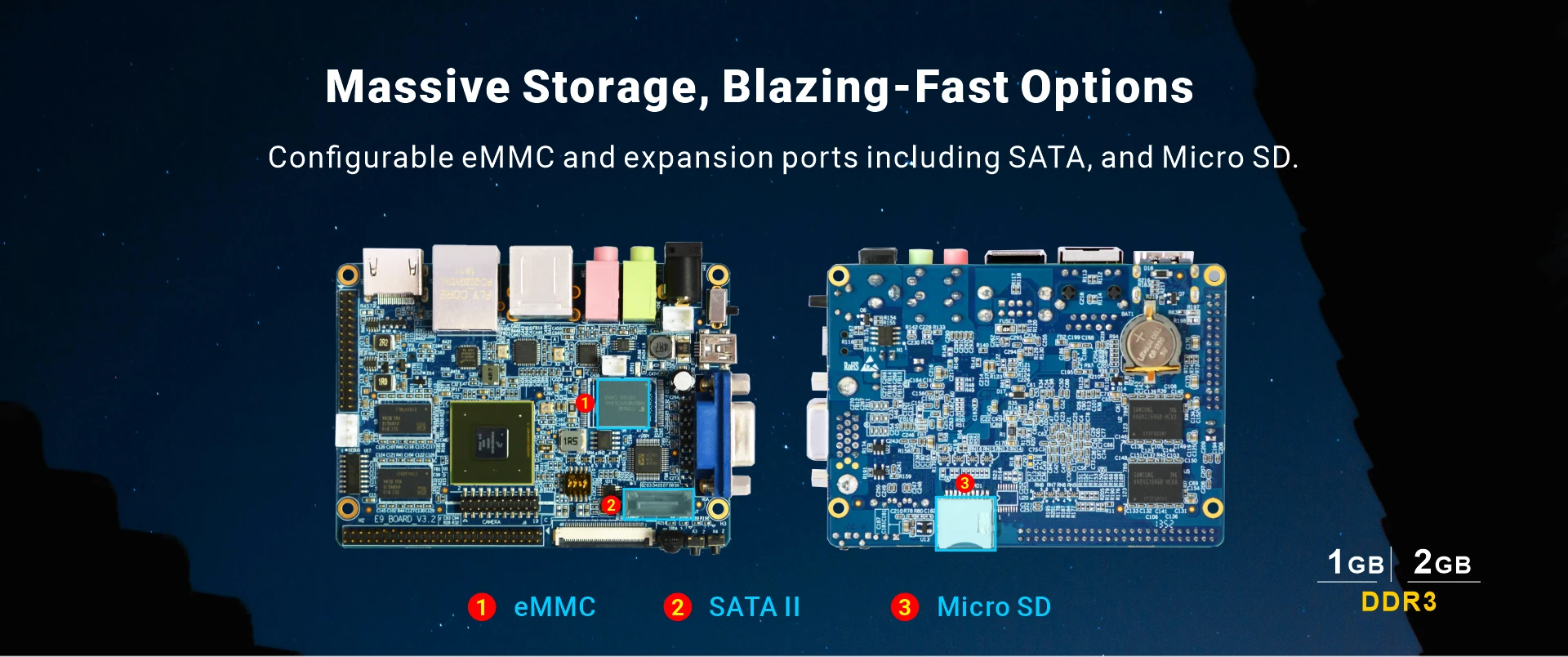

The design of the CompactIMX6 is based on Freescale’s i.MX6Q CPU, which is paired with a GC2000 GPU, offering quad-core ARM Cortex™-A9 compute performance at very low power consumption and excellent graphics performance combined with a high degree of functional integration. The compact board incorporates up to 2GB DDR3 SDRAM and 8GB eMMC Flash memory as well as an extensive set of interface controllers. It provides comprehensive connectivity, including VGA, HDMI, LCD, dual LVDS, GPIO, USB HOST/OTG, Micro SD, Onboard SATA hard disk interface and so on, but size is only 100mm * 72mm.
CompactIMX6 supports multi-system operation, Android and Ubuntu have been achieved and released. The board is particularly well suited for Advertising Multimedia Terminal Equipment, HD Game Consoles, Navigation Equipment and other Handheld Devices.
Boardcon is a third party partner of Freescale, welcome to use Boardcon's Freescale products!

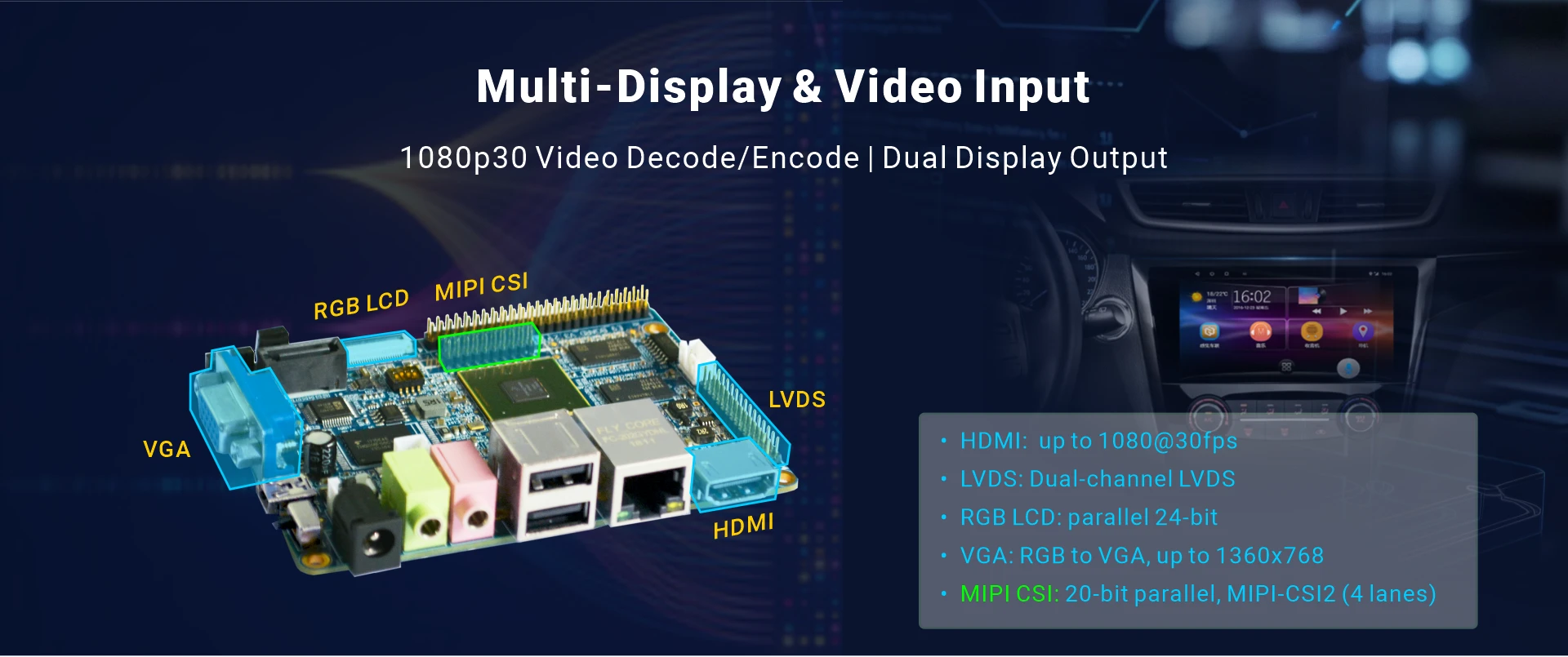

Specifications | |
---|---|
CPU | Freescale™ i.MX6Q ARM® Cortex™-A9 Quad-core, solo up to 1.2GHz |
Memory | up to 2GB DDR3, 1066MHz, soldered |
Storage | optional on-board 4GB/8GB eMMC Flash |
Power | 12V/2A |
USB | 2 x USB2.0 Host, 2-ch Extendable USB Host, 1 x USB2.0 OTG |
Speaker | 1W (8Ω) |
HDMI | HDMI V1.4, 1080p@30fps |
VGA | Max resolution 1360 x 768 |
Audio | 3.5mm Audio jack. SGTL5000 audio codec |
Ethernet | 10/100/1000M Ethernet, RJ45 Interface. AR8035 controller |
COM | 1 x Three-wire RS232 serial port(debug) 3 x Extendable Serial ports |
LCD | 40pin FPC interface, support capacitive / resistive touch screen |
LVDS | Dual-CH LVDS |
RTC | Real Time Clock, powered by external lithium battery |
SD card | 1 x SD card slot |
Storage Interfaces | 1x SATA-II Interface (3Gbit/s, not for Single-Core CPU) |
Camera(optional) | CMOS camera interface |
IrDA | Infrared remote control |
User button | 2 x User buttons, for Volume control |
User LED | 4 x User LEDs |
Expandable Interface | 2-ch USB Host, 15-ch GPIO, 2-ch CAN, 3-ch UART,1-ch I2C, 1-ch SPI, 1-ch SDIO, 2-ch PWM |
Dimension | 100 x 72 x 20mm |

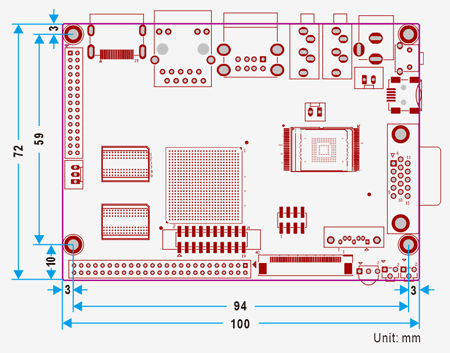

PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Android6.0 | Bootloader | Uboot-2015 | Main functions: 1. Multi-boot mode 2. USB download Image 3. SD Card offline burning 3. One-key to burn single/multiple file 4. EXT4 File System burning 5. MFG Tools support WindowsXP/Vist/Windows7 6. Multiple display devices selection 7. Multiple resolutions selection 8. boot logo 9. TFTP starup mode |
Kernel and drivers | Kernel version | Linux 4.1.15 | |
Drivers | RTC, 5"/7" /10.1" LCD with capacitive/resistance Touch Screen, LVDS, eMMC, Watchdog, I/O, User keys, SPI, I2C, PWM, USB Host, USB Device, Audio, UARTs, Ethernet, WiFi, VGA, IPU, VPU, HDMI, 2D&3D Acceleration, SATA, IR, TF/SD/MMC | ||
File System | File System | EXT4/NFS/FAT32/NTFS File System | |
Cross compiler version | arm-linux-gcc-5.3.1 | ||
Debug Tools | SecureCRT.exe, Ubuntu16.04 |
OS | Item | Feature | Description |
---|---|---|---|
Ubuntu 16.04 | Boot | Version | Uboot-2015 |
Boot Mode | Boot Android from SD card, eMMC | ||
Image update | Support updating image from SD card or USB | ||
Kernel and drivers | Version | Linux 4.1.15 | |
Drivers | RTC, eMMC, IO, Watchdog,SPI, RTC, User keys, 5"/7" /10.1" LCD including Touch Screen TF/SD/MMC Card, UART, USB-to-Serial, Audio(SGTL5000), Ethernet(AR8035), IPU, VPU, HDMI, 2D/3D, SATA, VGA, LVDS | ||
File System | File System Format | EXT4/NFS/FAT32/NTFS | |
Cross compiler Environment | Arm-fsl-linux-gnueabi-gcc-5.3.1 |
OS | Item | Feature | Description |
---|---|---|---|
Linux | Bootloader | Boot | u-boot 2015 |
Boot mode | Boot from eMMC/SD | ||
Download | Download via USB OTG | ||
Kernel | Version | Linux 4.1.15 | |
File system format | Default support EXT4/NFS/FAT32/NTFS. | ||
WatchDog | Support | ||
UART | Support | ||
RTC | Support | ||
Ethernet | 10/100/1000M Ethernet Support, AR8035 | ||
SPI | Support | ||
I2C | Support | ||
User key | Support | ||
LCD&TP | Support | ||
LVDS | Support | ||
VGA | Support | ||
USB Host | Support | ||
USB Device | Support | ||
USB-to-Serial | Support | ||
TF/SD/MMC | Support | ||
eMMC | Support | ||
Audio | SGTL5000 | ||
3G | Support | ||
SATA | SATA II, 3.0Gbps | ||
Embedded GUI | Qt/Embedded | qt 5.5 | |
File system | TCP/IP | TCP/IP protocol | |
Network ping | Check the network | ||
Ifconfig, route | For network configuration and related service application | ||
Cross compiler Environmen | arm-fsl-linux-gnueabi-gcc-5.3.1 |
Datasheet |
|
|
|
Reference Manual |
|
|
Tools |
|
|
