* Processor: Rockchip RK3588 octa-core processor, 4x Cortex-A76 cores @ 2.4GHz, 4x Cortex-A55 cores @ 1.8 GHz
* NPU: 6 TOPS
* RAM: 8/16GB LPDDR4X
* Storage: 32/64/128GB
* Pin out: 5x UART, USB3.0/2.0 HOST, USB3.1 Type-C, Ethernet, MIPI CSI, MIPI DSI, MIPI DPHY, HDMI TX/RX, DP, I2C, I2S, PCIe3.0/2.0, SATA3.0, SDMMC, SDIO, PWM, CAN, GPIO, etc.
* Operating system: Android 12, Debian 11, buildroot
* Board size: 67 x 53mm
* Package: 230-pin, 1.0mm pitch, and 39pin FPC connector for Camera

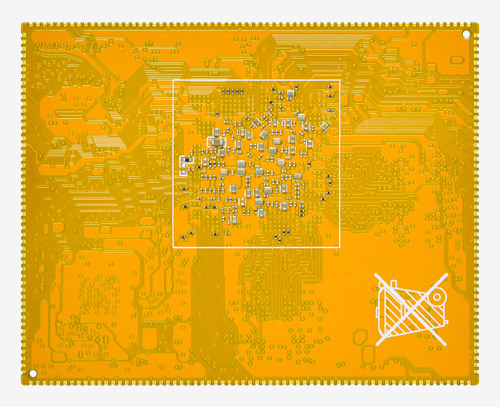

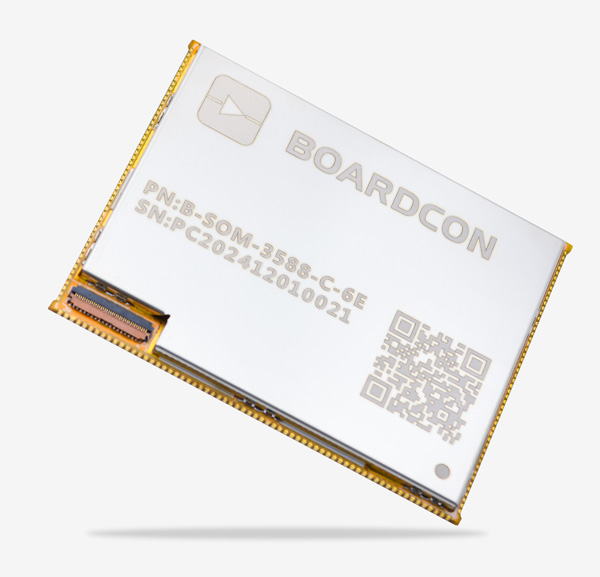

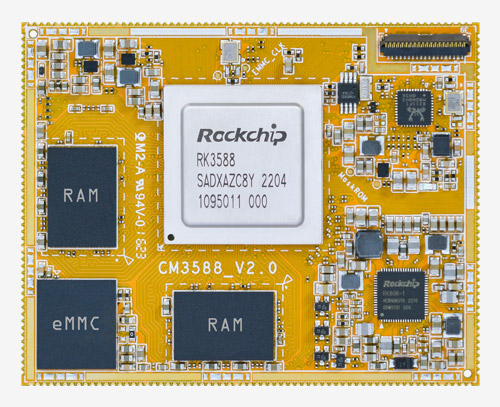

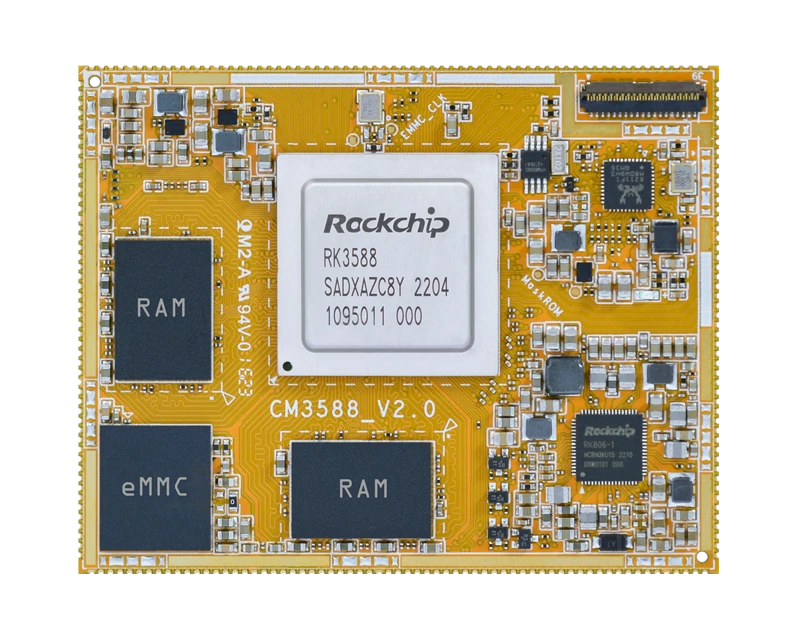

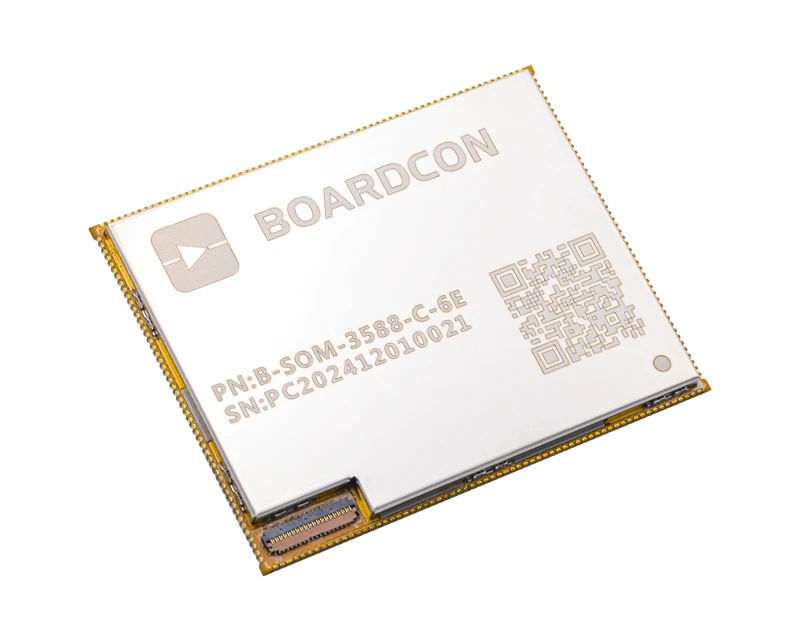

CM3588 is a system-on-module (SoM) based on Rockchip RK3588 octa-core Cortex-A76/A55 processor with 6 TOPS of AI performance and hardware-based maximum 48-Megapixel ISP designed for AR/VR, edge IoT, AIoT, and computer vision applications. The SoM is equipped with 8GB (up to 16GB) RAM and 32GB (up to 128GB) flash, offers Gigabit Ethernet network through RTL8211F-CG controller, and FPC connector for cameras with up to 8K resolution.
Boardcon also provides the Idea3588 development board and comprehensive documentation to quickly get started with the module and evaluate the solution.

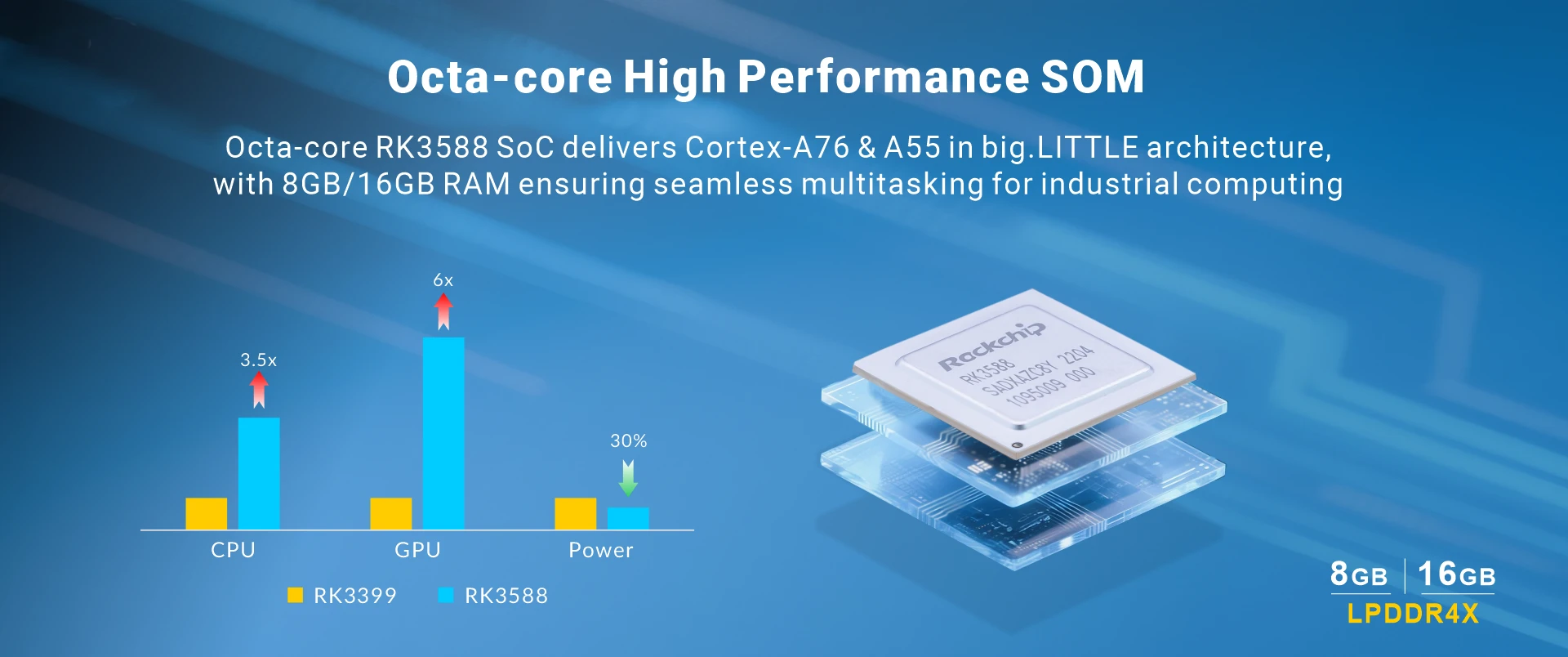

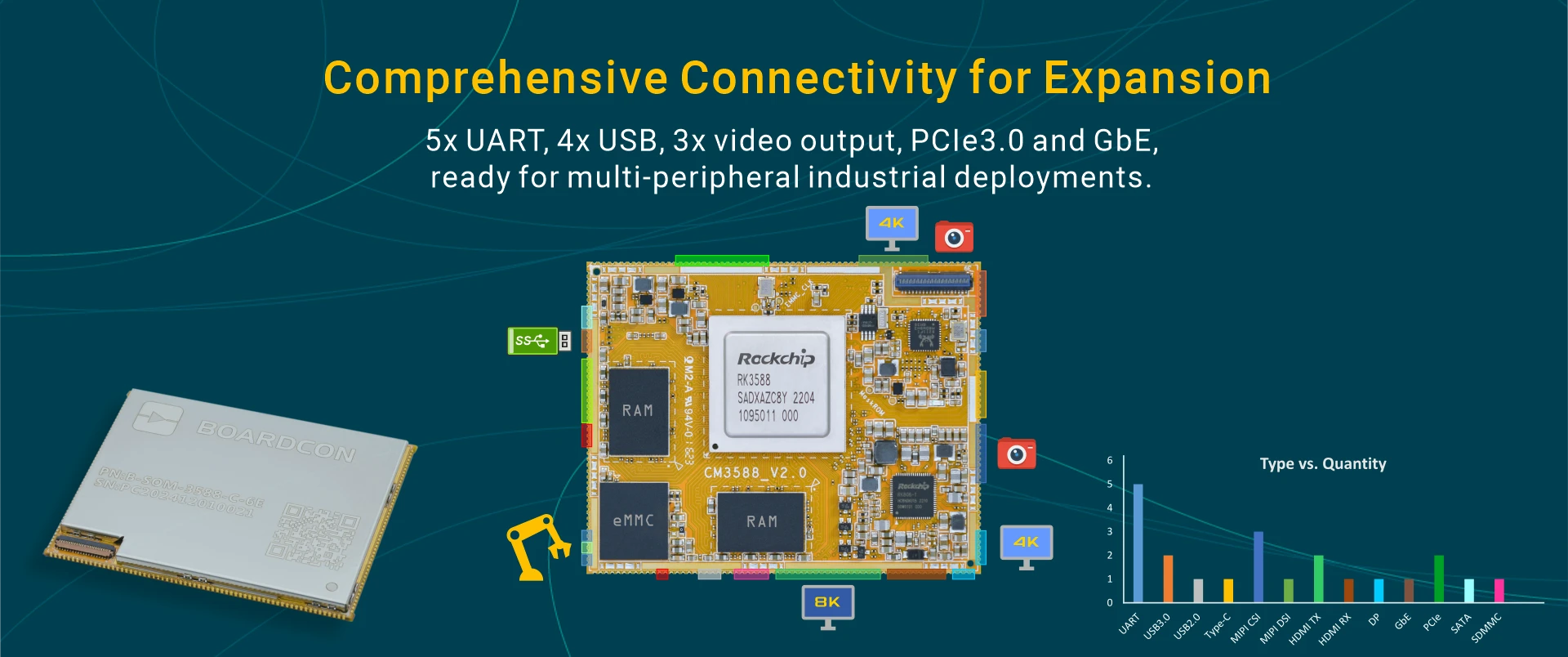

| Specifications | |
|---|---|
| CPU | Rockchip RK3588, 4x Cortex-A76 cores @ 2.4GHz, 4x Cortex-A55 cores @ 1.8 GHz |
| GPU | ARM Mali G610 MP4. Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
| NPU | 6 TOPs |
| Memory | 8/16GB LPDDR4X |
| Storage | 32/64/128GB |
| Supply Voltage | DC 4V |
| Pin out | 5x UART, USB3.0/2.0 HOST, USB3.1 Type-C, Ethernet, MIPI CSI, MIPI DSI, MIPI DPHY, HDMI TX/RX, DP, I2C, I2S, PCIe3.0/2.0, SATA3.0, SDMMC, SDIO, PWM, CAN, GPIO, etc. |
| Ethernet | GMAC (10/100/1000M) |
| PCB Layer | 10 |
| Dimensions | 67 x 53mm |
| Weight | 16.9 gram |
| Package | 230pin, 1.0 mm pitch, and 39pin FPC connector (For Camera) |
| Application | AR/VR, edge IoT, AIoT, and computer vision applications. |
| Development Board | Idea3588, SBC3588 |

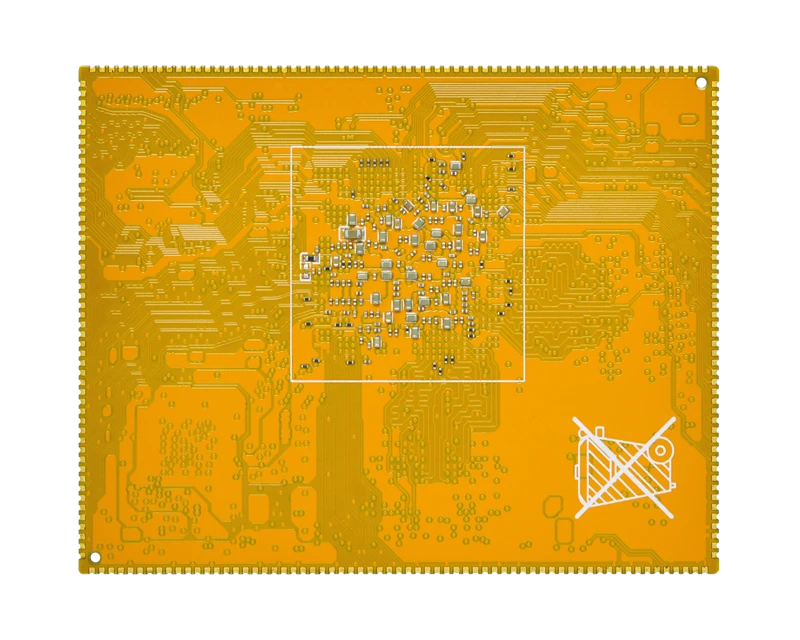

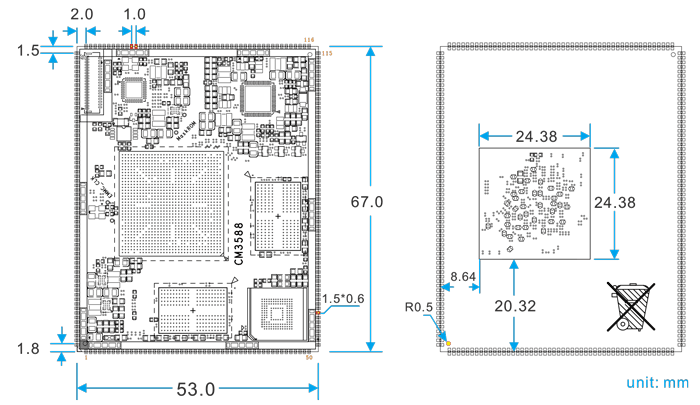

PCB Dimension
Pin Definition (V2)
| Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
|---|---|---|---|---|---|---|---|
| 1 | GPIO4_B0_d | 51 | GND | 116 | DP1_TX2N | 166 | PHY1_LED2/CFG_LDO1 |
| 2 | DP1_HPDIN_M0 | 52 | HDMITX0_SCL_M0 | 117 | DP1_TX2P | 167 | PHY1_LED1/CFG_LDO0 |
| 3 | I2C6_SDA_M0 | 53 | SATA1_ACT_LED_M0 | 118 | DP1_TX3P | 168 | GND |
| 4 | I2C6_SCL_M0 | 54 | SATA0_ACT_LED_M0 | 119 | DP1_TX3N | 169 | RECOVERY_SARADC_VIN1 |
| 5 | GPIO3_D4_d | 55 | HDMITX0_SDA_M0 | 120 | DP1_AUXP | 170 | SARADC_VIN5 |
| 6 | VCC_1V8 | 56 | PCIE30X4_WAKEn_M2_L | 121 | DP1_AUXN | 171 | VCC_RTC |
| 7 | SATA30_0_RXN | 57 | PCIE30X4_PERSTn_M2_L | 122 | GND | 172 | RTC32KOUT_WIFI |
| 8 | SATA30_0_RXP | 58 | PCIE30X4_CLKREQn_M2_L | 123 | TYPEC0_USB20_OTG_DP | 173 | SDMMC_DET_1V8* |
| 9 | SATA30_0_TXN | 59 | HDMI_RX_SDA_M1 | 124 | TYPEC0_USB20_OTG_DM | 174 | MIPI_CSI0_RX_CLK1P |
| 10 | SATA30_0_TXP | 60 | HDMI_RX_SCL_M1 | 125 | TYPEC0_SBU1/DP0_AUXP | 175 | MIPI_CSI0_RX_CLK1N |
| 11 | USB30_2_SSRXP | 61 | HDMI_RX_CEC | 126 | TYPEC0_SBU2/DP0_AUXN | 176 | MIPI_CSI0_RX_D3P |
| 12 | USB30_2_SSRXN | 62 | I2C5_SDA_M0 | 127 | PWR_EN | 177 | MIPI_CSI0_RX_D3N |
| 13 | USB30_2_SSTXP | 63 | I2C5_SCL_M0 | 128 | TYPEC0_USB20_OTG_ID | 178 | MIPI_CSI0_RX_D2P |
| 14 | USB30_2_SSTXN | 64 | HDMITX0_CEC_M0 | 129 | TYPEC0_USB20_VBUSDET | 179 | MIPI_CSI0_RX_D2N |
| 15 | GND | 65 | GPIO4_B2_U | 130 | MIPI_DPHY1_TX_D0P | 180 | MIPI_CSI0_RX_CLK0P |
| 16 | I2S0_SDO2_SDI3_1V8 | 66 | PWM15_IR_M1 | 131 | MIPI_DPHY1_TX_D0N | 181 | MIPI_CSI0_RX_CLK0N |
| 17 | I2S0_SDO3_SDI2_1V8 | 67 | USB_OTG_PWREN_H_GPIO4_A7 | 132 | MIPI_DPHY1_TX_D1P | 182 | MIPI_CSI0_RX_D1P |
| 18 | I2S0_SDI1_1V8 | 68 | GND | 133 | MIPI_DPHY1_TX_D1N | 183 | MIPI_CSI0_RX_D1N |
| 19 | I2S0_SDI0_1V8 | 69 | USB20_HOST0_DM | 134 | MIPI_DPHY1_TX_CLKP | 184 | MIPI_CSI0_RX_D0P |
| 20 | I2S0_MCLK_1V8 | 70 | USB20_HOST0_DP | 135 | MIPI_DPHY1_TX_CLKN | 185 | MIPI_CSI0_RX_D0N |
| 21 | I2S0_SCLK_TX_1V8 | 71 | USB20_HOST1_DM | 136 | MIPI_DPHY1_TX_D2P | 186 | GND |
| 22 | I2S0_SCLK_RX_1V8 | 72 | USB20_HOST1_DP | 137 | MIPI_DPHY1_TX_D2N | 187 | I2S2_SDO_M0_GMAC0-MCK_1V8 |
| 23 | I2S0_LRCK_TX_1V8 | 73 | TYPEC1_USB20_OTG_DM | 138 | MIPI_DPHY1_TX_D3P | 188 | SDIO_CLK_M0_GMAC0-TCK_1V8 |
| 24 | I2S0_LRCK_RX_1V8 | 74 | TYPEC1_USB20_OTG_DP | 139 | MIPI_DPHY1_TX_D3N | 189 | I2S2_LRCK_M0_GMAC0-TE_1V8 |
| 25 | I2S0_SDO1_1V8 | 75 | SDMMC0_CMD | 140 | GND | 190 | GMAC0-TD0_1V8 |
| 26 | I2S0_SDO0_1V8 | 76 | SDMMC0_D3 | 141 | TYPEC0_SSRX1N | 191 | I2S2_SCLK_M0_GMAC0-TD1_1V8 |
| 27 | I2C4_SDA_M3_1V8 | 77 | SDMMC0_D2 | 142 | TYPEC0_SSRX1P | 192 | SDIO_D3_M0_GMAC0-TD2_1V8 |
| 28 | I2C4_SCL_M3_1V8 | 78 | SDMMC0_D1 | 143 | TYPEC0_SSTX1P | 193 | SDIO_CMD_M0_GMAC0-TD3_1V8 |
| 29 | I2C2_SDA_M4_1V8 | 79 | SDMMC0_D0 | 144 | TYPEC0_SSTX1N | 194 | SDIO_D2_M0_GMAC0-RCK_1V8 |
| 30 | I2C2_SCL_M4_1V8 | 80 | SDMMC0_CLK | 145 | TYPEC0_SSRX2N | 195 | GMAC0-RV_1V8 |
| 31 | MIPI_CAM2_CLKO_M0_1V8 | 81 | GND | 146 | TYPEC0_SSRX2P | 196 | GMAC0-RD0_1V8 |
| 32 | GND | 82 | HDMI_RX_CLKP | 147 | TYPEC0_SSTX2P | 197 | UART9_TX_M0_GMAC0-RD1_1V8 |
| 33 | PDM1_CLK0_M1_1V8 | 83 | HDMI_RX_CLKN | 148 | TYPEC0_SSTX2N | 198 | SDIO_D0_M0_GMAC0-RD2_1V8 |
| 34 | PDM1_SDI3_M1_1V8 | 84 | HDMI_RX_D0N | 149 | GND | 199 | SDIO_D1_M0_GMAC0-RD3_1V8 |
| 35 | PDM1_SDI2_M1_1V8 | 85 | HDMI_RX_D0P | 150 | SPDIF0_TX_M1 | 200 | GND |
| 36 | PDM1_SDI1_M1_1V8 | 86 | HDMI_RX_D2N | 151 | PCIE30X1_1_PERSTn_M1_L | 201 | PCIE20_1_TXP/SATA30_1_TXP |
| 37 | PDM1_SDI0_M1_1V8 | 87 | HDMI_RX_D2P | 152 | UART3_RX_M2 | 202 | PCIE20_1_TXN/SATA30_1_TXN |
| 38 | PDM1_CLK1_M1_1V8 | 88 | HDMI_RX_D1N | 153 | UART3_TX_M2 | 203 | PCIE20_1_RXP/SATA30_1_RXP |
| 39 | HDMIIRX_HPDOUT_M2_1V8 | 89 | HDMI_RX_D1P | 154 | UART0_RX_M2 | 204 | PCIE20_1_RXN/SATA30_1_RXN |
| 40 | HDMITX1_HPDIN_M0_1V8 | 90 | HDMI0_TX_SBDP/eDP0_TX_AUXP | 155 | UART0_TX_M2 | 205 | PCIE20_1_REFCLKP |
| 41 | HDMITX0_HPDIN_M0_1V8 | 91 | HDMI0_TX_SBDN/eDP0_TX_AUXN | 156 | PCIE30x1_1_CLKREQn_M1_L | 206 | PCIE20_1_REFCLKN |
| 42 | TYPEC0_SBU2_DC | 92 | HDMI0_TX3P | 157 | PCIE30X1_1_WAKEn_M1_L | 207 | PCIE30_PORT0_RX0P |
| 43 | TYPEC0_SBU1_DC | 93 | HDMI0_TX3N | 158 | PHY1_MDI0+ | 208 | PCIE30_PORT0_RX0N |
| 44 | PWM2_M0 | 94 | HDMI0_TX2P | 159 | PHY1_MDI0- | 209 | PCIE30_PORT0_RX1P |
| 45 | UART2_TX_M0_DEBUG | 95 | HDMI0_TX2N | 160 | PHY1_MDI1+ | 210 | PCIE30_PORT0_RX1N |
| 46 | UART2_RX_M0_DEBUG | 96 | HDMI0_TX1P | 161 | PHY1_MDI1- | 211 | PCIE30_PORT0_REFCLKP_IN |
| 47 | CAN0_RX_M0 | 97 | HDMI0_TX1N | 162 | PHY1_MDI2+ | 212 | PCIE30_PORT0_REFCLKN_IN |
| 48 | CAN0_TX_M0 | 98 | HDMI0_TX0P | 163 | PHY1_MDI2- | 213 | PCIE30_PORT0_TX0P |
| 49 | UART7_TX_M1 | 99 | HDMI0_TX0N | 164 | PHY1_MDI3+ | 214 | PCIE30_PORT0_TX0N |
| 50 | UART7_RX_M1 | 100 | VCC_3V3 | 165 | PHY1_MDI3- | 215 | PCIE30_PORT0_TX1P |
| 101 | HDMI1_TX_SBDP/eDP1_TX_AUXP | 216 | PCIE30_PORT0_TX1N | ||||
| 102 | HDMI1_TX_SBDN/eDP1_TX_AUXN | 217 | GND | ||||
| 103 | HDMI1_TX3P | 218 | UART9_RX_M0_1V8 | ||||
| 104 | HDMI1_TX3N | 219 | UART9_CTSn_M0_GMAC0-MDI_1V8 | ||||
| 105 | HDMI1_TX0N | 220 | UART9_RTSn_M0_GMAC0-MDC_1V8 | ||||
| 106 | HDMI1_TX0P | 221 | SPI3_CLK_MO_1V8 | ||||
| 107 | HDMI1_TX1N | 222 | I2S2_SDI_M0_1V8 | ||||
| 108 | HDMI1_TX1P | 223 | I2C3_SDA_M0_1V8 | ||||
| 109 | HDMI1_TX2N | 224 | I2C3_SCL_M0_1V8 | ||||
| 110 | HDMI1_TX2P | 225 | RESET_L | ||||
| 111 | GND | 226 | GND | ||||
| 112 | DP1_TX0N | 227 | VCC_SYS | ||||
| 113 | DP1_TX0P | 228 | VCC_SYS | ||||
| 114 | DP1_TX1N | 229 | VCC_SYS | ||||
| 115 | DP1_TX1P | 230 | VCC_SYS | ||||
| FPC connector (J1) | |||||||
| Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
| 1 | MIPI_CAM4_CLKO_M0_1V8 | 11 | GND | 21 | MIPI_CSI1_RX_CLK1N | 31 | MIPI_DPHY1_RX_CLKN |
| 2 | GND | 12 | MIPI_CSI1_RX_CLK0N | 22 | MIPI_CSI1_RX_CLK1P | 32 | MIPI_DPHY1_RX_CLKP |
| 3 | MIPI_CAM3_CLKO_M0_1V8 | 13 | MIPI_CSI1_RX_CLK0P | 23 | GND | 33 | GND |
| 4 | GND | 14 | GND | 24 | GND | 34 | MIPI_DPHY1_RX_D1N |
| 5 | GND | 15 | MIPI_CSI1_RX_D2N | 25 | MIPI_DPHY1_RX_D3N | 35 | MIPI_DPHY1_RX_D1P |
| 6 | MIPI_CSI1_RX_D0N | 16 | MIPI_CSI1_RX_D2P | 26 | MIPI_DPHY1_RX_D3P | 36 | GND |
| 7 | MIPI_CSI1_RX_D0P | 17 | GND | 27 | GND | 37 | MIPI_DPHY1_RX_D0N |
| 8 | GND | 18 | MIPI_CSI1_RX_D3N | 28 | MIPI_DPHY1_RX_D2N | 38 | MIPI_DPHY1_RX_D0P |
| 9 | MIPI_CSI1_RX_D1N | 19 | MIPI_CSI1_RX_D3P | 29 | MIPI_DPHY1_RX_D2P | 39 | GND |
| 10 | MIPI_CSI1_RX_D1P | 20 | GND | 30 | GND | ||
* pin173: V1 = GND, V2 = SDMMC_DET_1V8
| OS | Item | Feature | Description |
|---|---|---|---|
| Android 12 | Boot | U-Boot 2017.09 | rk3588_spl_loader_v1.06.109.bin |
| Kernel | Version | Linux version 5.10.66 | |
| Drivers | HDMI OUT | Support 8K, 4K, 1080P, 720P, 480P resolution | |
| HDMI IN | HDMI 2.0 RX PHY, 4 lanes support 4K, 1080P, 720P, 480P resolution | ||
| DP | Support 8K, 4K, 1080P, 720P, 480P resolution | ||
| Audio | Audio in/out, headphone | ||
| SD card | Micro SD card | ||
| USB2.0 | USB mouse, USB keyboard, USB storage etc. | ||
| USB3.0 | USB3.0 or SATA3.0 | ||
| Type-C | USB3.1 Type-C | ||
| Ethernet | 10/100/1000 Mbit/s Ethernet | ||
| Camera | 3x Camera. support single sensor or multi-sensor (5 sensors at most) Support 8 Megapixels IMX415 single sensor default |
||
| WiFi | 2T2R 802.11 a/b/g/n/ac/ax | ||
| Bluetooth | Bluetooth 5.2 | ||
| Serial Port | Debug serial | ||
| eMMC | Support eMMC 5.1 | ||
| 4G&GPS | EC20 LTE | ||
| SATA | SATA3.0 | ||
| LCD | 10.1-inch MIPI LCD with touch screen, 1920 x 1200 eDP LCD | ||
| CAN | Support | ||
| RTC | HYM8563TS | ||
| UART | 2x UART | ||
| RS485 | Support | ||
| PCIE | PCIe NVMe SSD | ||
| FAN | GPIO control | ||
| IR | PWM IR | ||
| SPDIF | Audio out | ||
| Embedded GUI | Android12 | Clock, Gallery, Calculator, Camera, Files, Video, Music etc. | |
| Cross-compiler Environment | ubuntu-18.04, openjdk version "11.0.4" | ||
| Debug Tools | SecureCRT, AndroidTool.exe, ADB | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| Debian11 | Boot | U-Boot 2017.09 | rk3588_spl_loader_v1.06.109.bin |
| Kernel | Version | Linux version 5.10.66 | |
| Drivers | HDMI OUT | Support 8K, 4K, 1080P, 720P, 480P resolution | |
| DP | Support 8K, 4K, 1080P, 720P, 480P resolution | ||
| Audio | Audio in/out, headphone | ||
| SD card | Micro SD card | ||
| USB2.0 | USB mouse, USB keyboard, USB storage etc. | ||
| USB3.0 | USB3.0 | ||
| Type-C | USB3.1 Type-C | ||
| Ethernet | 10/100/1000 Mbit/s Ethernet | ||
| Camera | 3x Camera. support single sensor or multi-sensor (5 sensors at most) Support 8 Megapixels IMX415 single sensor default |
||
| WiFi | 2T2R 802.11 a/b/g/n/ac/ax | ||
| Bluetooth | Bluetooth 5.2 | ||
| Serial Port | Debug serial | ||
| eMMC | Support eMMC 5.1 | ||
| 4G&GPS | EC20 LTE | ||
| SATA | SATA3.0 | ||
| LCD | 10.1-inch(1920x1200) eDP LCD | ||
| CAN | Support | ||
| RTC | HYM8563TS | ||
| UART | 2x UART | ||
| RS485 | Support | ||
| PCIE | PCIe NVMe SSD | ||
| FAN | GPIO control | ||
| IR | PWM IR | ||
| Embedded GUI | Debian11 | Trash, Filesystem, Home. | |
| Cross-compiler Environment | ubuntu-21.04 | ||
| Debug Tools | SecureCRT, AndroidTool.exe, ADB | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| Buildroot | Boot | U-Boot 2017.09 | rk3588_spl_loader_v1.07.111.bin |
| Kernel | Version | Linux version 5.10.66 | |
| Drivers | HDMI OUT | Support up to 7680x4320@60Hz | |
| DP | Support up to 7680x4320@30Hz | ||
| eDP | Support up to 4K@60Hz | ||
| Type-C | USB3.1 Type-C, support to USB device and HDMI OUT | ||
| Ethernet | Gigabit Ethernet | ||
| USB3.0 | Support | ||
| USB2.0 | Support 4xUSB2.0 | ||
| WiFi | 2T2R 802.11 a/b/g/n/ac/ax | ||
| Bluetooth | Bluetooth 5.2 | ||
| UART | 2x UART | ||
| RTC | HYM8563TS | ||
| 4G&GPS | EC20 LTE | ||
| SATA | Support SATA3.0 | ||
| PCIE | PCIe NVMe SSD | ||
| Audio | headphone(in/out) | ||
| All-in-one card holder | Nano SIM+Micro SD | ||
| IR | PWM15 IR | ||
| Serial Port | Debug serial | ||
| RS485 | Support | ||
| CAN | Support | ||
| FAN | Support | ||
| Embedded GUI | QT | qfm, qplayer, qsetting, chromium browser, multivideoplayer, qcamera, Qt V4L2 test Utility | |
| Cross-compiler Environment | ubuntu-18.04 | ||
| Debug Tools | SecureCRT, AndroidTool.exe, ADB | ||
| Datasheet |
|
|
|
|
| Reference Manual |
|
|
| Tools |
|
|
|
|
If you order the CM3588 SoM or any question, please feel free to contact us at market@armdesigner.com
1. Execute the commands to reconfig the kernel
# cd kernel-5.10
# make ARCH=arm64 menuconfig
2. After reconfig, rename the file kernel-5.10\.config to rockchip_defconfig
3. Copy the file kernel-5.10\rockchip_defconfig to replace \RK3588_ANDROID12.0_SDK_RELEASE\kernel-5.10\arch\arm64\configs\rockchip_defconfig
It is recommended to back up the original rockchip_defconfig before replacing.
I downloaded the source code，when I try to compile, I got this error:
@ubuntu:/home/idea3588/buildroot$ ./build.sh kernel
processing option: kernel
============Start building kernel============
TARGET_ARCH =arm64 TARGET_KERNEL_CONFIG =rockchip_linux_defconfig TARGET_KERNEL_DTS =rk3588-evb2-lp4-v10-edp-linux TARGET_KERNEL_CONFIG_FRAGMENT =
==========================================
# # No change to .config # CALL scripts/atomic/check-atomics.sh CALL scripts/checksyscalls.sh CHK include/generated/compile.h LZ4C arch/arm64/boot/Image.lz4
fatal: youe current branch 'master' does not have any commits yet Incorrect parameters Usage : lz4 [arg] [input] [output] input : a filename with no FILE, or when FILE is - or stdin, read standard input Arguments : -1 : Fast compression (default) -9 : High compression -d : decompression (default for .lz4 extension) -z : force compression -f : overwrite output without prompting -h/-H : display help/long help and exit arch/arm64/boot/Makefile:31: recipe for target 'arch/arm64/boot/Image.lz4' failed
make[2]: *** [arch/arm64/boot/Image.lz4] Error 1 make[2]: *** Deleting file 'arch/arm64/boot/Image.lz4' arch/arm64/Makefile:170: recipe for target 'Image.lz4' failed make[1]: *** [Image.lz4] Error 2 make[1]: *** Waiting for unfinished jobs.... arch/arm64/Makefile:214: recipe for target 'rk3588-evb2-lp4-v10-edp-linux.img' failed make: *** [rk3588-evb2-lp4-v10-edp-linux.img] Error 2 ERROR: Running build_kernel failed! ERROR: exit code 2 from line 656: make ARCH=$RK_ARCH $RK_KERNEL_DTS.img -j$RK_JOBS
Cause: The version of lz4 delivered with the compilation system is too early.
Solution: update to V1.8.3 or later.
lz4 -v //check the compiler lz4 version
sudo cp out/host/linux-x86/bin/lz4 /usr/bin/lz //copy lz4 from the Android source directory to override the compiler's
