* Processor: Rockchip RK3568 Quad-core Cortex-A55, up to 2.0GHz
* RAM: 2GB
* Storage: 8GB

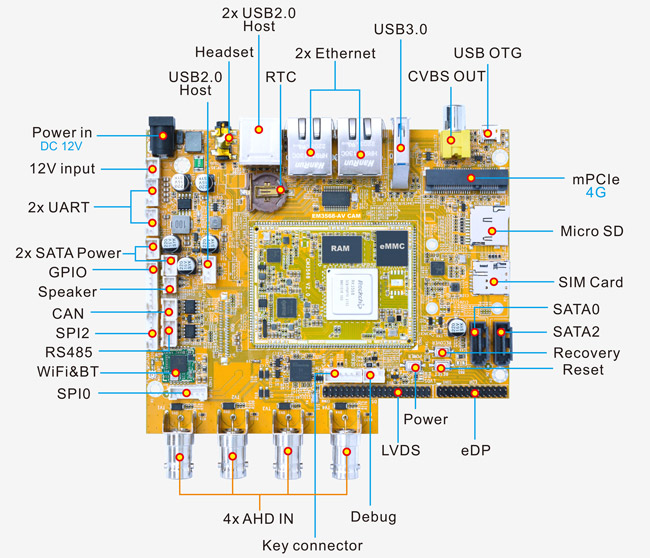

* Interfaces: 2x UART, Debug, RS485, CAN, USB3.0 Host, 3x USB2.0 Host, USB2.0 OTG, 2x Gigabit Ethernet, 2x SATA3.0, MIPI DSI/LVDS, eDP, 4x AHD(Camera), CVBS, SD, mPCIe, 2x SPI, GPIO, Audio I/O, etc.
* Operating system: Debian11

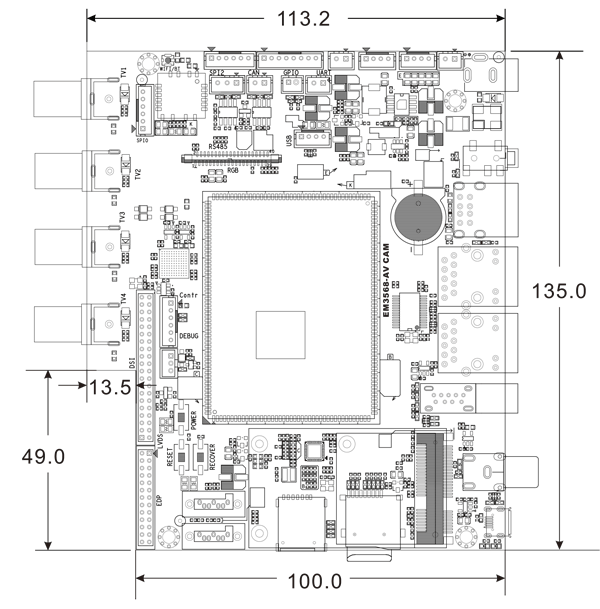

* Board size: 135mm x 113.2mm

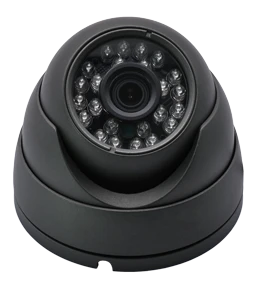

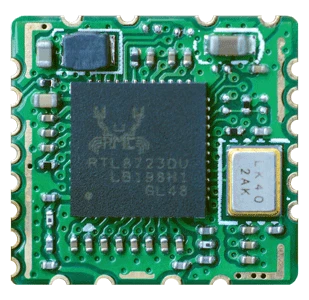

* Expansion Module: 4G model, WiFi, Camera, 10.1-inch LCD

     RK3568 system on module

Rockchip RK3568 is a low power quad-core application processor. It made in 22nm process technology, integrated 4-core ARM architecture A55 processor and Mali G52 2EE graphics processor, supporting 4K decoding and 1080P encoding. In addition, it is also equipped with a third-generation AI processor to effectively meet the performance requirements of smart vision, industrial control, and IoT gateway applications

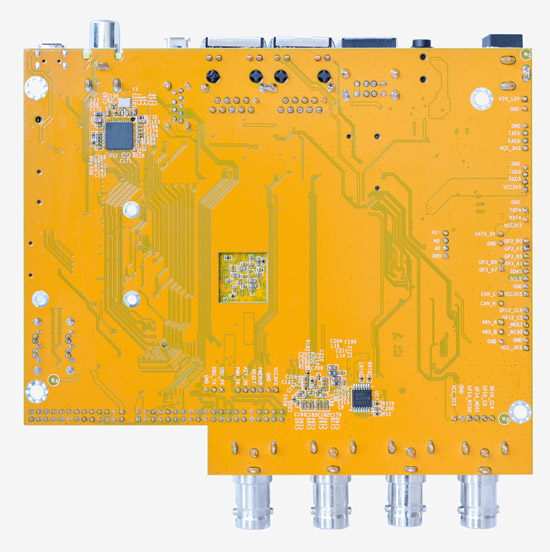

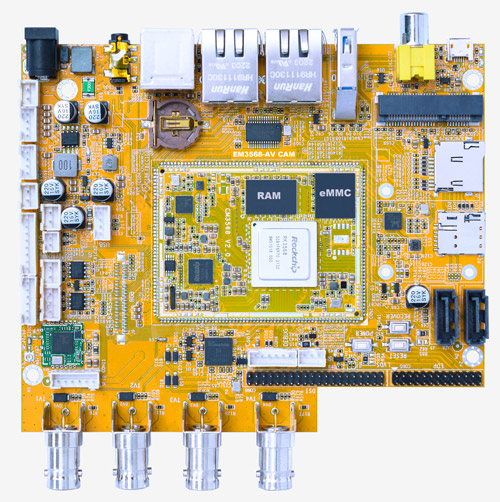

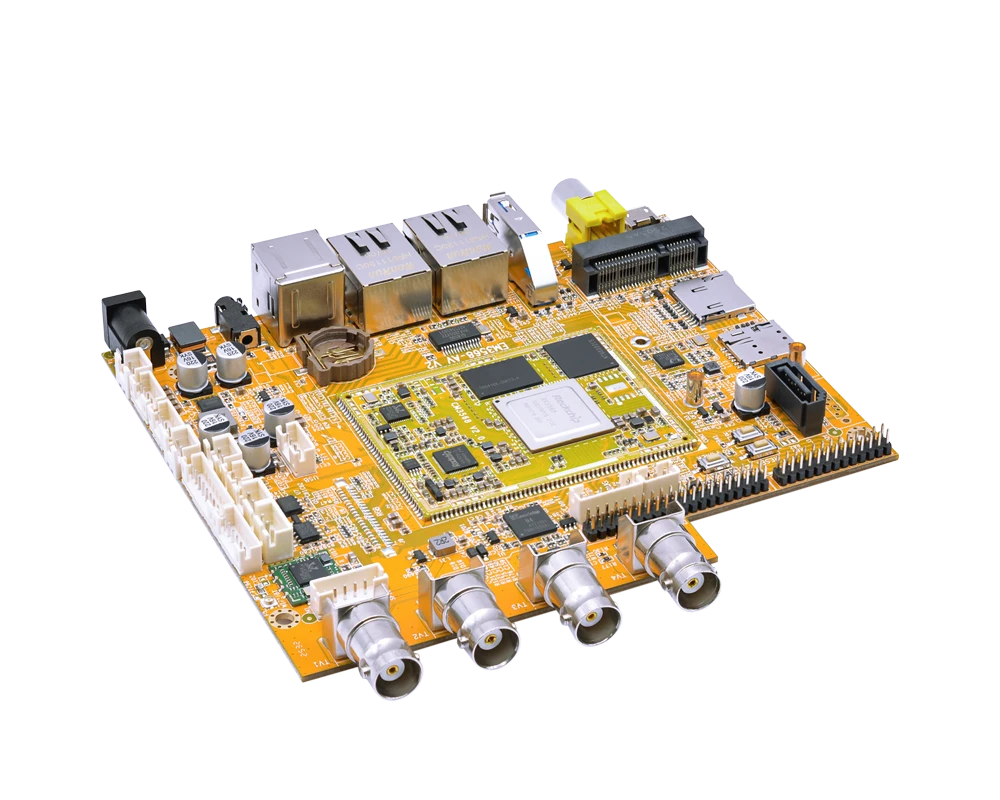

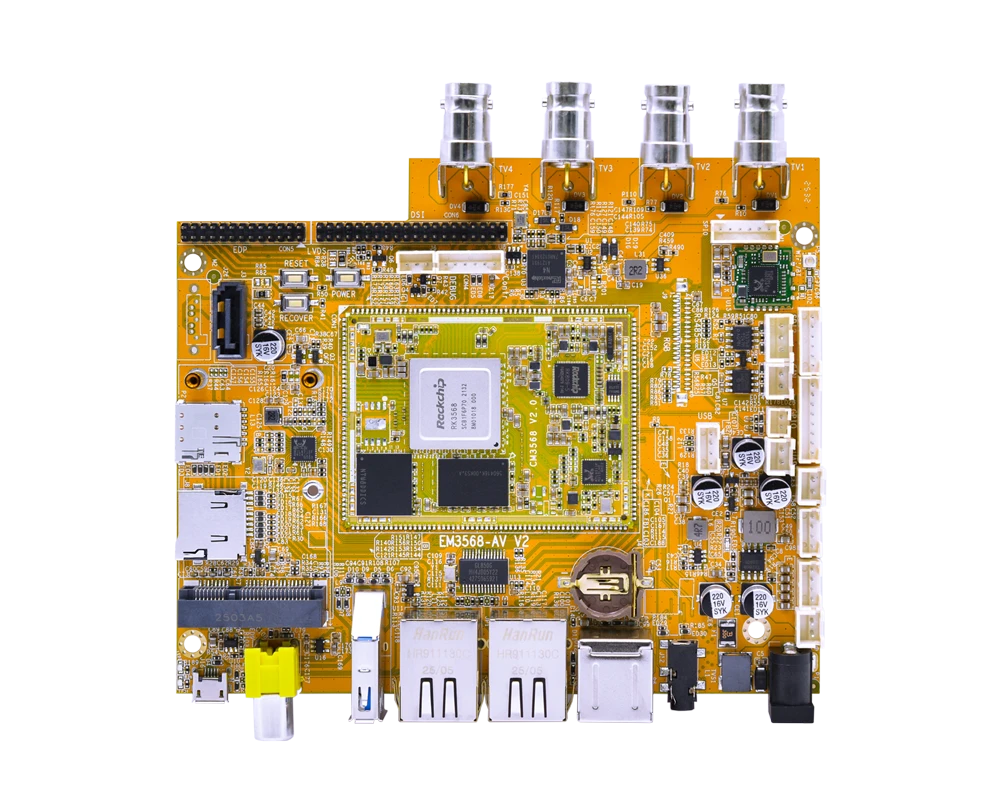

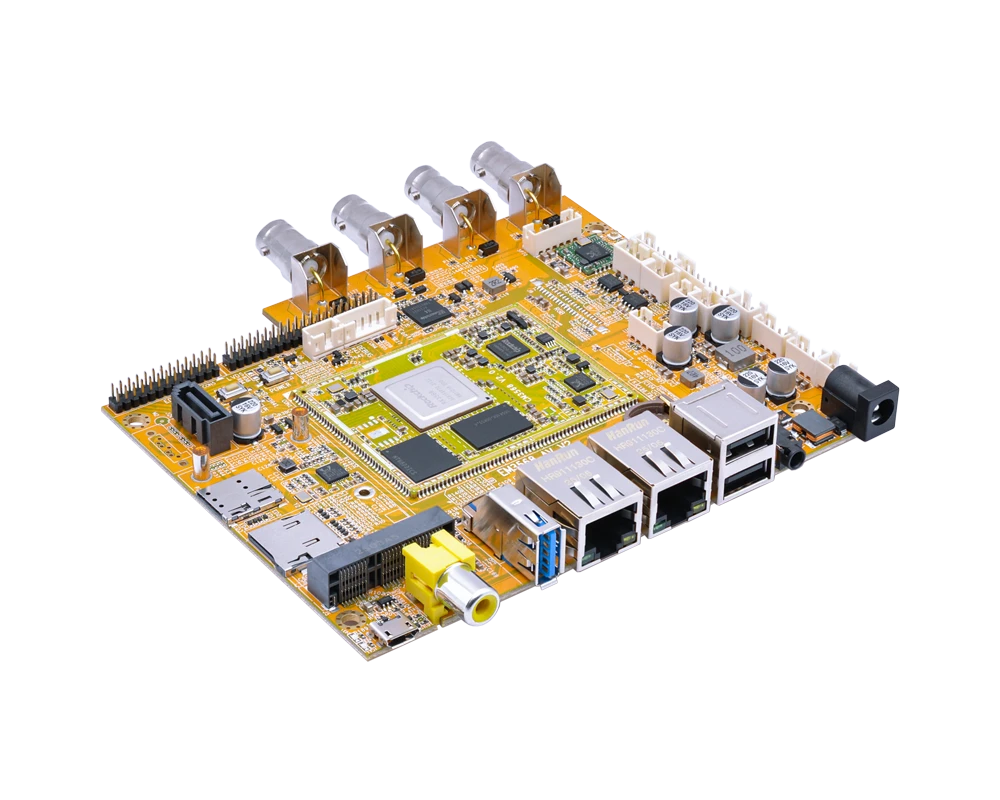

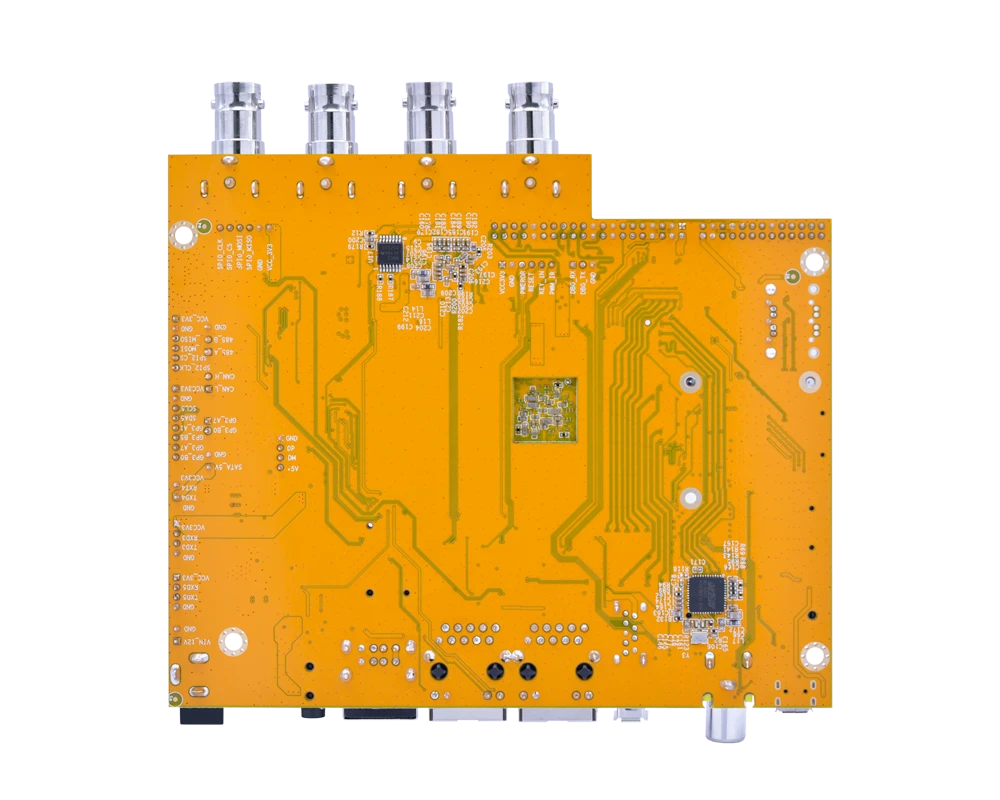

Boardcon EM3568-AV CAM is a single board computer powered by RK3568 processor with 2GB RAM (up to 8GB), 8GB storage (up to 128GB), supports WiFi&BT, 4-CH AHD Cameras and 4G LTE modules. The board features two Gigabit Ethernet port to meet the high-speed network requirements, as well as High-speed expansion interface such as SATA3.0, USB3.0 port. This RK3568 SBC is designed specifically for Vehicle surveillance system.
