CM3588S

* Processor: Rockchip RK3588S, 4x Cortex-A76 cores @ 2.4GHz, 4x Cortex-A55 cores @ 1.8 GHz
* NPU: 6 TOPS
* RAM: 8/16GB
* Storage: 32/64/128GB
* Pin out: 9x UART, Debug, USB type-C, USB2.0 Host, USB3.0 Host, eDP, MIPI DSI, DP, MIPI CSI, I2S, Gigabit Ethernet, SDMMC, SPDIF, I2C, SPI, CAN, PWM, ADC, GPIO, 2x SATA, etc.
* Operating system: Android12
* Dimensions: 57.5 x 45mm
* Package: 196-pin, 1.0mm pitch

Overview
Hardware
Software
Download
Price&Order
FAQ

Rockchip RK3588S is a cost-optimized version of the RK3588 octa-core Cortex-A76/A55 processor.
CM3588S is a system-on-module (SOM) based on Rockchip RK3588S processor with support for 8K video playback and a dedicated neural processing unit. It is designed specifically for the high-performance devices such as 8K TV box or recorder, VI devices, intelligent interactive devices, personal computers and robots. The high-performance multimedia processing and acceleration engine solution can help customers to introduce new technologies more quickly and enhance the overall solution efficiency.

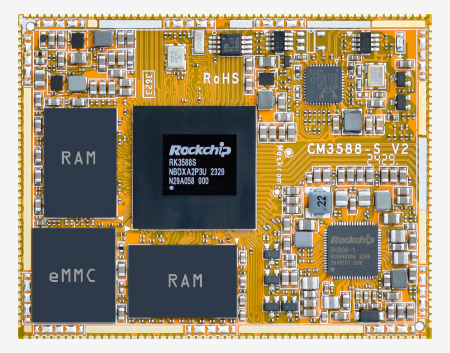

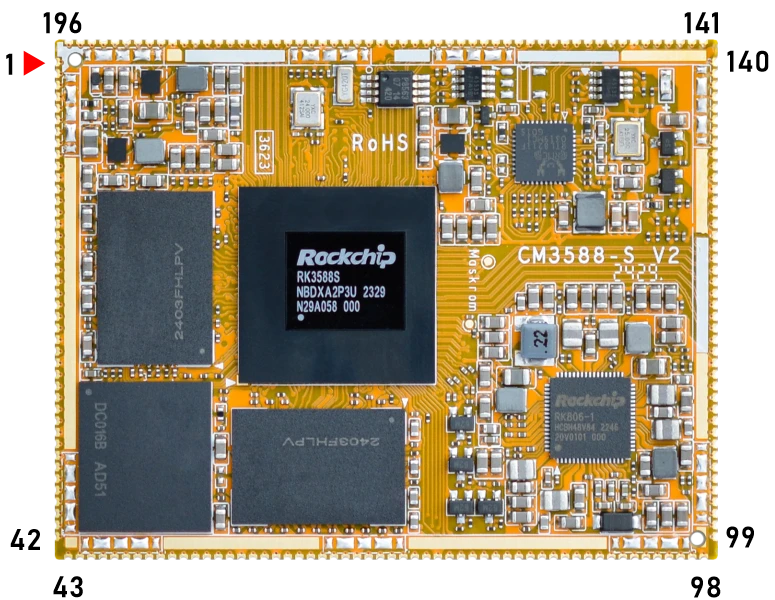

Rockchip RK3588S module CM3588S

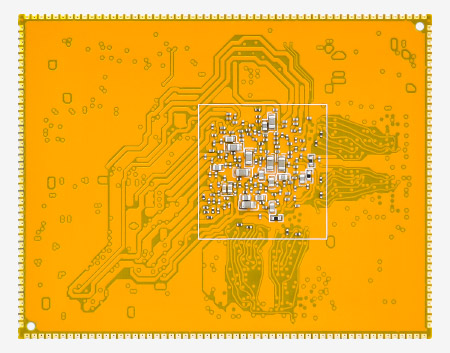

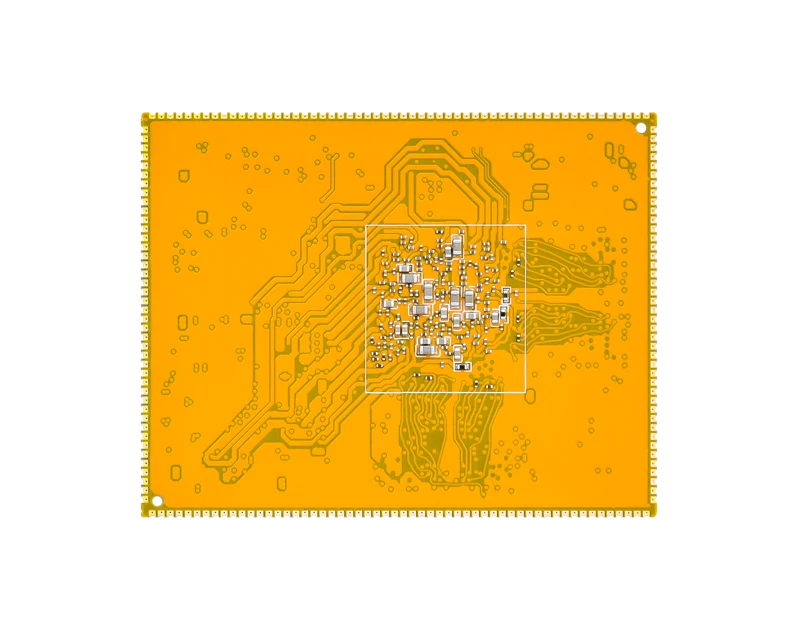

CM3588S rear

Specifications

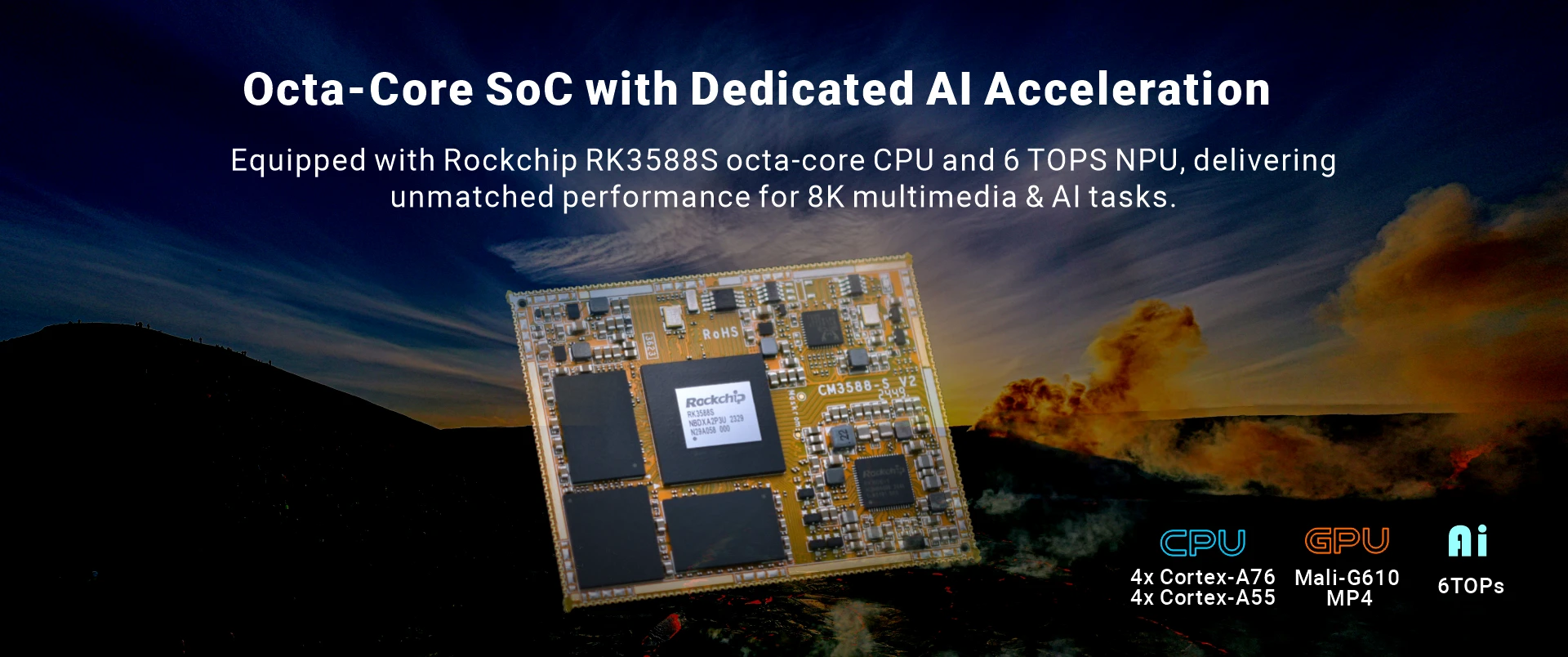

CPU	Rockchip RK3588S, 4x Cortex-A76 cores @ 2.4GHz, 4x Cortex-A55 cores @ 1.8 GHz
GPU	ARM Mali G610 MP4. Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2
NPU	6 TOPs

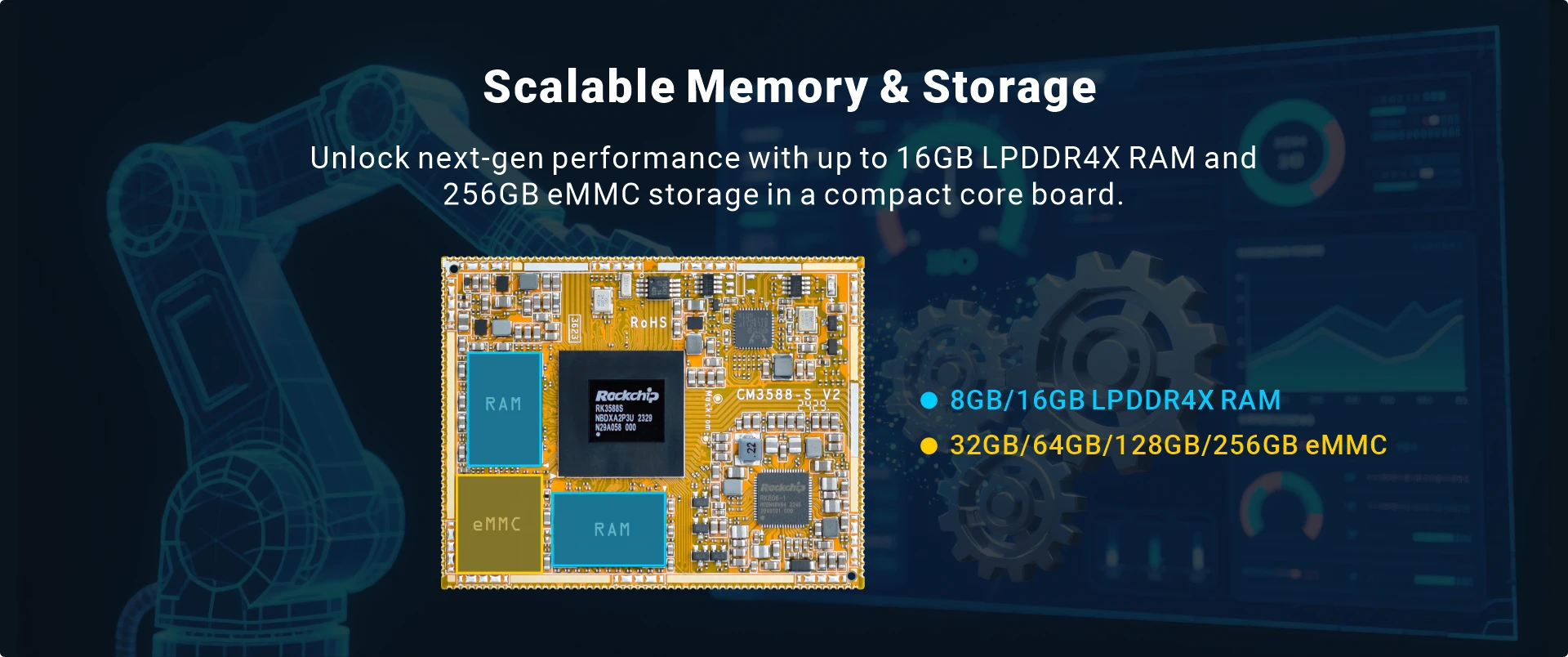

Memory	8/16 GB LPDDR4X
Storage	32/64/128GB
Supply Voltage	DC 3.3 ~ 4.2V

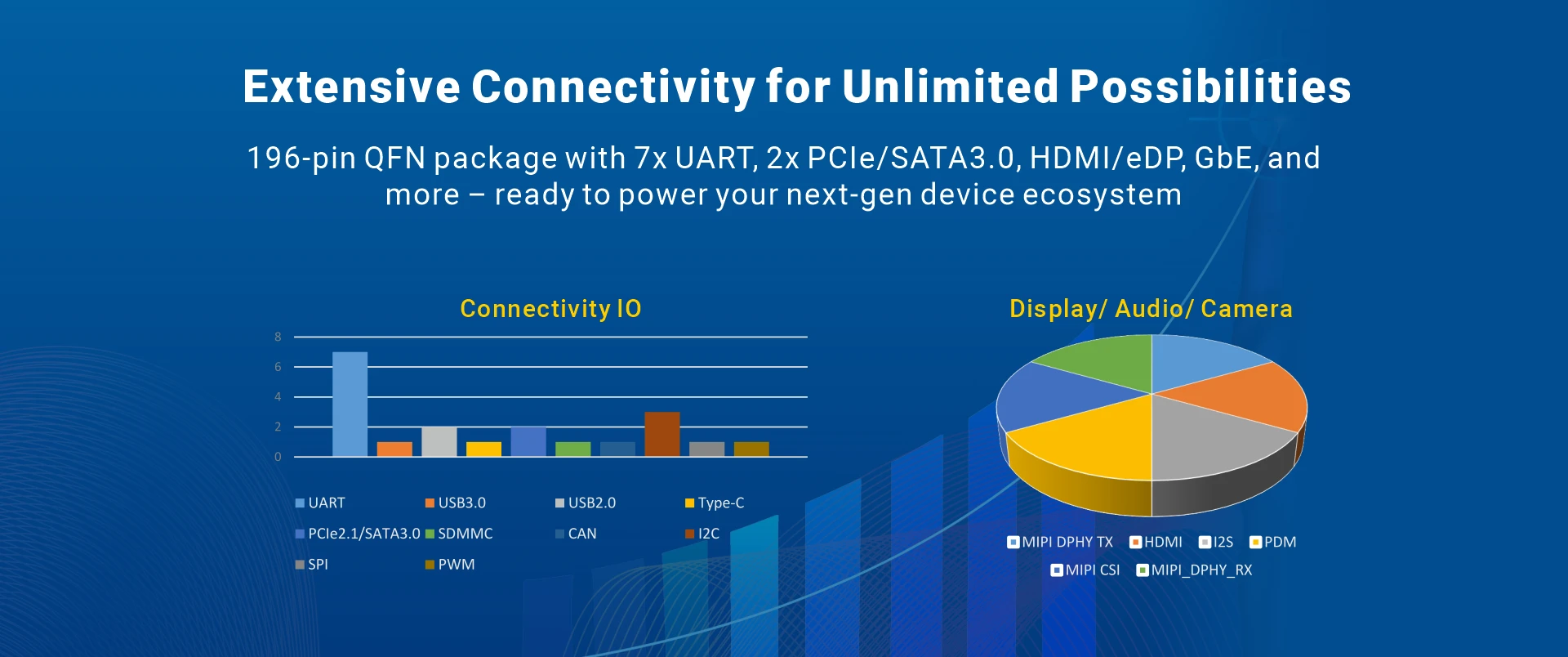

Pin out	1x eDP, 1x MIPI DSI, 3x I2S, 2x 4-lane (or 2x 2-lane + 1x 4-lane) MIPI CSI, 2x SATA, 1x HDMI (eDP option), 1x DP, 1x USB2.0 Host, 1x USB Type-C, 1x USB3.0 Host, 2x SDMMC, 2x SPDIF, 7x I2C, 4x SPI, 3x CAN, 9x UART, 1x Debug, 15x PWM, 3x ADC

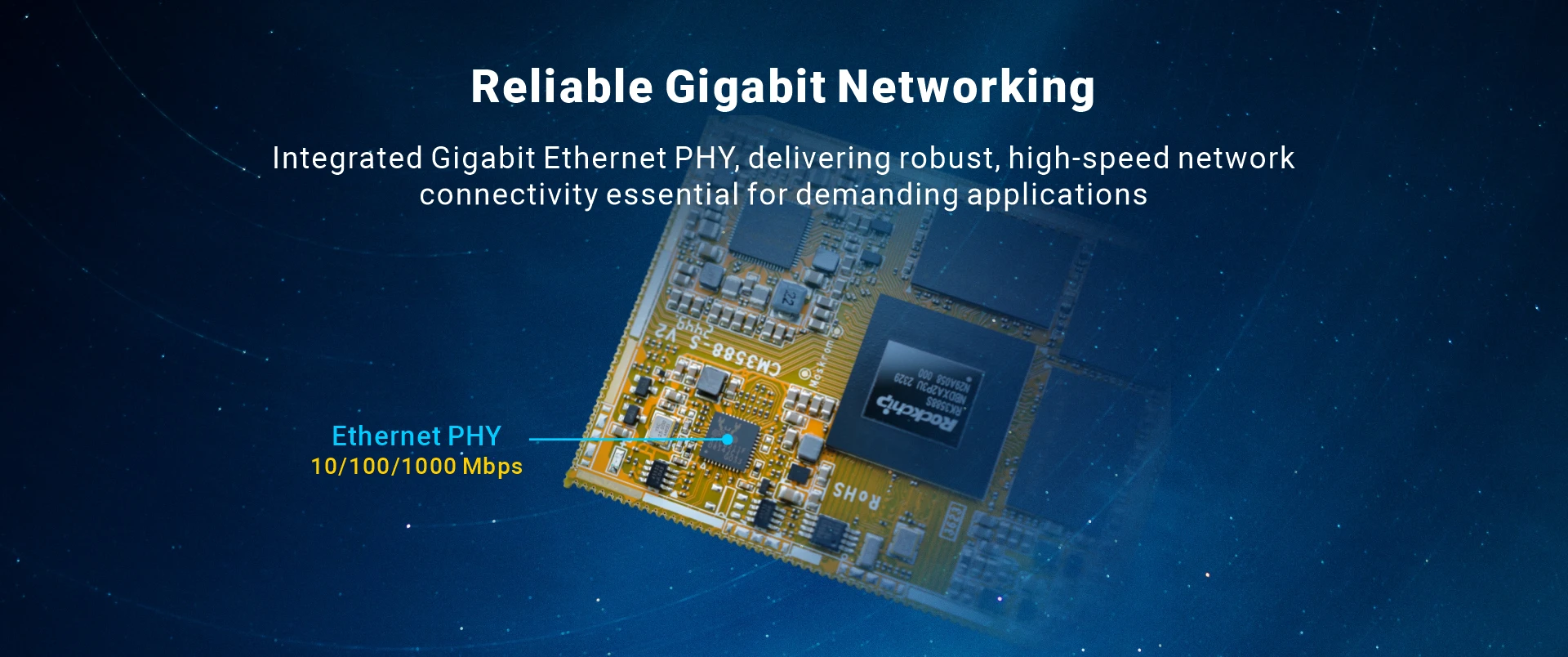

Ethernet	1x Gigabit PHY
PCB Layer	10
Dimensions	57.5 x 45mm
Weight	12.8 gram
Package	196pin, 1.0mm pitch
Application	8K TV box or recorder, VI devices, intelligent interactive devices, personal computers and robots

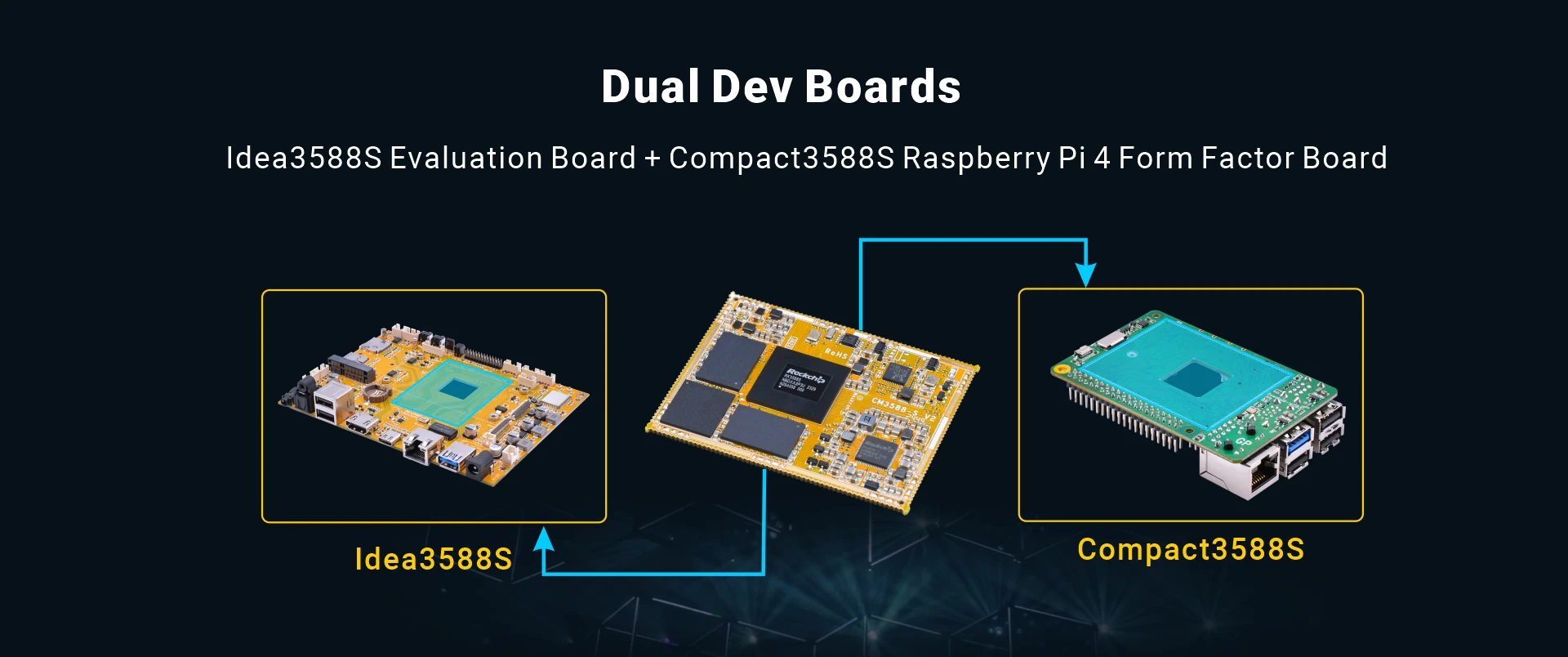

Development Board	Idea3588S
Operating system	Android 12

Indicator PCB Dimension

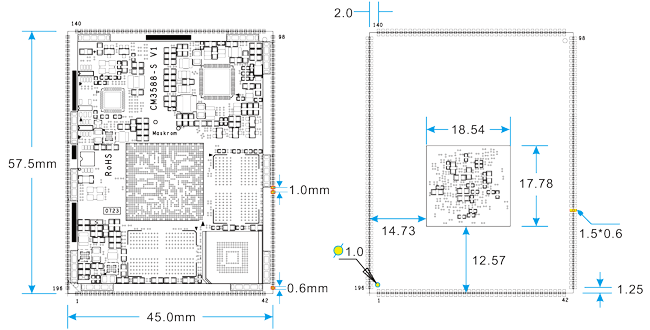

CM3588S PCB dimension

pdf Pin Definition

Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	VCC_SYS	43	GPIO3_C6_u	99	SDMMC_DET_1V8	141	PHY1_LED2/CFG_LDO1
2	VCC_SYS	44	UART9_TX_M1	100	PWRON_L	142	PHY1_LED1/CFG_LDO0
3	VCC_SYS	45	UART9_RX_M1	101	RESET_L	143	VCC_RTC
4	GND	46	UART8_TX_M0	102	VCC_1V8	144	RTC_32KCLK_1V8
5	PWM7_IR_M0_1V8	47	UART8_RX_M0	103	GND	145	DP0_HPDIN_M1_1V8
6	BT_REG_ON_H_1V8	48	UART8_CTSN_M0	104	TYPEC0_SBU1/DP_AUXN	146	GPIO0_D5_u_1V8
7	BT_WAKE_HOST_H_1V8	49	UART8_RTSN_M0	105	TYPEC0_SBU1/DP_AUXP	147	GND
8	HOST_WAKE_BT_H_1V8	50	UART3_TX_M2	106	TYPEC0_SSRX1N	148	PHY1_MDI0+
9	WIFI_WAKE_HOST_H_1V8	51	UART3_RX_M2	107	TYPEC0_SSRX1P	149	PHY1_MDI0-
10	WIFI_REG_ON_H_1V8	52	GPIO4_A7_d	108	TYPEC0_SSTX1P	150	PHY1_MDI1+
11	GND	53	PCIE20x1_1_PERSTn_M1	109	TYPEC0_SSTX1N	151	PHY1_MDI1-
12	PDM0_CLK0_1V8	54	PCIE20x1_1_CLKREQn_M1	110	TYPEC0_SSRX2N	152	PHY1_MDI2+
13	PDM0_CLK1_1V8	55	PCIE20x1_1_WAKEn_M1	111	TYPEC0_SSRX2P	153	PHY1_MDI2-
14	PDM0_SDI0_1V8	56	UART0_TX_M2	112	TYPEC0_SSTX2P	154	PHY1_MDI3+
15	GND	57	UART0_RX_M2	113	TYPEC0_SSTX2N	155	PHY1_MDI3-
16	UART6_TX_M1_1V8	58	GND	114	GND	156	GND
17	UART6_RX_M1_1V8	59	TYPEC0_OTG_ID_1V8	115	MIPI_DPHY1_TX_D0N	157	MIPI_CSI0_RX_CLK0N
18	UART6_RTSn_M1_1V8	60	TYPEC0_OTG_VBUSDET	116	MIPI_DPHY1_TX_D0P	158	MIPI_CSI0_RX_CLK0P
19	UART6_CTSn_M1_1V8	61	GND	117	MIPI_DPHY1_TX_D1N	159	MIPI_CSI0_RX_D0N
20	GPIO1_A7_u_1V8	62	USB20_HOST0_DM	118	MIPI_DPHY1_TX_D1P	160	MIPI_CSI0_RX_D0P
21	GPIO1_B0_u_1V8	63	USB20_HOST0_DP	119	MIPI_DPHY1_TX_CLKN	161	MIPI_CSI0_RX_D1N
22	GPIO1_A4_d_1V8	64	USB20_HOST1_DM	120	MIPI_DPHY1_TX_CLKP	162	MIPI_CSI0_RX_D1P
23	GPIO1_A5_d_1V8	65	USB20_HOST1_DP	121	MIPI_DPHY1_TX_D2N	163	MIPI_CSI0_RX_CLK1N
24	GPIO1_A6_d_1V8	66	TYPEC0_OTG_DM	122	MIPI_DPHY1_TX_D2P	164	MIPI_CSI0_RX_CLK1P
25	GND	67	TYPEC0_OTG_DP	123	MIPI_DPHY1_TX_D3N	165	MIPI_CSI0_RX_D2N
26	MIPI_CAM4_CLK_M0_1V8	68	GND	124	MIPI_DPHY1_TX_D3P	166	MIPI_CSI0_RX_D2P
27	GND	69	SDMMC0_CLK	125	GND	167	MIPI_CSI0_RX_D3N
28	SPI0_CS1_M2_1V8	70	SDMMC0_CMD	126	RECOVERY_SARADC_VIN1	168	MIPI_CSI0_RX_D3P
29	SPI0_CS0_M2_1V8	71	SDMMC0_D3	127	SARADC_VIN2	169	GND
30	SPI0_MISO_M2_1V8	72	SDMMC0_D2	128	SARADC_VIN5	170	I2S0_SDO2/SDI3_1V8
31	SPI0_MOSI_M2_1V8	73	SDMMC0_D1	129	GND	171	I2S0_SDO1_1V8
32	SPI0_CLK_M2_1V8	74	SDMMC0_D0	130	MIPI_DPHY1_RX_D0N	172	I2S0_SDO0_1V8
33	GND	75	GND	131	MIPI_DPHY1_RX_D0P	173	I2S0_LRCK_TX_1V8
34	MIPI_CAM3_CLK_M0_1V8	76	HDMI0_TX_SBDN/eDP0_TX_AUXN	132	MIPI_DPHY1_RX_D1N	174	GND
35	GND	77	HDMI0_TX_SBDP/eDP0_TX_AUXP	133	MIPI_DPHY1_RX_D1P	175	PCIE20_0_REFCLKN
36	GPIO3_B7_d	78	HDMI0_TX3N	134	MIPI_DPHY1_RX_CLKN	176	PCIE20_0_REFCLKP
37	UART7_TX_M1	79	HDMI0_TX3P	135	MIPI_DPHY1_RX_CLKP	177	PCIE20_0_RXN/SATA30_0_RXN
38	UART7_RX_M1	80	HDMI0_TX0N	136	MIPI_DPHY1_RX_D2N	178	PCIE20_0_RXP/SATA30_0_RXP
39	CAN2_TX_M0	81	HDMI0_TX0P	137	MIPI_DPHY1_RX_D2P	179	PCIE20_0_TXN/SATA30_0_TXN
40	CAN2_RX_M0	82	HDMI0_TX1N	138	MIPI_DPHY1_RX_D3N	180	PCIE20_0_TXP/SATA30_0_TXP
41	PWM11_IR_M3	83	HDMI0_TX1P	139	MIPI_DPHY1_RX_D3P	181	PCIE20_2_REFCLKP
42	PWM13_M1	84	HDMI0_TX2N	140	VCC_3V3_S0	182	PCIE20_2_REFCLKN
		85	HDMI0_TX2P			183	PCIE20_2_TXP/SATA30_2/USB3_2_TXP
		86	GND			184	PCIE20_2_TXN/SATA30_2/USB3_2_TXN
		87	HDMI_TX0_SCL_M0			185	PCIE20_2_RXP/SATA30_2/USB3_2_RXP
		88	HDMI_TX0_SDA_M0			186	PCIE20_2_RXN/SATA30_2/USB3_2_RXN
		89	HDMI_TX0_CEC_M0			187	GND
		90	HDMI_TX0_HPD_M1			188	I2S0_SDO3/SDI2_1V8
		91	PCIE20x1_2_CLKREQn_M0			189	I2S0_SDI1_1V8
		92	PCIE20x1_2_PERSTn_M0			190	I2S0_SDI0_1V8
		93	PCIE20x1_2_WAKEn_M0			191	I2S0_SCLK_TX_1V8
		94	UART2_RX_M0			192	I2S0_MCLK_1V8
		95	UART2_TX_M0			193	I2C3_SDA_M0_1V8
		96	I2C7_SDA_M2			194	I2C3_SCL_M0_1V8
		97	I2C7_SCL_M2			195	I2C5_SDA_M3_1V8
		98	GND			196	I2C5_SCL_M3_1V8

OS	Item	Feature	Description
Android 12	Boot	U-Boot 2017.09	rk3588_spl_loader_v1.08.111.bin
	Kernel	Version	Linux version 5.10.110

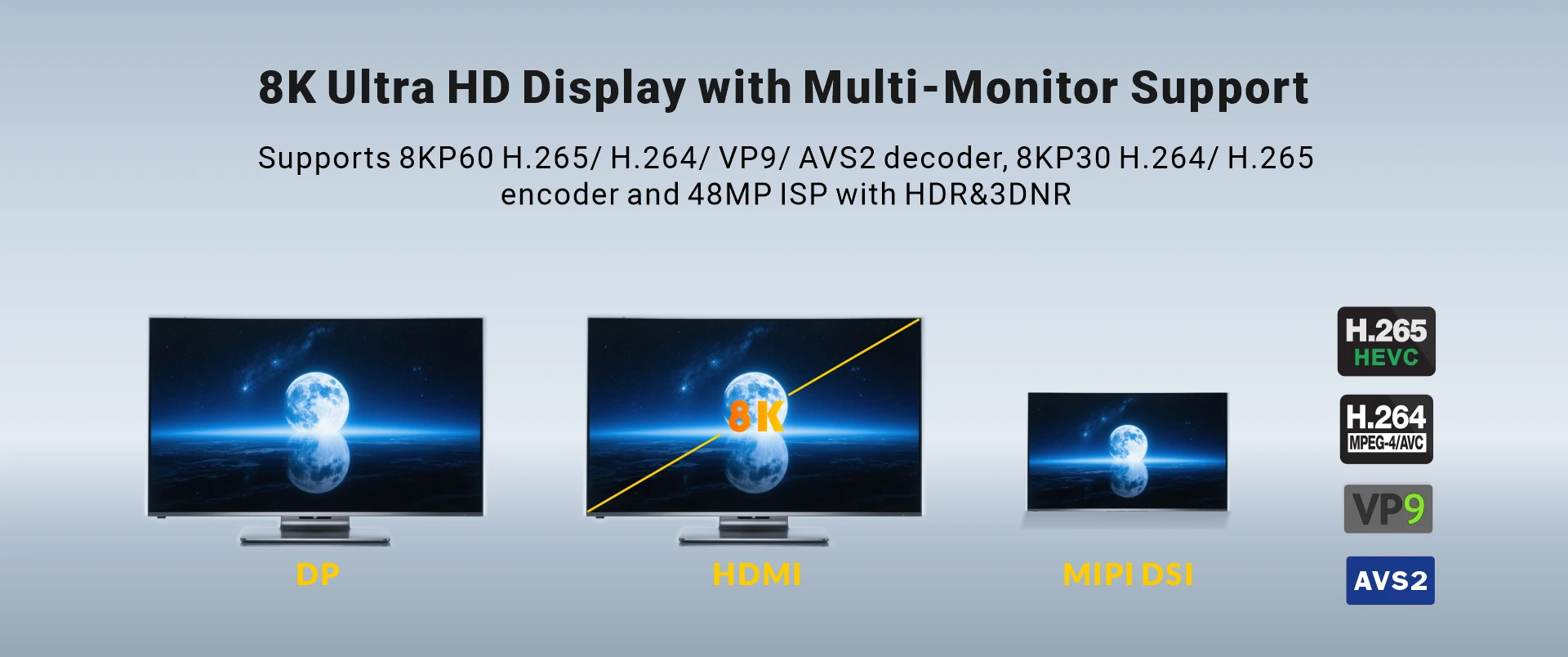

	Drivers	HDMI OUT	Support 8K, 4K, 1080P, 720P, 480P resolution
		Audio	Audio in/out, headphone
		SD card	Micro SD card
		USB2.0	USB mouse, USB keyboard, USB storage etc.
		USB3.0	USB3.0 Host
		Type-C	USB3.0 Type-C
		Ethernet	10/100/1000 Mbit/s Ethernet
		Camera	2x Camera Support 8 Megapixels IMX415 single sensor default
		WiFi	2T2R 802.11 a/b/g/n/ac/ax
		Bluetooth	Bluetooth 5.1, AP6275p module
		Serial Port	Debug serial
		eMMC	Support eMMC 5.1
		4G&GPS	EC20 LTE
		LCD	10.1-inch MIPI LCD with touch screen
		CAN	Support
		RTC	HYM8563TS
		UART	3x UART
		FAN	GPIO control
		IR	PWM IR
		SPDIF	Audio out
		RS485	Support
	Embedded GUI	Android12	Clock, Gallery, Calculator, Camera, Files, Video, Music etc.
	Cross-compiler Environment	ubuntu-18.04, openjdk version "11.0.4"
	Debug Tools	SecureCRT, AndroidTool.exe, ADB
