* Processor: Freescale i.MX6 UltraLite applications processor with ARM Cortex-A7 core @ 528 MHz
* RAM: 512MB
* Storage: 4GB eMMC flash
* Interface: UART, USB OTG, USB Host, CAN, GPS antenna, GPRS antenna, SIM card slot, Audio I/O, Lithium power in, etc.
* Operating system: Linux3.14.52
* Board size: 95 x 67mm
* Power input: 6V ~ 55V

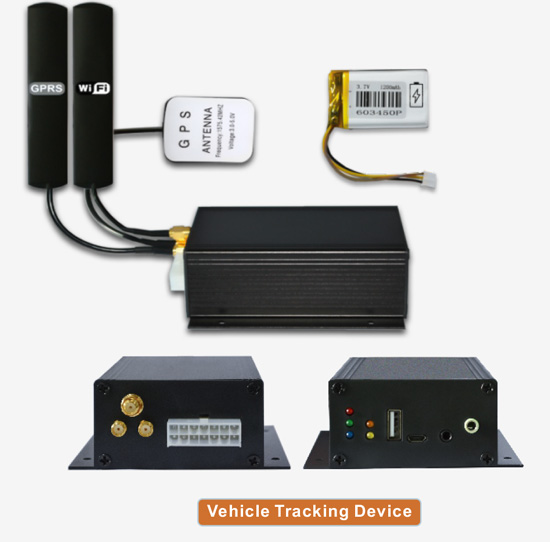

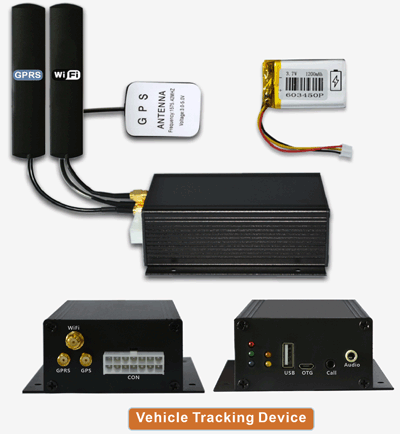

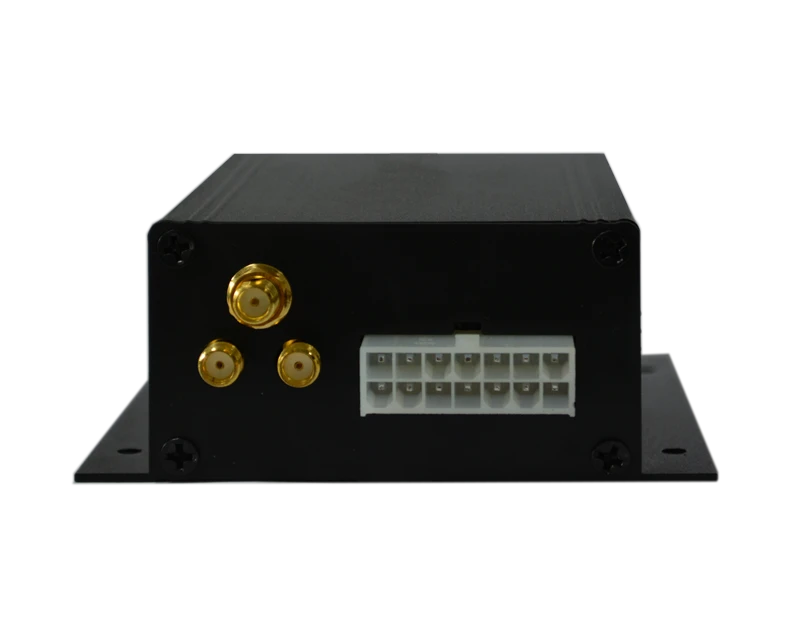

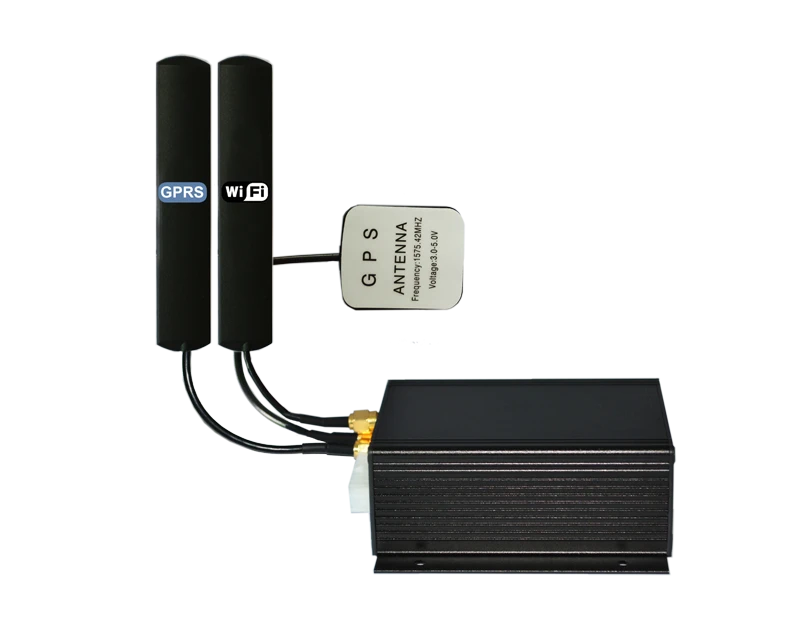

A vehicle tracking device is an electronic device that is usually installed somewhere around the dashboard in business vehicles. With today’s advanced capabilities in cellular and satellite communication, you can use GPS tracking devices for trucks, vans, vehicles, barges and equipment to better manage your mobile resources, no matter where they are located.
Boardcon Embedded Design offers vehicle tracking solutions customized specifically to your business needs. It is ideal for the companies that have specific reporting requirements and the resource to manage the software.
Boardcon vehicle tracking device is powered by Freescale i.MX6 UltraLite applications processor with 512MB DDL3 RAM and 4GB eMMC flash by default.

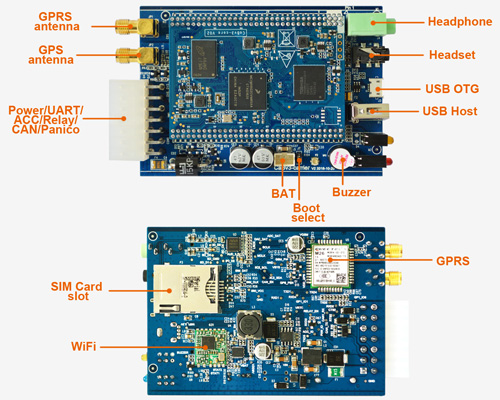

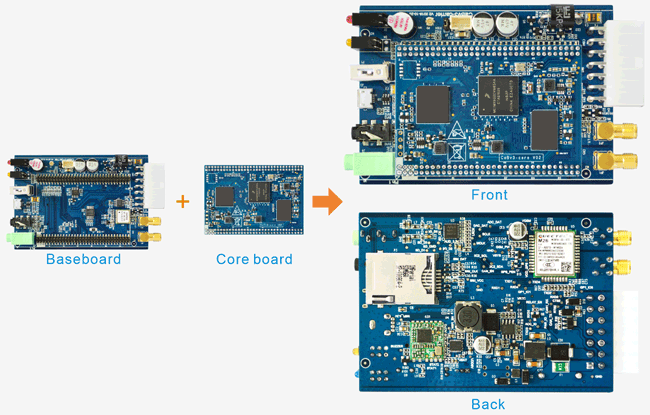

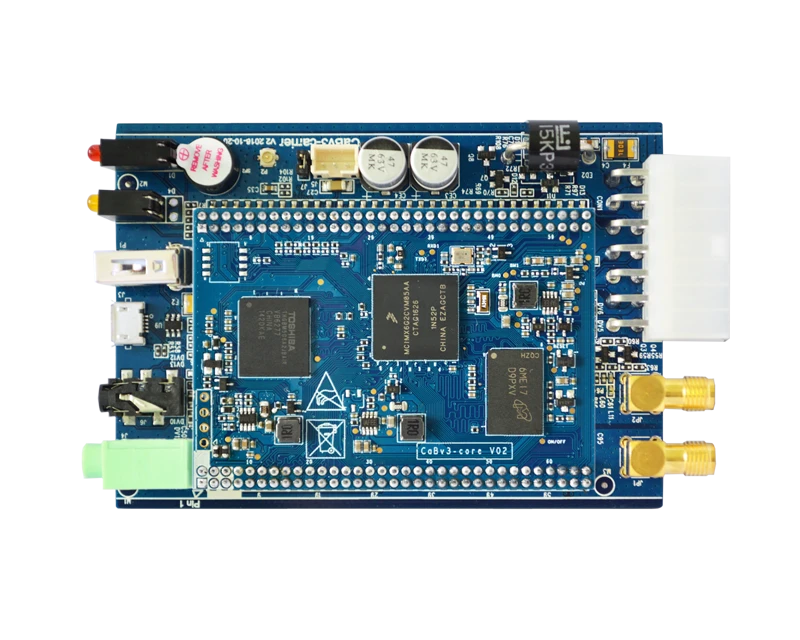

The device is comprised of a baseboard and a CPU board. Boardcon provides support for Linux for the board. A wide range of accessories and modules are also offered with the board including serial, USB OTG&Host, GPRS, GPS, WiFi, etc…
Specifications | |
---|---|
CPU | Freescale i.MX6 UltraLite applications processor with a 528MHz ARM® Cortex®-A7 core |
RAM | 512MB DDR3L |
Storage | 4GB eMMC |
Serial Port | 2x UARTs, lead out from CON1 |
CAN | 1x CAN, lead out from CON1 |
ACC | 1x ACC, lead out from CON1 |
USB | 1x USB2.0 OTG, 1x USB2.0 Host |
Audio codec | WM8960G chip; 1x 3.5 mm headset (Black), for calls; 1x 3.5 mm headphone (Green), for Audio output. |
WiFi | On-board WiFi module with Antenna, 802.11 b/g/n |
GPS | On-board GPS module with Antenna |
GPRS & SIM card | On-board GPRS module and standard SIM card slot, supports calls and Internet access |
Others | 1x Boot mode select connector |
Lithium battery | 1x 3pin interface, support 3.7V 1200mA lithium battery |
STM8S003F3 | Debug interface. Lead out from core board, use for debugging watchdog, uart, etc |

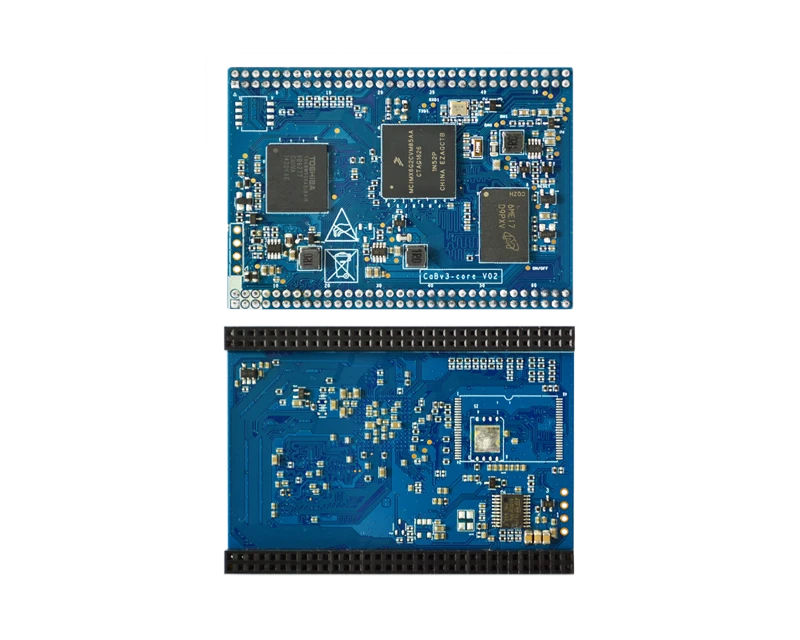

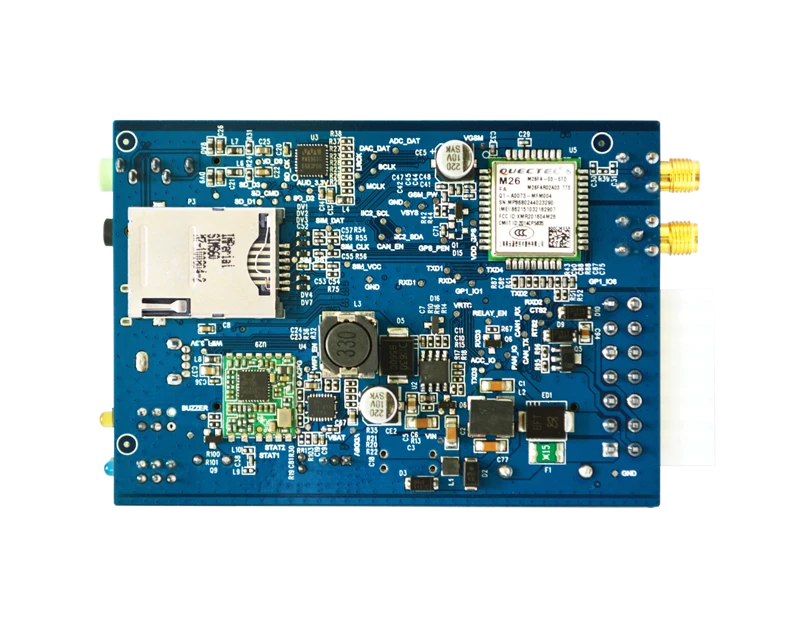

Dimension | Baseboard - 95 x 67mm; CPU Board - 66 x 47mm |
Power input | 6V ~ 55V (Typical power adapter: 12V@2A ) |

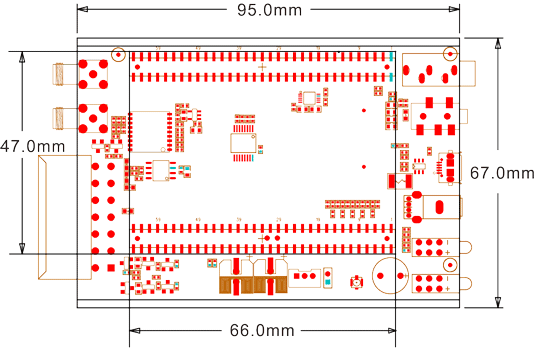

PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Linux3.14.52 | Bootloader | Boot | u-boot 2015.04 |
Boot mode | Boot from eMMC | ||
Download | Download via USB OTG | ||
Kernel | Version | Linux 3.14.52 | |
File system format | Default support ext2, ext3, ext4, fat, jeffs2, UBIFS, nfs, etc. Boardcon only provides ext4, R/W file system. | ||
eMMC | Support | ||
LEDs | Support | ||
Serial | Support | ||
RTC | Support | ||
CAN | Support | ||
USB host | Support | ||
USB OTG | Support | ||
Audio I/O | Support | ||
WiFi | Support | ||
GPRS | Support | ||
GPS | Support | ||
ACC | Support | ||
Relay | Support | ||
IIC | Support | ||
Panico | Support | ||
Acpg | Support | ||
Embedded GUI | Qt/Embedded | QT 5.6.0 | |
Basic | Cross compiler Environment |
gcc-4.6.2-glibc-2.13-linaro-multilib-2011.12.tar.bz2 | |
Debug Tools | SecureCRT, mfgtools.rar, VMware V8 + ubuntu-10.04 |
Datasheet |
|
If you order the development board or any question, please feel free to contact us at market@armdesigner.com
How to use SSH in Vehicle Tracking Device linux system?
A. The board default supports SSH. About details, please refer to the document:
ssh.pdf
Whether the Vehicle Tracking Device support USB OTG interface download?
A. Yes.
How to use GPIO on the Vehicle Tracking Device?
A. User can use the follow command to view the gpio base:
# cd /sys/class/gpio
# for i in gpiochip* ; do echo `cat $i/label`: `cat $i/base` ; done
Then execute follow command to use GPIO.
#OUT_IO_NUMBER=3
#echo ${OUT_IO_NUMBER} > /sys/class/gpio/export
#echo "out" > /sys/class/gpio/gpio${OUT_IO_NUMBER}/direction
or #echo "in" > /sys/class/gpio/gpio${OUT_IO_NUMBER}/direction
#echo 1 > /sys/class/gpio/gpio${OUT_IO_NUMBER}/value
or #echo 0 > /sys/class/gpio/gpio${OUT_IO_NUMBER}/value
