* Processor: GD32F450ZIT6, ARM Cortex-M4 Core @ 200 MHz
* RAM: 32MB SDRAM
* Storage: 128MB
* Interfaces: 2x UART, CAN, RS485, USB2.0 Host, Ethernet, LCD(RGB), Camera, SD, Audio out, GPIO, SPI, ADC, IR, etc.
* Board size: 120 mm x 80mm
* B2B connector: 0.4mm pitch, 100pin
GD32F450ZIT6 is a 32-bit general-purpose microcontroller based on the ARM Cortex-M4 RISC core with Flash accesses zero wait states to obtain maximum efficiency. It provides up to 2MB on-chip Flash memory and 512 KB SRAM memory, operates from a 2.6 to 3.6V power supply and available in –40 to +85 °C temperature range.

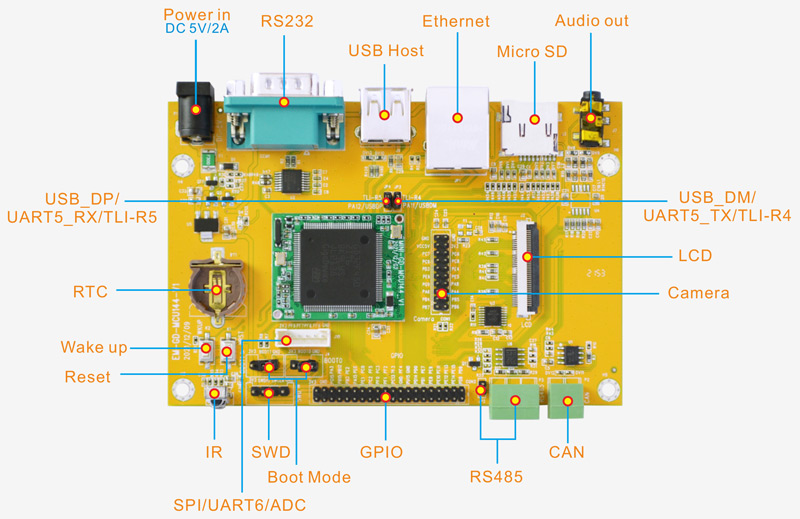

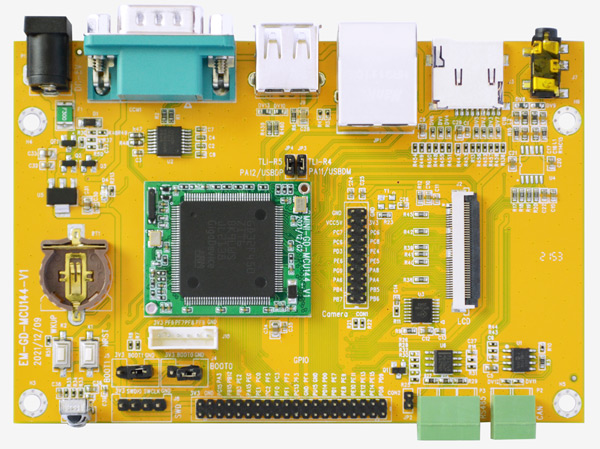

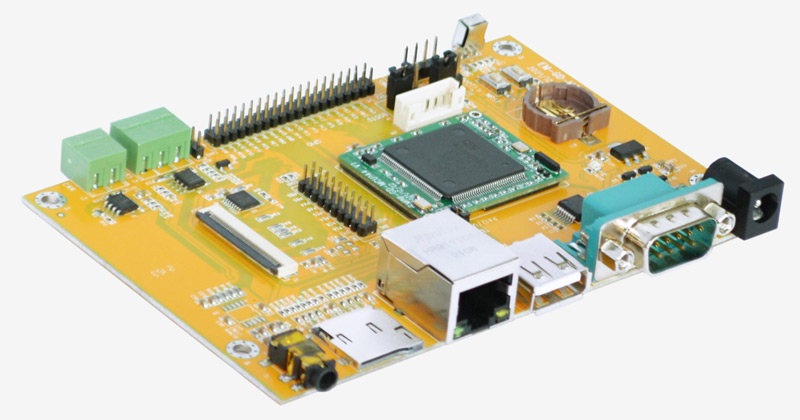

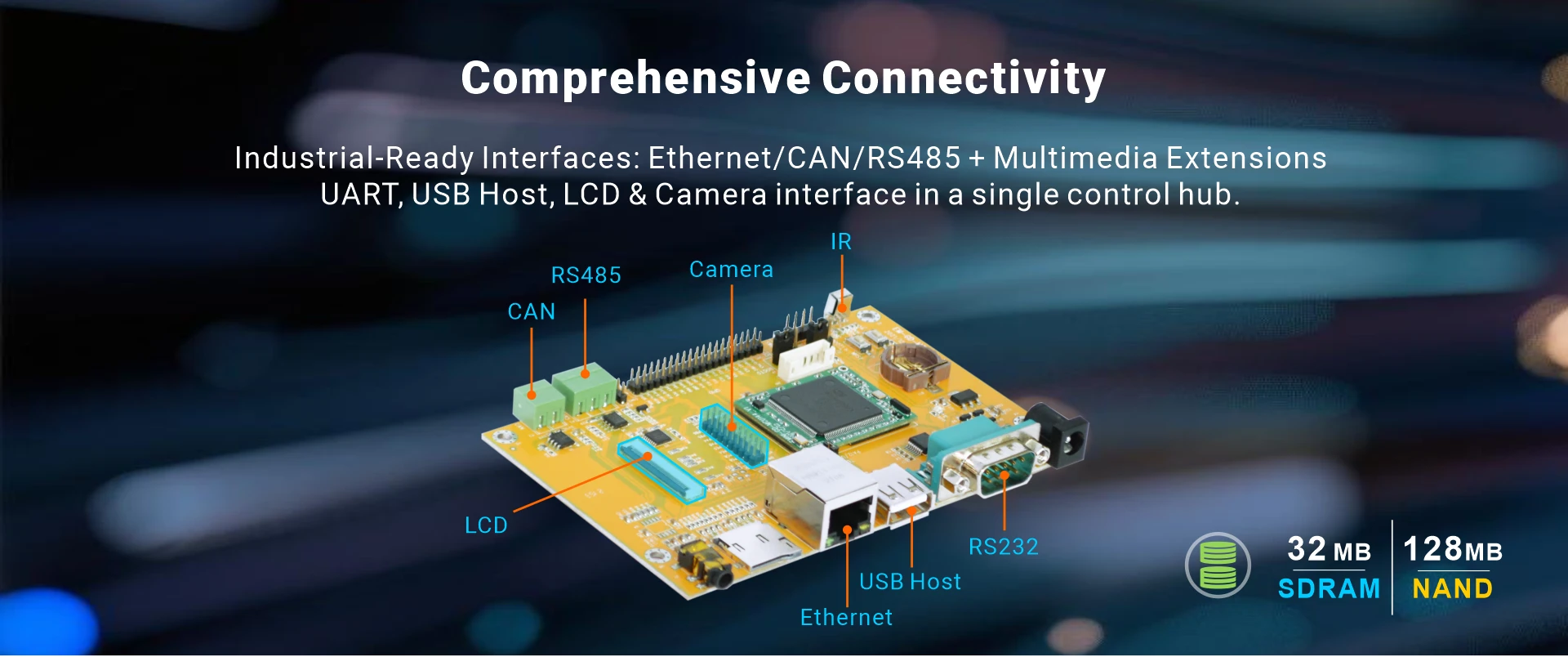

Micro-GD32F450ZIT6 is a cost-effective Microcontroller development board powered by GD32F450ZIT6 and mainly designed as a control panel for industrial control, consumer and handheld equipment, and other HMI applications. The board exposes a 40-pin GPIO header, and offers 10/100M Ethernet, RGB LCD, 20-pin header for Digital camera, Micro SD, as well as USB 2.0 port for further peripherals expansion.
Specifications | |
---|---|
MCU | GD32F450ZIT6, ARM Cortex-M4 Core @ 200 MHz. On-chip 2MB Flash memory and 512KB SRAM memory |
Memory | 32MB SDRAM |
Storage | 128MB NADN flash MicroSD card slot |
Power Supply | 5V/2A DC input jack |
USB | USB2.0 Host |
Ethernet | 10/100Mbit Ethernet RJ45 port via LAN8720A controller |
Serial | 1x RS232, DB9 connector 1x UART, 6-pin connectors 1x RS485, 3-pin connector or 2-pin header |
Display | 24-bit RGB, 40-pin FPC connector |
Audio | 3.5mm audio out jack |
Camera(optional) | 8-bit to 14-bit parallel interface, 20-pin header |
Keys | Reset, Wake_up |

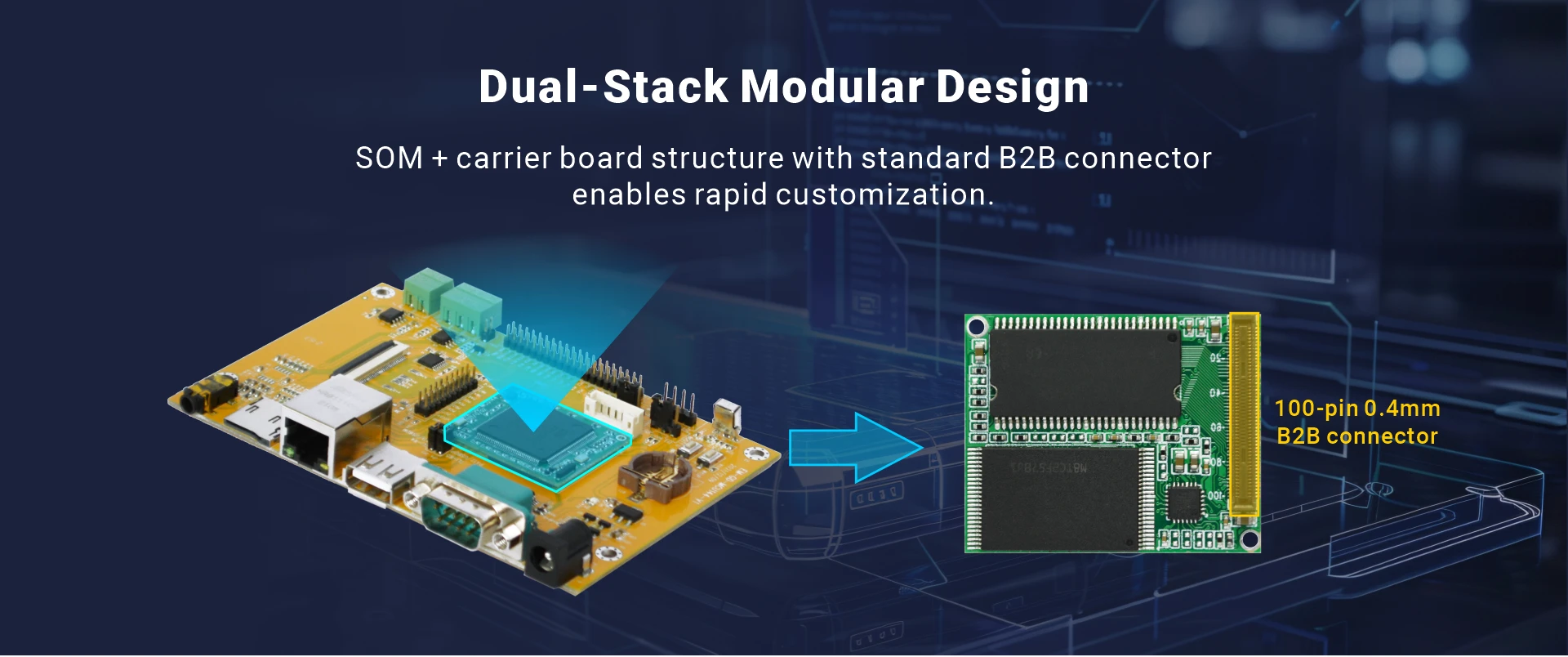

Connector | Base board- DF40C-100DP-0.4V; CPU module: DF40C-100DS-0.4V |
Other features | RTC with battery connector, GPIO, CAN, IR, Boot mode selection, MCU SWD, USB/UART/LCD selection |

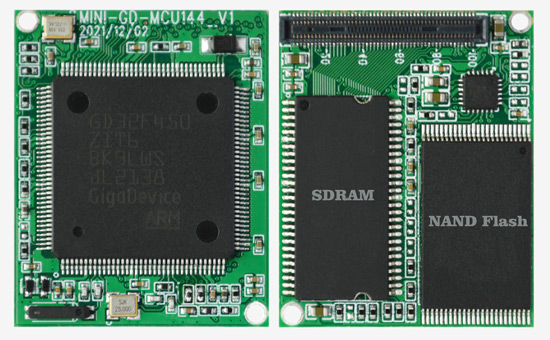

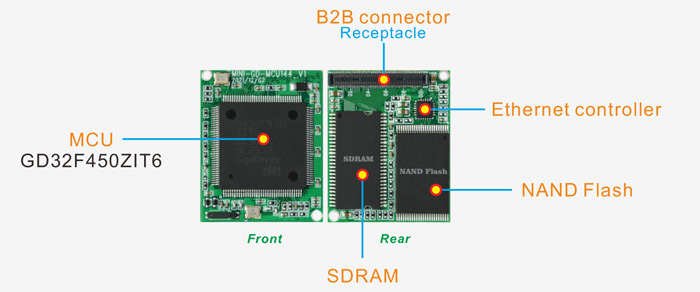

Dimension | Based board – 120 x 80mm; CPU module - 35 x 28mm |

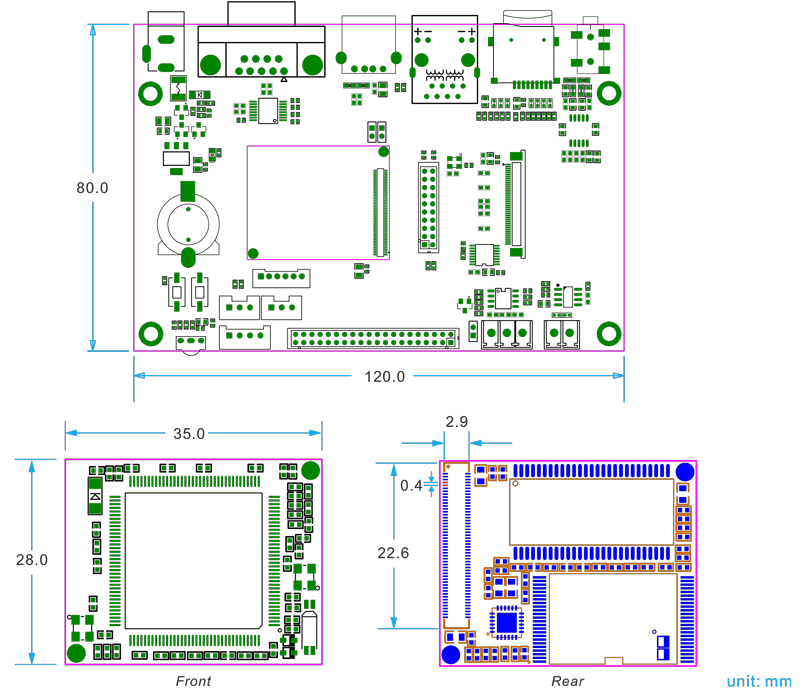

PCB Dimension
Datasheet |
|
|
If you order the Microcontroller development board or any question, please feel free to contact us at market@armdesigner.com
