RK3399 Handheld Device

* Processor: Rockchip RK3399, Dual 64-bit Cortex-A72 + Quad Cortex-A53 @ 1.8GHz
* RAM: 4GB LPDDR4
* Storage: 32GB

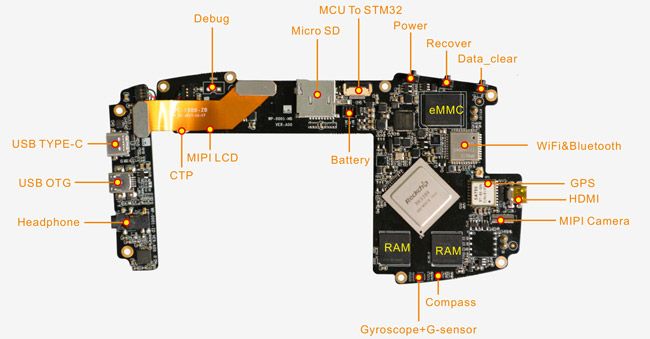

* Interfaces: USB Type-C, HDMI, USB OTG, Audio, MIPI Camera, MIPI LCD, UART, Micro SD
* Operating system: Android7.1
* Applications: Industrial control, on-site inspection POS, Law Enforcement

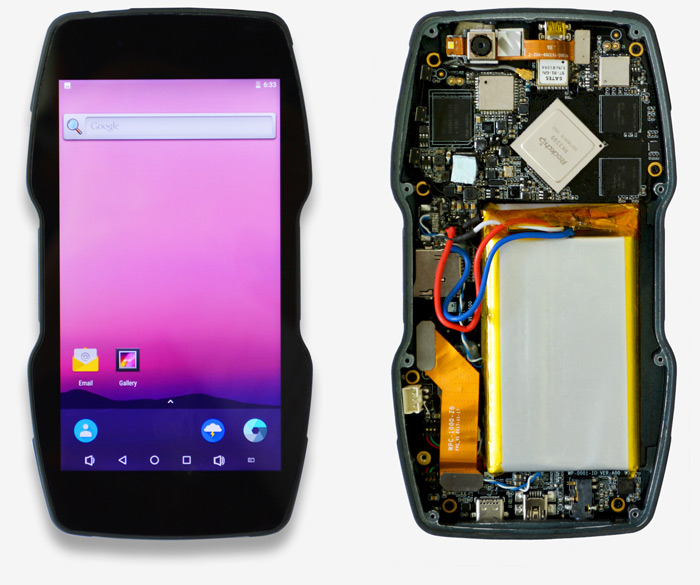

A handheld device is a pocket-sized computing device with a display screen and input/output interface. Boardcon offers a wide range of RK3399 based customized solutions with voice and data collection functionality, including image capture as well as wireless networking capabilities.
Applications: industrial control, Electric power, Communications, on-site inspection POS, Law Enforcement, etc.

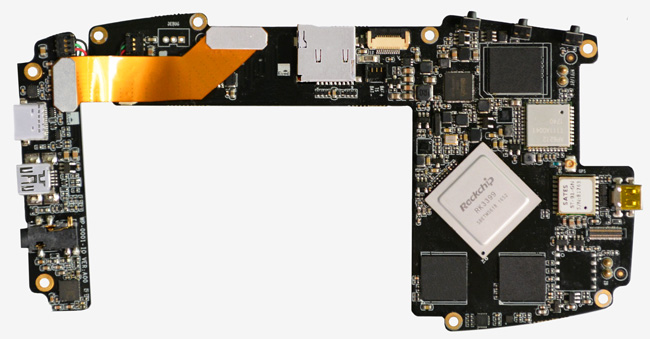

Specifications | |
---|---|
CPU | - Rockchip RK3399. Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU - 28nm HKMG process - 1MB unified L2 Cache for Big cluster, 512KB unified L2 Cache for Little cluster |
GPU | - ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 etc. - Supports AFBC (ARM Frame Buffer Compression) |
Memory | 4GB LPDDR4 |
Storage | - 32GB eMMC flash - MicroSD slot |
Power | 3.7V Li-Battery |
USB | USB Type-C. USB OTG |
Audio | Realtek ALC5651 Audio CODEC. 3.5mm audio jack |
Display | - HDMI 2.0 for 4K@60Hz with HDCP 1.4/2.2 - MIPI LCD |
Connectivity | - 2.4GHz 802.11 b/g/n WiFi. Bluetooth 4.0 |
UART | 1x 3pin connector for debug |
Buttons | Power, Recover, Data_clear |
GPS | Ublox 7 GPS Chipset |
Camera | 1x MIPI CSI |
Others | Gyroscope+G-sensor, LIGHT-Sensor, Compass |
