EM3128

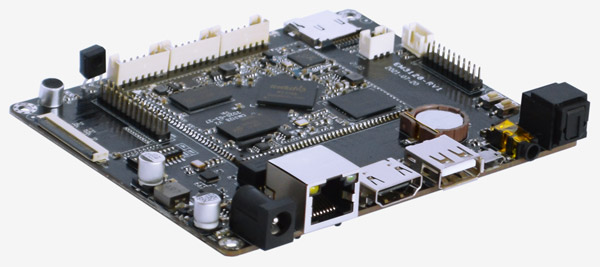

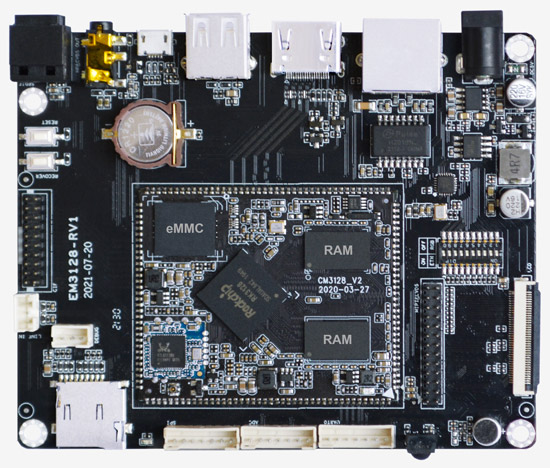

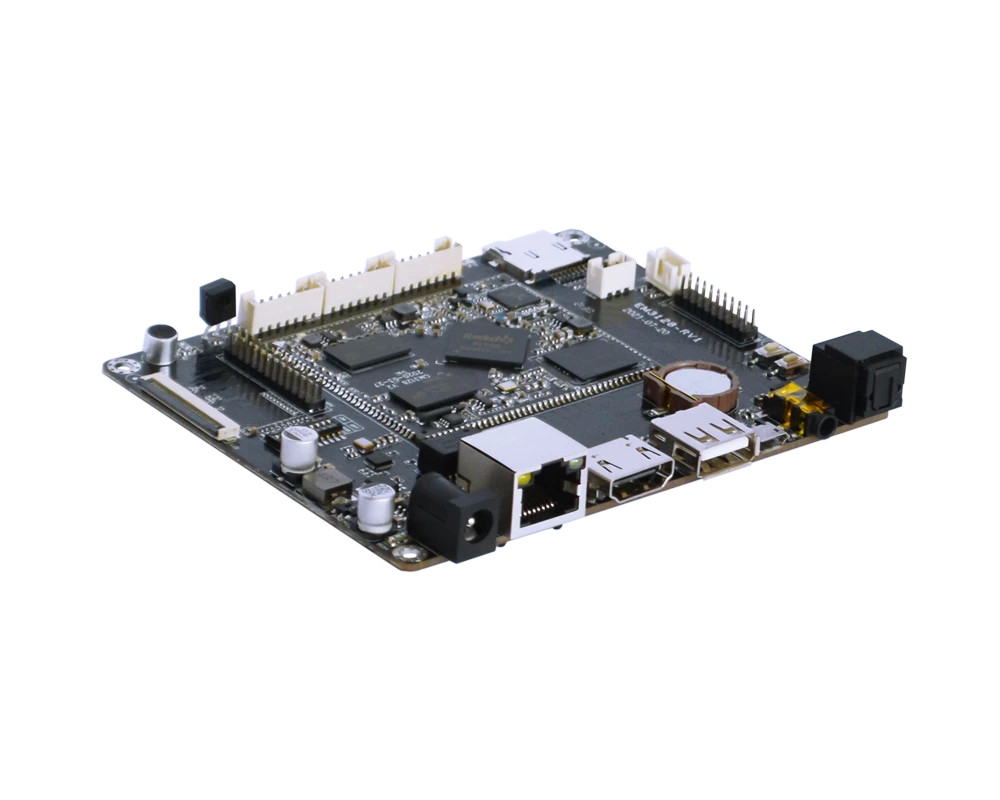

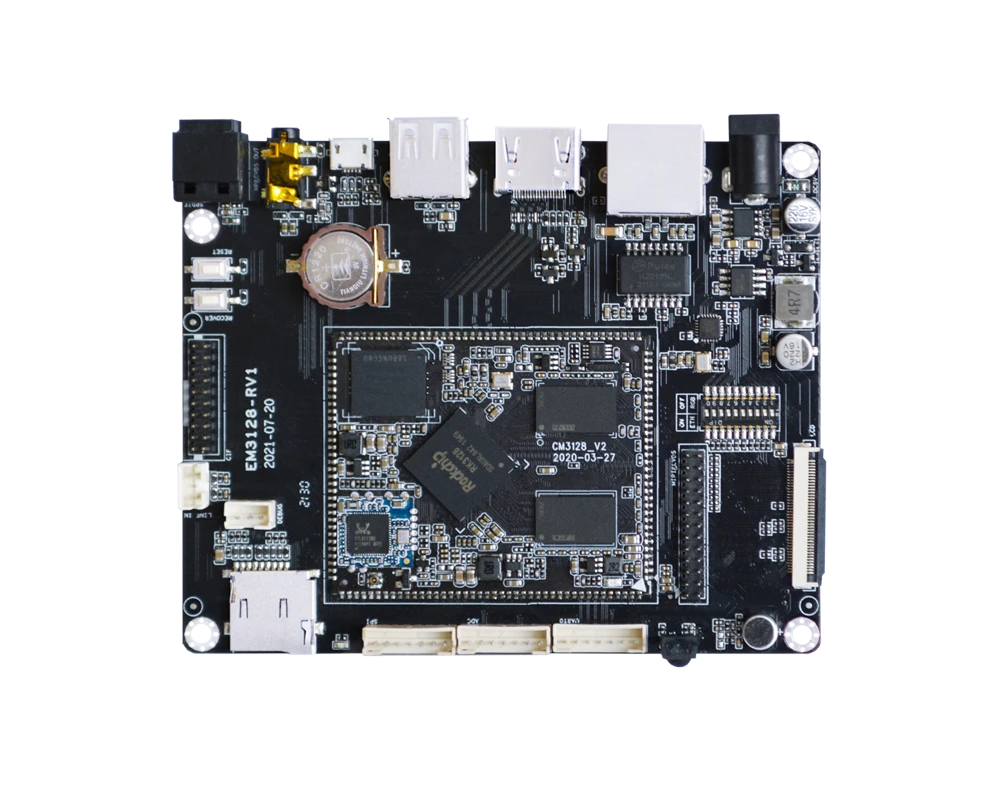

EM3128 single board computer is powered by a Rockchip RK3128 quad-core Cortex-A7 processor, which integrates a Mali-400MP2 GPU. This RK3128 development board comes with 1GB RAM and 8GB eMMC flash, Ethernet, Wi-Fi and Bluetooth, and various other ports and expansion headers, and aimed at low cost and power efficient embedded projects on the market.

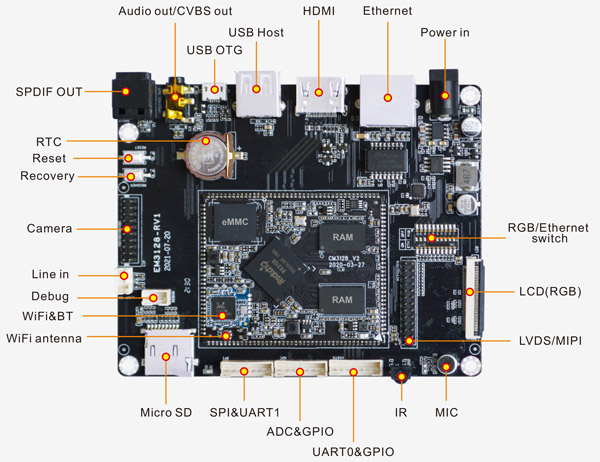

Specifications | ||
---|---|---|
CPU | Rockchip RK3128 quad core Cortex A7 processor @ 1.2 GHz | |
GPU | Mali-400MP2 GPU | |

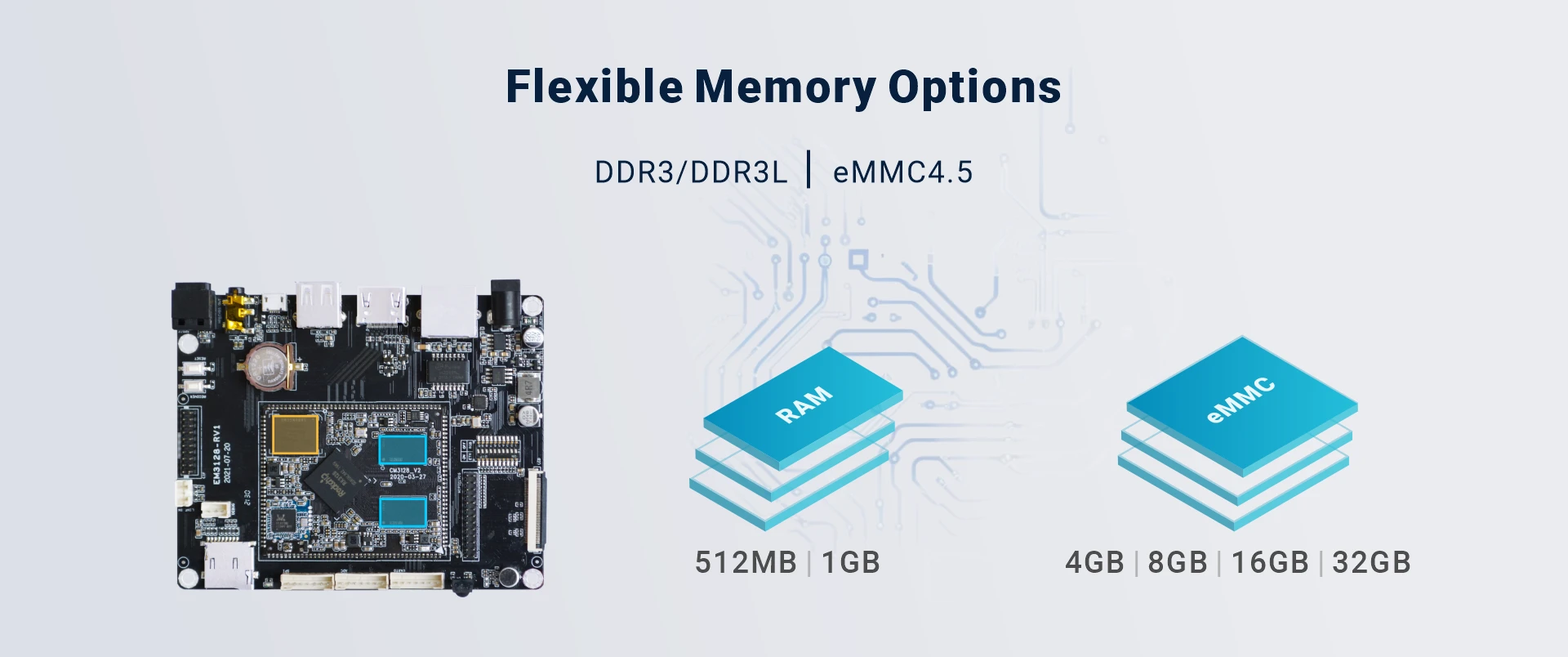

Memory | 1GB DDR3L | |
Storage | 8GB eMMC Flash Micro SD slot (Multiplexed with Debug) |
|
Power Supply | 5V/3A | |

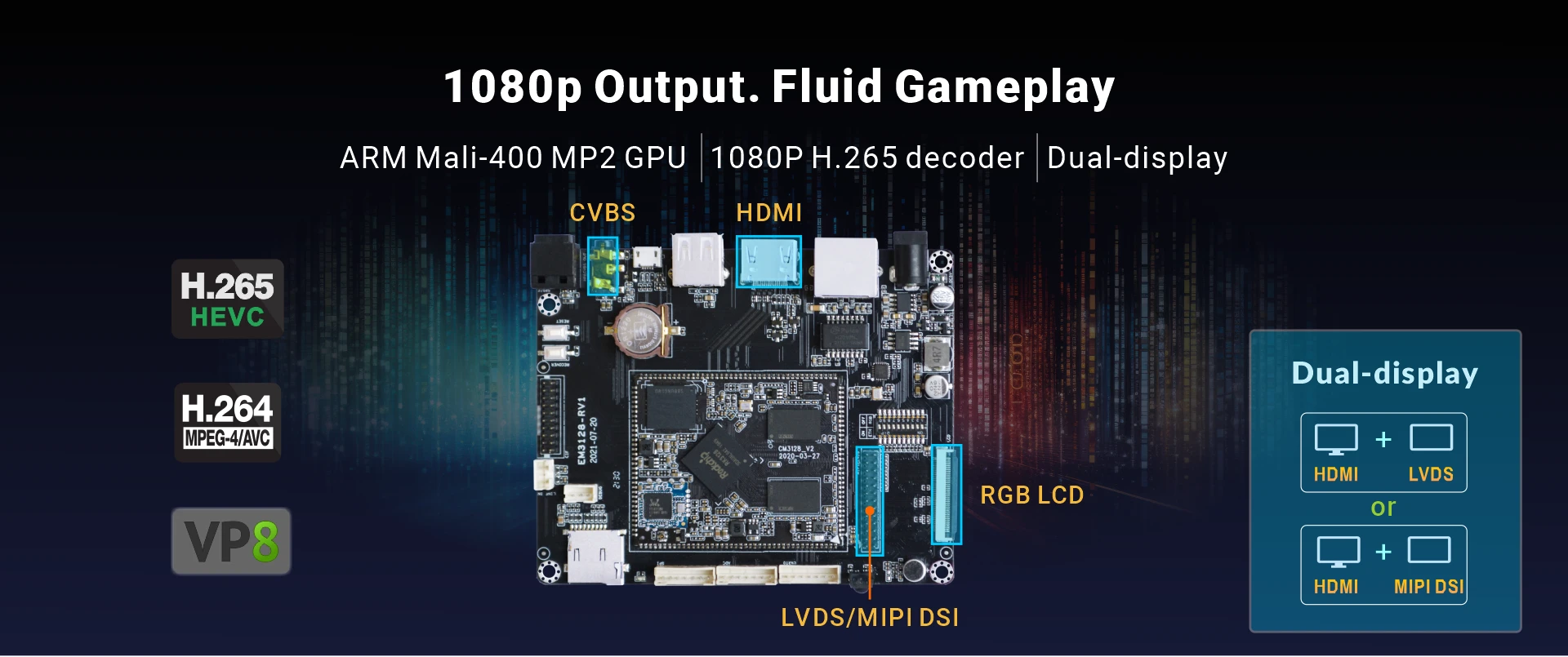

Video | Output | HDMI1.4, up to 1080p60 LVDS/MIPI/RGB, up to 1280*720 CVBS, up to 576i |
input | DVP Sensor interface, up to 5M Pixels | |
Audio | S/PDIF for audio output MIC1.3 for audio input 2-pin header for Line-in 3.5mm earphone jack for Audio output |
|

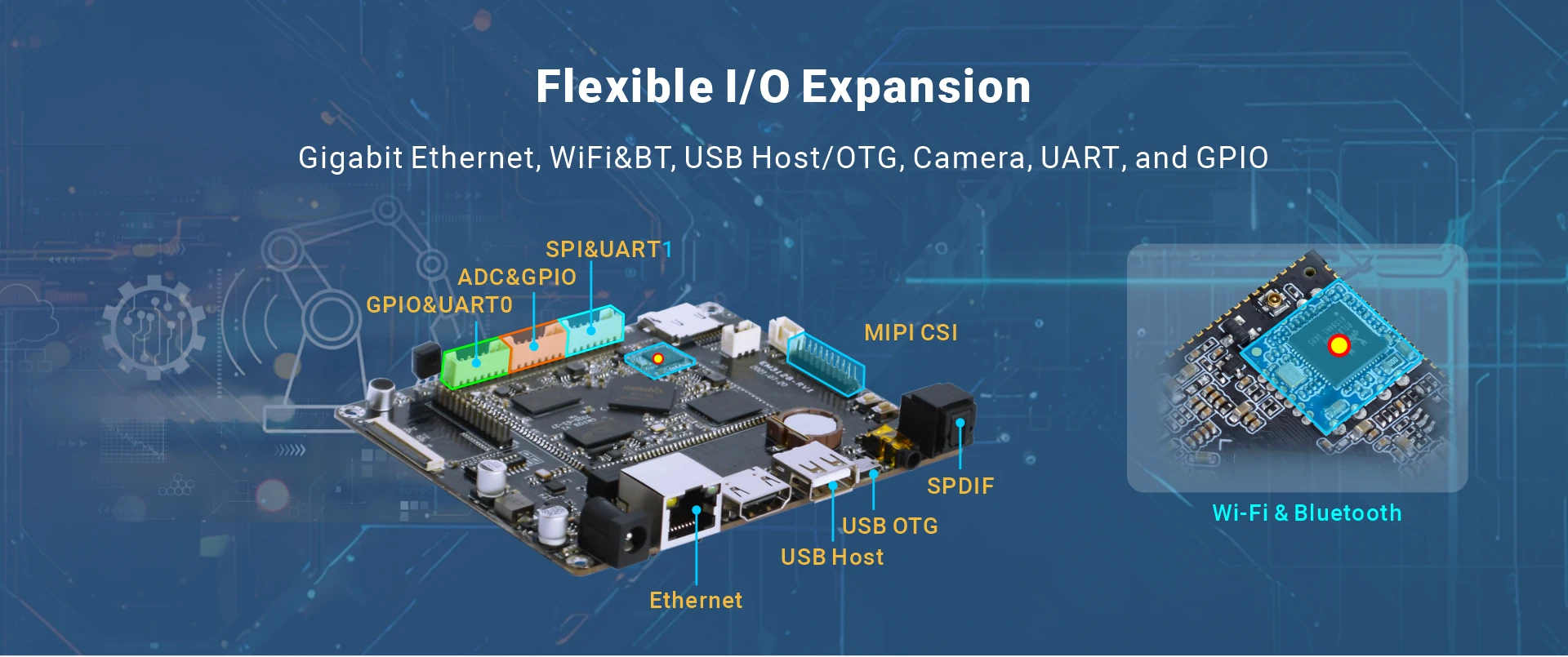

Connectivity | 10/100M Ethernet port. LAN8720A controller; 802.11 b/g/n 1T1R WiFi and Bluetooth4.0 |
|
Debugging | 3-pin 2.0mm pitch header for serial console | |
USB | 1x USB2.0 Host (Multiplexed with WiFi), 1x USB2.0 OTG | |
UART | 2x UART | |
Button | Reset, Recovery | |
Misc | IR Receiver, RTC, GPIO, ADC, SPI | |
Dimensions | Baseboard - 112 x 90mm; CPU module – 55 x 45mm |

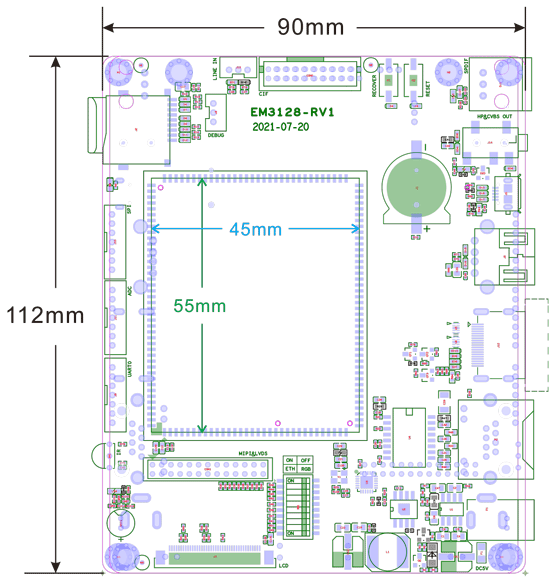

PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Android7.1 | Boot | uboot 2014.10 | rk3128_loader_v2.05.240.bin |
Kernel | Version | Linux3.10.104 | |
Drivers | HDMI | Support 1080P, 720P, 480P resolution | |
Audio | Audio out, MIC | ||
SD card | Micro SD card (Multiplexed with Debug) | ||
USB Host | USB2.0 Host (Multiplexed with WiFi); OTG-to-Host | ||
USB OTG | USB2.0 OTG | ||
Ethernet | 10/100 Mbit/s Ethernet | ||
adb | adb shell | ||
WiFi | Wireless- 2.4GHz | ||
Bluetooth | Bluetooth 4.0 | ||
Serial Port | Debug serial | ||
RTC | Support | ||
Embedded GUI | Android7.1 | Support Alarm Clock, Browser, Gallery, Calculator, Camera, Email, File Explorer, video player, Music etc. | |
Cross-compiler Environment | ubuntu-16.04, java-8-openjdk-amd64.tar.bz2 | ||
Debug Tools | SecureCRT, AndroidTool.exe, ADB |
Datasheet |
Rockchip RK3128 Datasheet V1.2 (3.0MB) |
LAN8720A datasheet (1.18MB) |

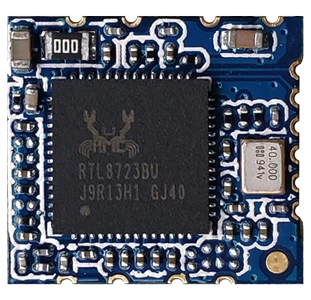

BL-R8723BT1 datasheet (771KB) |
Reference Manual |
EM3128 Android7.1 User Manual (2.75MB) |
