PDA based on S3C6410

* Processor: ARM11 Samsung S3C6410, ARM1176JZF-S @667MHz
* RAM: 128MB/256MB optional
* Storage: 256MB/512MB/1GB optional

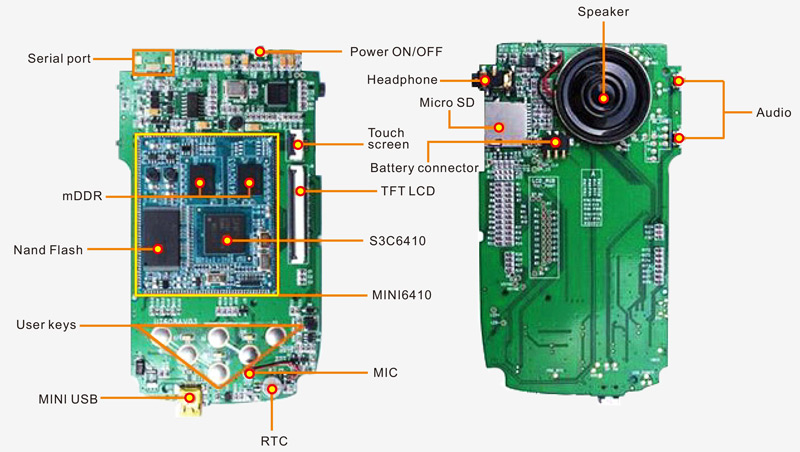

* Interface: LCD, Mini USB, TF, Earphone, MIC, SPK, Serial port,
* Operating system: WINCE6.0 R2/R3
* CPU Board size: 52mm x 45mm

Overview
Hardware
Software
Download
Price&Order
FAQ

608AV03 is a custom design product based upon Boardcon off-the-shelf product MINI6410, it takes full features of the processor by providing common system peripherals, minimizing overall system costs and eliminating the need to configure additional components, and it supports 128MB DDR RAM and 1GB NAND Flash as well as high-speed USB2.0 OTG/Host.

Specifications
CPU Board MINI6410	CPU	S3C6410, Samsung ARM11 @667MHz
	RAM	128M Bytes mDDR
	Nand Flash	1G Bytes (256MB - 1GB optional)
	Layers	8 layers, wiring full account of EMC,EMI
	Dimension	52mm x 45mm x 2.8mm
Interfaces	LCD	3.5Inch TFT LCD & Touch Screen,320*240
	Mini USB	Charge, Activesync,U-Disc
	SD Slot	Mini SD Card, T-Flash, up-to 32GB
	Earphone	3.5mm stereo headphone jack
	MIC	MIC Jack
Key	Function key	6 user-defined keys, the user can specify the function
	Audio button	2 Audio button for adjusting Audio
	On/Off key	1 Power key for system entering into standby, sleep and wake
Power supply	Mini USB Port	USB Power supply and charge
Power supply	Battery	2500mAh/3.7V
Working condition	Working Environment	0°C - 50°C
	Storing Environment	-20°C - 70°C
	Humidity	5% - 90% RH

OS	Feature	Description
WINCE6.0 R2/R3	Supporting Software Development	.NET CF2.0/3.5, MFC, C#, VB, SQL
	SDK	Support full-featured SDK Application Development
	Application Debugging	Through USB interface to step-debug the application in VS2005
	Powerful Multimedia Features	Hardware decoding MPEG-4/H263/H264/VC-1 avi, mp4, m4v, mov, 3gp, flv, mpg and other extended format DIVX, XVID Supporting MP1, MP2, MP3, AC3, AAC D1(720*576) &40fps
	2D/3D Hardware graphic acceleration	Opengles 1.1&2.0
