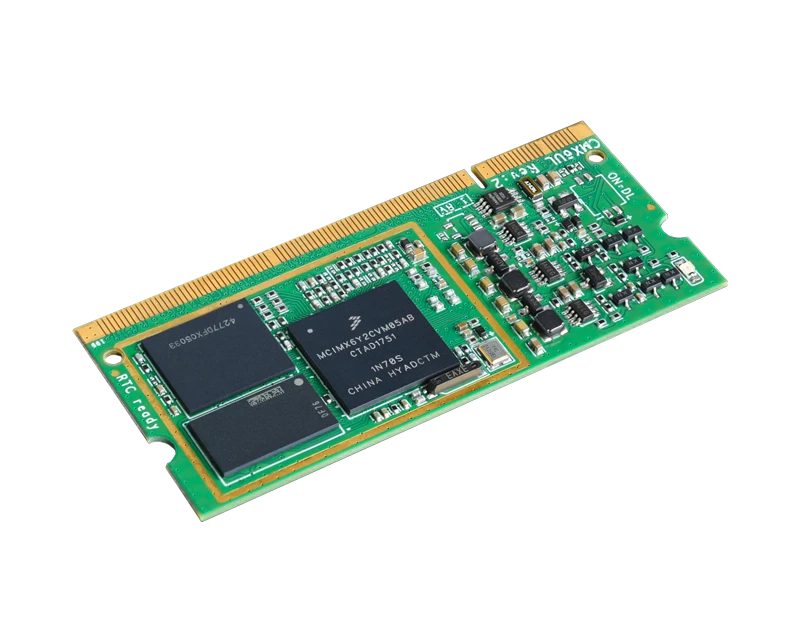

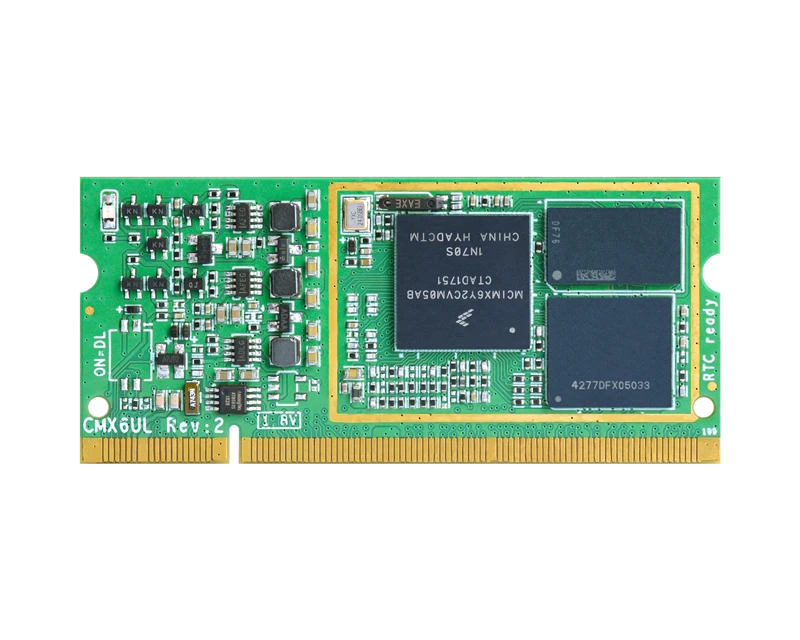

CM6ULL

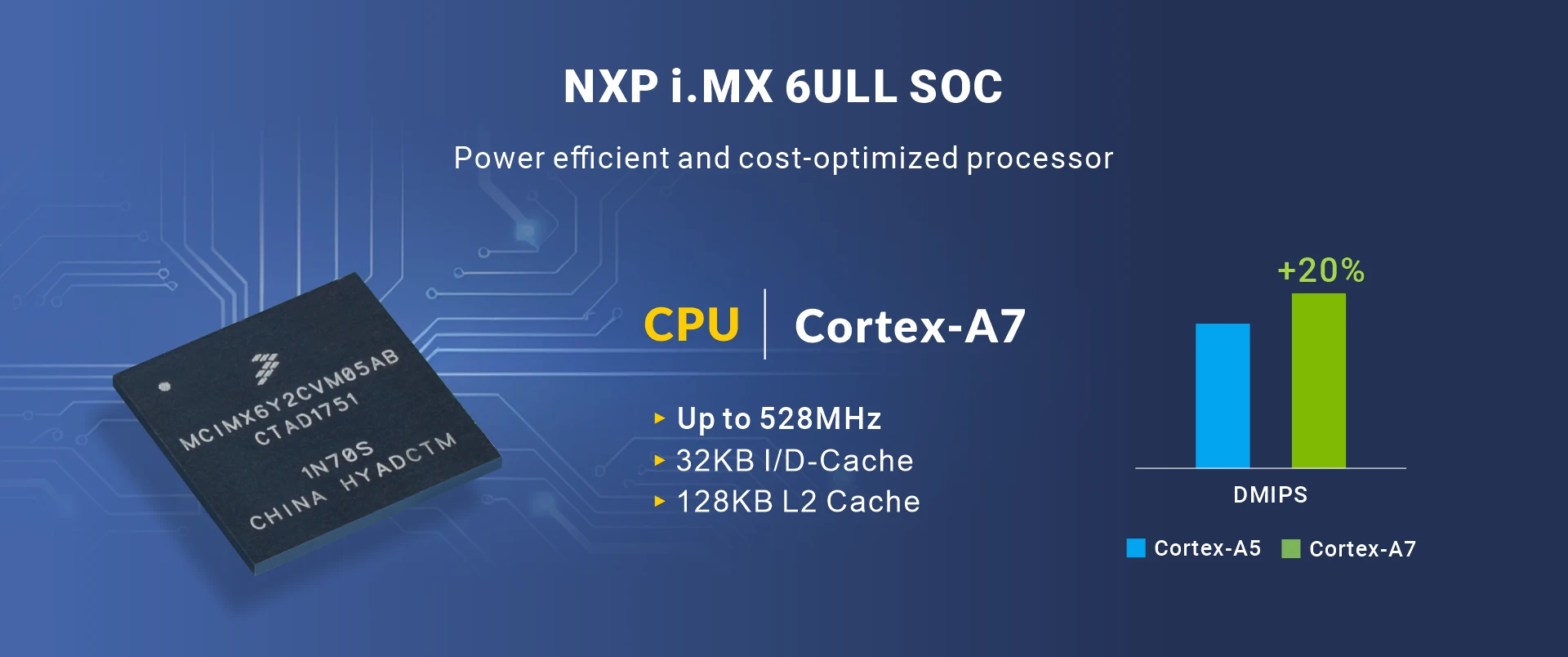

* Processor: NXP i.MX 6ULL ARM Cortex-A7™ @ 528MHz
* RAM: 256/512MB DDR3L
* Storage: 4/8/16/32GB eMMC
* Pin out: USB OTG, UART, LCD, Audio I/O, Ethernet (10/100T), MMC/SD/SDIO, Camera, JTAG, PWM, GPIO
* Operating system: Linux4.1.15
* Board size: 67.7mm x 30.0mm
* Connectors: SODIMM200 card edge connector
The CM6ULL is a highly flexible System on Module (SoM) based on NXP/Freescale’s i.MX 6ULL ARM Cortex-A7™ processor. This compact and energy-efficient ARM-based module provides maximum performance in low-power, space constrained embedded environments.

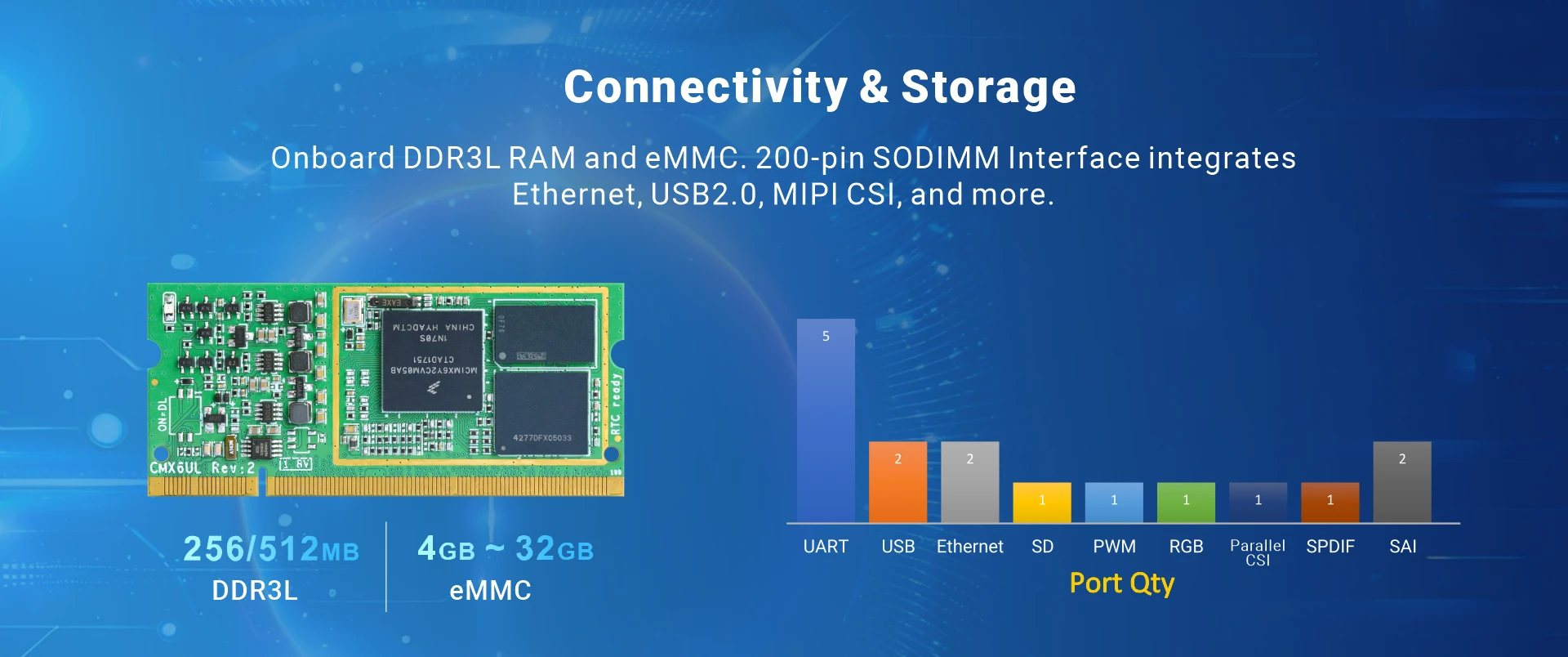

The i.MX6ull SOM is integrated power management module that reduces the complexity of external power supply and simplifies the power sequencing, equipped with 512MB of DDR3L RAM and 4GB eMMC. All the IO peripheral interfaces supported by i.MX 6ULL CPU is available through 200pin SODIMM edge connector.
Boardcon is a third party partner of Freescale, welcome to use Boardcon's Freescale products!
| Specifications | |
|---|---|
| CPU | NXP i.MX 6ULL ARM Cortex-A7™ @ 528MHz |
| Memory | 256/512MB DDR3L |
| Storage | 4/8/16/32GB eMMC |
| Supply Voltage | 5V |
| Pin out | USB OTG, UART, LCD, Audio I/O, Ethernet (10/100T), MMC/SD/SDIO, Camera, JTAG, PWM, GPIO |
| PCB Layer | 4 |
| Dimensions | 67.7 x 30 mm |
| Connectors | 200-pin SO-DIMM edge connector |
| Application | Industrial HMI, Mobile POS, Industrial control & automation, Medical & Healthcare equipment, etc. |
| Development Board | EM6ull |

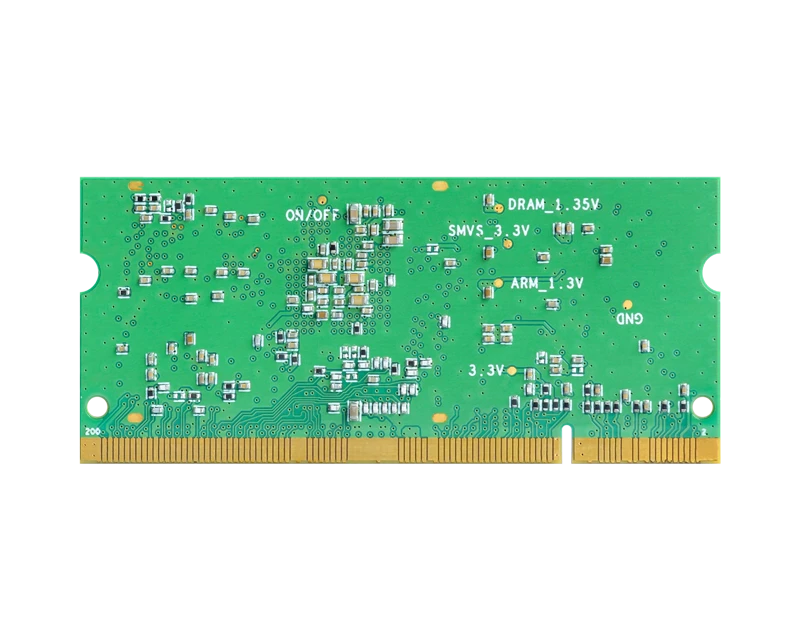

PCB Dimension
Pin Definition
| pin (Front) |
Signal | pin (Front) |
Signal | pin (Back) |
Signal | pin (Back) |
Signal |
|---|---|---|---|---|---|---|---|
| 1 | GND | 101 | ENET1_CRS_DV | 2 | GND | 102 | VSYS |
| 3 | PMIC_STBY_REQ | 103 | GND | 4 | MX6_POR_B | 104 | VSYS |
| 5 | PMIC_ON_REQ | 105 | EBET2_TX_CLK | 6 | NC | 106 | VSYS |
| 7 | BOOT_MODE1 | 107 | GND | 8 | VDD_COIN_3V | 108 | VSYS |
| 9 | BOOT_MODE0 | 109 | ENET2_RXER | 10 | SNVS_TAMPER9 | 110 | VSYS |
| 11 | USB_OTG2_VBUS | 111 | ENET2_RXD0 | 12 | SNVS_TAMPER5 | 112 | VSYS |
| 13 | USB_OTG1_VBUS | 113 | ENET2_RXD1 | 14 | ON/OFF | 114 | ENET1_TXEN |
| 15 | GND | 115 | GND | 16 | POR_B | 116 | GND |
| 17 | GND | 117 | ENT2_CRS_DV | 18 | SNVS_TAMPER8 | 118 | ENET1_TX_CLK |
| 19 | USB_OTG2_DP | 119 | ENET2_TXD1 | 20 | GND | 120 | GND |
| 21 | USB_OTG2_DN | 121 | ENET2_TXEN | 22 | GND | 122 | ENET1_TXD0 |
| 23 | GND | 123 | ENET2_TXD0 | 24 | SNVS_TAMPER7 | 124 | ENET1_TXD1 |
| 25 | USB_OTG1_DP | 125 | GND | 26 | GND | 126 | ENET1_RXER |
| 27 | USB_OTG1_DN | 127 | GND | 28 | GND | 128 | GND |
| 29 | GND | 129 | LCD_DATA21 | 30 | SNVS_TAMPER4 | 130 | GND |
| 31 | NC | 131 | LCD_DATA22 | 32 | SNVS_TAMPER1 | 132 | GND |
| 33 | JTAG_MOD | 133 | LCD_DATA17 | 34 | SNVS_TAMPER3 | 134 | LCD_DATA23 |
| 35 | GND | 135 | GND | 36 | SNVS_TAMPER0 | 136 | GND |
| 37 | NC | 137 | LCD_DATA18 | 38 | GND | 138 | LCD_DATA19 |
| 39 | RTC_CLKOUT | 139 | LCD_DATA13 | 40 | GND | 140 | LCD_DATA20 |
| 41 | GND | 141 | LCD_DATA14 | 42 | SNVS_TAMPER6 | 142 | LCD_DATA15 |
| 43 | JTAG_TDI | 143 | LCD_DATA8 | 44 | SNVS_TAMPER2 | 144 | LCD_DATA16 |
| 45 | GPIO_8 | 145 | LCD_DATA9 | 46 | JTAG_TMS | 146 | GND |
| 47 | GPIO_4 | 147 | GND | 48 | JTAG_nTRST | 148 | LCD_DATA11 |
| 49 | GPIO_5 | 149 | LCD_DATA5 | 50 | GND | 150 | LCD_DATA12 |
| 51 | GND | 151 | LCD_DATA6 | 52 | JTAG_TD0 | 152 | LCD_DATA10 |
| 53 | GPIO_7 | 153 | LCD_DATA0 | 54 | JTAG_TCK | 154 | LCD_DATA3 |
| 55 | GPIO_3 | 155 | LCD_DATA1 | 56 | GPIO_9 | 156 | GND |
| 57 | UART1_TXD | 157 | LCD_RST | 58 | GPIO_2 | 158 | LCD_DATA4 |
| 59 | GND | 159 | GND | 60 | GND | 160 | LCD_HSYNC |
| 61 | GPIO_6 | 161 | LCD_PCLK | 62 | GPIO_1 | 162 | LCD_VSYNC |
| 63 | UART1_RXD | 163 | LCD_DE | 64 | GPIO_0 | 164 | LCD_DATA2 |
| 65 | UART2_TXD | 165 | GND | 66 | UART1_CTS | 166 | LCD_DATA7 |
| 67 | UART2_RXD | 167 | SD1_DATA0 | 68 | UART5_RXD | 168 | GND |
| 69 | UART3_TXD | 169 | SD1_DATA3 | 70 | GND | 170 | QSPIA_nSS0 |
| 71 | GND | 171 | SD1_DATA1 | 72 | UART2_CTS | 172 | QSPIA_DATA0 |
| 73 | UART3_RXD | 173 | SD1_CMD | 74 | UART1_RTS | 174 | QSPIA_DATA3 |
| 75 | UART4_TXD | 175 | SD1_DATA2 | 76 | UART3_CTS | 176 | QSPIA_DATA2 |
| 77 | UART4_RXD | 177 | GND | 78 | UART2_RTS | 178 | QSPIA_DATA1 |
| 79 | UART5_TXD | 179 | SD1_CKL | 80 | UART3_RTS | 180 | GND |
| 81 | GND | 181 | GND | 82 | GND | 182 | QSPIA_SCLK |
| 83 | NC | 183 | CSI_PIXCLK | 84 | GND | 184 | GND |
| 85 | VEXT_3.3 | 185 | GND | 86 | NC | 186 | CSI_DATA6 |
| 87 | VEXT_3V3 | 187 | CSI_MCLK | 88 | VEXT_3V3 | 188 | CSI_DATA7 |
| 89 | VEXT_3V3 | 189 | GND | 90 | VEXT_3V3 | 190 | CSI_DATA5 |
| 91 | VEXT_3V3 | 191 | CSI_DATA4 | 92 | VEXT_3V3 | 192 | CSI_DATA3 |
| 93 | VEXT_3V3 | 193 | CSI_DATA1 | 94 | NC | 194 | CSI_DATA2 |
| 95 | NC | 195 | CSI_DATA0 | 96 | VSYS | 196 | NVCC_CSI |
| 97 | ENET1_RXD0 | 197 | CSI_HSYNC | 98 | VSYS | 198 | CSI_VSYNC |
| 99 | ENET1_RXD1 | 199 | GND | 100 | VSYS | 200 | GND |
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux4.1.15 | Bootloader | Boot | u-boot 2015.04 |
| Boot mode | Boot from eMMC | ||
| Download | Download via USB OTG | ||
| Kernel | Version | 4.1.15 | |
| File system format | Default support ext2, ext3, ext4, fat, jeffs2, UBIFS, nfs, etc. Boardcon only provides ext4, R/W file system. | ||
| LED | Support | ||
| Serial | Support 3x UARTs | ||
| RTC | Support | ||
| Ethernet | 10/100M Ethernet | ||
| CAN | Support | ||
| USB host | Support USB2.0 HOST | ||
| USB OTG | Support USB2.0 OTG | ||
| LCD | Support 4.3-, 7-inch LCD | ||
| TOUCH | 4.3-, 7-inch Res- touch screen; 4.3-inch Cap-touch screen. | ||
| eMMC | Support | ||
| MMC/SD | MMC mode. Support | ||
| GPIO | Support | ||
| Button | Support | ||
| Audio I/O | Support | ||
| WiFi | Support | ||
| Embedded GUI | Qt/Embedded | qt 5.5.0 | |
| File system | TCP/IP | TCP/IP protocol | |
| Network ping | Check the network | ||
| Ifconfig, route | For network configuration and related service application | ||
| Basic tool | linux common cammands | cat, chmod, echo, free, init, kill, ls, mkdir, mount, ps, reboot, rm, yes, insmod, lsmod, rmmod, dd, df, aplay | |
| Tools | DNW, CRT, MFGTOOLS.RAR, VMWARE7.0 |
If you order the module or any question, please feel free to contact us at market@armdesigner.com
