MINI210S 　

* Processor: Samsung ARM Cortex-A8 S5PV210AH @1GHz
* RAM: 512MB DDR2
* Storage: 1GB SLC NAND Flash

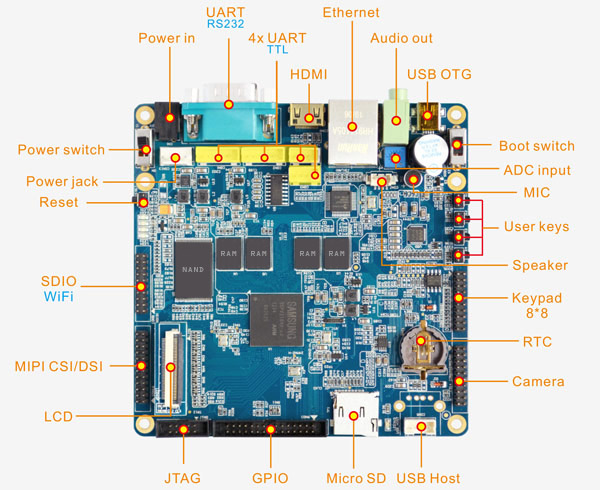

* Interfaces: 4x UART, USB2.0 Host, USB2.0 OTG, HDMI, LCD, Ethernet, Audio out, MIC, Keypad, Camera, SD, GPIO, JTAG, MIPI, SDIO WiFi, etc.
* Operating system: Android2.3/4.0, Linux+QT, WinCE6.0
* Board size: 110mm x 110mm

Overview
Hardware
Software
Download
Price&Order
FAQ

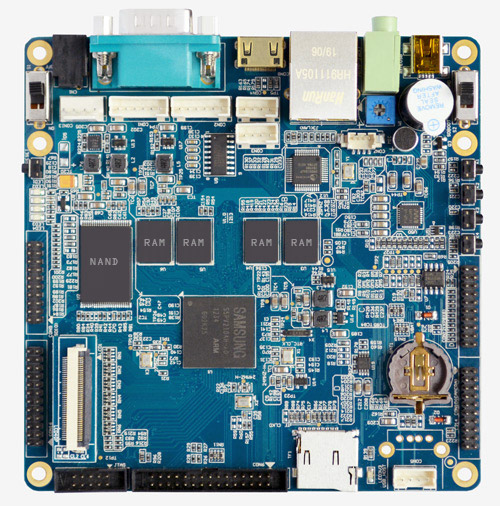

MINI210S is a tiny and affordable single board computer (SBC) that allows you to browse the internet, play games, watch videos, etc.
This SBC included a Samsung S5PV210 processor with 512MB RAM, 1 GB SLC NAND Flash. Additional storage can be added with a microSD card or a USB hard drive. The MINI210S can perform many of the tasks done by regular computers even though it is much smaller. With the compact design, fanless CPU, and low power consumption, for some applications it can be a substitute for the regular sized desktop PC.
Cortex-A8 1GHz CPU, various data communication (WiFi/ Bluetooth/ 3G/ Ethernet), optional operation system (Andrdoi/Linux/WinCE), multi-size LCD supported, with extra-large storage capacity and integrated with camera to satisfy multi-function in financial and industrial application and TMS terminal management.

Specifications
CPU	Samsung ARM Cortex-A8 S5PV210AH-A0 processor clocked at 1GHz
GPU	PowerVR SGX540
Memory	512MB DDR2
Storage	Optional 1GB NAND Flash, Micro SD slot
Power Supply	DC 5V@2A via Power socket (DC-23B) or 4-pin header.
USB	USB OTG 2.0, USB Host 2.0 (USB-AF or 4pin header)
Connectivity	10/100M Ethernet RJ45 port, DM9000AEP Optional SDIO WiFi
UART	1x RS232 (COM0, DB9) 4x TTL (CON1/CON2/CON3/CON4, pin-header). The signals of COM0 and CON1 are multiplexed.

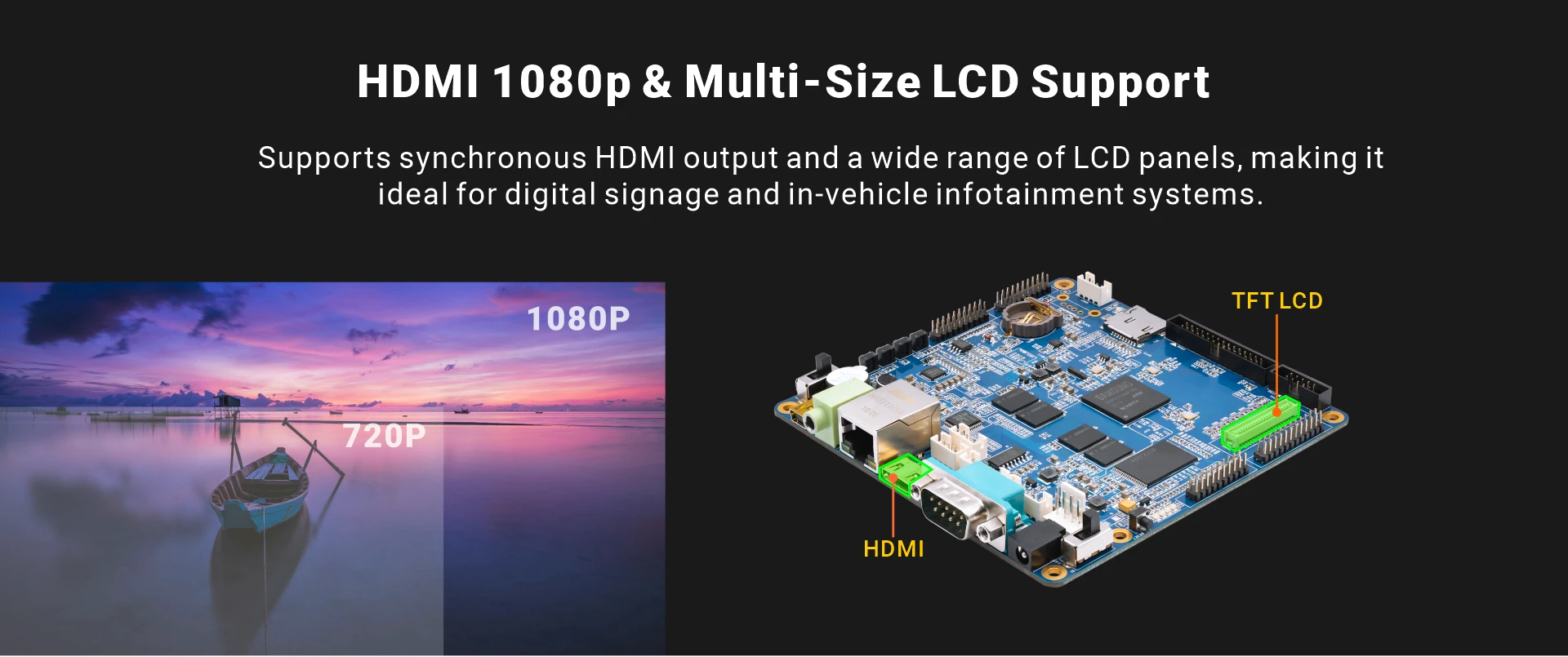

Video Output	HDMI 1.3, 1080p@30fps 41-pin RGB LCD (up to 1024 * 768)
Audio	3.5mm audio stereo output jack 8-channel audio via HDMI 8Ω 1W speaker integrated microphone
Camera(optional)	20-pin header for CMOS Camera
GPIO	30-pin header. Included GPIO, AD input, SPI, I2S, PWM
Keypad	20-pin header for 8*8 matrix Keypad
Keys & Switch	1x Reset Key, 4x User Keys 1x Power switch (S1) for ON/OFF, 1x Boot switch (S2) for BOOT Mode selection.
JTAG	10-pin header for debugging.
RTC	External lithium battery

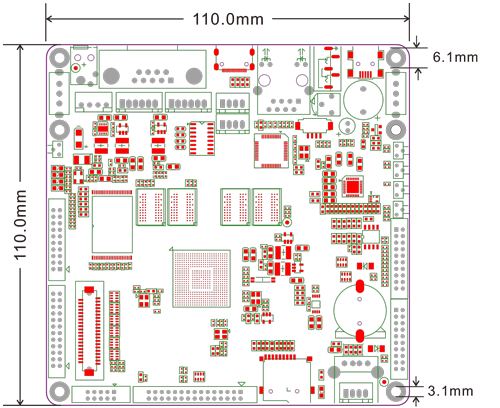

Dimension	110mm x 110mm

OS	Item	Feature	Description
Android4.0.3	Superboot210	Main functions: 1. Flash and install (YAFFS2) system via SD card 2. Detect booting mode (SD/NAND) 3. Display LCD info, hardware configurations, installation process
	Kernel and drivers	Kernel version	Linux 3.0.8
	Kernel and drivers	Drivers	Watchdog, RTC, LED, User key, SPI, I2C, PWM, ADC, LCD&TP(4.3”/ 5”/ 7”/ 8”/ 10”), backlight, USB HOST, USE Device, SD, UART, WiFi, Audio, Ethernet (DM9000), FIMC, JPEG, MFC, CMOS Camera, HDMI, 2D/3D accelerometer, USB-to-UART, USB 3G
	File System	format	YAFFS2/CRAMFS/NFS/UBIFS/NFS/FAT32
	Embedded GUI	Android4.0	Browser, Calculator, Calendar, Camera, Clock, Email, Gallery, Message, Phone, Mediaplayer, Music, Record, ES File Explorer, etc.
	Network protocol	TCP/IP protocol, Telnet, FTP Client/server, boa web server
	Cross-compiler	arm-linux-gcc-4.5.1-v6-vfp

OS	Item	Feature	Description
Linux3.0.8	Superboot-210	Main functions: 1. Flash and install (YAFFS2) system via SD card 2. Detect booting mode (SD/NAND) 3. Display LCD info, hardware configurations, installation process
	Kernel	Version	Linux kernel 3.0.8
	Kernel	Driver	Watchdog, RTC, LED, Use key, SPI, I2C, PWM, ADC, TP, Backlight, LCD(4.3”/ 5”/ 7”/ 8”/ 10”), USB HOST, USB Device, SD, WiFi, Audio, Ethernet, FIMC, JPEG, MFC, COMS Camera, HDMI, 2D/3D accelerometer, USB-to-UART, USB 3G
	File System	format	YAFFS2/CRAMFS/NFS/UBIFS/NFS/FAT32
	Embedded GUI	Qt/Embedded	Qtopia 2.2.0, Qt/Embedded-4.7.0, Qt-Extended-4.4.4
	Application	Clock, Phone, Message, Camera, Record, Browser, SMPlayer, Music, Calculator, Terminal, File Manager, etc.

OS	Item	Feature	Description
WinCE6.0 R3	Superboot210	Functions: 1. Read file from the SD card (FAT format), and the file path can be customized 2. Flash NK.bin via SD card 3. Change Boot Logo via SD card 4. Display LCD info, hardware configurations, installation process 5. Detect booting mode (SD/NAND)
	System	Drivers	RTC, Watchdog, MLC/SLC Nand, LCD, TP, Backlight, UART, Ethernet (DM9000), Audio (WM8960), SD, USB HOST, LED, User key, PWM, ADC, SPI, I2C, HDMI
	Application	HDMI, LED Control, User-key Test, Recorder, Network Configuration Utility, PWM Buzzer, Serial Assistant, Backlight, etc.
	Development Environment	Visual Studio 2005
