Processor: Rockchip RK3566. Quad-core Cortex-A55, 1.8GHz

NPU: 1 TOPS

RAM: 2GB/4GB

Storage: 8GB/16GB/32GB/64GB/128GB

Pin out: 4x UART, Debug, USB3.0 Host, 2x USB2.0 Host, USB2.0 OTG, LVDS, MIPI DSI, eDP, MIPI CSI, HDMI, Ethernet, PCIe2.1/SATA, 2x SDMMC, VOP, CIF, I2C, SPI, PWM, ADC, I2S, SPDIF, GPIO, etc.

Operating System: Debian 12, Buildroot

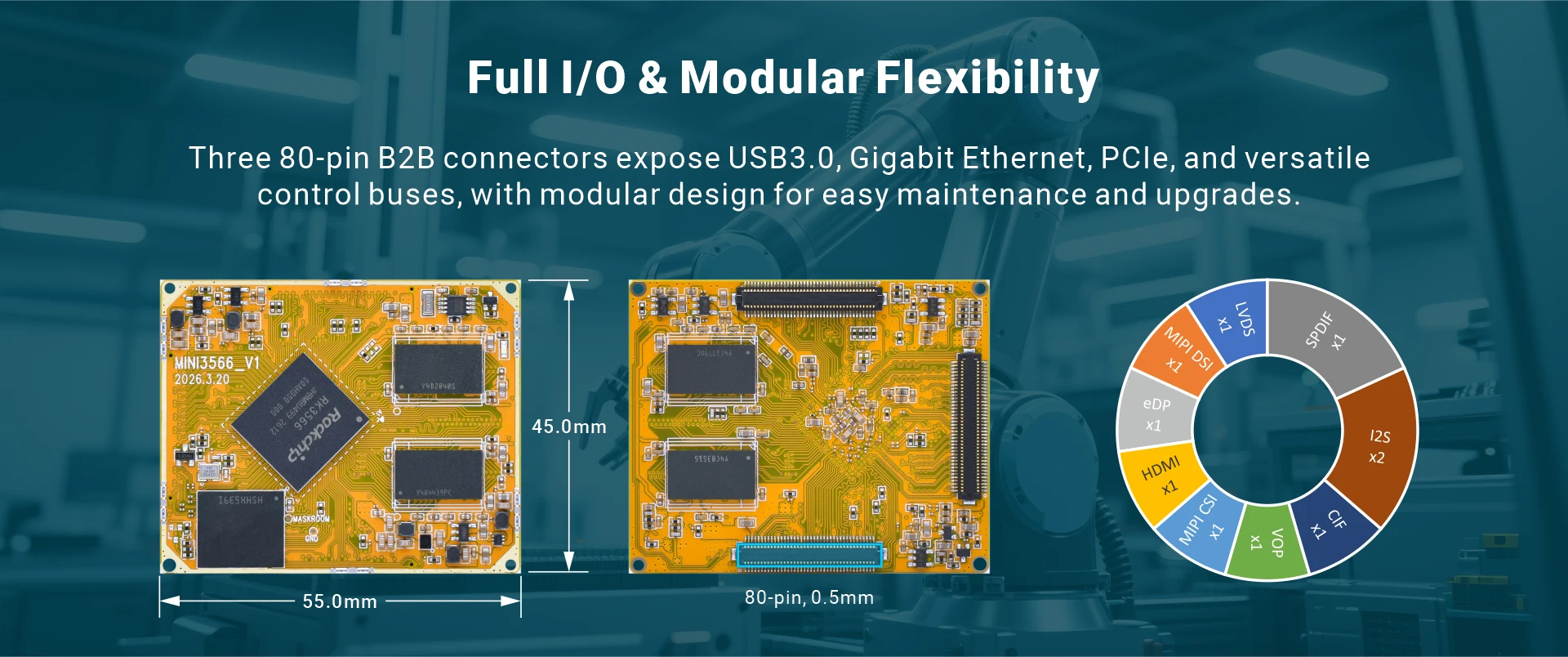

Dimensions: 55 x 45 mm

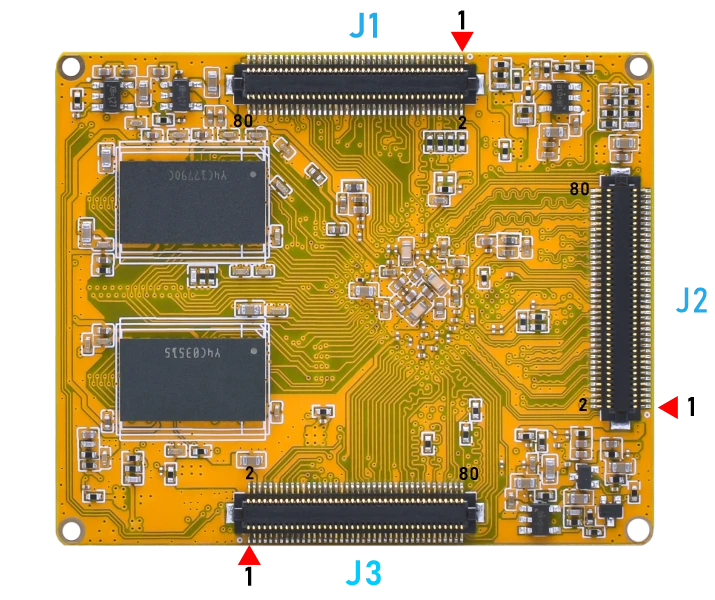

Connectors: 3x 80-pin, 0.5mm pitch

Operating Temperature: 0° to + 80° C
