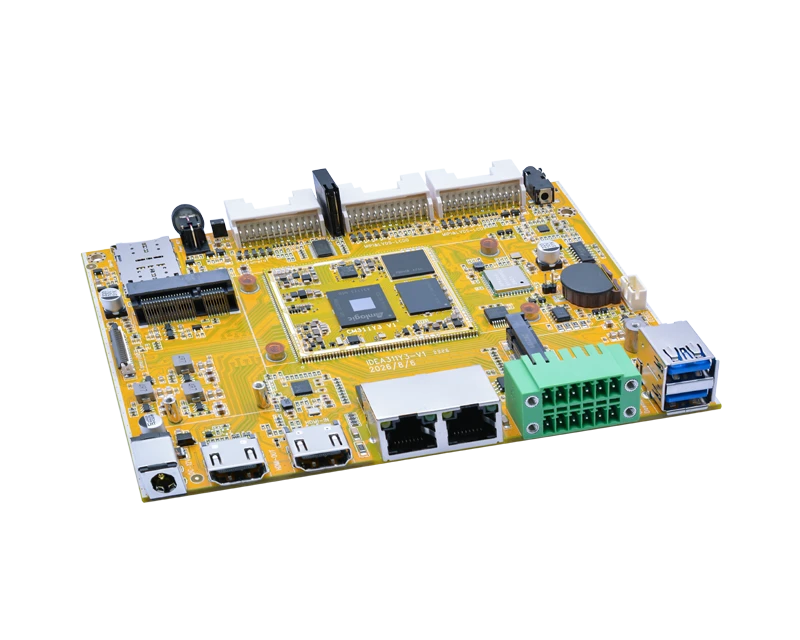

Single Board Computer
Idea311Y3
Highlight

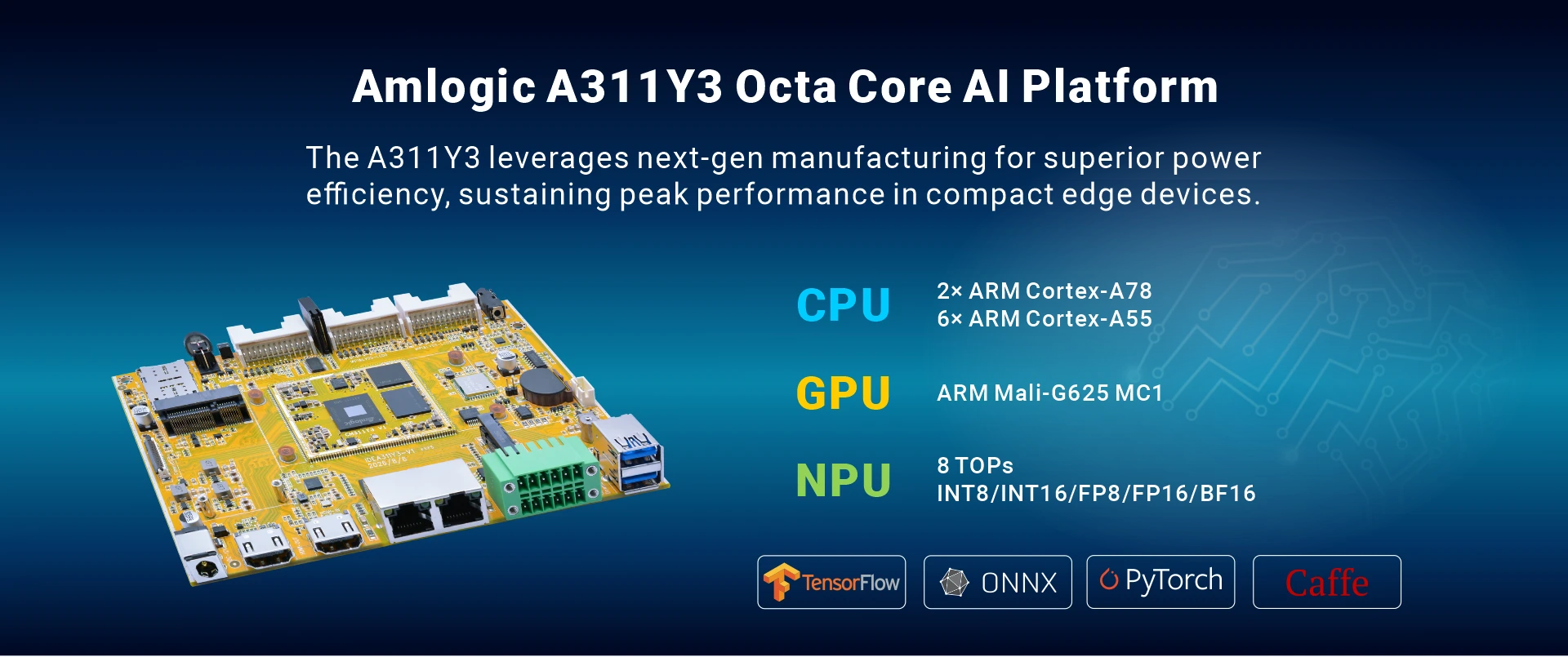

Processor: Amlogic A311Y3. 2x ARM Cortex-A78 cores @ 2.4GHz + 6x ARM Cortex-A55 cores @ 2.0GHz
NPU: 8 TOPS

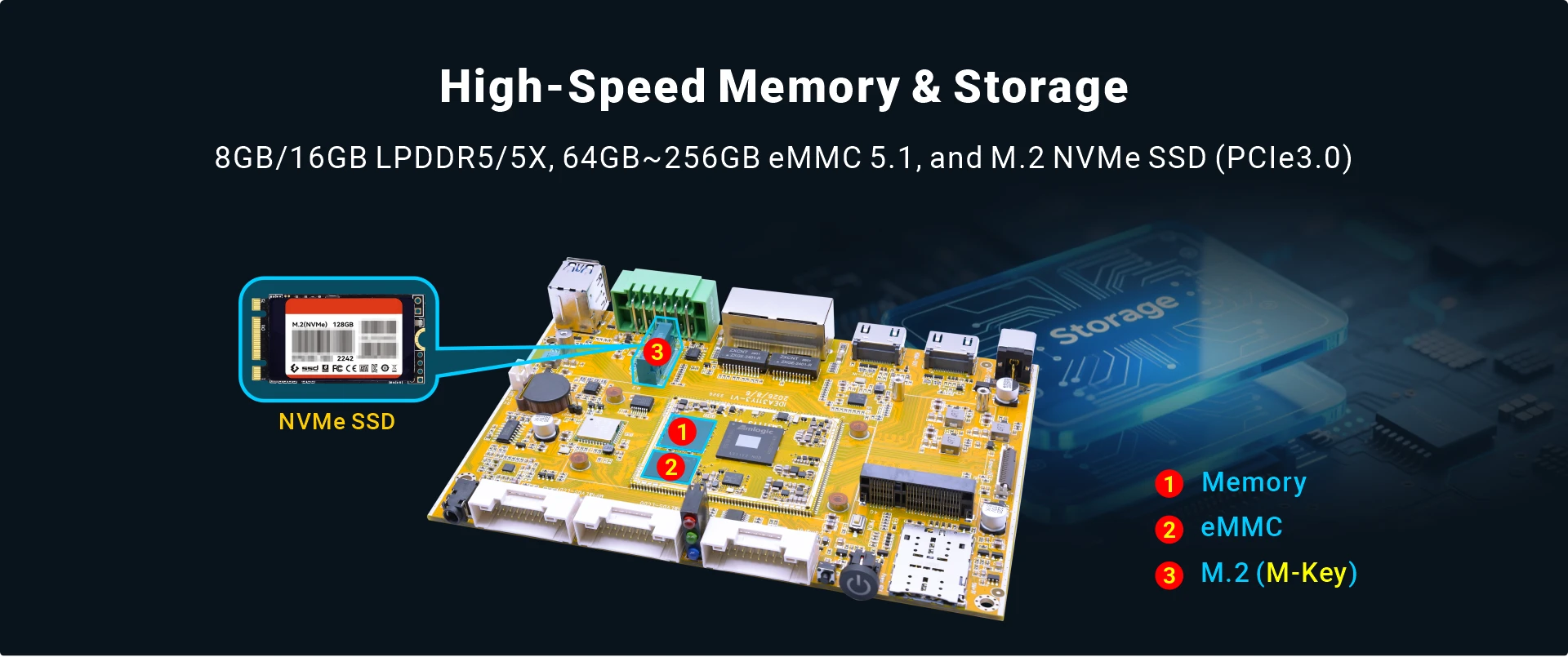

RAM: 4GB/8GB/16GB
Storage: 32GB/64GB/128GB/256GB

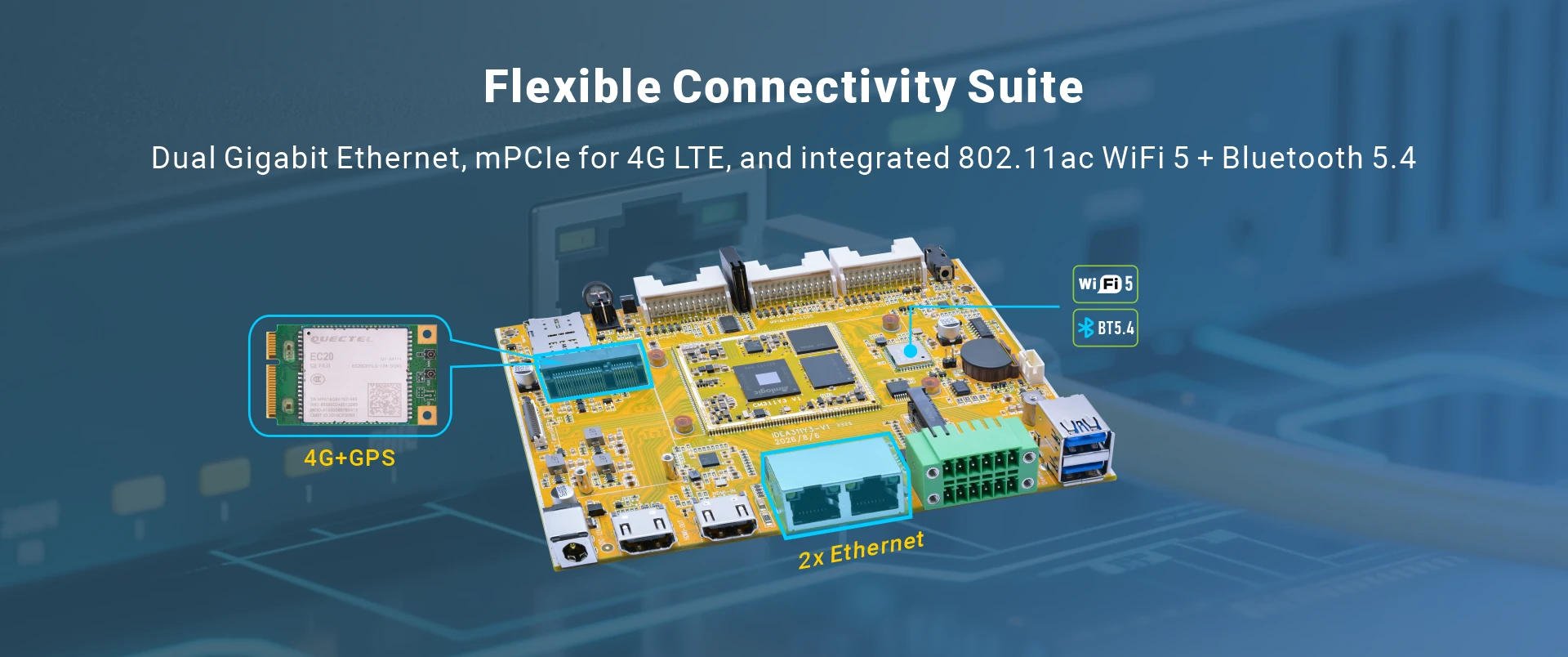

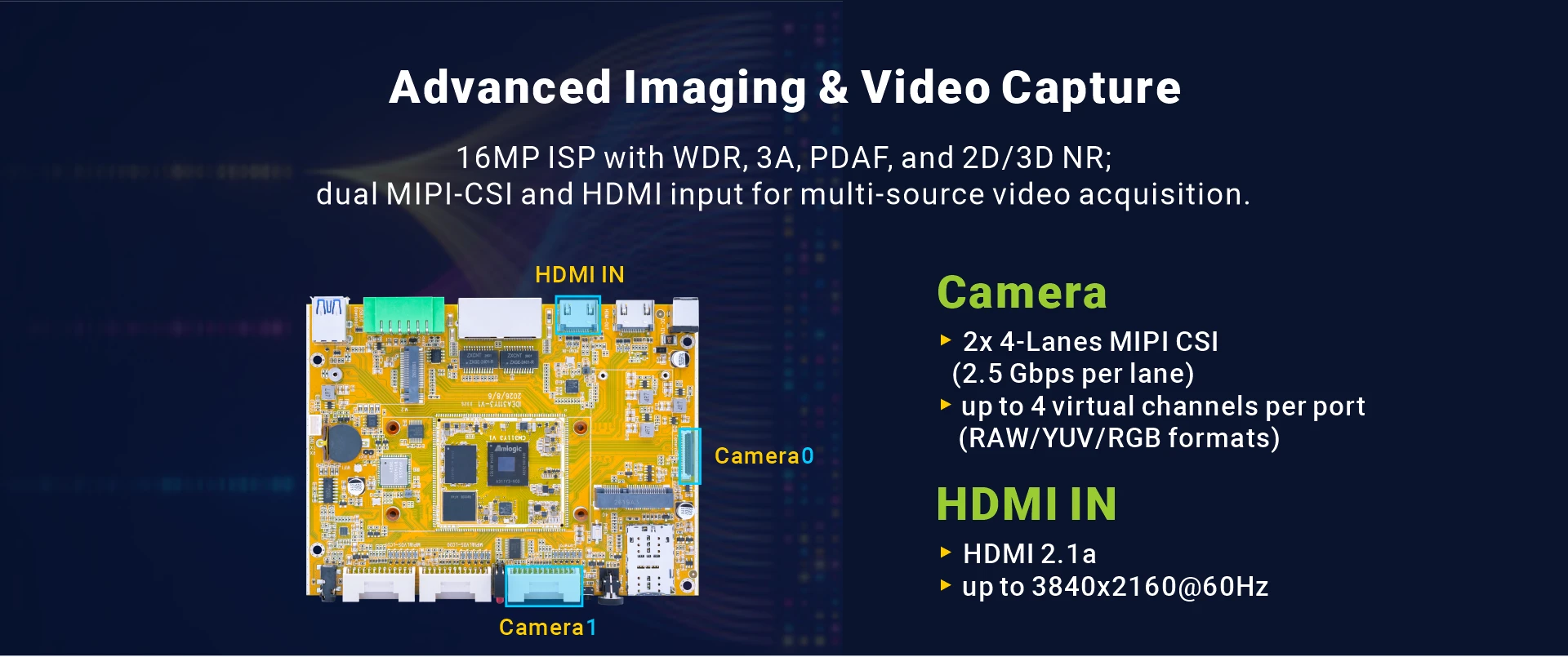

Interfaces: UART(RS232), Debug, 2x USB3.0, RS485, CAN, 2x Ethernet, 2x MIPI DSI/LVDS, HDMI OUT, HDMI IN, 2x MIPI CSI, mPCIe, M.2, SIM & MicroSD, Audio I/O, RTC, etc.
Operating System: Android 16
Dimensions: 155 x 115 mm
Operating Temperature: 0° to + 70° C
Accessories
-
EC20
Mini PCIe Multi-mode LTE Module
30.0 × 51.0 × 4.9 mm
-40° to +80° C -
IMX415
CMOS camera
6.4mm Type 1/2.8
8.29M pixel
MIPI CSI-2 -
Power Adapter 12V EU
12V / 3A Output
EU Plug -
Power Adapter 12V US
12V / 3A Output
US Plug
36W -
10.1-inch MIPI
800 x 1280 pixels
16.7M colors
MIPI Interface -
10.1-inch LVDS
1280 x 800 pixels
16.7M colors
LVDS interface -
IMX307
CMOS camera
6.46mm Type 1/2.8
2.13M pixel
MIPI interface
