EM-IMX8M-MINI

* Processor: NXP i.MX8M Mini. Quad-core ARM Cortex-A53 @ 1.8GHz + Cortex-M4 @ 400MHz
* RAM: 2GB
* Storage: 8GB
* Interfaces: 4x UART, 2x USB Host, 1x USB OTG, Gigabit Ethernet, MIPI CSI, MIPI DSI, Audio I/O, PCIe, MMC/SD, JTAG, CAN, RS485, Speaker, I2C, SPI, etc.
* Operating system: Linux 4.14.98 + Qt 5.0
* Dimensions: 118.6 x 102.3 mm
* Expansion Module: 4G model, WiFi, 10.1-inch LCD

Overview
Hardware
Software
Datasheet
Price&Order
FAQ

The EM-IMX8M-MINI is a linux based single board computer (SBC) incorporates PICO-IMX8M-MINI SODIMM module which is based on NXP’s energy efficient i.MX8M Mini ARM Cortex A53 processor.

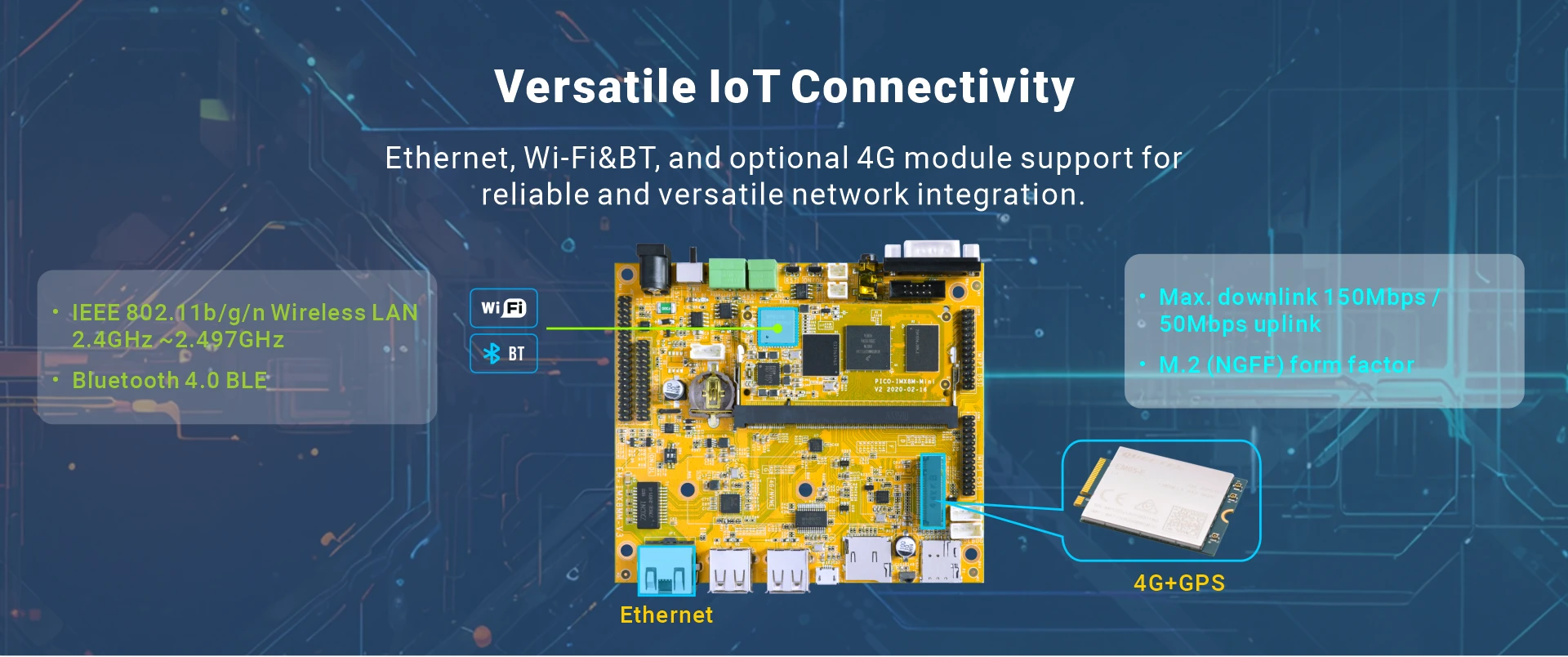

This i.MX8M Mini SBC is tailor made for a wide range of multimedia applications, featuring 2GB LPDDR4, 8GB eMMC, 2x USB 2.0, powerful network connectivity options including 4G, WiFi and Bluetooth. Robust multimedia features including 1080P60 video HEVC/H265/H264/VP9 decode with HDR, 2D/3D graphics acceleration, 16 audio channels (32bits), MIPI-DSI, and 1080p encoder and decoder.
Together with MIPI CSI camera inputs, MIPI DSI display outputs, flexible audio interfaces and comprehensive communication features, EM-IMX8M-MINI is ideal for Advanced graphics, machine vision, and other multimedia applications.

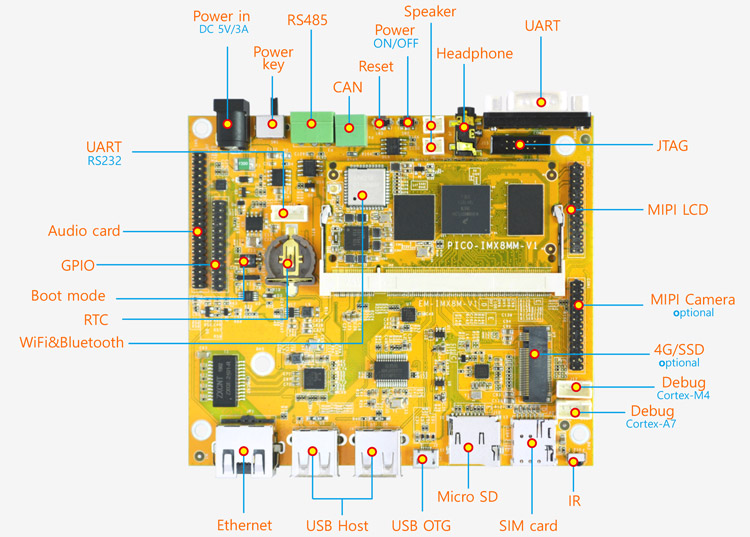

i.MX8M Mini Single Board Computer

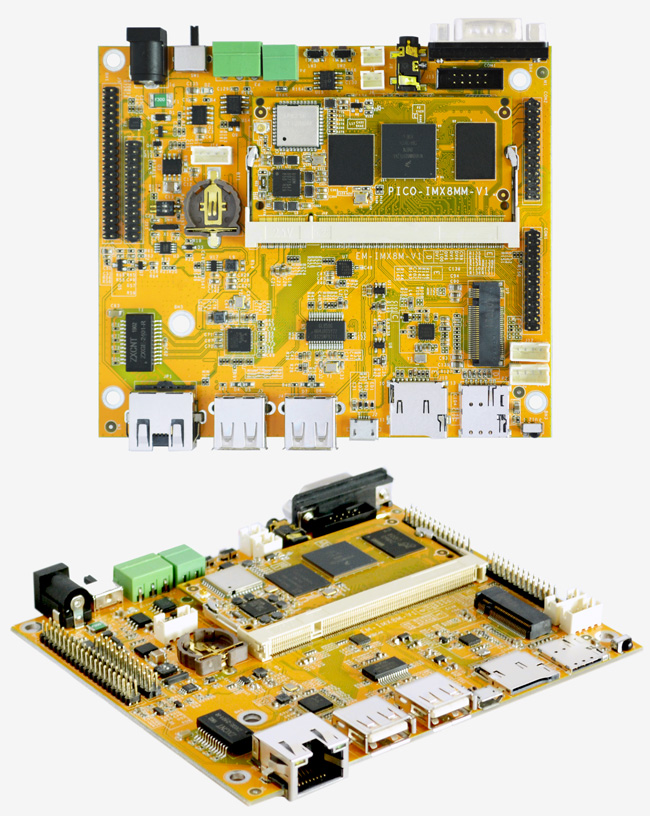

IMX8M-MINI single board computer

Specifications
SoC	NXP i.MX 8M Mini, 4x ARM Cortex-A53 @ 1.8GHz 1 MB L2 cache ARM Cortex-M4F @ 400MHz
GPU	GCNanoUltra for 3D acceleration (1x shader, OpenGL® ES 2.0) GC320 for 2D acceleration
Memory	2GB LPDDR4
Storage	8GB eMMC flash
Power Management	ROHM BD71847
Power Input	DC 5V/3A
USB	1x USB 2.0 OTG, micro-USB connector 2x USB 2.0 Host, type-A connector
UART	1x RS232(DB9), 3x UARTs(4-pin connector)
Ethernet	10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211E controller
Audio	WM8960 audio codec. 3.5mm audio jack, 2x 2-pin header for Speaker
Expand Audio interface	8bit RX and 8bit TX SAI interface, 40-pin header (J5)
SD	Micro SD socket, SD3.01
Display	MIPI-DSI, 4 data lanes, up to 1920 x 1080 @60Hz, 26-pin header (CON2)
RTC	Real time clock, powered by external battery
JTAG	JTAG debug interface, 10-pin header
CAN	2-Pin connector (P4)
RS485	Compatible 9-bit data format, 3-pin connector (P3)
Buttons	Reset (SW2), Power (SW3), Boot Mode (SW4)
Expand interface	2x I2C, 1x SPI, 6x GPIO. 26-pin header (J11)
PCIe	PCIE2.1, for SSD or 4G module
Camera	MIPI-CSI, 4 data lanes, 26-pin header (CON1)
WiFi&Bluetooth	802.11b/g/n WiFi, Bluetooth 4.0. AP6236 module
SIM	Nano SIM
Dimensions	Baseboard - 118.6 x 102.3 mm; Core board – 67.6 x 34.3 mm

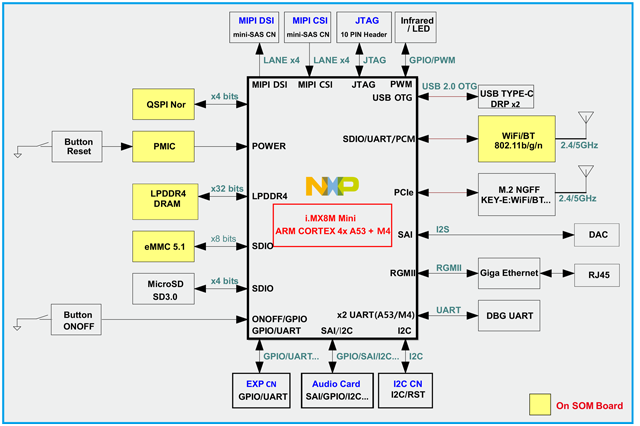

Block Diagram

IMX8M-MINI-Block-Diagram

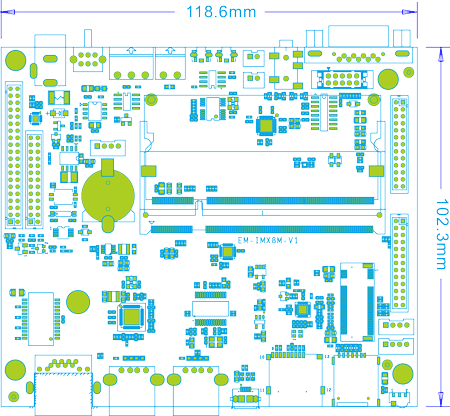

PCB Dimension

IMX8M MINI PCB dimension.png

OS	Item	Feature	Description
Linux4.14.98	Bootloader	Boot	u-boot 2018.03
		Boot mode	Boot from eMMC
		Download	Download via USB OTG
	Kernel	Version	Linux 4.14.98
		File system format	Support ext2, ext3, ext4, fat, jeffs2, UBIFS, nfs, etc. Boardcon only provides ext4, R/W file system.
		LED	Support
		Serial	Support
		RTC	Support
		Ethernet	10/100/1000 Mbps Ethernet
		CAN	Support
		RS485	Support
		WIFI	Support
		USB host	Support
		USB OTG	Support
		LCD	Support
		TOUCH	Support Touchscreen
		eMMC	Support
		MMC/SD	MMC mode
		GPIO	Support
		Audio I/O	Support
	Embedded GUI	Qt/Embedded	qt 5.0
	File system	TCP/IP	TCP/IP protocol
		Network ping	Check the network
		Ifconfig, route	For network configuration and related service application
	Basic tool	linux common cammands	cat, chmod, echo, free, init, kill, ls, mkdir, mount, ps, reboot, rm, yes, insmod, lsmod, rmmod, dd, df, aplay
	Basic tool	Tools	DNW, CRT, uuu.rar

Expansion Module	Module Detail	Linux
4G	EM05-E M.2 module	√
WiFi&Bluetooth	AP6236 Module. 2.4G WiFi + Bluetooth 4.0	√

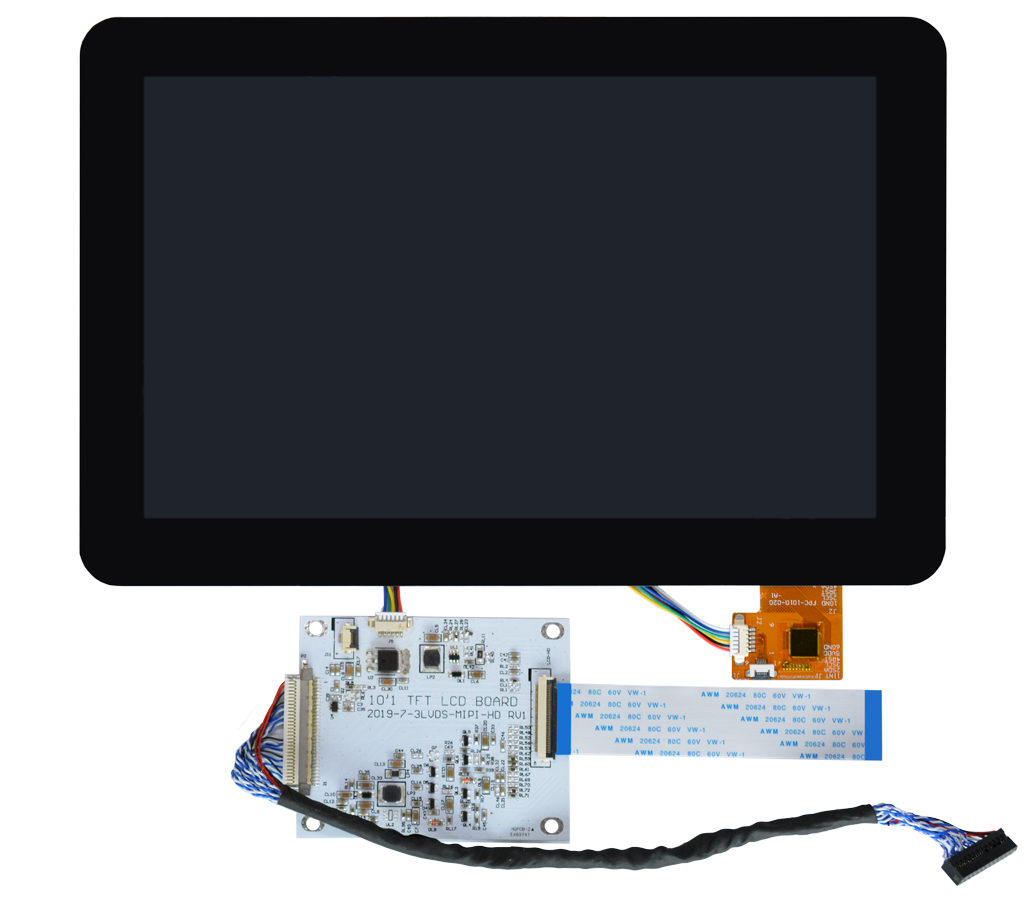

MIPI LCD	10.1-inch Capacitive Touch Screen，1280 x 800	√
