Single Board Computer

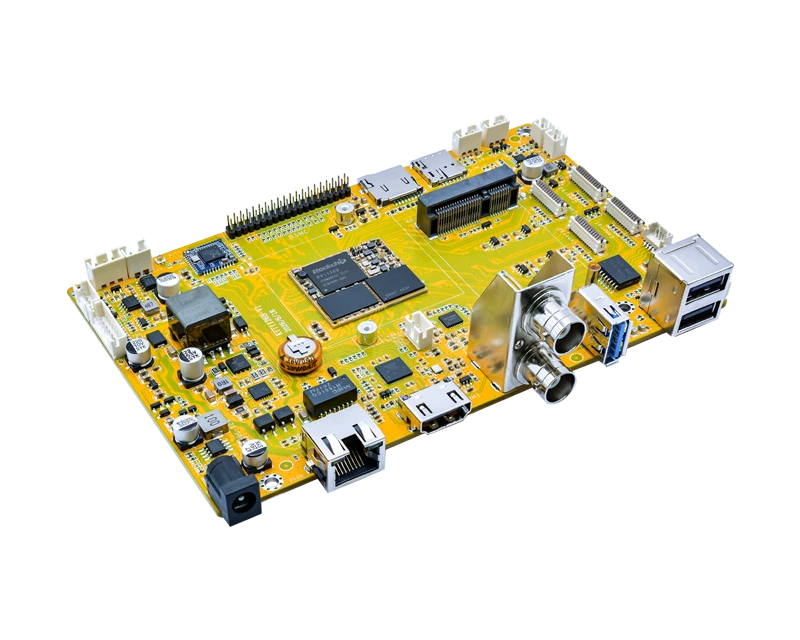

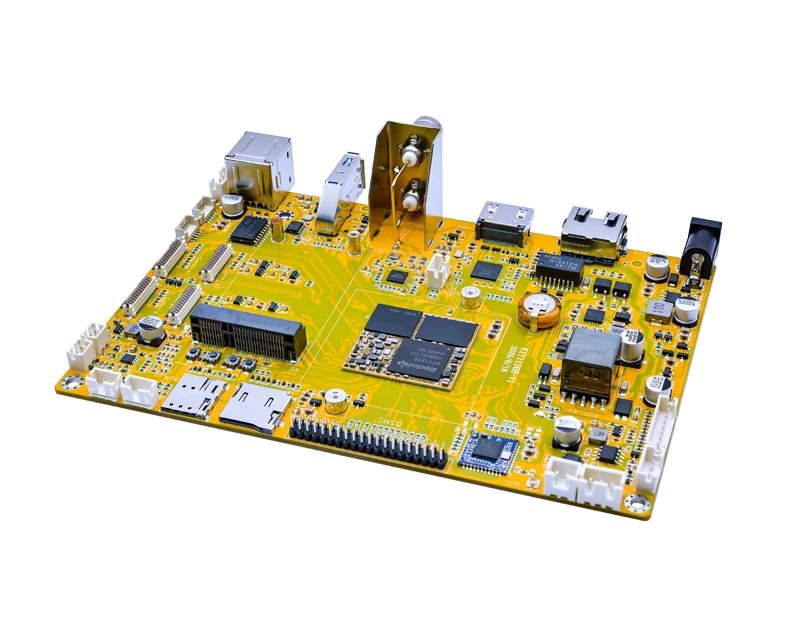

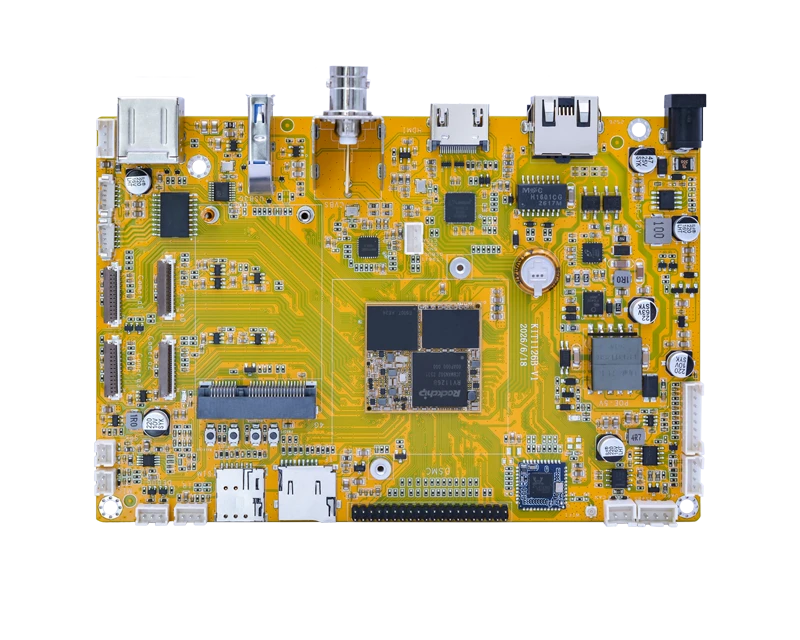

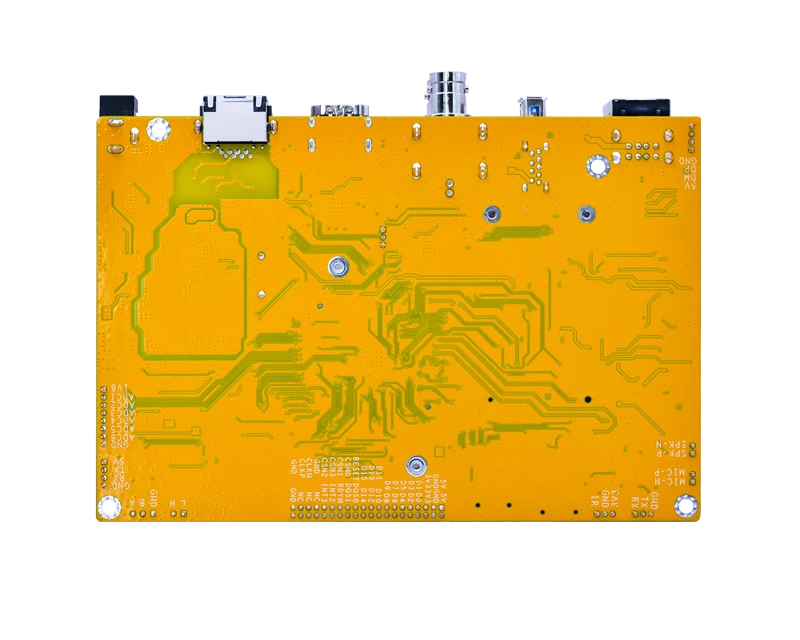

KIT1126B
Highlight
Processor: Rockchip RV1126B. Quad-core Cortex-A53 @ 1.6GHz
NPU: 3 TOPS
RAM: 2GB/4GB
Storage: 8GB/16GB/32GB/64GB/128GB/256GB
Interfaces: USB3.0 DRD, 3x USB2.0 Host, HDMI, 4x MIPI CSI(camera), 2x CVBS in(camera), Ethernet, mPCIe, Debug, CAN, RS485, Micro SD, Speaker, MIC, ADC, IR, Motor, GPIO, etc.
Operating System: Debian 12, Buildroot
Dimensions: 155 x 105 mm
Operating Temperature: 0° to + 70° C
Accessories
-
EC20
Mini PCIe Multi-mode LTE Module
30.0 × 51.0 × 4.9 mm
-40° to +80° C -
Power Adapter 12V EU
12V / 3A Output
EU Plug -
Power Adapter 12V US
12V / 3A Output
US Plug
36W -
SW-MA2024HP
CMOS image sensor
1920×1080@30fps
3.6mm Type 1/3"
BNC interface -
SC200AI
CMOS Image Sensor
Optical format 1/2.8"
2MP resolution
MIPI interface
