* Processor: Samsung ARM Cortex-A8 S5PV210, 1GHz
* RAM: 256MB
* Storage: 512MB
* Interface: USB Host, USB Device, 3x UART, LCD, Ethernet, JTAG, Audio, GPIO, ADC, PWM, SD, RTC, Camera
* Operating system: Linux 2.6.35
* Dimensions: 131 x 105 mm

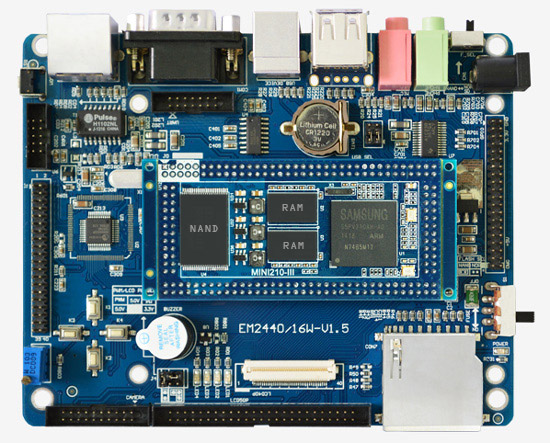

EM210-III is a Single Board Computer (SBC) based on the Samsung ARM Cortex-A8 S5PV210 CPU clocked at 1GHz. The SBC is a great balance between high performance and low cost, providing highly customizable features and board configurations.
The CPU module MINI210-III features a multi-purpose processor. It allows development of multi-function embedded applications through its multiple peripheral interfaces.
The base board supports three versions of CPU module, except MINI210-III, the MINI2440 based on Samsung S3C2440 and MINI2416-III based on Samsung S3C2416are optional.
By default, the SBC comes pre-installed with Linux2.6.35.

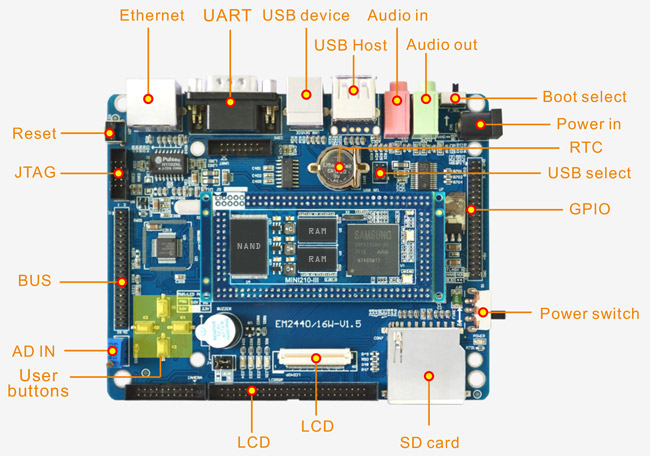

| Specifications | |
|---|---|
| SoC | Samsung ARM Cortex-A8 S5PV210 @ 1GHz |
| GPU | Power VR SGX540 |
| RAM | 256MB DDR2 |
| Storage | 512MB/1GB NAND SD/MMC card slot |
| Connector | 2.0mm pitch board-to-board connectors |
| Serial Ports (UARTs) |
COM-0 - RS232, five-wire DB9 RS232 serial port COM-1 - RS232, three-wire available via 2mm pitch 3 pins COM-2 - RS232, three-wire available via 2mm pitch 3 pins |
| LCD | 7- inch TFT LCD with resistor touch screen |
| Ethernet | 10/100 Mbps Ethernet RJ45 port via Davicom DM9000CEP |
| USB | 1x USB2.0 device, 1x USB2.0 Host |
| Camera (optional) | CMOS camera interface, 20-pin header connectoer |
| JTAG | 1x 2mm pitch 20-pin JTAG Port |
| Audio | WM8731 Audio chip, 3.5mm Audio I/O jack |
| ADC | Adjustable resistor is connected with pins of ADC to check analog/digital change |
| RTC | Real Time Clock, powered by external lithium battery |
| Buzzer | On-board PWM function test unit |
| GPIO | A 40-pin GPIO Expansion Connector |
| BUS | 1x 40-pin BUS extended interface |
| LEDs | 4 x Status LEDs |
| Buttons | 4x User Buttons |
| Dimensions | Based board - 131 x 105 mm; CPU module - 74 x 37 mm |

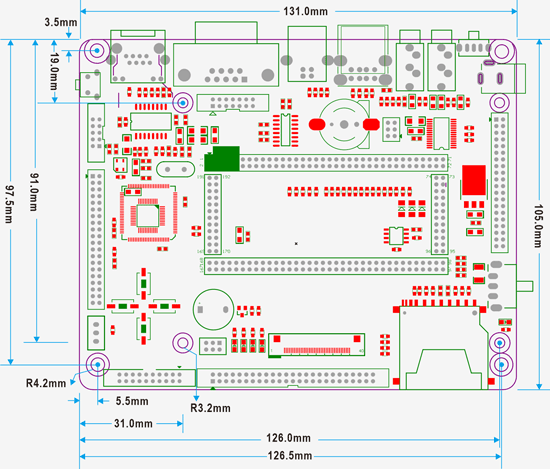

PCB dimension
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux2.6.35 | Bootloader | Version | u-boot 1.3.4 |
| Boot | Start up system, supporting one Key to update Bootloader, Kernel, Yaffs | ||
| Tftp | Support tftp transmitting protocol | ||
| File system | Yaffs | ||
| Kernel | Support writing kernel image into nand flash and kernel parameter setting | ||
| Etc. | Support download application to flash debugvia Serial Interface | ||
| Kernel | Version | Linux 2.6.35 | |
| File system format | CRAMFS/RAMFS/EXT2/FAT32/NFS/YAFFS/YAFFS2 | ||
| Serial | Serial driver | ||
| Ethernet | 10/100 Mbps Ethernet, DM9000 driver | ||
| RTC | RTC driver | ||
| USB host | USB host driver | ||
| USB device | USB device driver | ||
| LCD | 7-inch LCD driver (resolution 800*480) | ||
| TOUCH | resistive touch screen driver | ||
| Language | English | ||
| MMC/SD | MMC/SD Card driver | ||
| LEDs | 4x Leds driver | ||
| Sound | WM8731 driver | ||
| WIFI | USB WIFI driver | ||
| Camera | CMOS Camera driver | ||
| File system | File system format | Jffs2 file system, R/W file system | |
| TCP/IP | TCP/IP protocol | ||
| Network ping | To check the system | ||
| Embedded GUI | Qt/Embedded | Qt4.7.3 and Qtopia2.2.0 | |
| Network protocol | TCP/IP | TCP/IP protocol | |
| USB port supported Devices | U-disk, USB Keyboard, USB HUB and so on. | ||
| Command commands | cat, chmod, discard, echo, flash write, free, init, kill, loader, ls, mkdir, mount, ps, reboot, rm, yes, insmod, lsmod, rmmod | ||
| Tools | arm-2009q3.tar.bz2, tslib-1.4.gz and busybox1.13 (provided in the CD-ROM) | ||
If you order the kit or any question, please feel free to contact us at market@armdesigner.com
