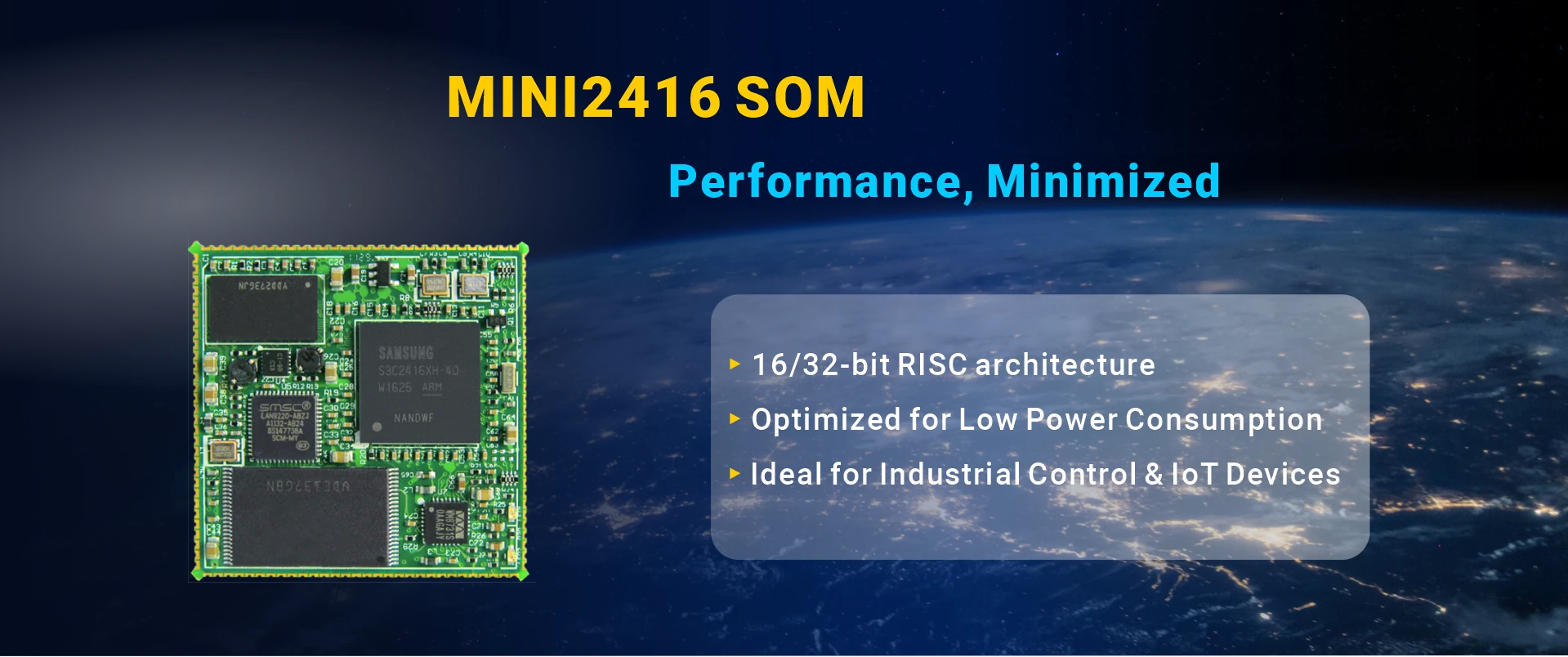

  MINI2416     Computer-on-Module

Name

Description

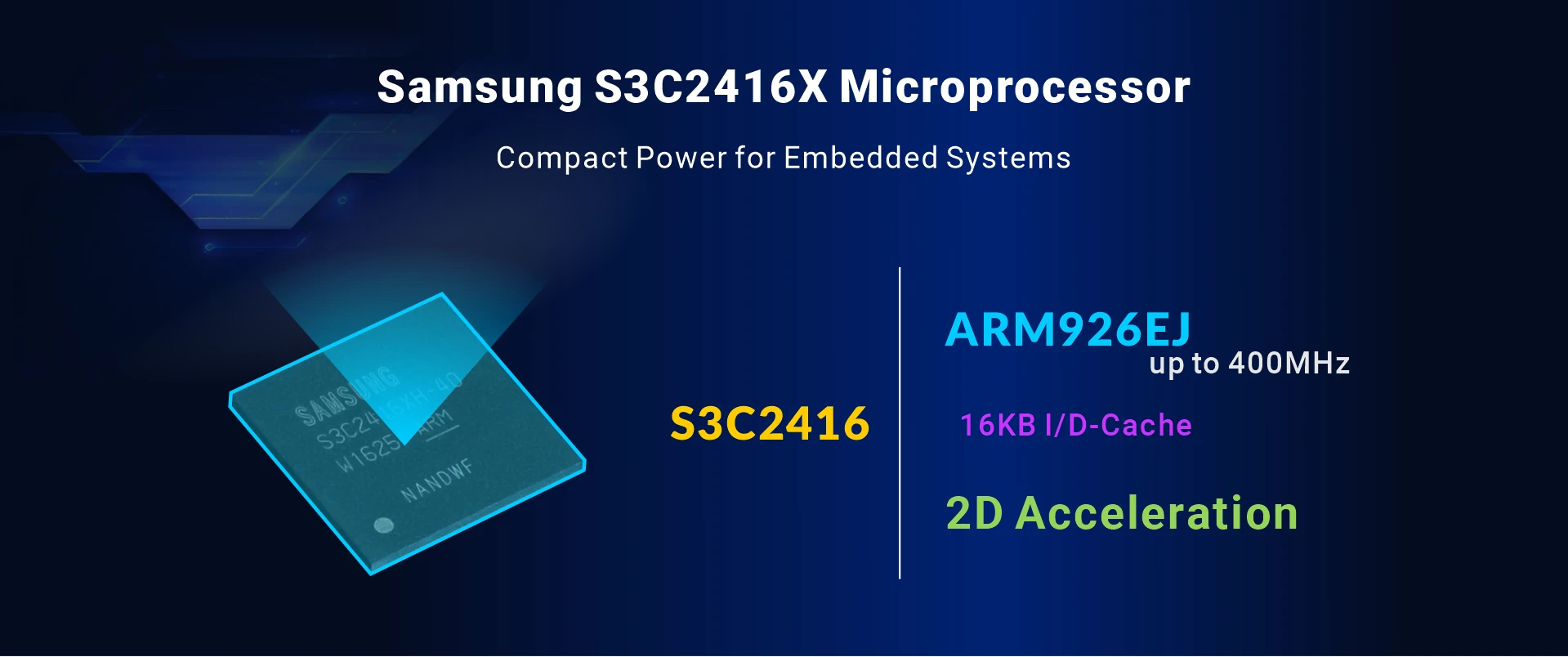

CPU

S3C2416, ARM926EJ, 400MHz

DDR2/mDDR

64MB DDR2 SDRAM

NAND Flash

256MB~1GB selectable

10/100M Ethernet controller

LAN9221 100M high performance integrated Ethernet controller

Audio chip

WM8731 integrated audio chip

Mechanical character

Parameter

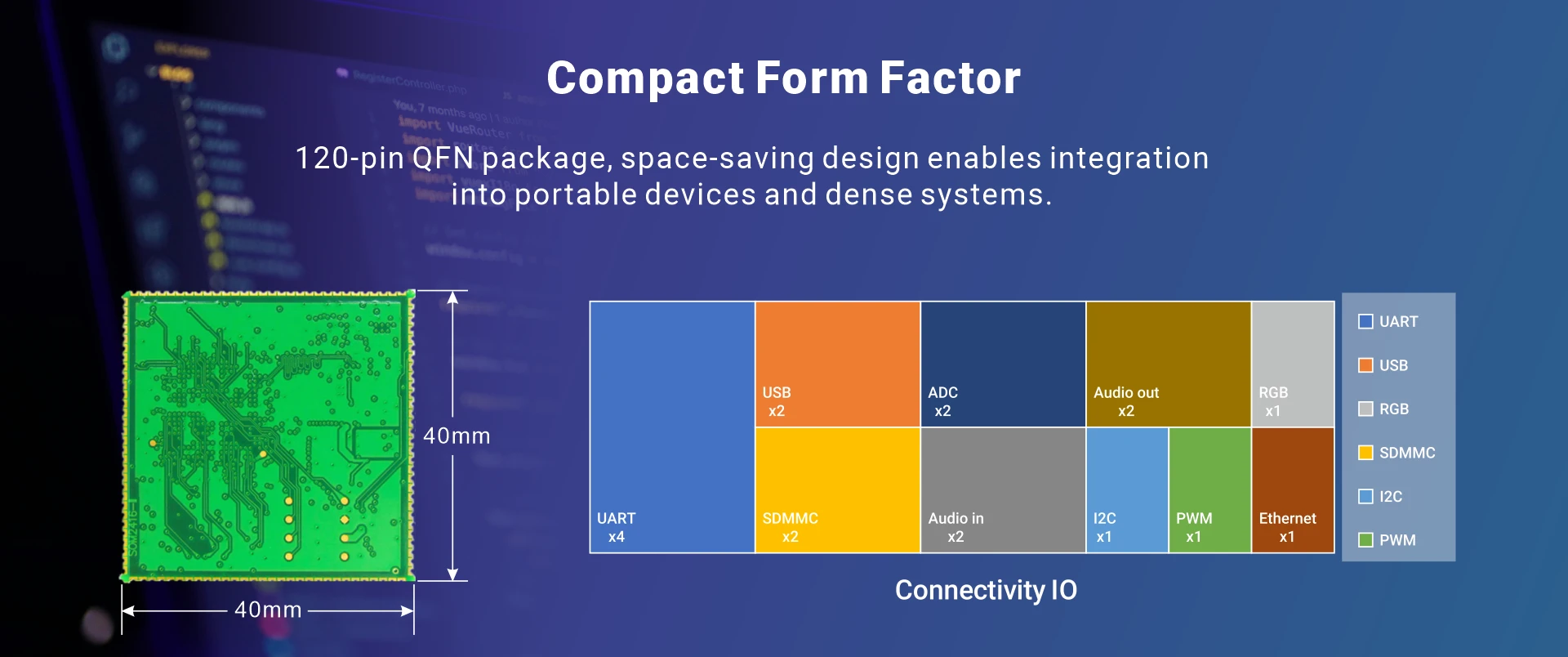

Size

40mm x 40mm x 8mm

Pin package

1.27mm pitch SMD

Pin number

120

Test point

Internal

Electric character

Parameter

Input voltage

+3.3V@300mA

Power consumption

180mA~250mA

Connector type

Parameter

LCD interface

24bit true color, support 1-channel 320*240~1024*768 resolution TFT LCD, Support LVDS switch to VGA, also support LVDS, VGA/ CRT

Touch interface

Support 1-channel 4-wire touch screen interface

USB

Support 2-channel USB 2.0 high speed HOST and OTG, Maximal support 480Mbps, expand the carrier board will get 8 USB HOST2.0

Audio interface

Support two type of audio interface 1 wire I2S and 1 wire AC'97

SD card connector

Support 2-channel SD card 2.0 interface protocol, support SD/MMC/SDHC types SD card

LAN connector

1-channel high speed 100M Ethernet port (Connect with Ethernet transformer directly)

AUDIO output port

2-channel high performance dual channel stereo audio connector

UART

4 UART ports, the maximum speed support 115200bps

I2C

1 channel I2C 2.0 protocol

SPI

1 channel high speed SPI interface

PWM

2 channel signal interface support PWM

External interrupt

6 external signal interrupt

Operating system

Content

Windows Mobile 6.0

Support all the content under WinCE 6.0

Linux 2.6

Support Linux 2.6 kernel + YAFFS file system + QT interface






Pin

Signal

Pin

Signal

Pin

Signal

Pin

Signal

1

ETX-

31

VCC3.3V

61

AGND

91

nSD_CD

2

ETX+

32

LCD_PWR

62

TXD0

92

SDCLK

3

GND

33

HSYNC

63

RXD0

93

SDCMD

4

ERX-

34

PCLK

64

nCTS0

94

SDDAT0

5

ERX+

35

VSYNC

65

nRTS0

95

SDDAT1

6

LINK

36

VDEN

66

TXD1

96

SDDAT2

7

SPEED

37

GND

67

RXD1

97

SDDAT3

8

GND

38

VD2

68

nRTS1

98

GND

9

nRST

39

VD3

69

nCTS1

99

XP

10

RSMBWAIT

40

VD4

70

TXD2

100

YP

11

nWAIT

41

VD5

71

RXD2

101

XM

12

nOE

42

VD6

72

TXD3

102

YM

13

nWE

43

VD7

73

RXD3

103

AIN0

14

nCS3

44

VD10

74

I2C_SCL

104

AIN1

15

LADDR0

45

VD11

75

I2C_SDA

105

EINT0

16

LADDR1

46

VD12

76

SPIMISO

106

EINT3

17

LADDR2

47

VD13

77

SPICLK

107

EINT5

18

LADDR3

48

VD14

78

SPIMOSI

108

EINT6

19

LADDR4

49

VD15

79

nSS

109

EINT7

20

LADDR5

50

VD18

80

SD0CLK

110

EINT8

21

LADDR6

51

VD19

81

SD0CMO

111

EINT9

22

LDATA0

52

VD20

82

SD0DAT0

112

EINT10

23

LDATA1

53

VD21

83

SD0DAT1

113

EINT11

24

LDATA2

54

VD22

84

SD0DAT2

114

EINT12

25

LDATA3

55

VD23

85

SD0DAT3

115

GND

26

LDATA4

56

LPOUT

86

GND

116

UN1

27

LDATA5

57

RPOUT

87

VCC_RTC

117

UP1

28

LDATA6

58

MIC

88

OM3

118

VBUS

29

LDATA7

59

LIN

89

OM2

119

DN0

30

VCC3.3V

60

RIN

90

OM1

120

DP0



Product name

price

Buy Now

MINI2416 Computer on Module

USD50.00
