开发板

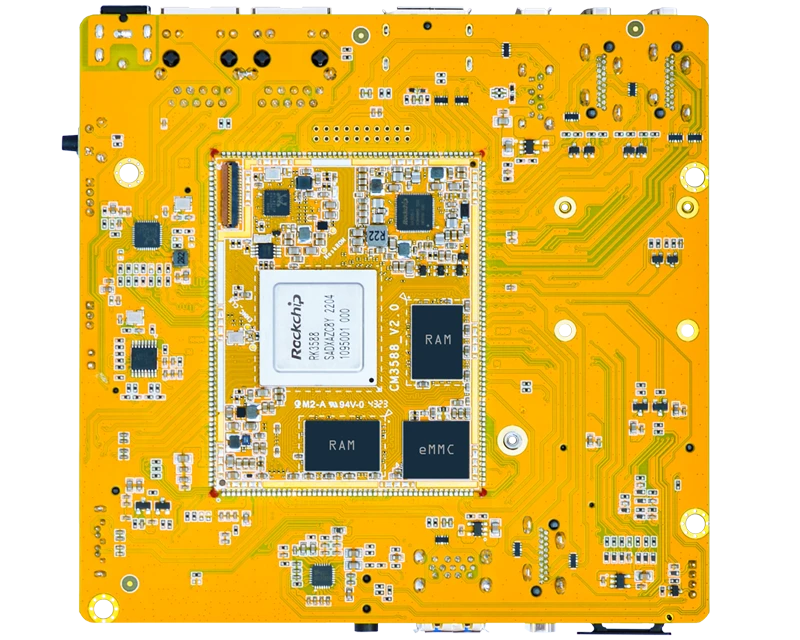

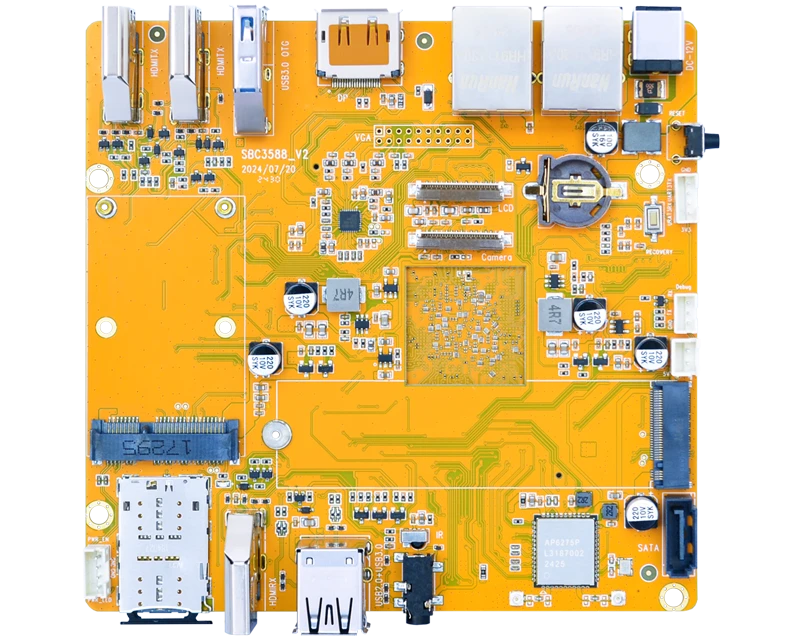

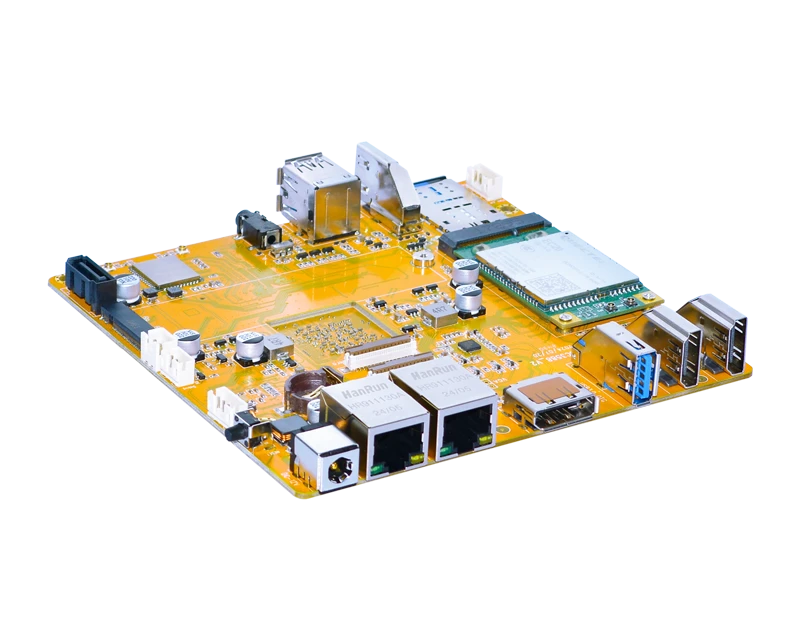

SBC3588
Highlight

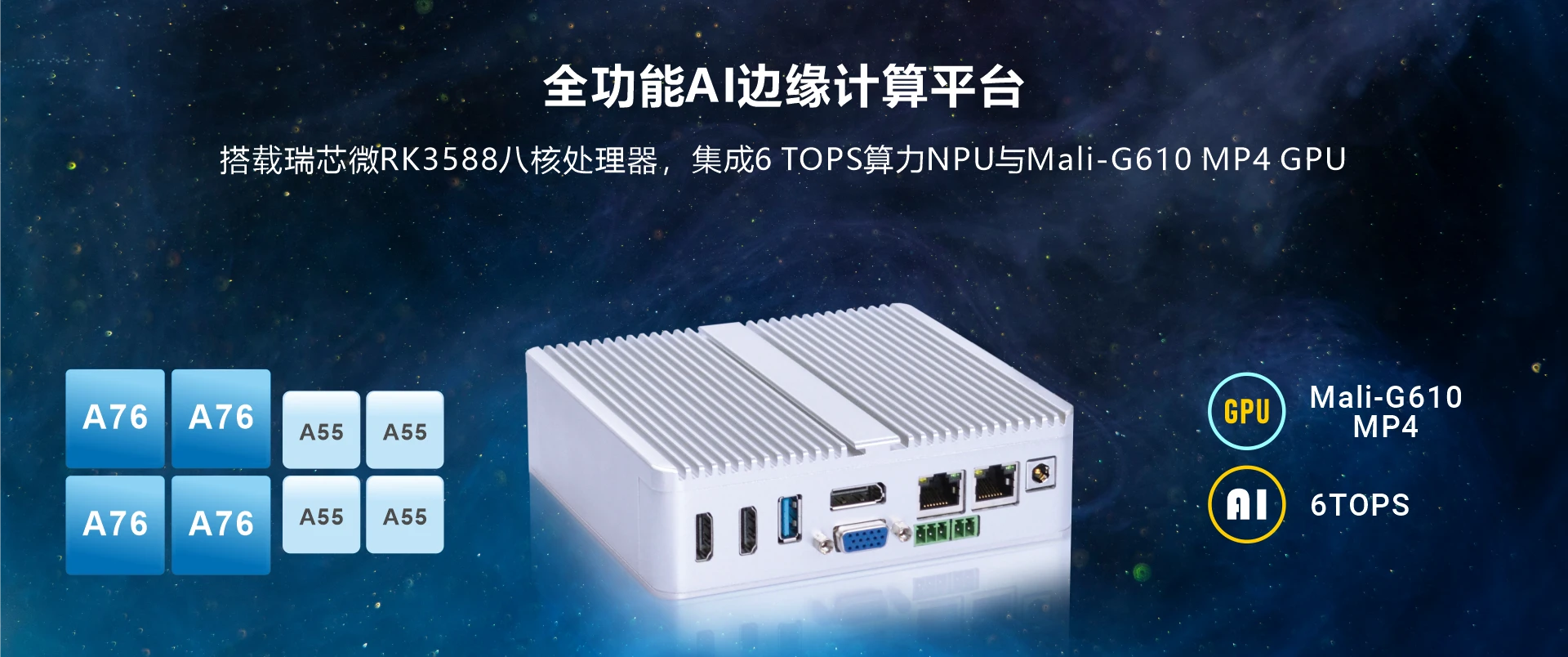

处理器: Rockchip RK3588. 4x Cortex-A76 cores @ 2.4GHz + 4x Cortex-A55 cores @ 1.8GHz
NPU: 6 TOPS
内存: 8GB/16GB

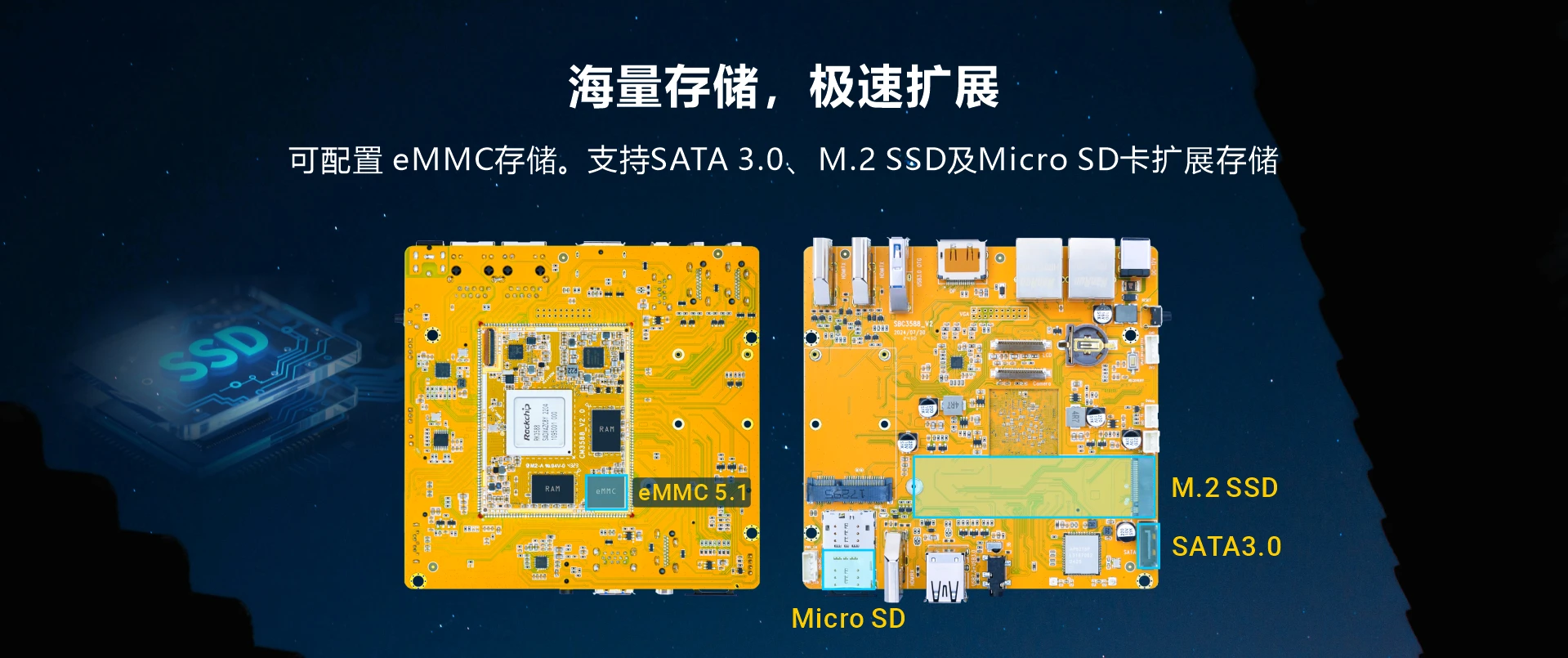

存储: 32GB/64GB/128GB/256GB

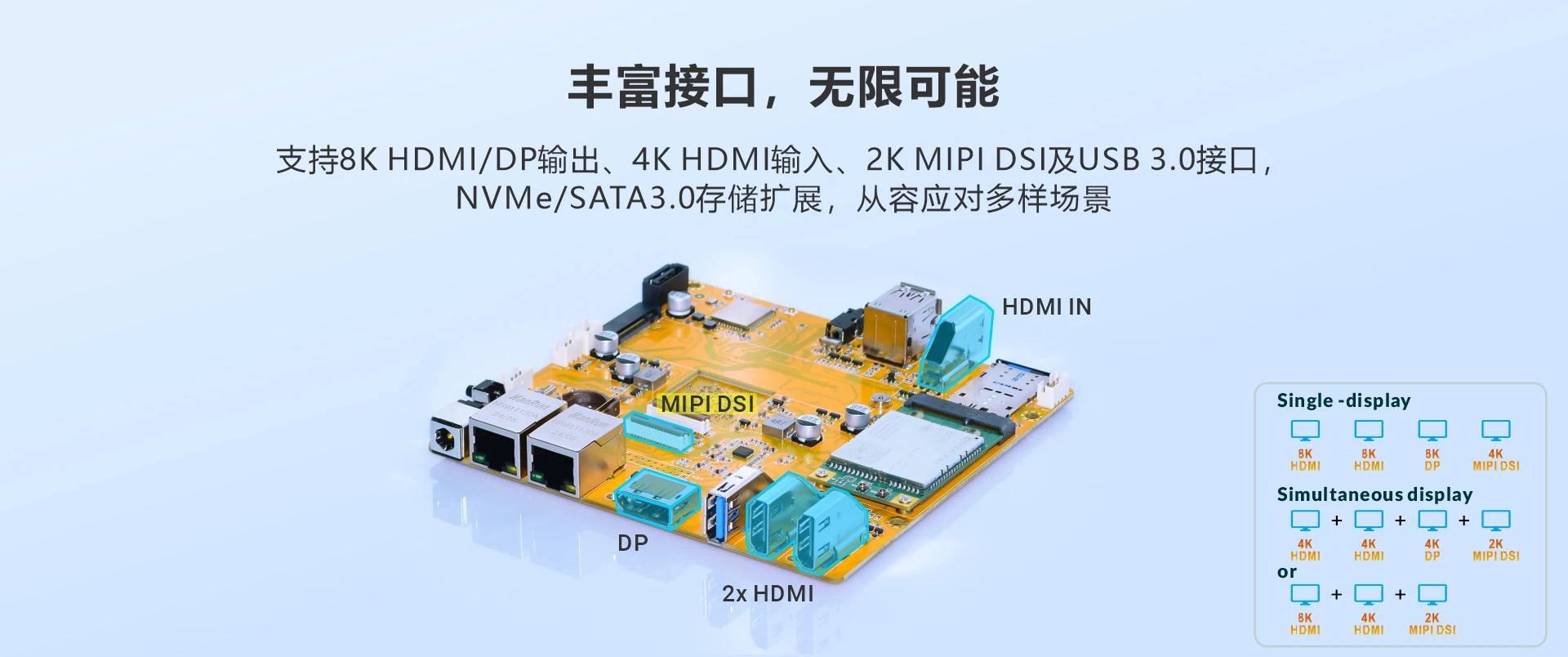

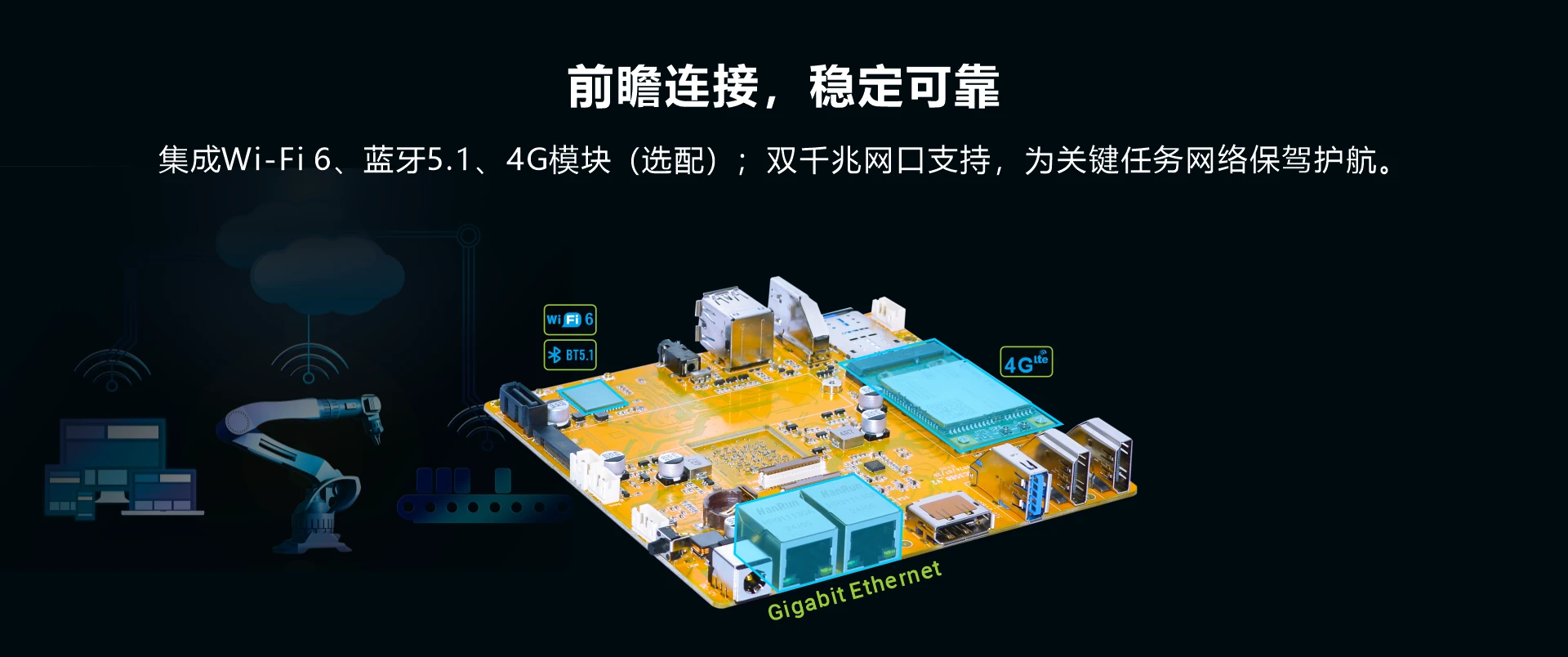

接口: 2x HDMI OUT, 1x HDMI in, DP, MIPI CSI, MIPI DSI, M.2 SSD, SATA3.0, Micro SD, mPCIe, 2x USB3.0, 2x GbE, UART, Audio I/O, etc.
操作系统: Android 16, Debian 12, Buildroot
尺寸规格: 125.0 x 121.7 mm
工作温度: 0° to + 70° C
Accessories
-
12V 3A 英规
12V / 3A Output
EU Plug
36W -
12V 3A 美规
12V / 3A Output
US Plug
36W -
10.1-inch MIPI
800 x 1280 pixels
16.7M colors
MIPI 接口 -
IMX415
CMOS camera
6.4mm Type 1/2.8
8.29M pixel
MIPI CSI-2 -
EC20
Mini PCIe Multi-mode LTE Module
30.0 × 51.0 × 4.9 mm
-40° to +80° C -

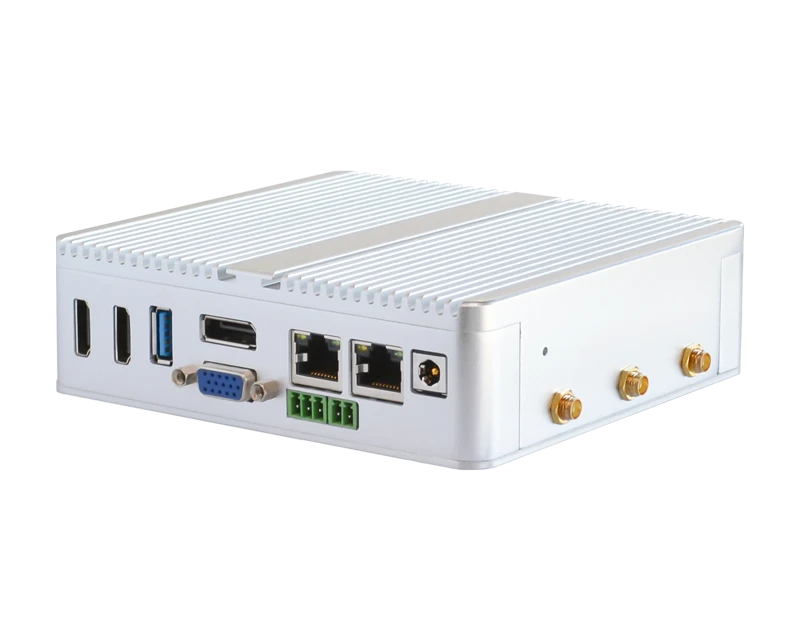

SBC3588金属外壳
铝合金外壳
136 x 126 x 40 mm
无风扇被动散热
