| Specifications |
|---|
| SoC | Rockchip RK3399. Dual-core Cortex-A72 + Quad-core Cortex-A53 |
| GPU | ARM Mali-G610 MP4 with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
| Memory | 2GB/4GB |

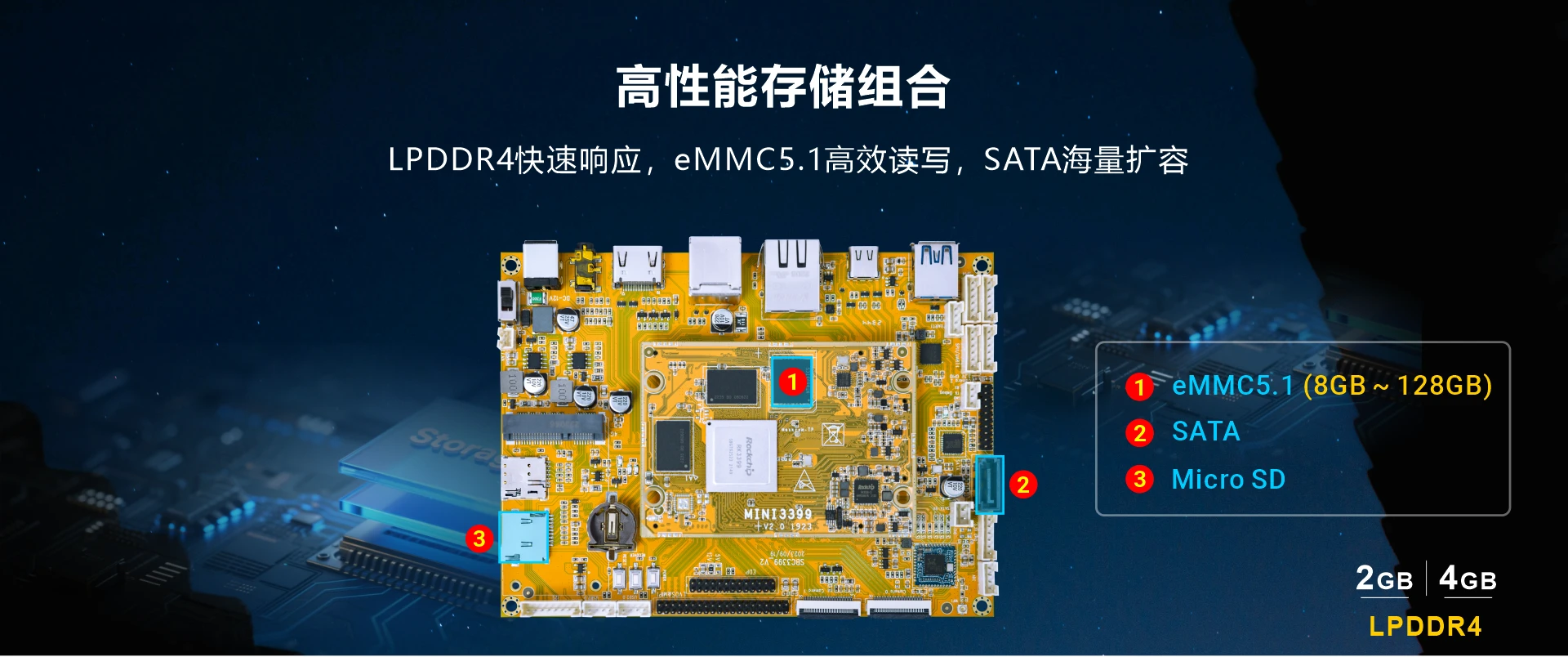

| Storage | 8GB/16GB/32GB/64GB/128GB eMMC
MicroSD card slot
SATA3.0 socket |
| Power Supply | 12V/3A DC input jack |
| USB | 4x USB2.0 Host (2x USB-AF, 2x 4-pin connector)
1x USB3.0 Host
1x Type-C |

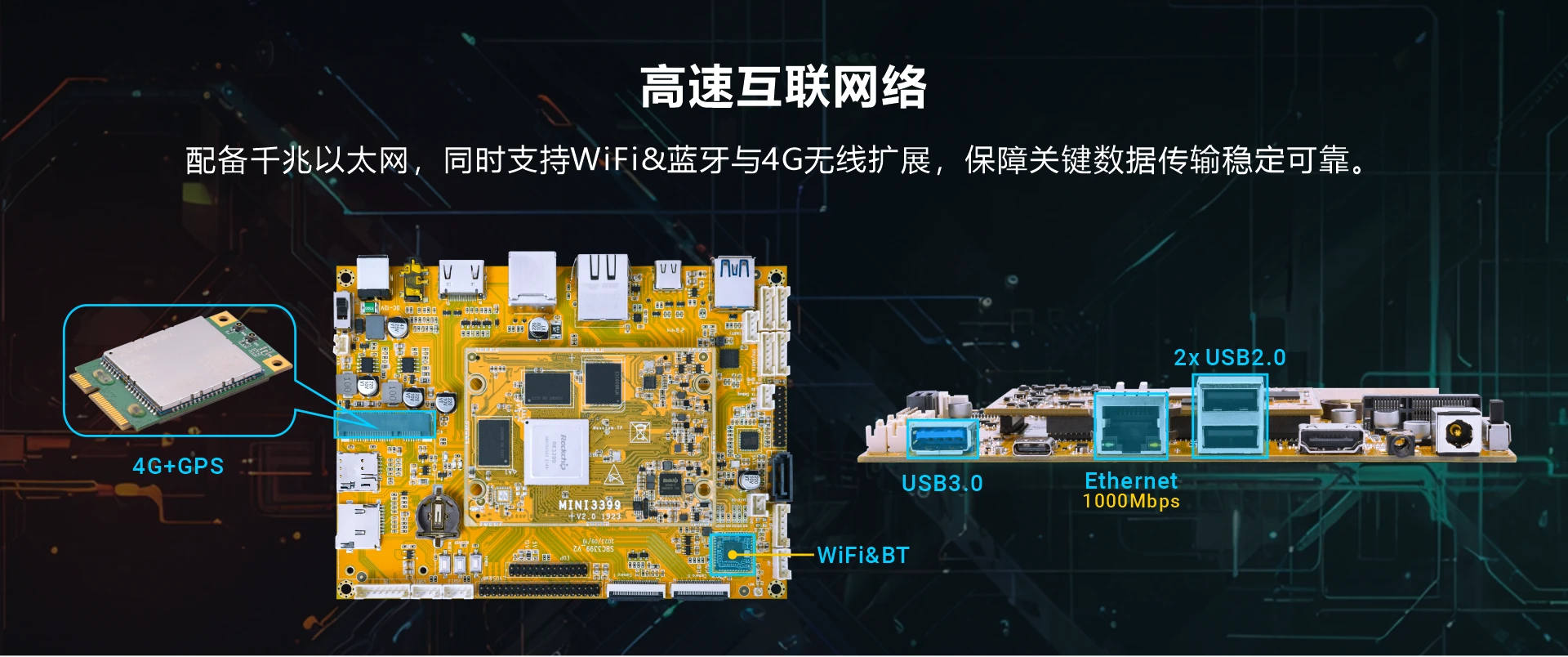

| Connectivity | Gigabit Ethernet RJ45 port via Realtek RTL8111HS controller
2.4G 1T1R WiFi (802.11 b/g/n) with Bluetooth4.2
Mini PCIe socket with Nano SIM card port to support 4G LTE Module |
| Serial | 1x Serial port for debug, 3-pin connector
3x UART (or 2x UART, 1x SPI), 4-pin connectors |

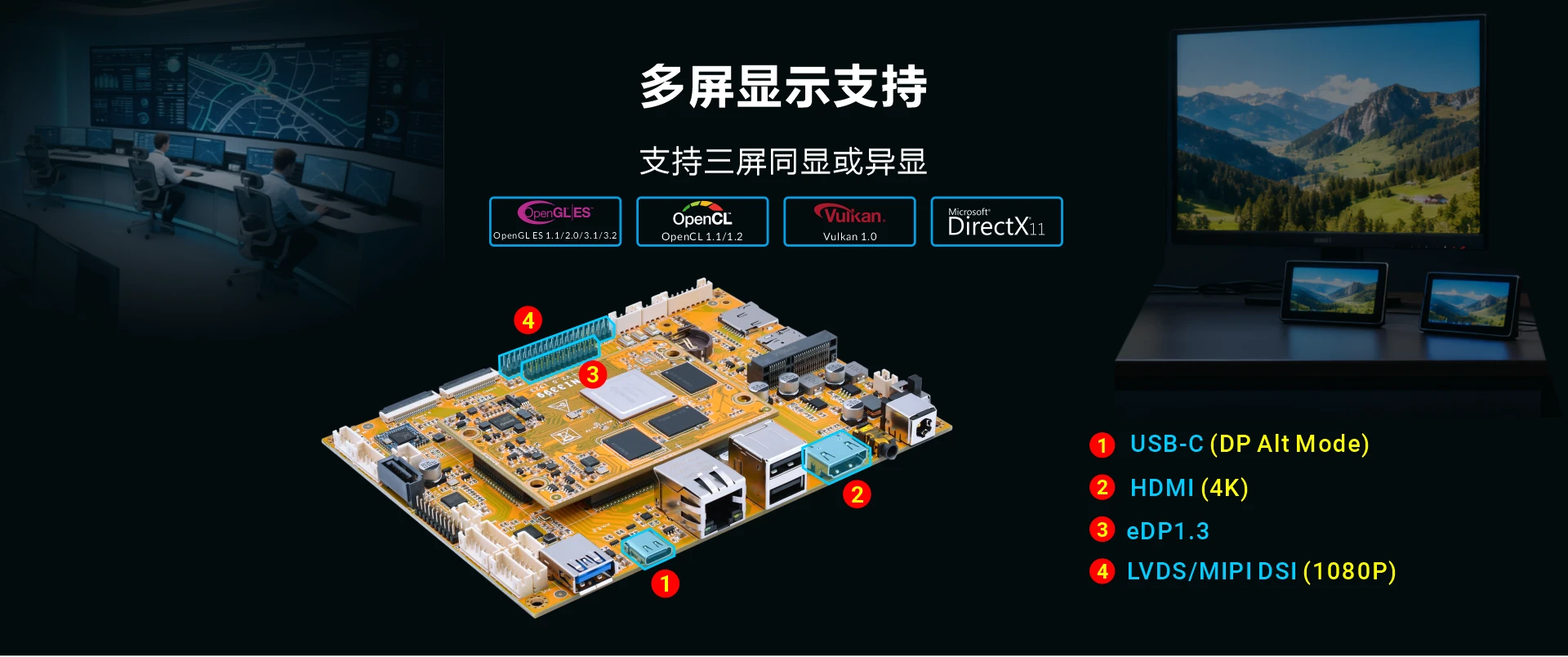

| Video | Output | HDMI 2.0, up to 4Kp60
MIPI DSI
eDP1.3 |
| Input | MIPI-CSI |
| Audio | 3.5mm audio (headphone+mic) jack
Digital audio via HDMI |

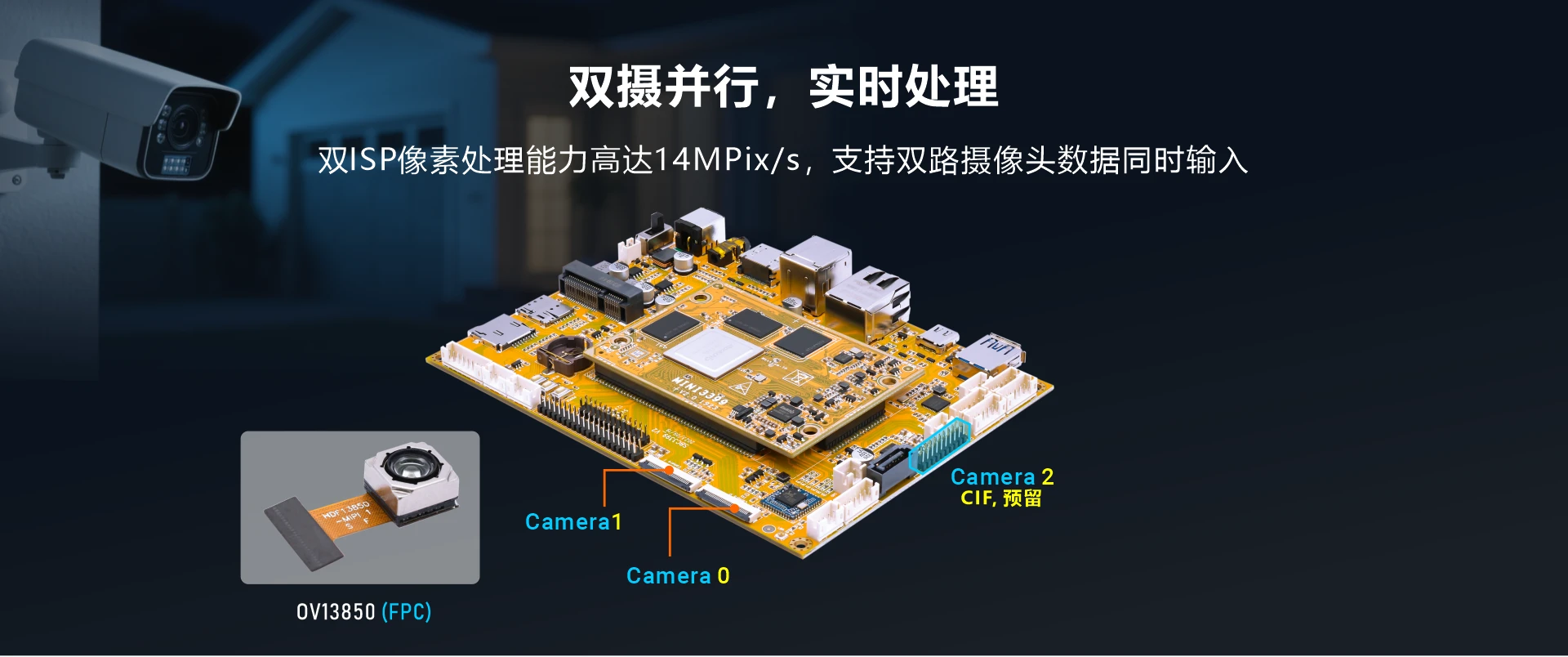

| Camera | 2x MIPI Camera, 1x CIF Camera |
| Keys | Recovery, Reset, Power |
| Other features | RTC with battery connector, I2S, SPI, ADC, GPIO |
| Operating Temperature | 0° to + 70° C |
| Dimensions | Based board - 150 x 110 mm; CPU module - 82 x 58 mm |
