首页 > 产品 > 开发板 > IdeaT153

开发板

IdeaT153

Highlight

处理器: Allwinner T153. Quad-Core ARM Cortex-A7 + RISC-V E907
RAM: 512MB/1GB
Storage: 8GB/16GB/32GB/64GB
Interfaces: UART, Debug, USB OTG, 4x USB Host, MIPI DSI, 3x Ethernet, Audio I/O, 2x RS485, MicroSD, ADC, PWM, SPI, RTC, GPIO, etc.
Operating System: Buildroot
Dimensions: 135 x 95 mm
Operating Temperature: 0° to +70° C

联系我们

概述硬件软件用户手册支持配件

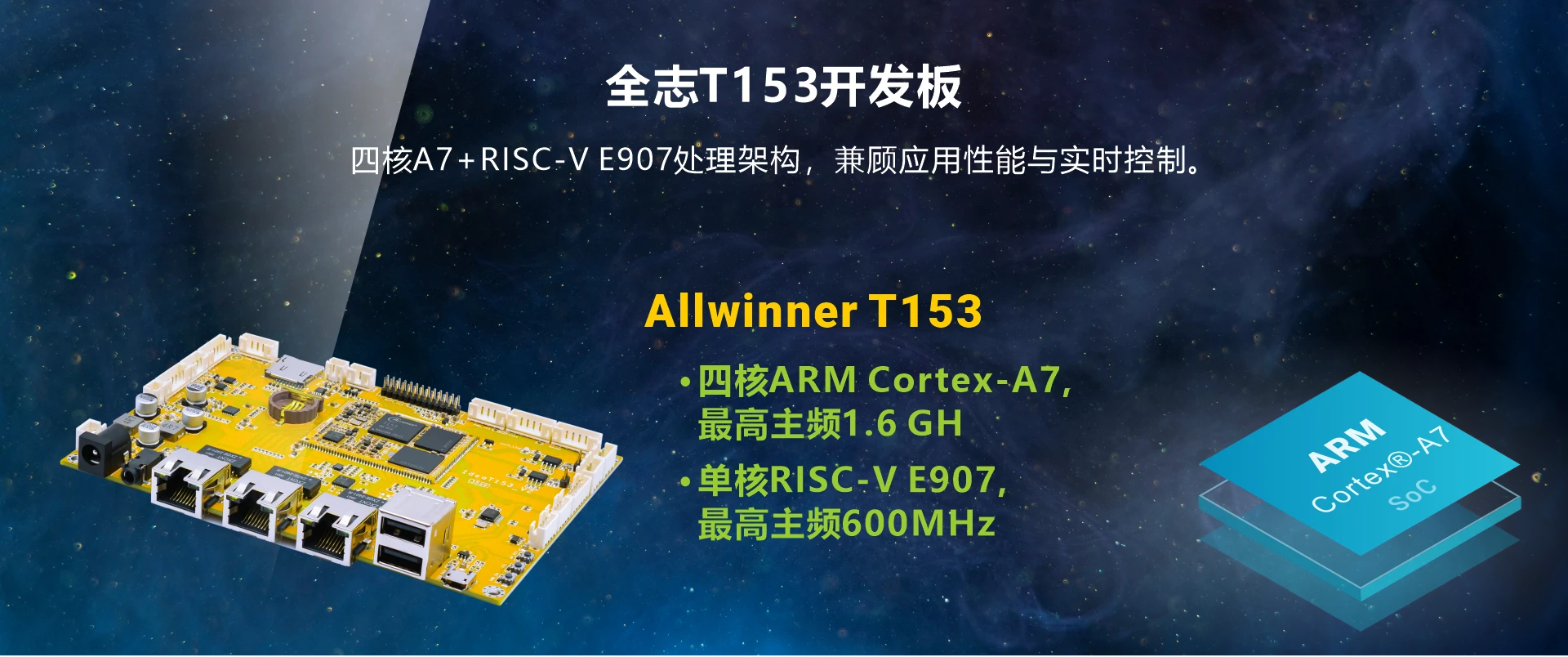

Overview_IdeaT153_soc

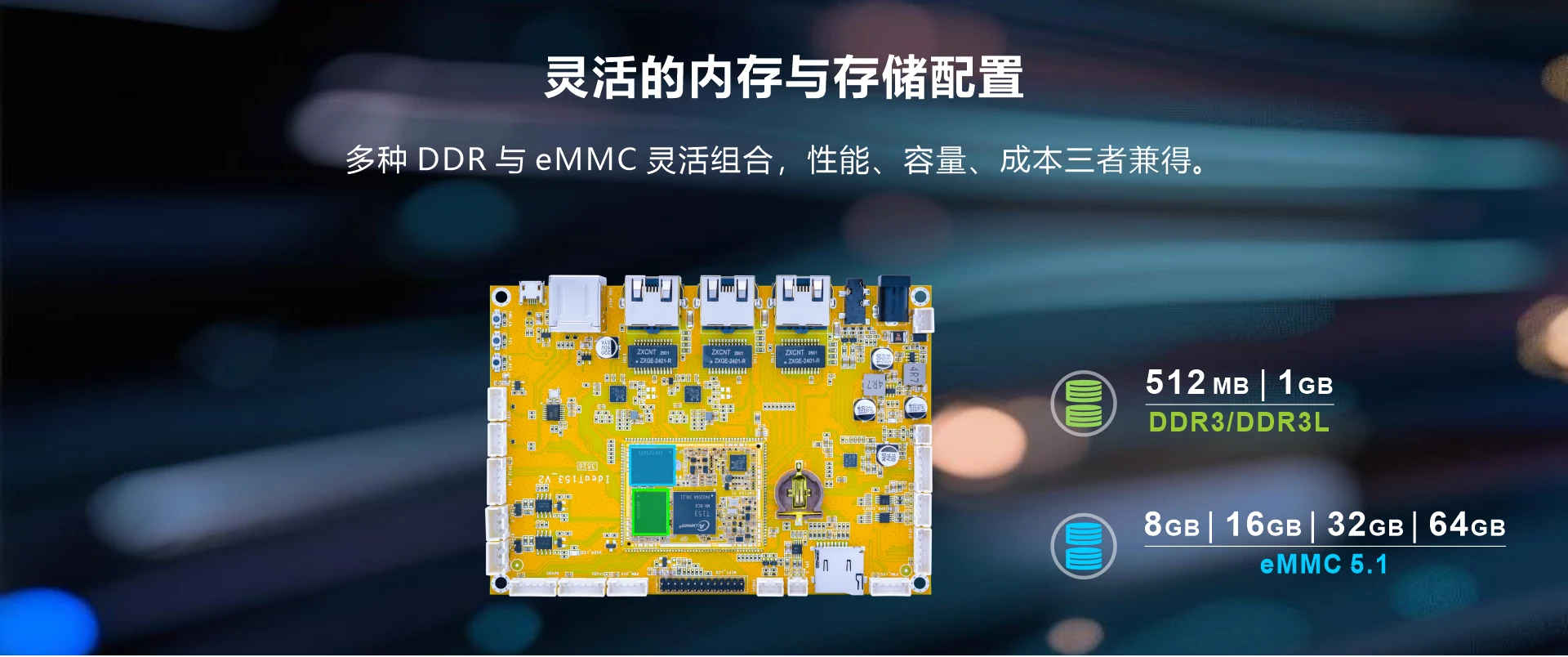

Overview_IdeaT153_storage

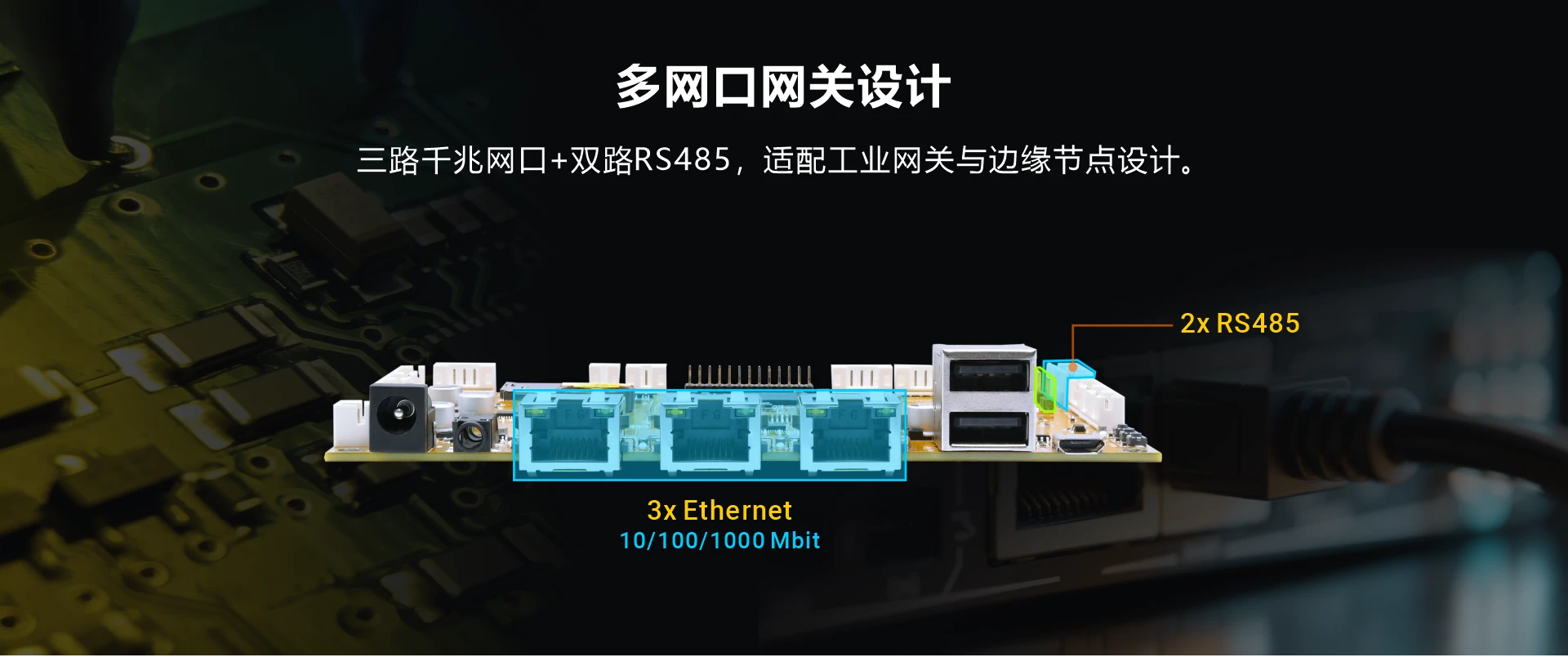

Overview_IdeaT153_Ethernet

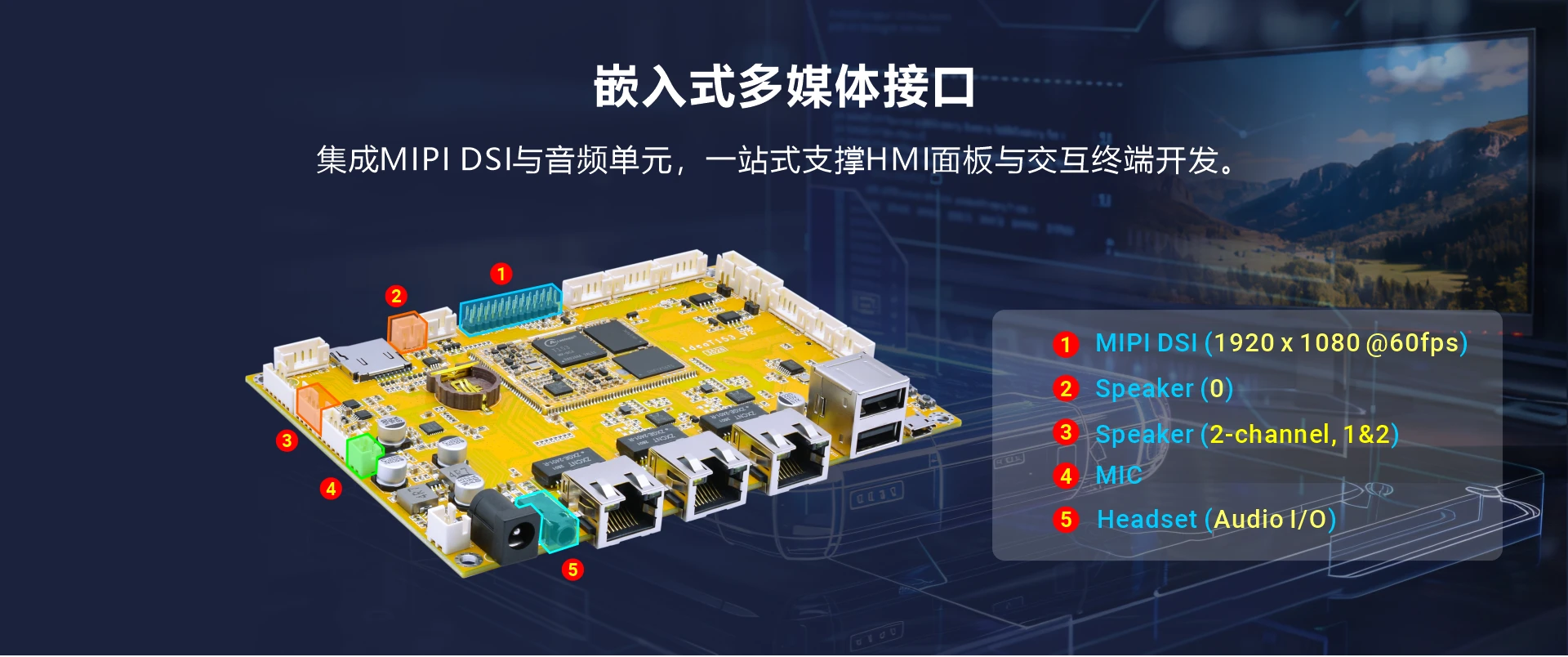

Overview_IdeaT153_multimedia

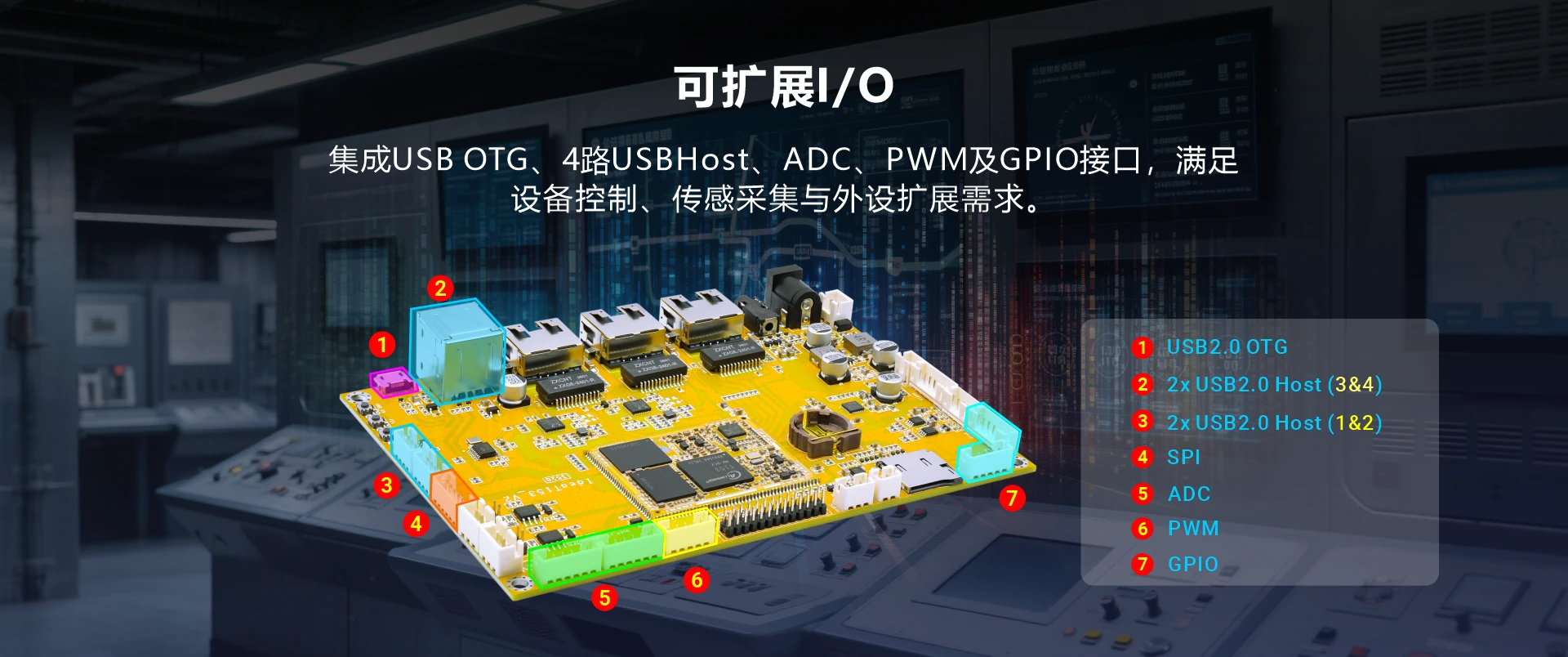

Overview_IdeaT153_IO

Specifications
SoC	Allwinner T153. - Quad-Core ARM Cortex-A7, up to 1.6GHz - RISC-V E907, up to 600MHz
Memory	512MB/1GB DDR3/DDR3L
Storage	- 8GB/16GB/32GB/64GB eMMC - MicroSD card slot
Power Supply	12V/3A DC input jack or 2-pin connector
USB	- 4x USB2.0 Host (1x dual-USB-AF, 2x 4-pin connectors) - 1x USB2.0 OTG (Micro USB)
Connectivity	3x Gigabit Ethernet RJ45 ports via Realtek RTL8211F-CG controller
Serial Port	- Debug, 3-pin connector - UART, 6-pin connector - 2x RS485, 3-pin connectors or 2-pin headers
Display	MIPI DSI, 26-pin header
Audio	- 1x 3.5mm audio I/O jack - 1x MIC, 2-pin connector - 2x Speakers (1x 4-pin connector for 2-channel, 1x 2-pin connector)
Keys	Power, FEL, Reset
Other features	- RTC with battery connector - GPIO, 1x 6-pin connector, 1x 5-pin connector - GPADC/TPADC, 2x 6-pin connectors - SPI, 6-pin connector - PWM, 5-pin connector
Operating Temperature	0° to + 70° C
Dimension	Base board - 135 x 95 mm; CPU module - 33.5 x 43.0 mm

OS	Item	Feature	Description
Buildroot	Bootloader	U-Boot 2023.04	u-boot-sun8iw22p1.bin
Boot mode	Boot from eMMC
Download	Download via USB OTG
Kernel	Version	Linux 5.10.198
Drivers	eMMC	eMMC 5.1
Display	MIPI DSI. Resolution: 800 x 1280
Audio	Headset input/output, Speaker, MIC
SD card	Micro SD card
USB OTG	1x USB2.0 OTG, for download/ADB
USB Host	4x USB2.0 Host
Ethernet	3x Ethernet, 10/100/1000 Mbps
Serial Port	1x Debug, 1x UART
RS485	2x RS485
SPI	Support
ADC	Support
PWM	Support
RTC	Support
GPIO	Support
Cross-compiler Environment	Ubuntu 22.04
Debug Tools	SecureCRT, PhoenixSuit.exe, ADB

Expansion Module	Module Detail	Buildroot
10.1-inch LCD	800*1280 Pixels. MIPI interface	√
