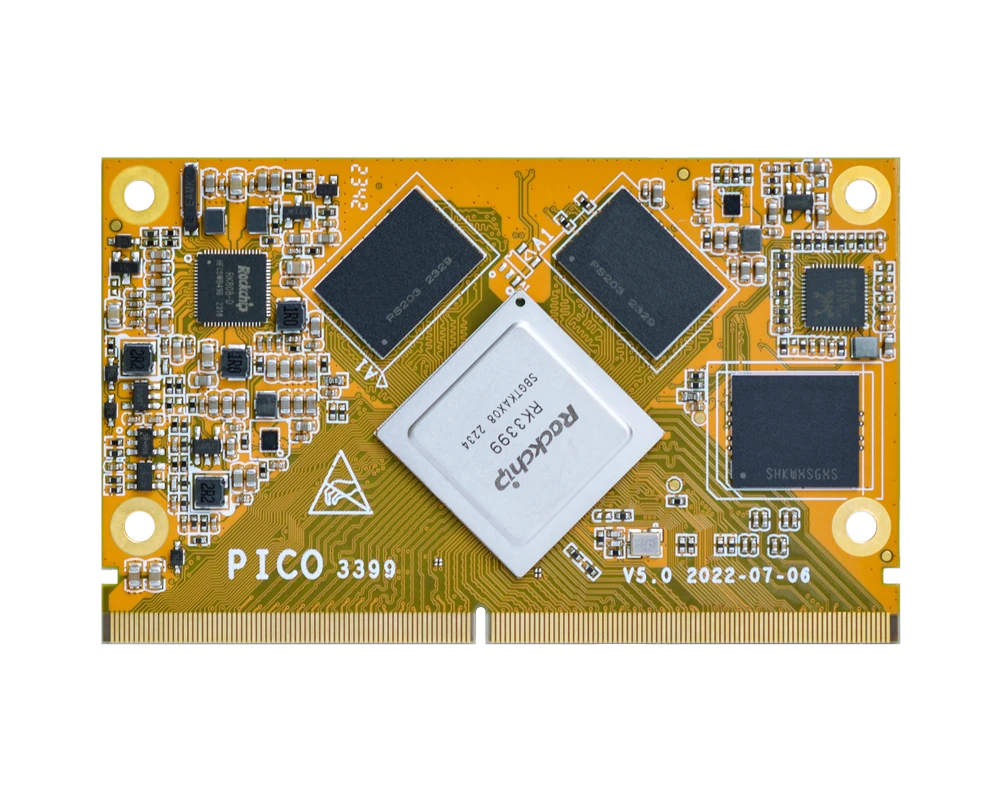

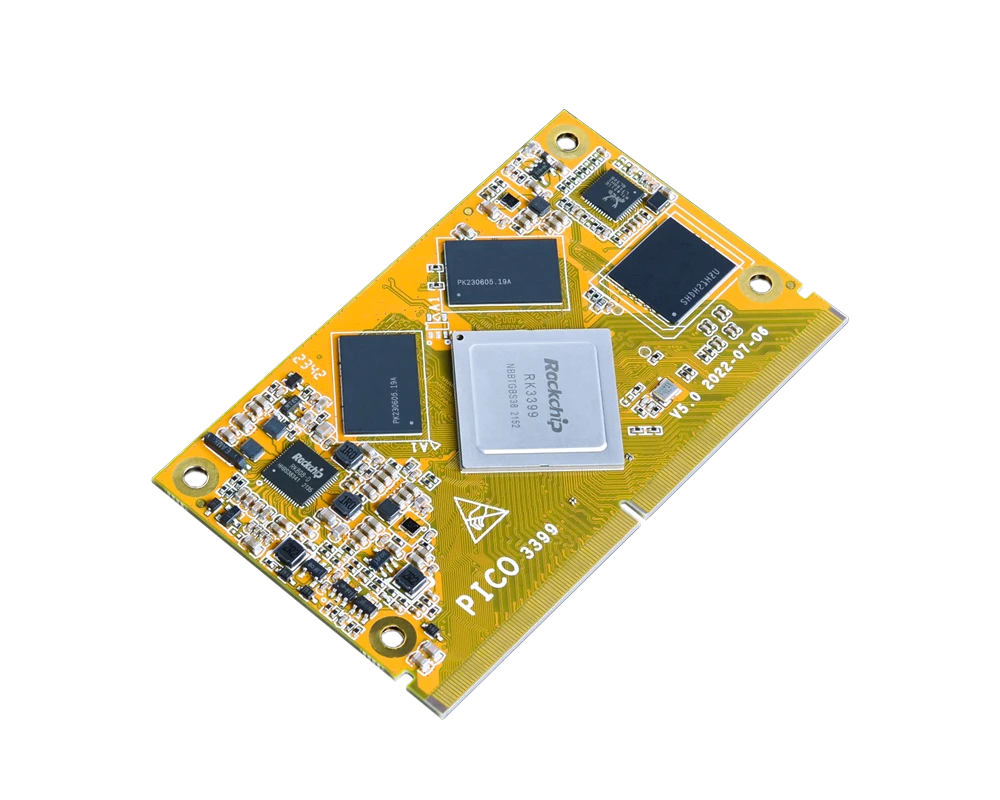

核心板
PICO3399

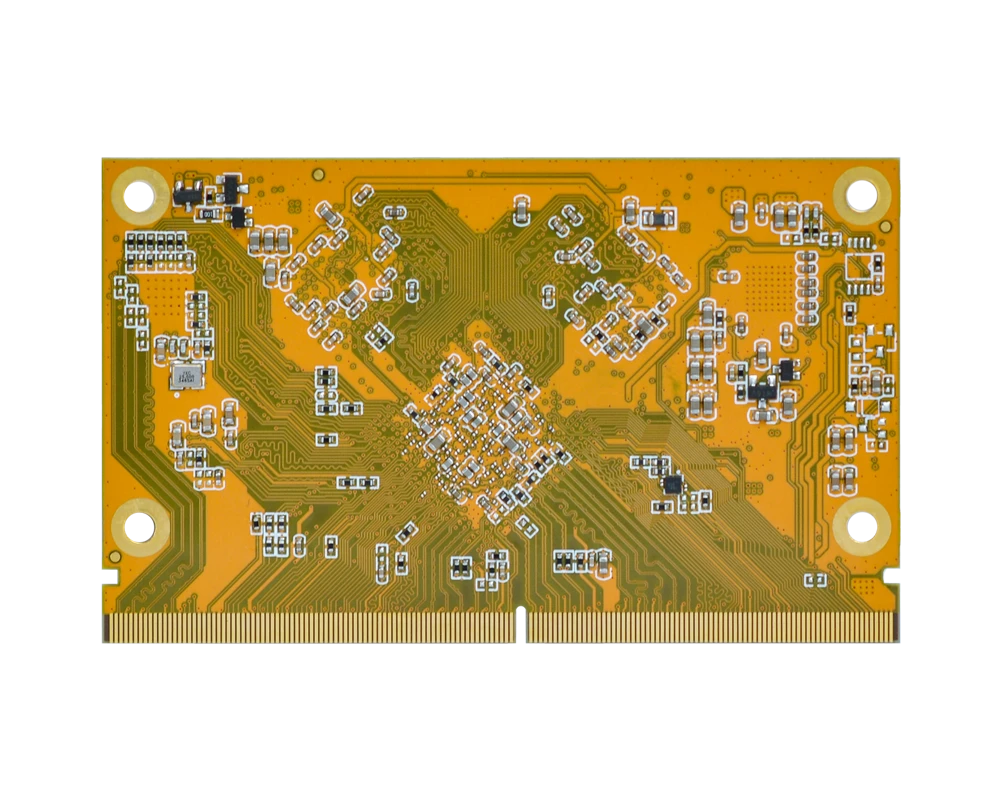

Highlight

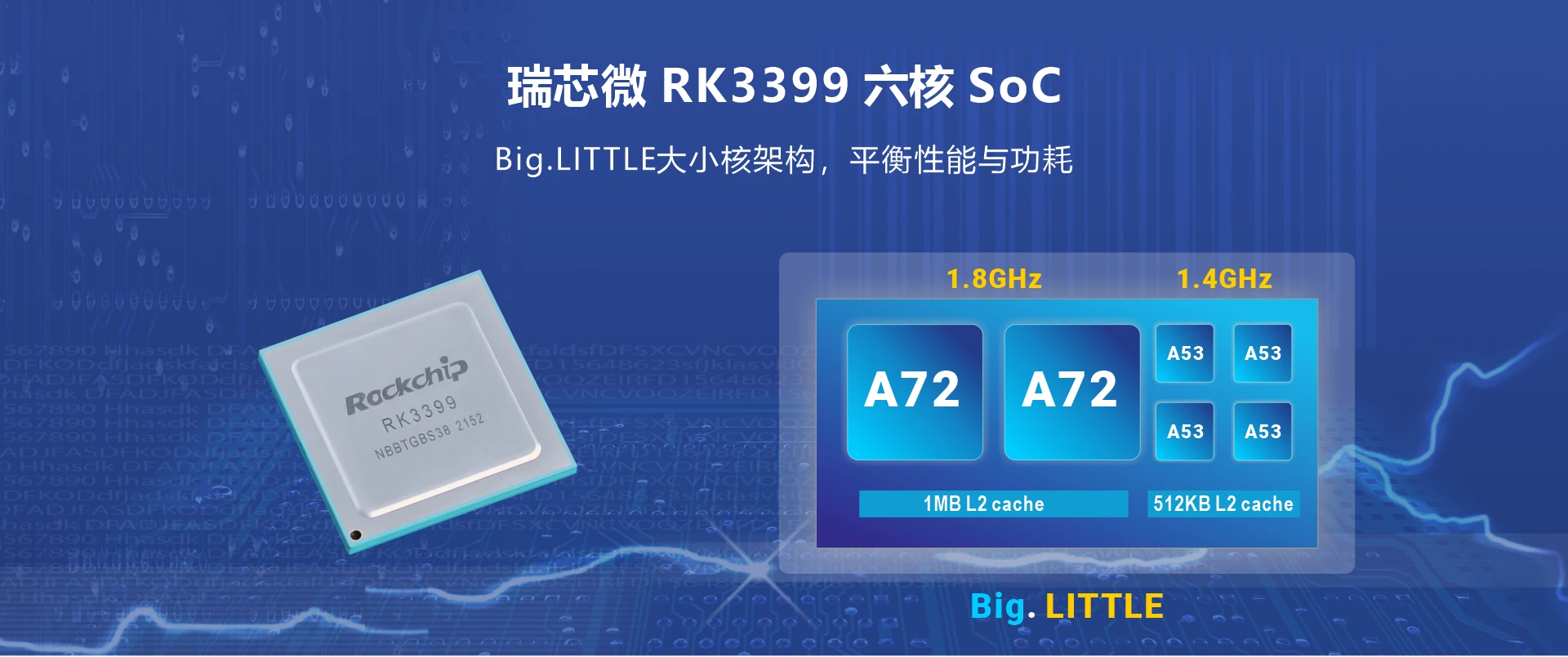

处理器: Rockchip RK3399(K). Dual-core Cortex-A72 @ 1.8GHz + Quad-core Cortex-A53 @ 1.4GHz

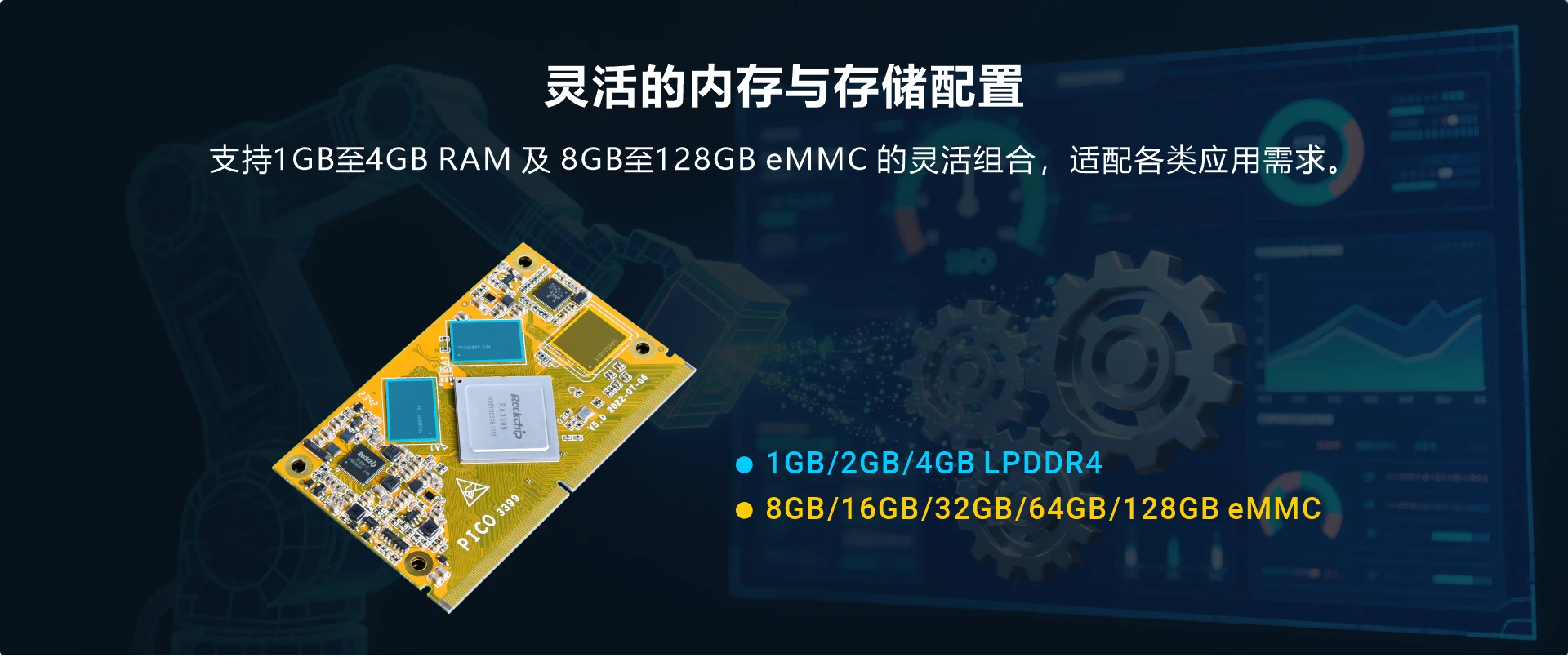

内存: 1GB/2GB/4GB
存储: 8GB/16GB/32GB/64GB/128GB

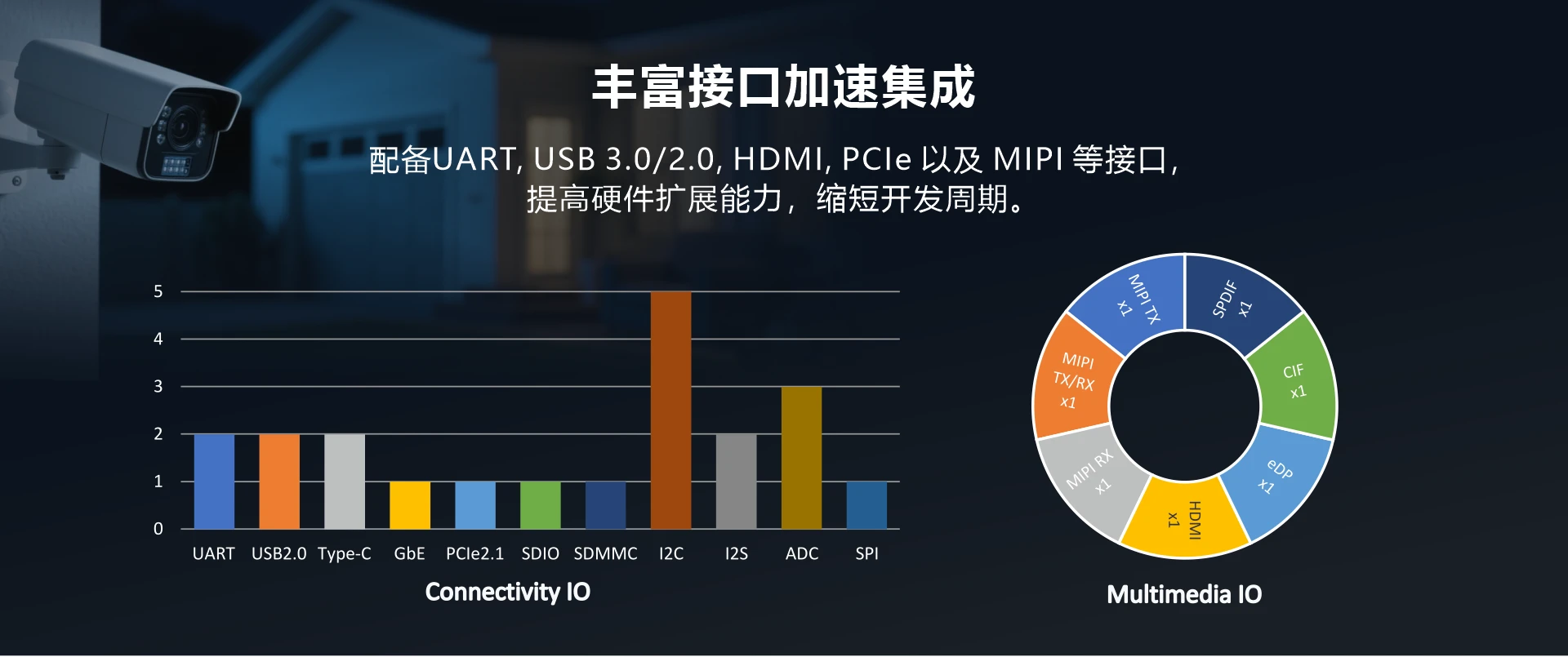

引出信号: 2x UART, 2x USB2.0 Host, 2x Type-C, MIPI TX, MIPI TX/TX, MIPI RX, HDMI TX, eDP, CIF, GbE, PCIe2.1, SDMMC, SDIO, I2C, I2S, ADC, SPI, SPDIF, GPIO, etc.
操作系统: Android 11, Debian 11, Buildroot
尺寸规格: 82 x 50 mm

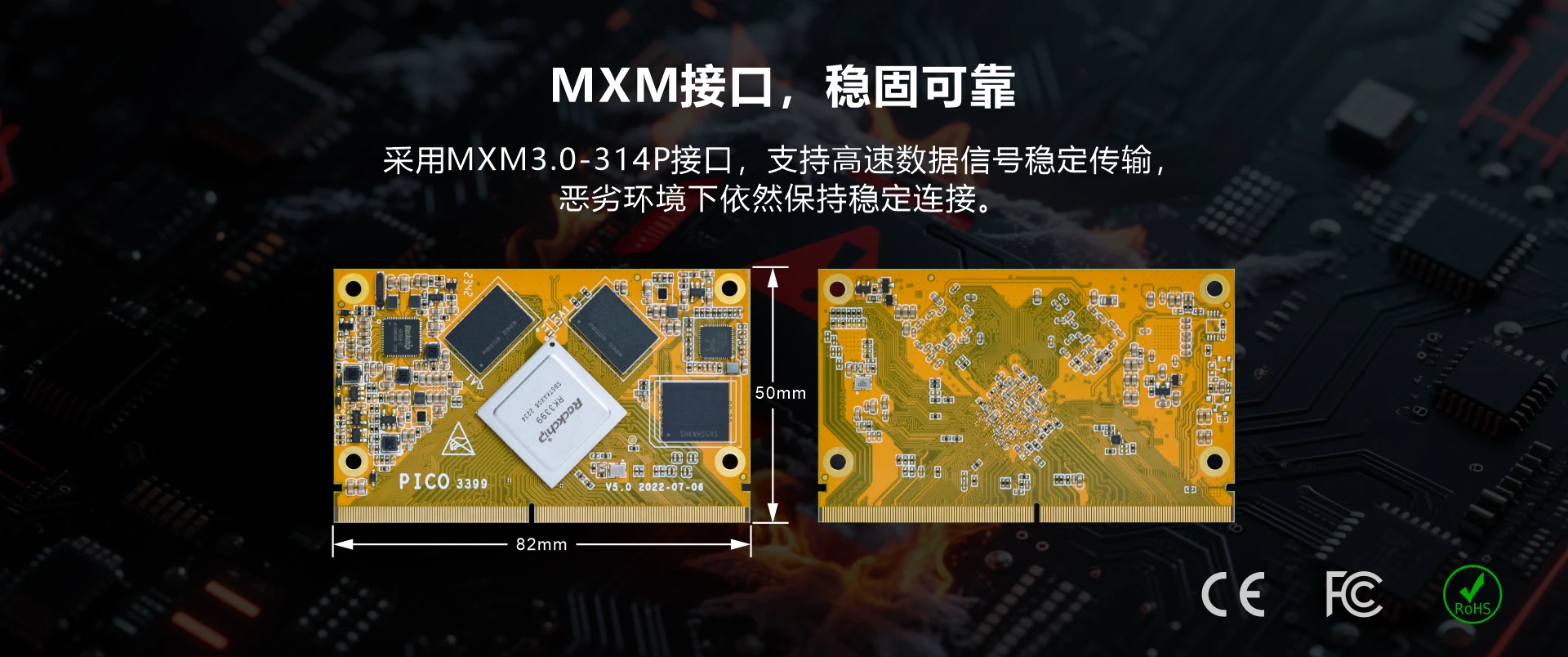

连接方式: 金手指。MXM3.0-314P card edge connector
工作温度: 商业级 0° to + 80° C; 扩展商业级 -20° to +85° C
| Specifications | |
|---|---|
| SoC | Rockchip RK3399/RK3399K, Dual-core Cortex-A72 @ 1.8GHz + Quad-core Cortex-A53 @ 1.4GHz |

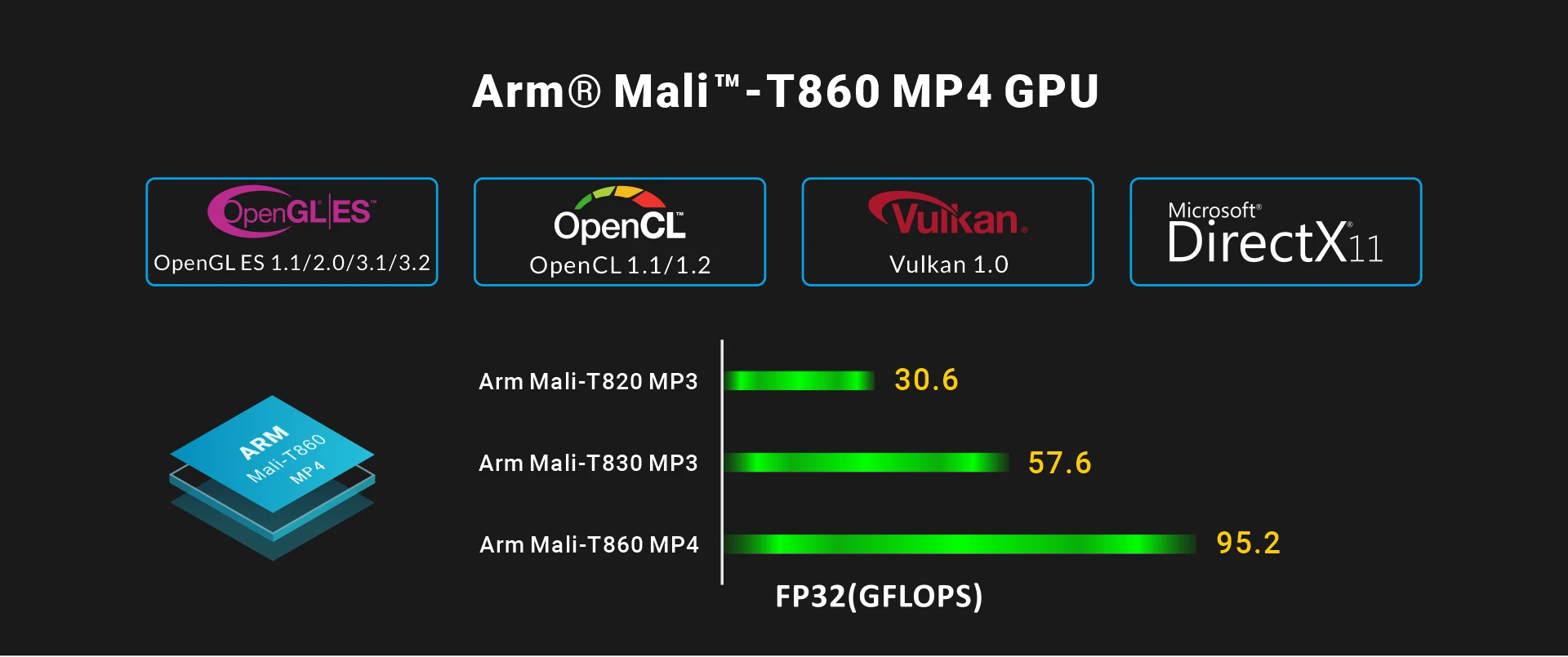

| GPU | ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1, etc. |
| Memory | 1GB/2GB/4GB LPDDR4 |
| Storage | 8GB/16GB/32GB/64GB/128GB eMMC |
| Supply Voltage | DC 5V |
| Pin out | 2x UART, 2x USB2.0 Host, 2x Type-C, MIPI TX, MIPI TX/TX, MIPI RX, HDMI TX, eDP, CIF, GbE, PCIe2.1, SDMMC, SDIO, 5x I2C, 2x I2S, 3x ADC IN, TSADC, SPI, SPDIF, GPIO, etc. |
| PCB Layer | 8 |
| Operating Temperature | Commercial: 0° to + 80° C Extended Commercial: -20° to +85° C |
| Dimensions | 82 x 50 mm |
| Connectors | 314-pin card edge connector |
| Application | Smart Device, advertising devices, all-in-one machines, POS systems, vehicle control terminals, etc. |

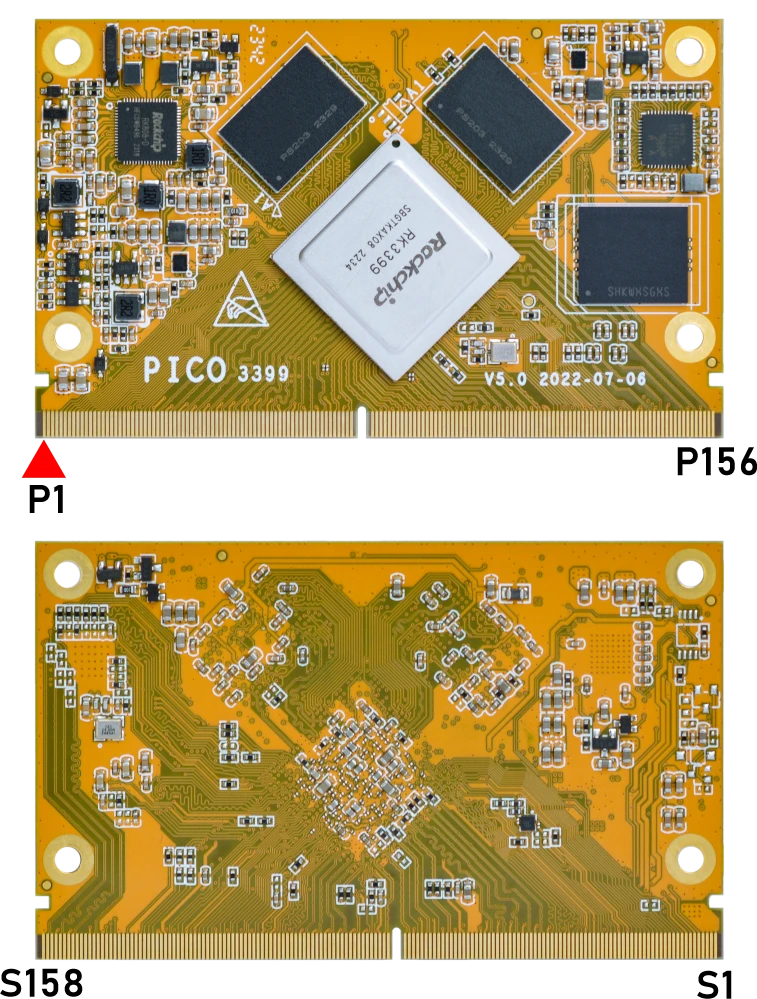

| Pin Definition | |||||||
|---|---|---|---|---|---|---|---|
| Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
| P1 | VDD5V | P79 | TYPEC0_TX2N | S1 | VDD5V | S80 | ADC_IN2 |
| P2 | VDD5V | P80 | GND | S2 | VDD5V | S81 | ADC_IN3 |
| P3 | VDD5V | P81 | TYPEC1_RX1N | S3 | VDD5V | S82 | GND |
| P4 | VDD5V | P82 | TYPEC1_RX1P | S4 | VDD5V | S83 | TYPEC0_ID |
| P5 | AC_DET | P83 | GND | S5 | VBuck | S84 | TYPEC0_U2VBUSDET |
| P6 | PMIC_EXT_EN | P84 | TYPEC1_TX1P | S6 | GND | S85 | GND |
| P7 | I2C1_SCL | P85 | TYPEC1_TX1N | S7 | RTC_CLKO_WIFI | S86 | PCIE_RX3_N |
| P8 | I2C1_SDA | P86 | GND | S8 | GND | S87 | PCIE_RX3_P |
| P9 | GPIO4_A4 | P87 | TYPEC1_RX2N | S9 | POWER_KEY | S88 | GND |
| P10 | GPIO4_A7 | P88 | TYPEC1_RX2P | S10 | Reset_KEY | S89 | PCIE_TX3P |
| P11 | I2S0_SDO0 | P89 | GND | S11 | RESET_OUT | S90 | PCIE_TX3N |
| P12 | GPIO3_D6 | P90 | TYPEC1_TX2P | S12 | GPIO3_D4 | S91 | GND |
| P13 | GPIO4_A5 | P91 | TYPEC1_TX2N | S13 | I2S0_SCLK | S92 | PCIE_RX2_N |
| P14 | I2S0_LRCK_TX | P92 | GND | S14 | I2C1_SCLK | S93 | PCIE_RX2_P |
| P15 | IGPIO4_C5 | P93 | TYPEC1_AUXM | S15 | GPIO4_A6 | S94 | GND |
| P16 | I2S0_SDI0 | P94 | TYPEC1_AUXP | S16 | GPIO3_D5 | S95 | PCIE_TX2P |
| P17 | UART2DBG_RX | P95 | GND | S17 | LCD_BL_PWM | S96 | PCIE_TX2N |
| P18 | I2C_SCL_HDMI | P96 | PCIE_RX1_P | S18 | I2S0_LRCK_RX | S97 | GND |
| P19 | GPIO4_D3 | P97 | PCIE_RX1_N | S19 | GPIO4_D0 | S98 | BT_HOST_WAKE_L |
| P20 | TOUCH_RST_L | P98 | GND | S20 | PCIE_PRSNT | S99 | SDMMC_D2 |
| P21 | GPIO4_D1 | P99 | PCIE_TX1P | S21 | GPIO4_D2 | S100 | SDMMC_D0 |
| P22 | BT_WAKE_L | P100 | PCIE_TX1N | S22 | GND | S101 | SDMMC_D1 |
| P23 | SDIO0_D1 | P101 | GND | S23 | I2S_CLK | S102 | SDMMC_CMD |
| P24 | UART0_RXD | P102 | PCIE_RX0_P | S24 | GND | S103 | SDMMC0_DET_L |
| P25 | UART0_RTS | P103 | PCIE_RX0_N | S25 | PCIE_PRSNT1# | S104 | GND |
| P26 | UART0_CTS | P104 | GND | S26 | UART2DBG_TX | S105 | SDMMC_CLK |
| P27 | GND | P105 | PCIE_TX0P | S27 | GPIO4_D4 | S106 | GND |
| P28 | MIPI_TX/RX_D0P | P106 | PCIE_TX0N | S28 | I2C_SDA_HDMI | S107 | BT_REG_ON_H |
| P29 | MIPI_TX/RX_D0N | P107 | GND | S29 | HDMI_CEC | S108 | SDMMC_D3 |
| P30 | GND | P108 | PCIE_REF_CLKN | S30 | GND | S109 | 1V8_GPIO0_B0 |
| P31 | MIPI_TX/RX_D1P | P109 | PCIE_REF_CLKP | S31 | SDIO0_CLK | S110 | 1V8_GPIO0_B5 |
| P32 | MIPI_TX/RX_D1N | P110 | GND | S32 | GND | S111 | GPIO1_A4 |
| P33 | GND | P111 | HOST0_DP | S33 | HDMI_HPD | S112 | GPIO1_A2 |
| P34 | MIPI_TX/RX_CLKP | P112 | HOST0_DM | S34 | 1V8_GPIO2_D3 | S113 | GPIO1_A0 |
| P35 | MIPI_TX/RX_CLKN | P113 | GND | S35 | 1V8_GPIO2_D4 | S114 | 1V8_GPIO0_A6 |
| P36 | GND | P114 | HOST1_DP | S36 | SDIO0_CMD | S115 | GPIO1_A3 |
| P37 | MIPI_TX/RX_D2P | P115 | HOST1_DM | S37 | SDIO0_D2 | S116 | SDMMC0_PWR_H |
| P38 | MIPI_TX/RX_D2N | P116 | GND | S38 | SDIO0_D3 | S117 | GND |
| P39 | GND | P117 | GND | S39 | UART0_TXD | S118 | SPI1_CLK |
| P40 | MIPI_TX/RX_D3P | P118 | WIFI_REG_ON_H | S40 | SDIO0_D0 | S119 | SPI1_CSn0 |
| P41 | MIPI_TX/RX_D3N | P119 | WIFI_HOST_WAKE_L | S41 | GND | S120 | PCIE_PERST# |
| P42 | GND | P120 | 1V8_GPIO0_B3 | S42 | MIPI_TX_D3N | S121 | PCIE_WAKE# |
| P43 | MIPI_RX_D3P | P121 | GPIO1_A1 | S43 | MIPI_TX_D3P | S122 | GND |
| P44 | MIPI_RX_D3N | P122 | SPI1_TXD | S44 | GND | S123 | RK3399_26M_OUT |
| P45 | GND | P123 | I2C4_SDA | S45 | MIPI_TX_D2N | S124 | GND |
| P46 | MIPI_RX_D2P | P124 | I2C4_SCL | S46 | MIPI_TX_D2P | S125 | SPI1_RXD |
| P47 | MIPI_RX_D2N | P125 | GPIO3_B2 | S47 | GND | S126 | OTP_OUT_H |
| P48 | GND | P126 | GND | S48 | MIPI_TX_CLKN | S127 | GPIO1_C6 |
| P49 | MIPI_RX_CLKP | P127 | CIF_CLKOUT | S49 | MIPI_TX_CLKP | S128 | GPIO1_D0 |
| P50 | MIPI_RX_CLKN | P128 | GND | S50 | GND | S129 | NC |
| P51 | GND | P129 | GPIO2_A2 | S51 | MIPI_TX_D1N | S130 | GND |
| P52 | MIPI_RX_D1P | P130 | GPIO2_A5 | S52 | MIPI_TX_D1P | S131 | GND |
| P53 | MIPI_RX_D1N | P131 | GPIO2_A3 | S53 | GND | S132 | I2C2_SCL |
| P54 | GND | P132 | GPIO2_A4 | S54 | MIPI_TX_D0N | S133 | I2C7_SCL |
| P55 | MIPI_RX_D0P | P133 | GPIO2_A6 | S55 | MIPI_TX_D0P | S134 | I2C6_SDA |
| P56 | MIPI_RX_D0N | P134 | GND | S56 | GND | S135 | I2C6_SCL |
| P57 | GND | P135 | I2C2_SDA | S57 | GND | S136 | GND |
| P58 | TX_C- | P136 | I2C7_SDA | S58 | VCC3V3_SYS | S137 | GND |
| P59 | TX_C+ | P137 | CIF_PDN0 | S59 | VCC3V3_SYS | S138 | SPDIF_TX |
| P60 | GND | P138 | GND | S60 | VCC3V3_SYS | S139 | GND |
| P61 | TX_0- | P139 | GND | S61 | VCC_EFUSE | S140 | GND |
| P62 | TX_0+ | P140 | eDP_TX3P | S62 | VCC_EFUSE | S141 | LED0_AD0 |
| P63 | GND | P141 | eDP_TX3N | S63 | GND | S142 | LED1_AD1 |
| P64 | TX_1- | P142 | GND | S64 | TYPEC0_AUXM | S143 | LED2_RXDLY |
| P65 | TX_1+ | P143 | eDP_TX2P | S65 | TYPEC0_AUXP | S144 | GND |
| P66 | GND | P144 | eDP_TX2N | S66 | GND | S145 | MDI0- |
| P67 | TX_2- | P145 | GND | S67 | TYPEC0_CC1 | S146 | MDI0+ |
| P68 | TX_2+ | P146 | NC | S68 | GND | S147 | GND |
| P69 | GND | P147 | NC | S69 | TYPEC0_RCLKP | S148 | NC |
| P70 | TYPEC0_RX1N | P148 | eDP_TX1P | S70 | TYPEC0_RCLKN | S149 | NC |
| P71 | TYPEC0_RX1P | P149 | eDP_TX1N | S71 | GND | S150 | MDI1- |
| P72 | GND | P150 | GND | S72 | TYPEC0_CC2 | S151 | MDI1+ |
| P73 | TYPEC0_TX1P | P151 | eDP_TX0P | S73 | GND | S152 | GND |
| P74 | TYPEC0_TX1N | P152 | eDP_TX0N | S74 | TYPEC0_DP | S153 | MDI2- |
| P75 | TYPEC0_RX2N | P153 | GND | S75 | TYPEC0_DM | S154 | MDI2+ |
| P76 | TYPEC0_RX2P | P154 | eDP_AXUP | S76 | TYPEC1_DM | S155 | GND |
| P77 | GND | P155 | eDP_AXUN | S77 | TYPEC1_DP | S156 | MDI3- |
| P78 | TYPEC0_TX2P | P156 | GND | S78 | GND | S157 | MDI3+ |
| S79 | ADKEY_IN | S158 | GND | ||||
| OS | Item | Feature | Description |
|---|---|---|---|
| Android 11 | Boot | uboot 2017.09 | rk3399_loader_v1.27.126.bin |
| Kernel | Version | Linux 4.19.232 | |
| Drivers | eMMC | eMMC 5.1 | |
| HDMI OUT | Support 4K, 1080P, 720P, 480P resolution | ||
| Audio | Headphone input/ output | ||
| SD card | Micro SD card | ||
| USB Host | 2x USB2.0 Host | ||
| Type-C | Support ADB, Type-C to HDMI/USB | ||
| Ethernet | 10/100/1000 Mbps Ethernet | ||
| LCD&TP | 10.1-inch MIPI LCD with touch screen | ||
| Camera | 13 Megapixels, OV13850 module | ||
| WiFi | 802.11 a/b/g/n/ac, RTL8822CS | ||
| Bluetooth | Bluetooth 5.0, RTL8822CS | ||
| Serial Port | Debug | ||
| 4G | EC20 | ||
| RTC | Support | ||
| FAN | Support | ||
| Cross-compiler Environment | Ubuntu-16.04/openjdk8 | ||
| Debug Tools | SecureCRT, AndroidTool.exe, ADB | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| Android 7.1 | Boot | uboot 2014.10 | rk3399_loader_v1.22.115.bin |
| Kernel | Version | Linux 4.4.126 | |
| Drivers | eMMC | eMMC 5.1 | |
| HDMI OUT | Support 4K, 1080P, 720P, 480P resolution | ||
| Audio | Headphone input/ output | ||
| SD card | Micro SD card | ||
| USB Host | 2x USB2.0 Host | ||
| Type-C | Support ADB | ||
| Ethernet | 10/100/1000 Mbps Ethernet | ||
| LCD&TP | 10.1-inch MIPI LCD with touch screen | ||
| Camera | 13 Megapixels, OV13850 module | ||
| WiFi | 802.11 a/b/g/n/ac | ||
| Bluetooth | Bluetooth 5.0 | ||
| Serial Port | Debug | ||
| 4G&GPS | EC20 | ||
| RTC | Support | ||
| Cross-compiler Environment | Ubuntu 16.04/openjdk8 | ||
| Debug Tools | SecureCRT, AndroidTool.exe, ADB | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| Debian 11 Buildroot | Boot | uboot 2017.09 | rk3399_loader_v1.30.130.bin |
| Kernel | Version | Linux 5.10.160 | |
| Drivers | eMMC | eMMC5.1 | |
| HDMI OUT | Support 4K, 1080P, 720P, 480P resolution | ||
| Audio | Headphone input/ output | ||
| SD card | Micro SD card | ||
| USB Host | 2x USB2.0 Host | ||
| Type-C | Support ADB, Type-C to USB | ||
| Ethernet | 10/100/1000 Mbps Ethernet | ||
| LCD&TP | 10.1-inch MIPI LCD with touch screen | ||
| Camera | 13 Megapixels, OV13850 module | ||
| WiFi | 802.11 a/b/g/n/ac | ||
| Bluetooth | Bluetooth 5.0 | ||
| Serial Port | Debug | ||
| 4G&GPS | EC20 | ||
| SATA | Support | ||
| FAN | Support | ||
| RTC | Support | ||
| Cross-compiler Environment | Ubuntu 20.04 | ||
| Debug Tools | SecureCRT, AndroidTool.exe, ADB | ||
