| Specifications |
|---|

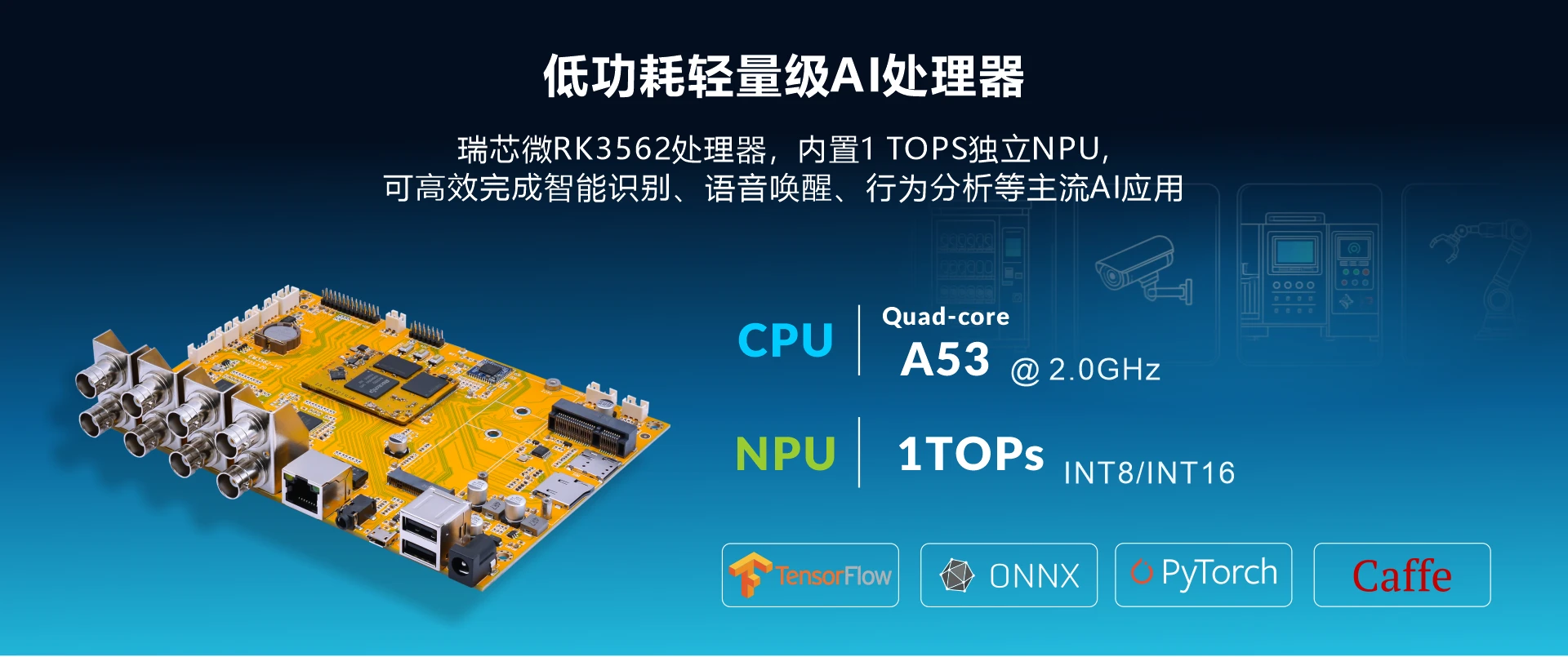

| SoC | Rockchip RK3562 processor. 4x Cortex-A53 cores up to 2.0GHz |
| NPU | 1 TOPS |
| GPU | ARM G52 2EE with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| Memory | 2GB/4GB/8GB |
| Storage | 8GB/16GB/32GB/64GB/128GB eMMC
Micro SD slot
M.2 socket |
| Power Supply | 12V/3A DC input jack |
| USB | 3x USB2.0 Host, Dual-USB and 4-pin connector
1x USB2.0 OTG, Micro USB |

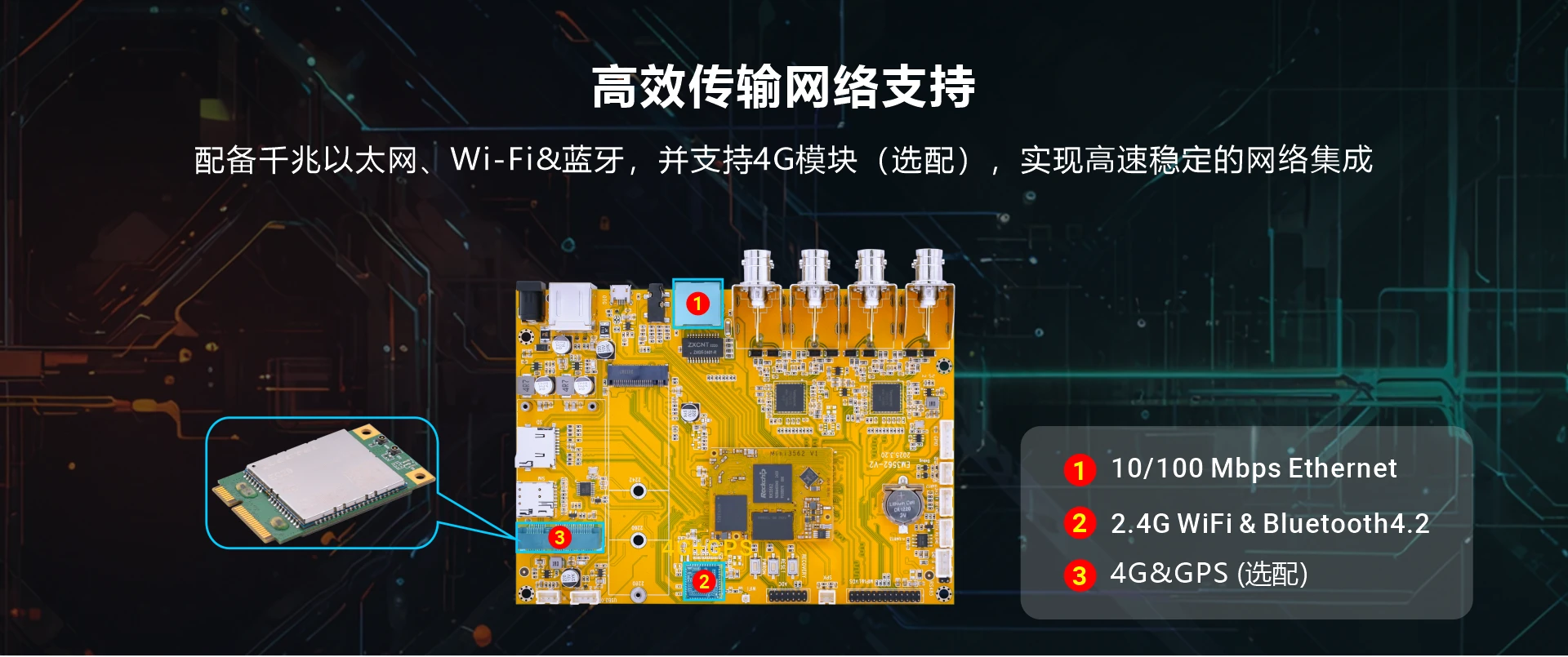

| Connectivity | 1x 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller
2.4G WiFi(802.11b/g/n) with Bluetooth 4.2
mPCIe socket with Nano SIM card port to support 4G&GPS module |
| Serial Port | 2x UART, 4-pin connector
1x Debug, 3-pin connector
1x RS485, 3-pin connector or 2-pin header |

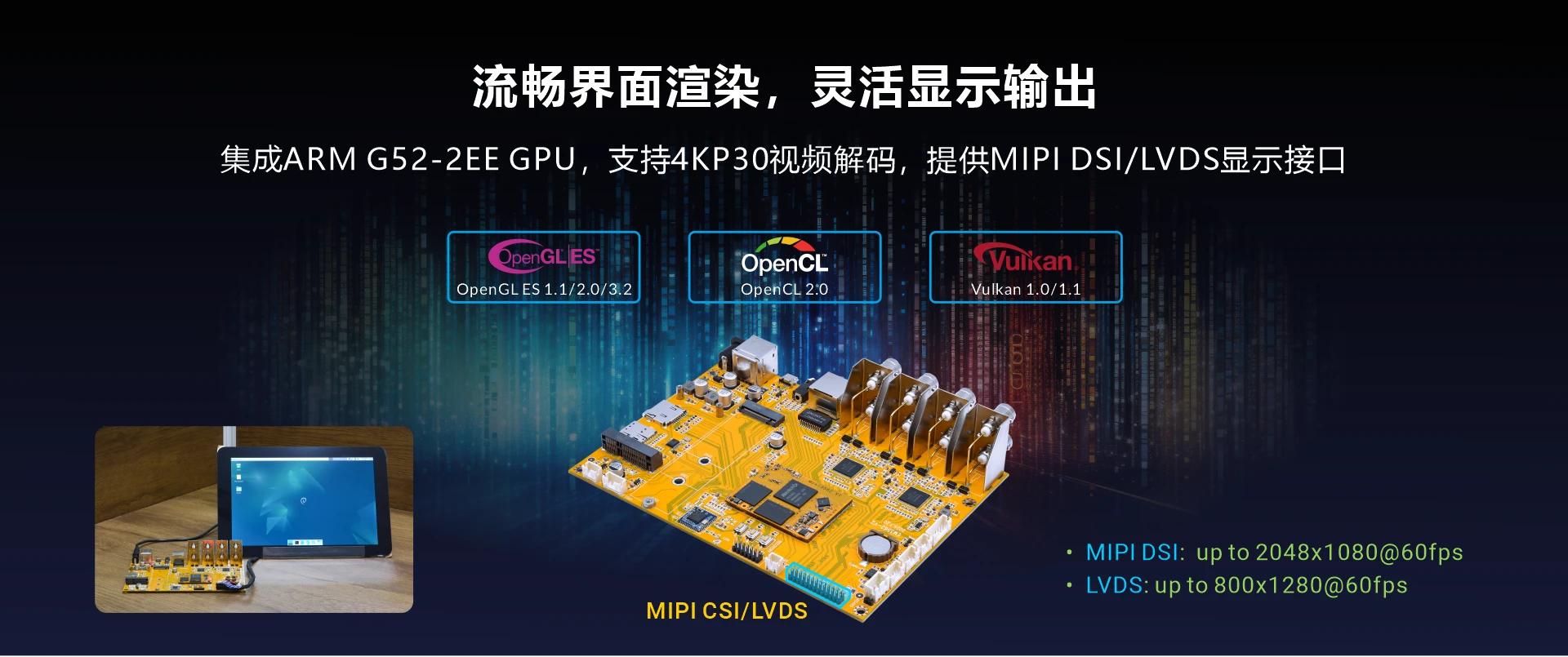

| Display | 4-lane MIPI DSI, up to 2048 x 1080 @ 60Hz
or LVDS, up to 800 x 1280 @ 60Hz |
| Audio | 1x 3.5mm audio I/O jack
1x Speaker, 2-pin connector |

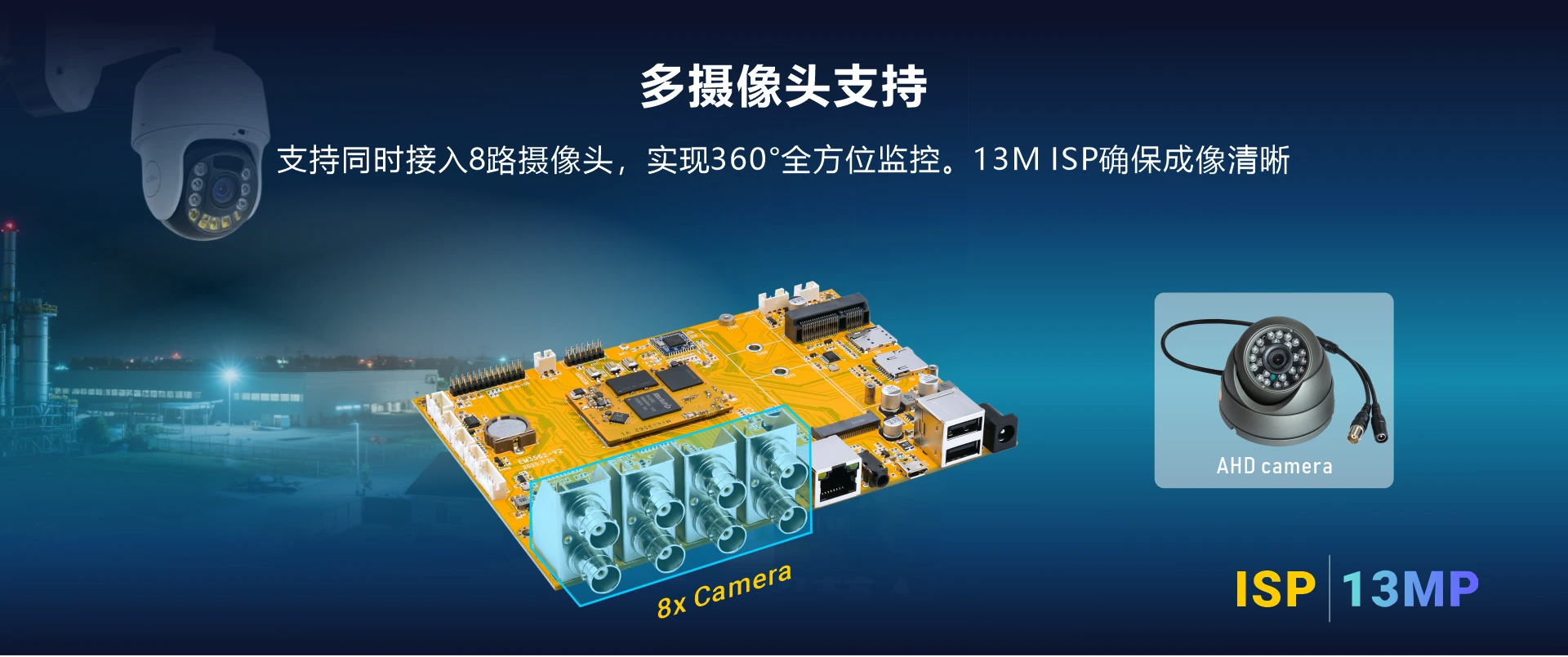

| Camera | 8x AHD Camera, BNC connector |
| Keys | Recovery, Reset, Power |
| Other features | RTC with battery connector, IR, ADC(8x ADC, 1x I2C), GPIO(3x GPIO) |
| Operating Temperature | 0° to + 70° C |
| Dimension | Based board - 160 x 115 mm; CPU module - 45 x 34 mm |
