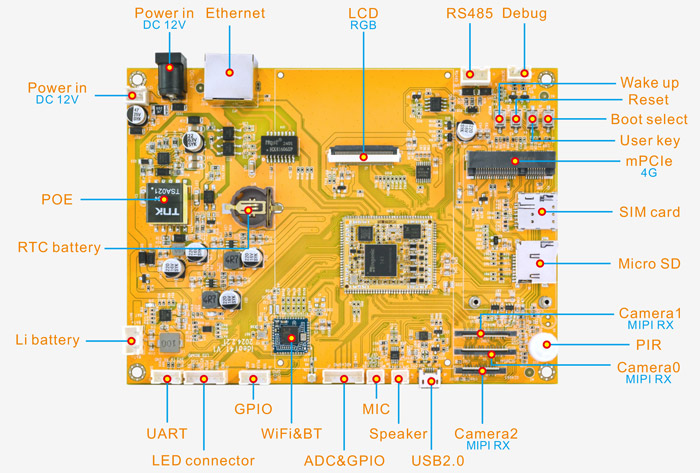

| Specifications |
|---|

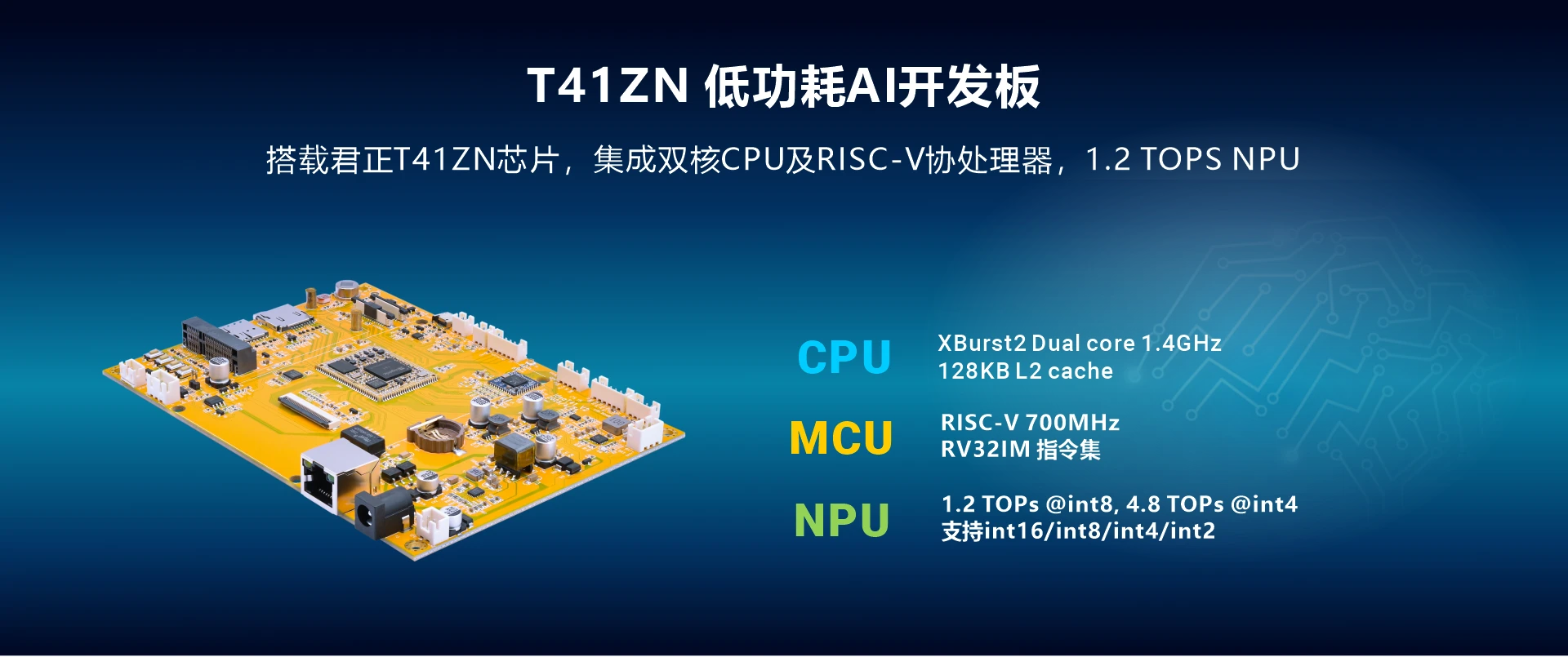

| SoC | Ingenic T41ZN. Dual-core MIPS XBurst2 @ 1.4 GHz, RV32IM instruction set, 128KB L2 cache |
| MPU | RISC-V coprocessor 700MHz; |
| NPU | 1.2 TOPS @ int8, 4.8 TOPS @ int4 |
| Memory | Integrated 128MB DDR3/DDR3L |
| Storage | 32MB/64MB/128MB/256MB Flash
MicroSD card slot |

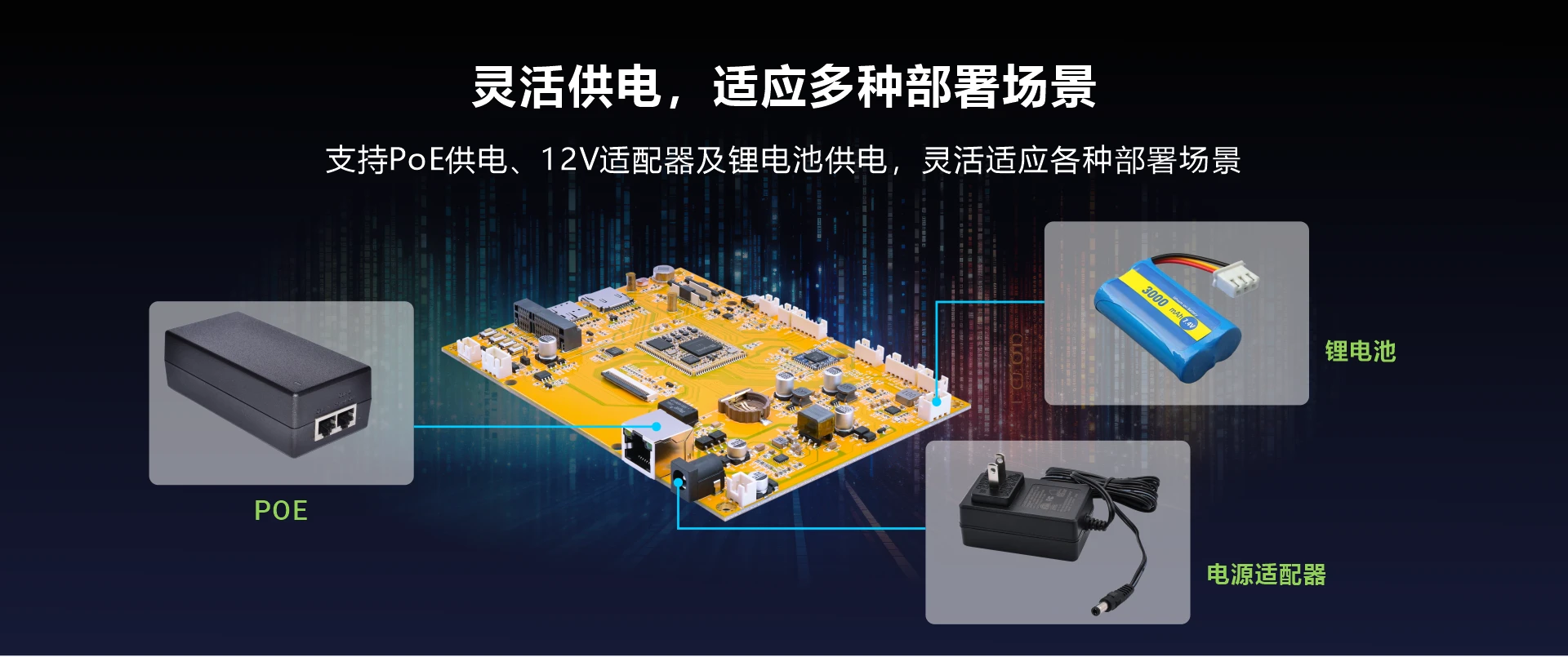

| Power Supply | 12V/3A DC input jack; POE; 8.4V battery |
| USB | USB2.0 OTG |

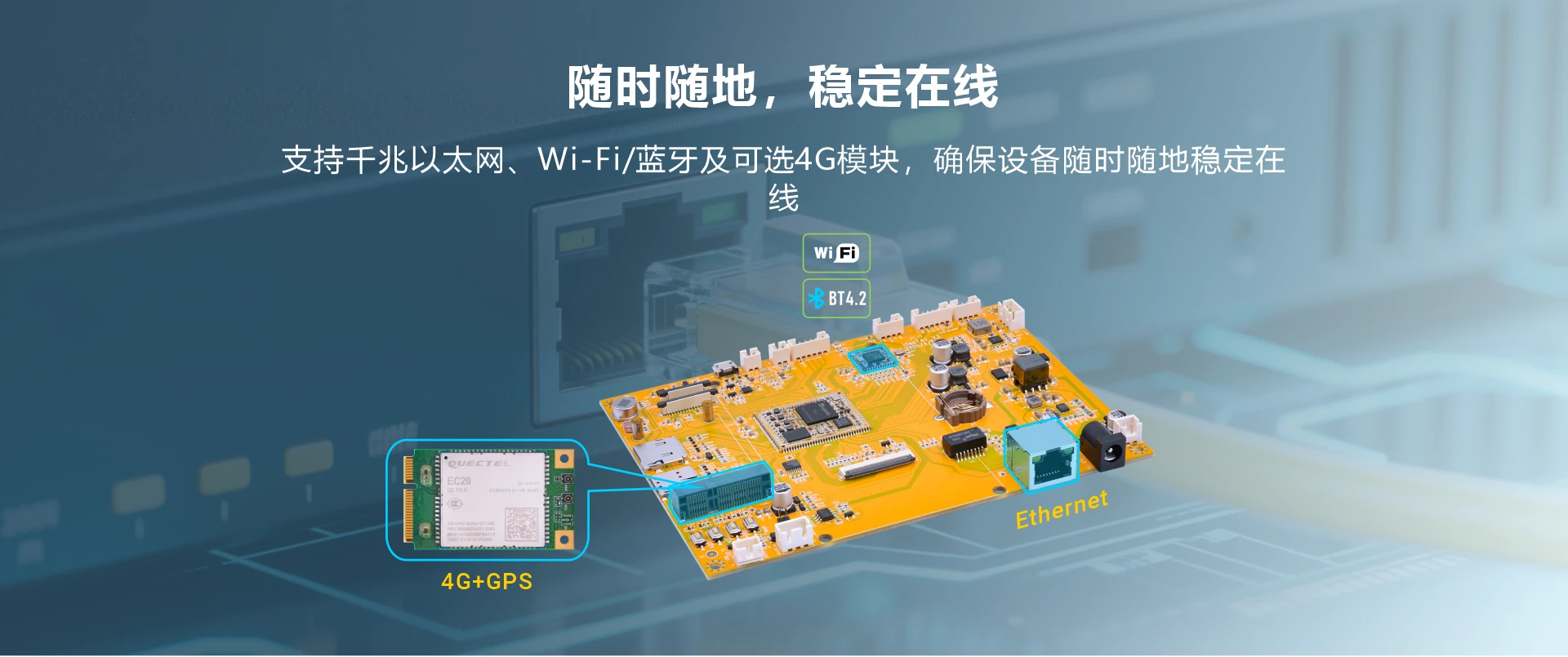

| Connectivity | 10/100 Mbps Ethernet RJ45 port via Motorcomm SZ18201 controller
2.4G WiFi (802.11b/g/n) with Bluetooth 4.2

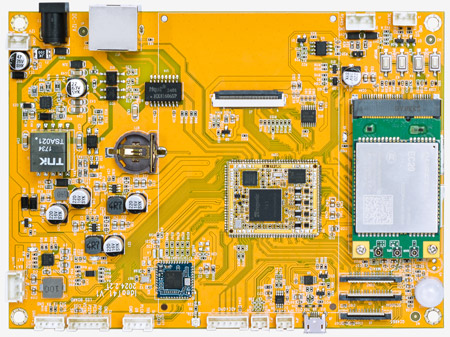

mPCIe socket with Nano SIM card port to support 4G module |
| Serial | 1x Serial port for debug, 3-pin connector
1x UART, 4-pin connector
1x RS485 (Multiplexed with Bluetooth), 3-pin connector |

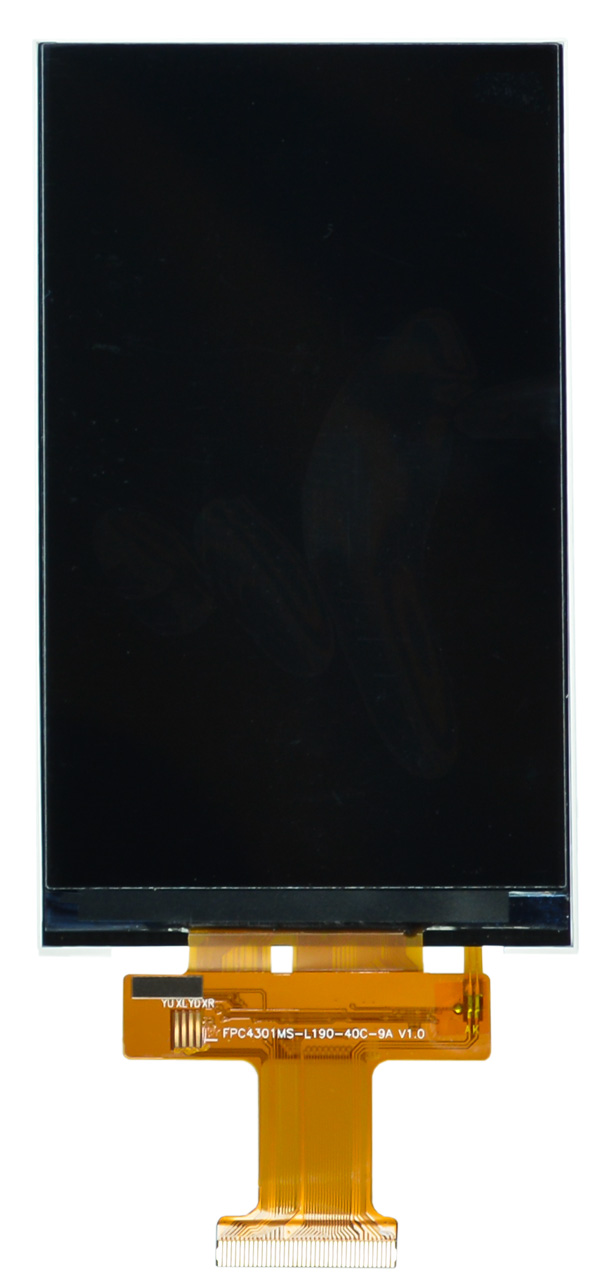

| Display | RGB, 800 x 600@60Hz (40-pin FPC connector) |
| Audio | Speaker, 2-pin connector
MIC, 2-pin connector |

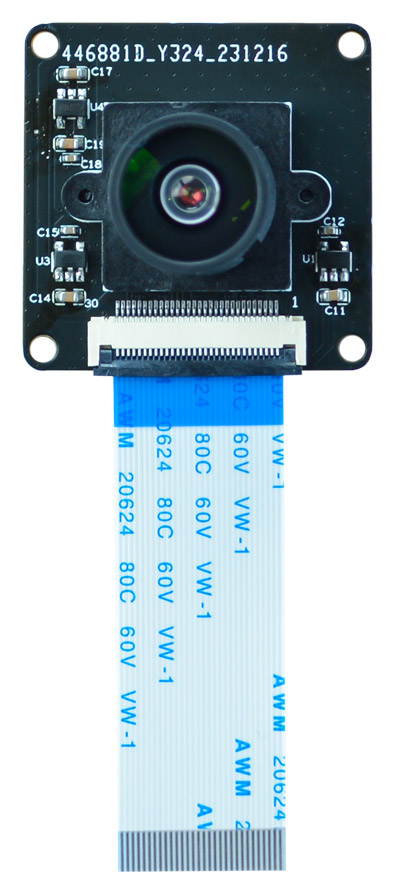

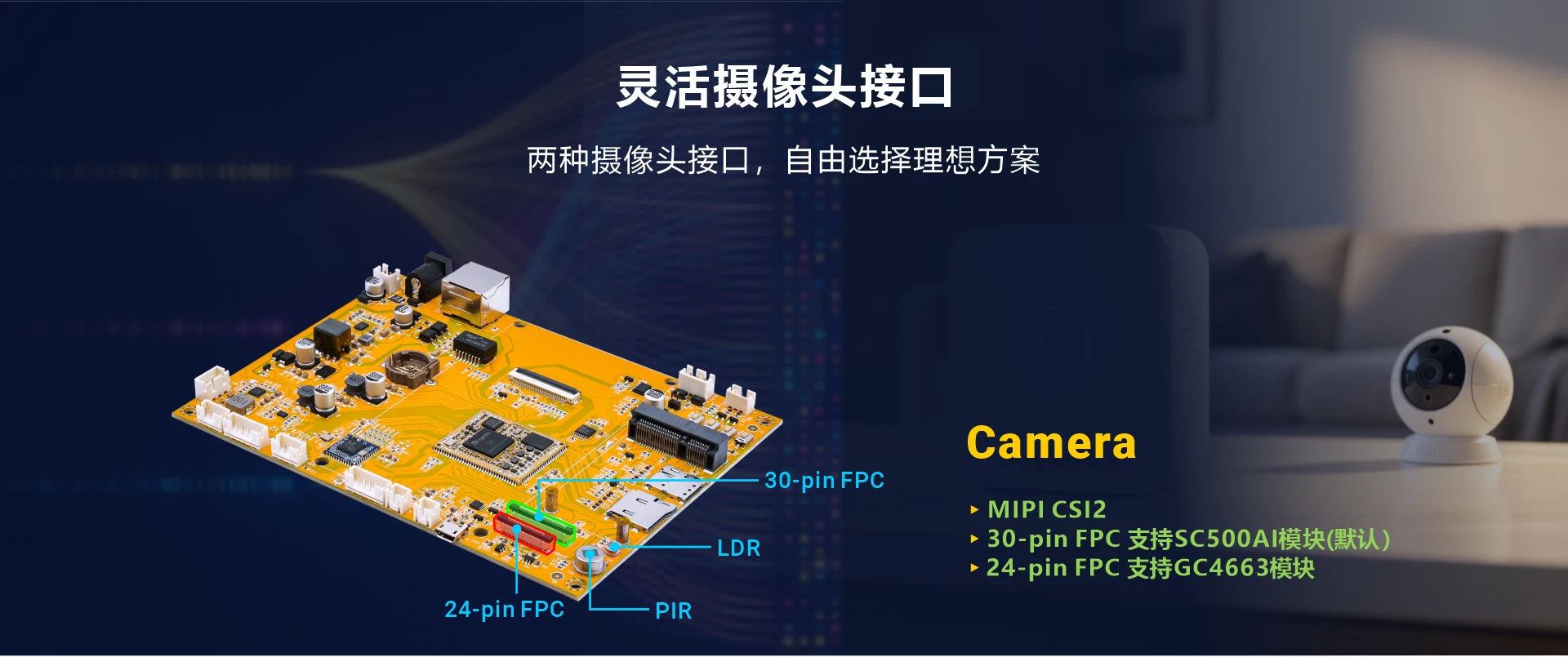

| Camera(optional) | 2-Lane MIPI CSI.
Camera0, 30-pin FPC connector;
Camera2, 24-pin FPC connector.
Camera0/2 multiplex signal MIPI RX. |
| Keys | Wake up, Reset, Boot select, User key |
| Other features | RTC with battery connector, GPIO, ADC, LED connector (PWM/GPIO) |
| Operating Temperature | 0° to + 70° C |

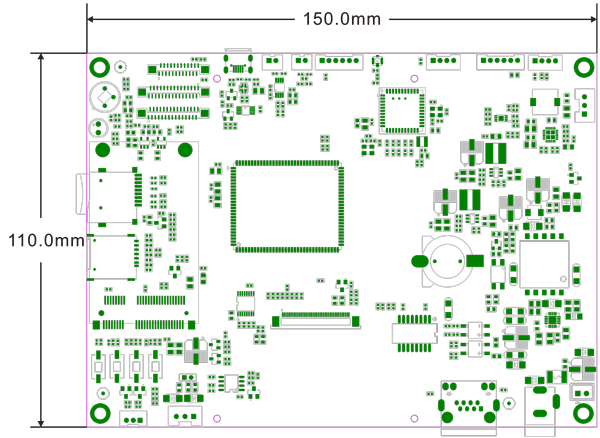

| Dimensions | Based board - 150 x 110 mm; CPU modul - 31.7 x 25.5 mm |
