开发板
Idea311Y3
Highlight

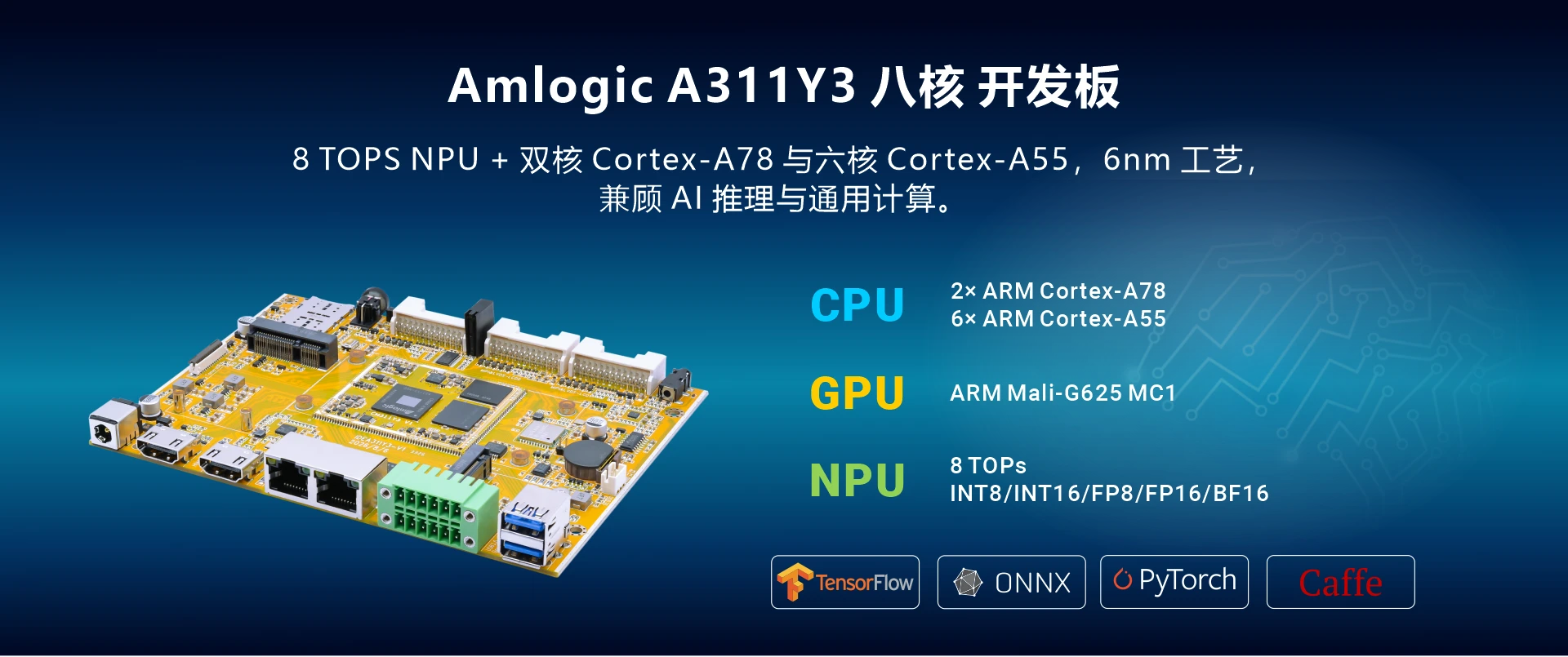

处理器: Amlogic A311Y3. 2x ARM Cortex-A78 cores @ 2.4GHz + 6x ARM Cortex-A55 cores @ 2.0GHz
NPU: 8 TOPS
内存: 4GB/8GB/16GB

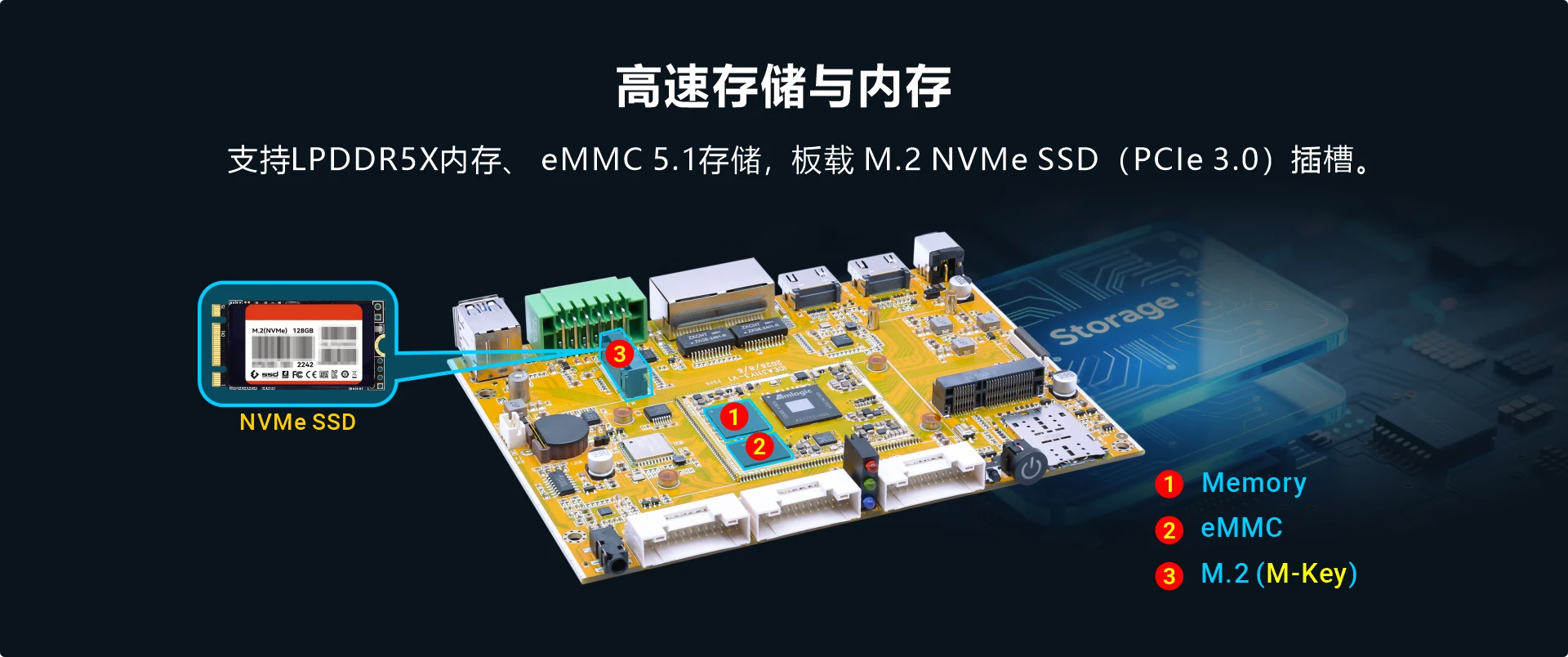

存储: 32GB/64GB/128GB/256GB

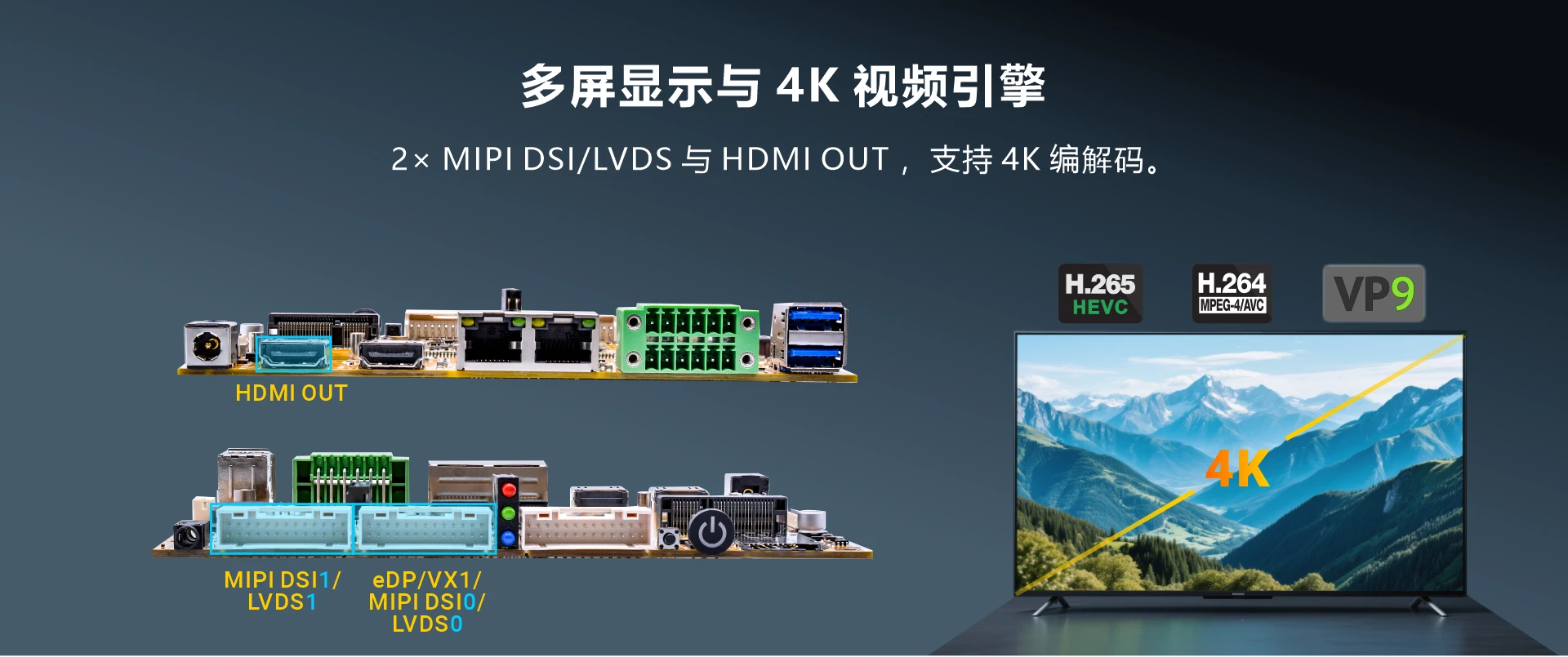

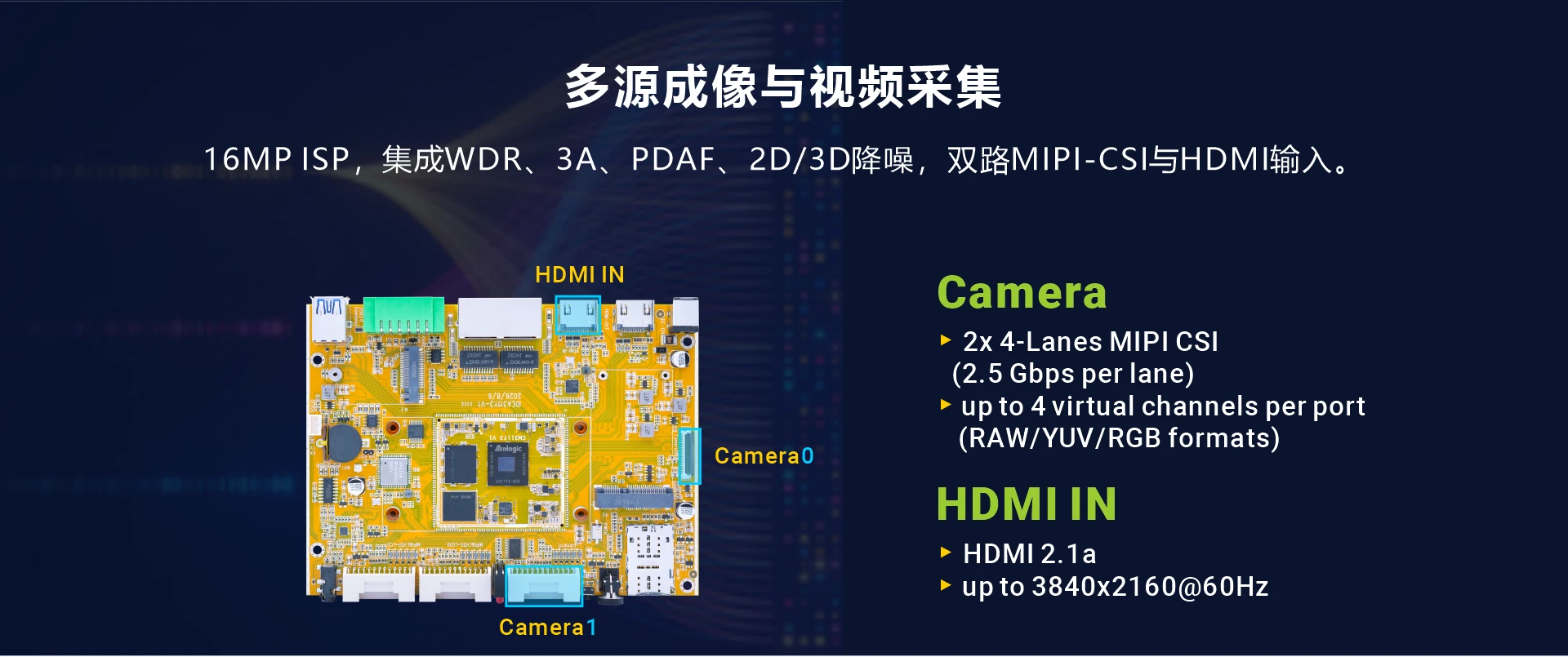

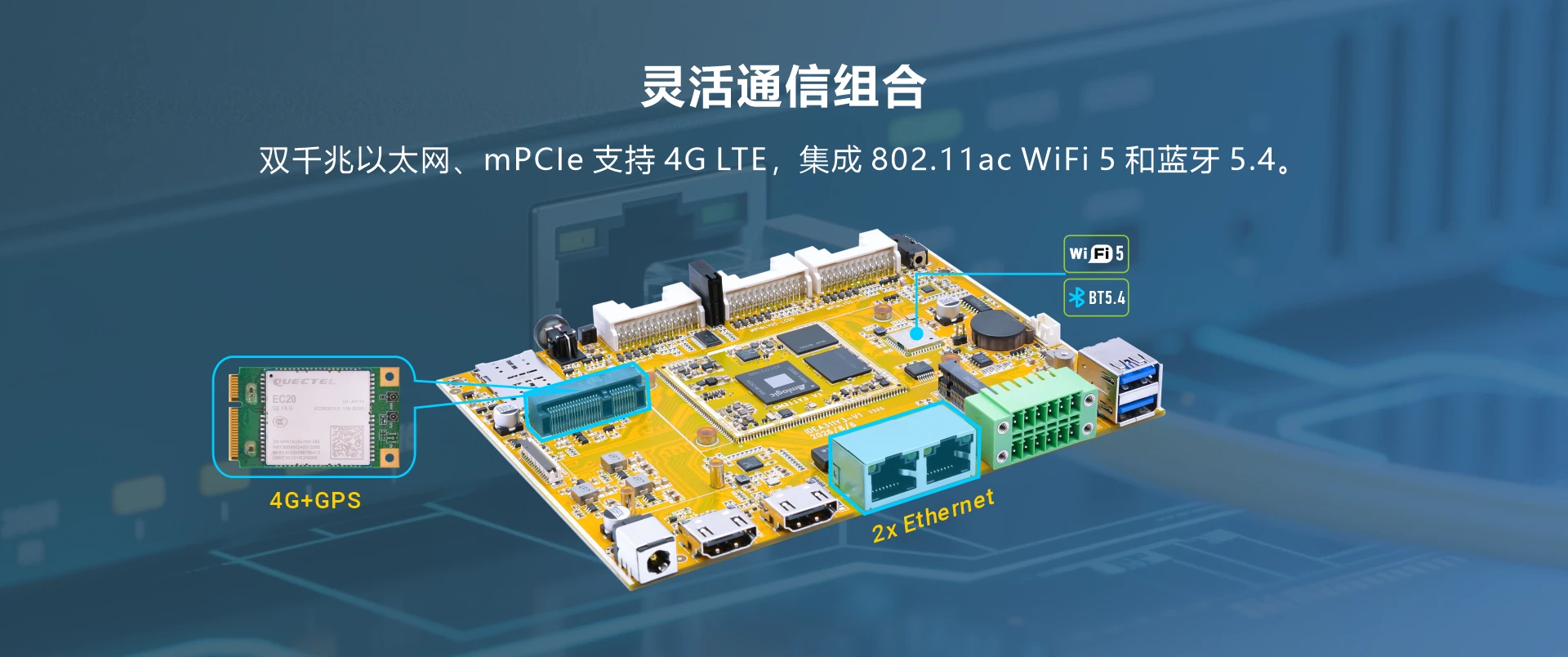

接口: UART(RS232), Debug, 2x USB3.0, RS485, CAN, 2x Ethernet, 2x MIPI DSI/LVDS, HDMI OUT, HDMI IN, 2x MIPI CSI, mPCIe, M.2, SIM & MicroSD, Audio I/O, RTC, etc.
操作系统: Android 16
尺寸规格: 155 x 115 mm
工作温度: 0° to + 70° C
Accessories
-
12V 3A 英规
12V / 3A Output
EU Plug
36W -
12V 3A 美规
12V / 3A Output
US Plug
36W -
10.1-inch LVDS
1280 x 800 pixels
16.7M colors
LVDS 接口 -
10.1-inch MIPI
800 x 1280 pixels
16.7M colors
MIPI 接口 -
IMX307
CMOS camera
6.46mm Type 1/2.8
2.13M pixel
MIPI interface -
IMX415
CMOS camera
6.4mm Type 1/2.8
8.29M pixel
MIPI CSI-2 -
EC20
Mini PCIe Multi-mode LTE Module
30.0 × 51.0 × 4.9 mm
-40° to +80° C
