| Specifications |
|---|

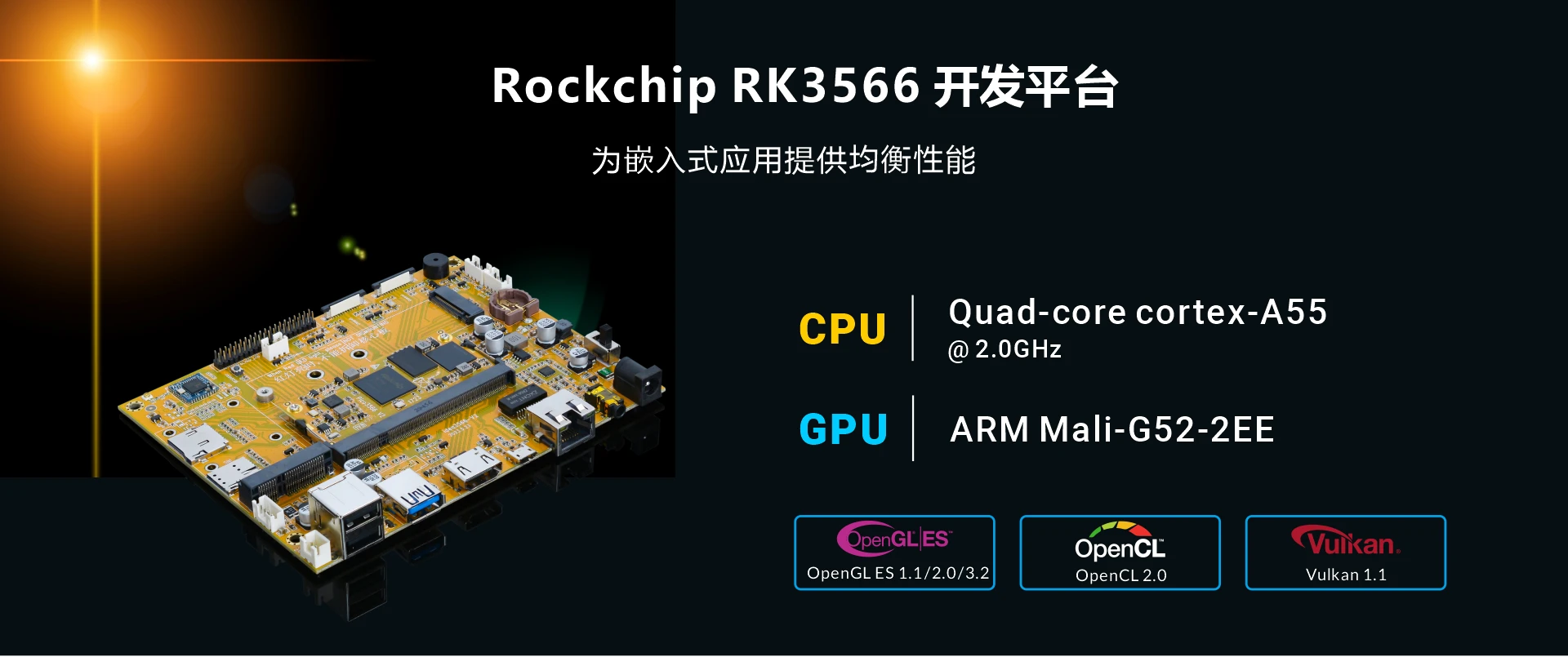

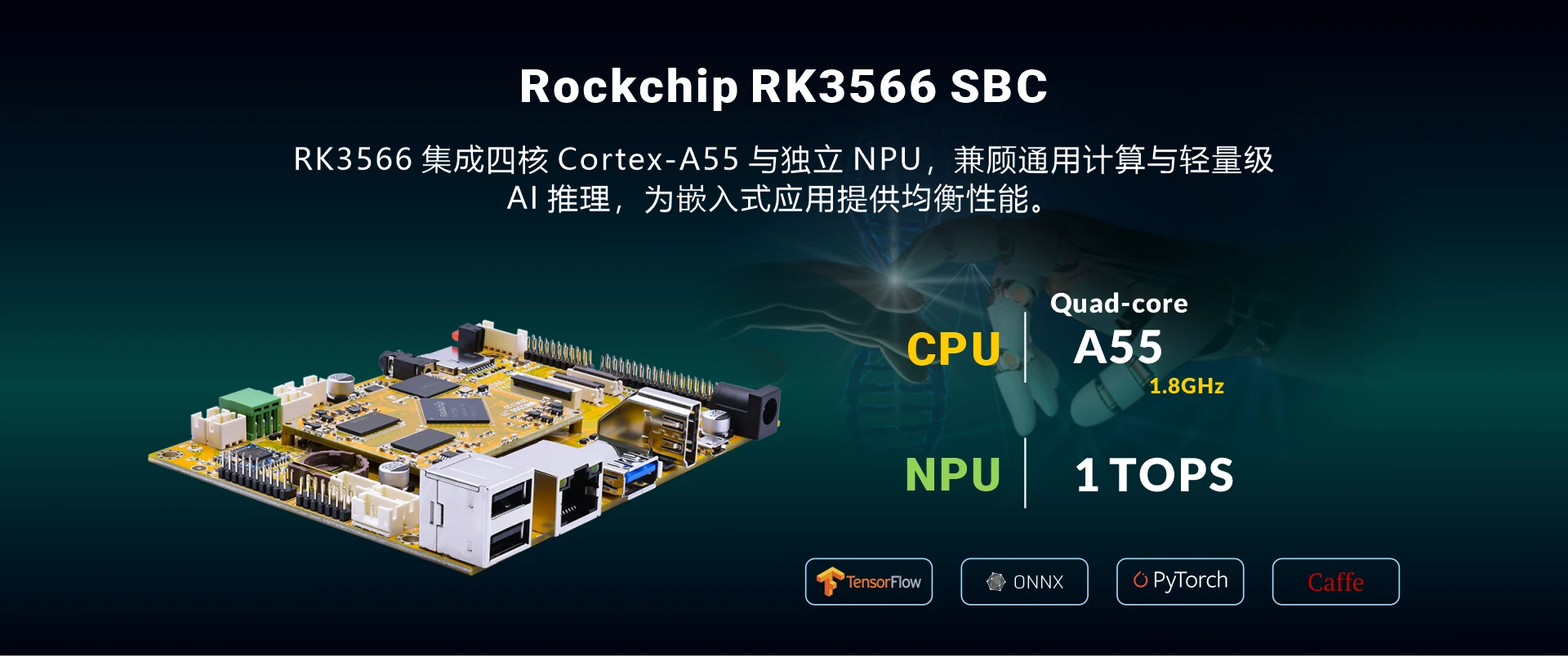

| SoC | RockChip RK3566 quad-core Cortex-A55 @ up to 1.8GHz |
| GPU | ARM Mali-G52 2EE GPU with support for OpenGL ES 1.1/2.0/3.2. OpenCL 2.0. Vulkan 1.1 |
| NPU | 1 TOPS |
| Memory | 2GB/4GB/8GB LPDDR4X |
| Storage | 8GB/16GB/32GB/64GB/128GB eMMC

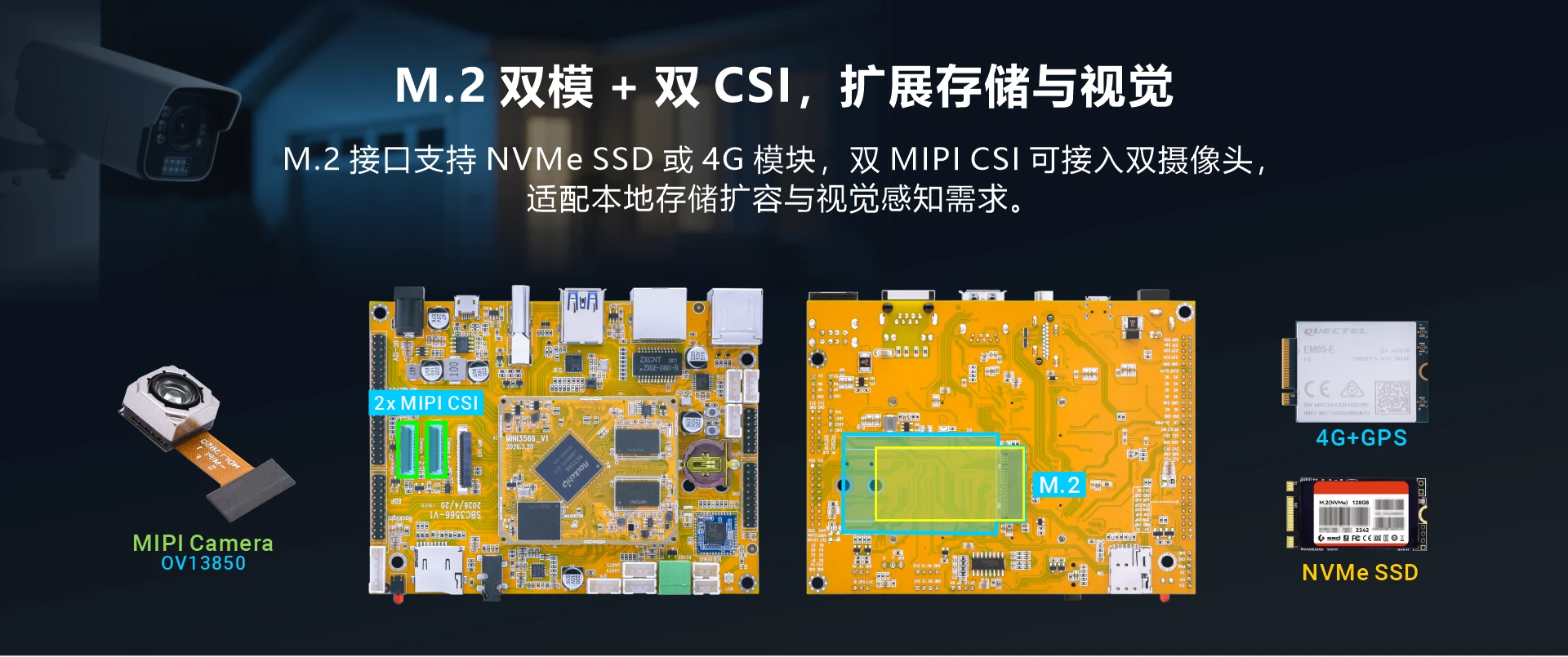

M.2 PCIe 2.0 socket
MicroSD card slot |
| Power Supply | 12V/3A DC input jack |

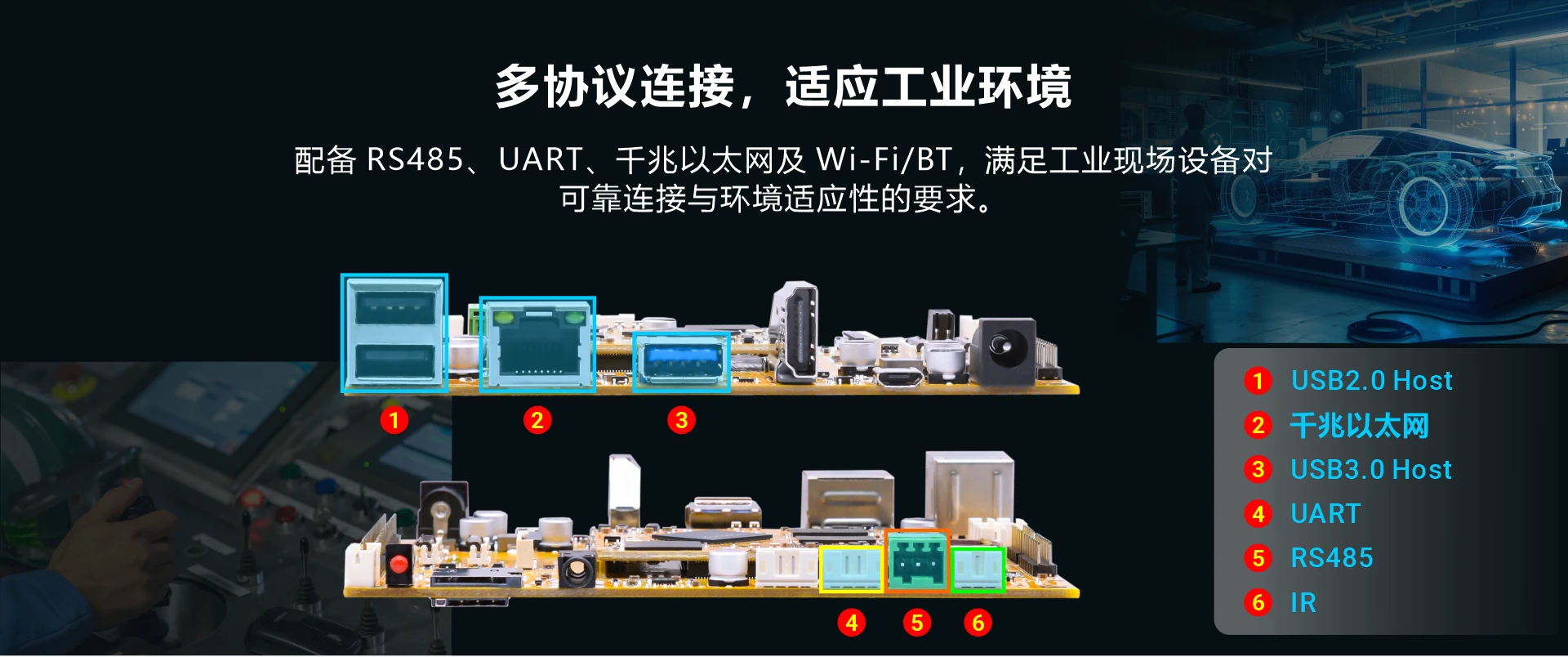

| USB | 1x USB OTG 2.0
3x USB Host 2.0 (USB-AF or 4-pin connector)
1x USB 3.0 |

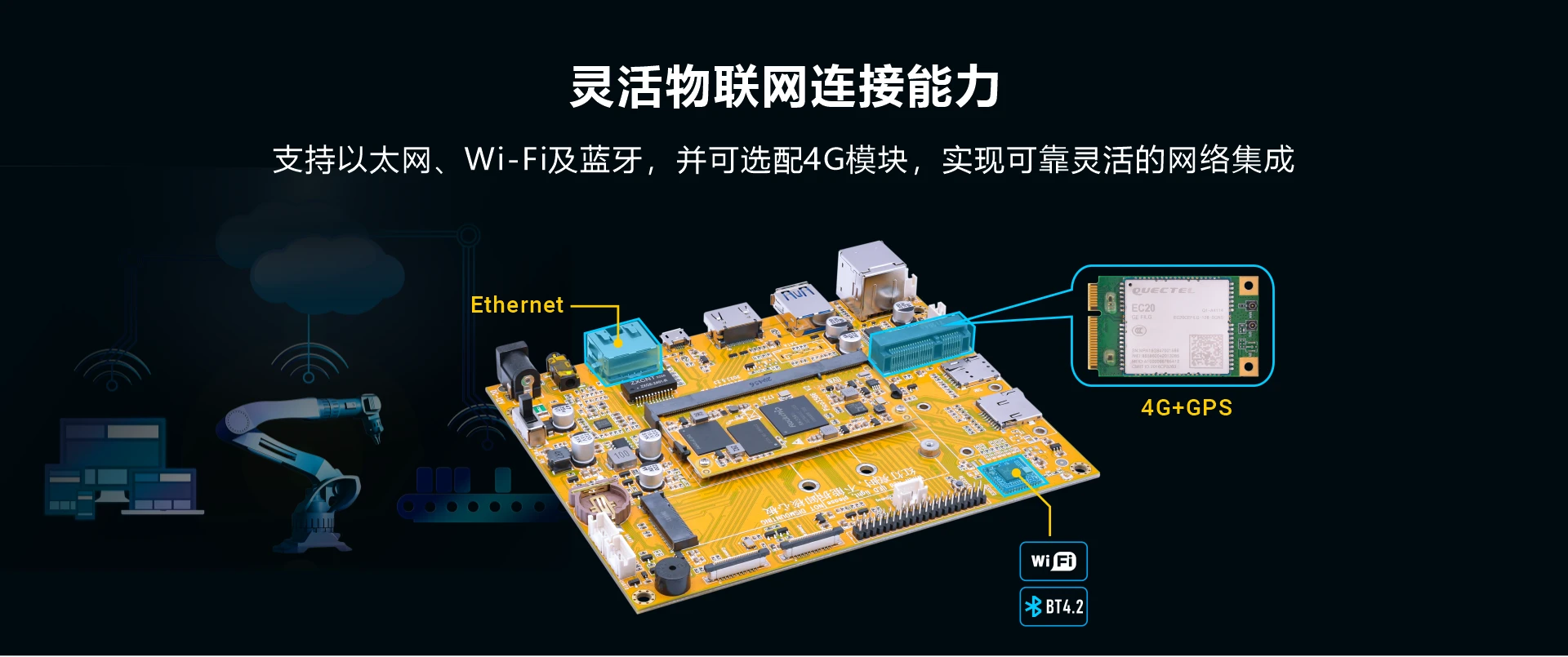

| Connectivity | Gigabit Ethernet RJ45 ports via Realtek RTL8211F-CG controller
2.4G WiFi(802.11b/g/n) with Bluetooth 4.2
mPCIe socket with Nano SIM card port to support 4G modules |
| Serial | 1x Serial port for debug, 3-pin connector
2x UART, 4-pin connector |

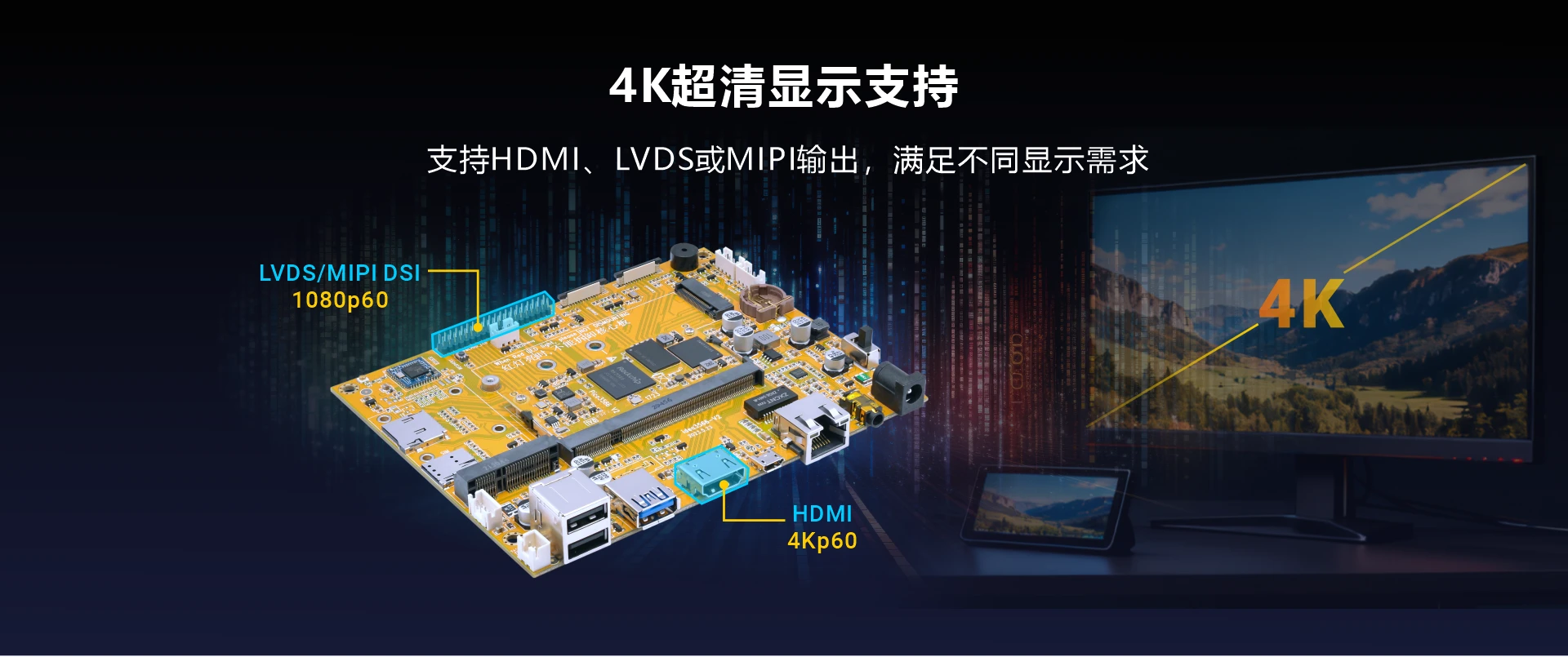

| Video | HDMI 2.0, up to 4Kp60
MIPI DSI/LVDS, 1080p60 |
| Audio | 3.5mm audio I/O jack
8-channel audio via HDMI |
| Camera(optional) | 2x MIPI CSI, 24-pin FPC connector |
| Keys & Switch | 1x Recover Key
1x switch for power ON/OFF |
| Other features | RTC with battery connector, Buzzer |
| Operating Temperature | 0° to + 70° C |
| Dimensions | 140 x 110 mm |
