| Specifications |
|---|
| SoC | Allwinner T507-H with quad-core ARM Cortex-A53 processor @ 1.5GHz |
| GPU | G31 MP2 GPU. Supports OpenGL ES 1.0/2.0/3.2, Vulkan 1.1, OpenCL 2.0 |
| Memory | 2GB/4GB |
| Storage | 8GB/16GB/32GB/64GB eMMC
MicroSD card slot |

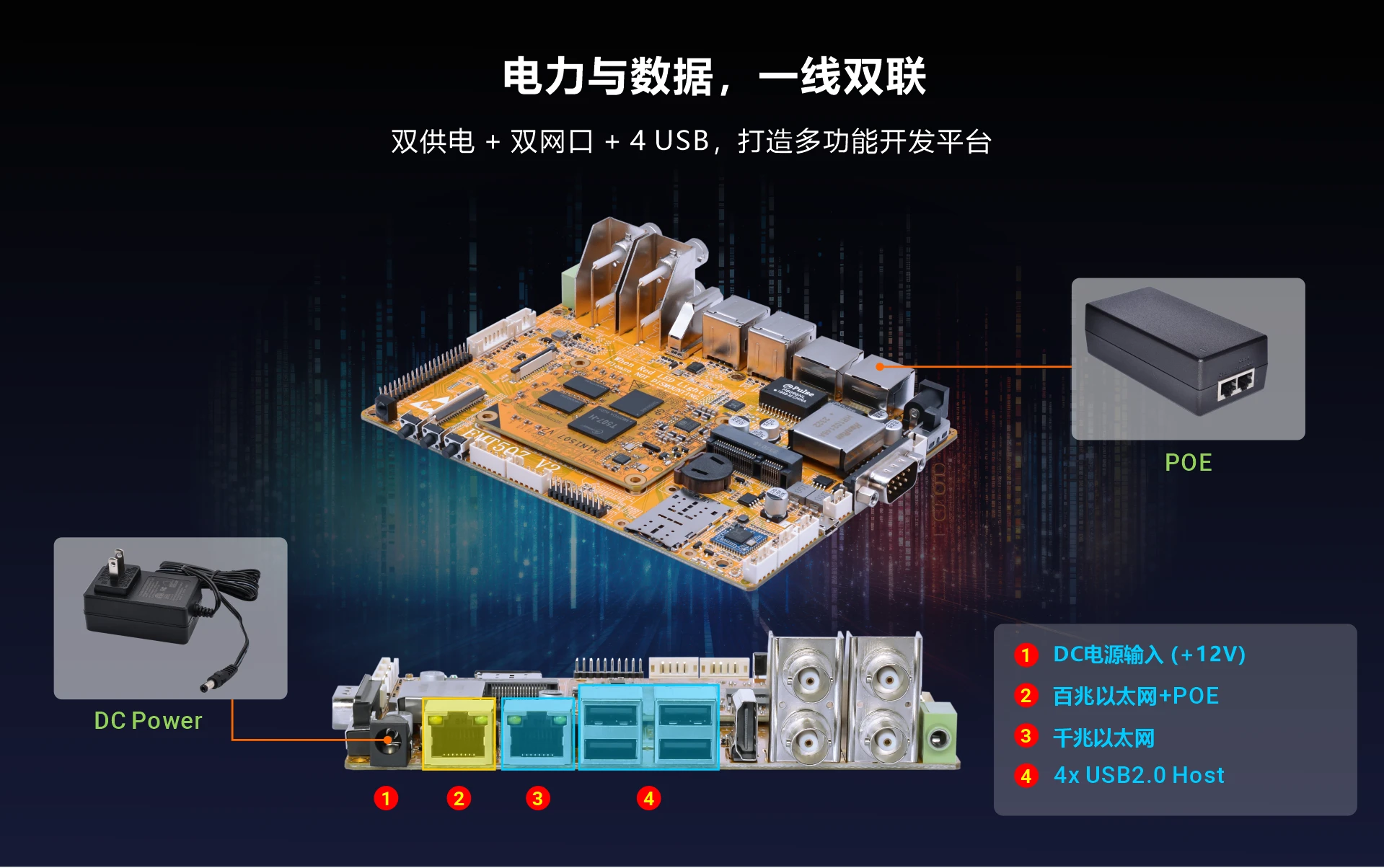

| Power Supply | 12V/3A DC input jack
Power over Ethernet (PoE) |
| USB | 5x USB2.0 Host, 1x USB2.0 OTG |
| Connectivity | 1x 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller (Multiplexed with UART2/3/4)
1x 10/100 Mbps Ethernet RJ45 port
2.4G WiFi (802.11 b/g/n) with Bluetooth 4.2
Mini PCIe socket with Nano SIM card port to support 4G LTE Modem |
| Serial | 1x Serial port for debug(UART0), 3-pin connector
3x UART(UART2/3/4, multiplexed with GbE), 4-pin connector
1x RS232(UART5), DB9 connector |
| Display | 1x dual-channel LVDS (or 1x RGB, 40-pin FPC connector), 40-pin header, up to 1080p@60fps
1x HDMI 2.0a |
| Audio | 3.5mm audio jack for Line_out |
| Camera(optional) | 1x DVP camera, 20-pin header
4x AHD Cameras (or 1x 4-lane MIPI-CSI camera, 30-pin FPC connector), BNC-KWE connector |
| Keys | Power switch, Power on, Reset, FEL |
| Other features | RTC, IR, SPI, GPADC, Control |
| Operating Temperature | 0° to + 70° C |

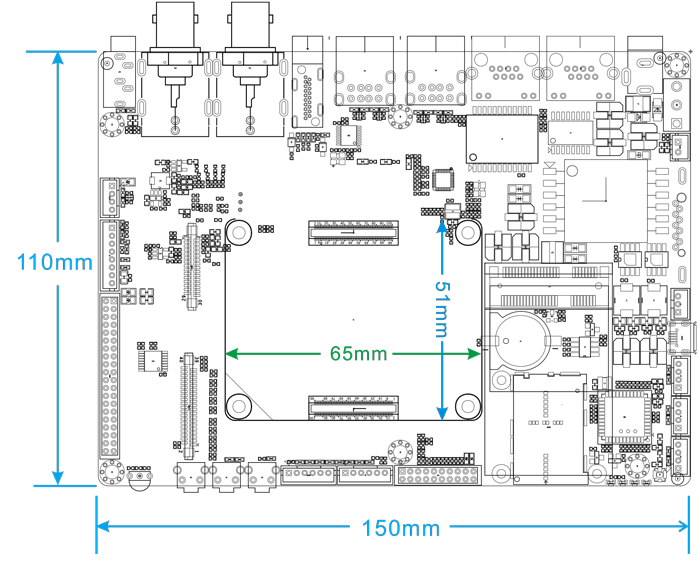

| Dimensions | Based board - 150 x 110 mm; CPU module - 65 x 51 mm |
