| Specifications |
|---|

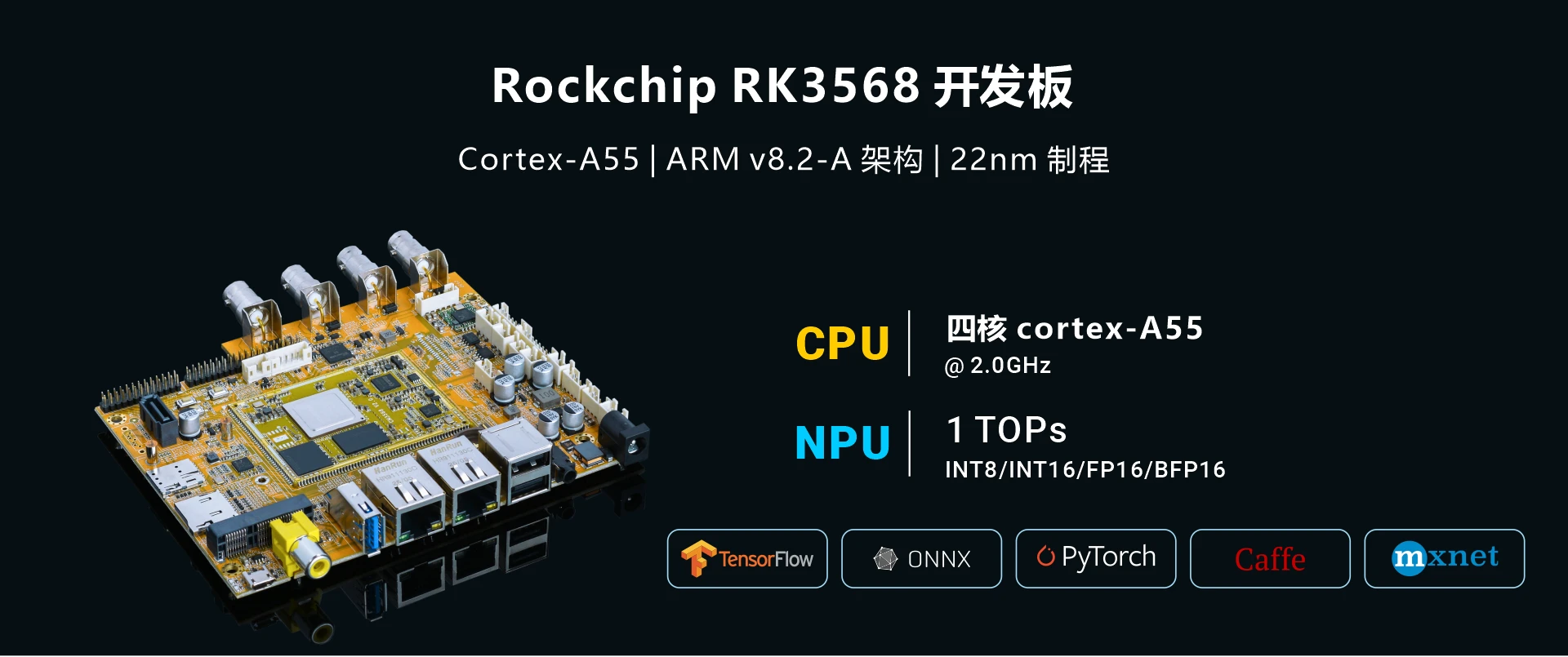

| SoC | Rockchip RK3568. Quad-core Cortex-A55 @ 2.0GHz |
| GPU | ARM Mali-G52 GPU with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU | 1 TOPS |
| Memory | 1GB/2GB/4GB/8GB |
| Storage | 8GB/16GB/32GB/64GB/128GB eMMC
MicroSD card slot
SATA3.0 socket |
| Power Supply | 12V/3A DC input jack |
| USB | 1x USB OTG 2.0
3x USB Host 2.0 (USB-AF or 4-pin connector)
1x USB 3.0 |

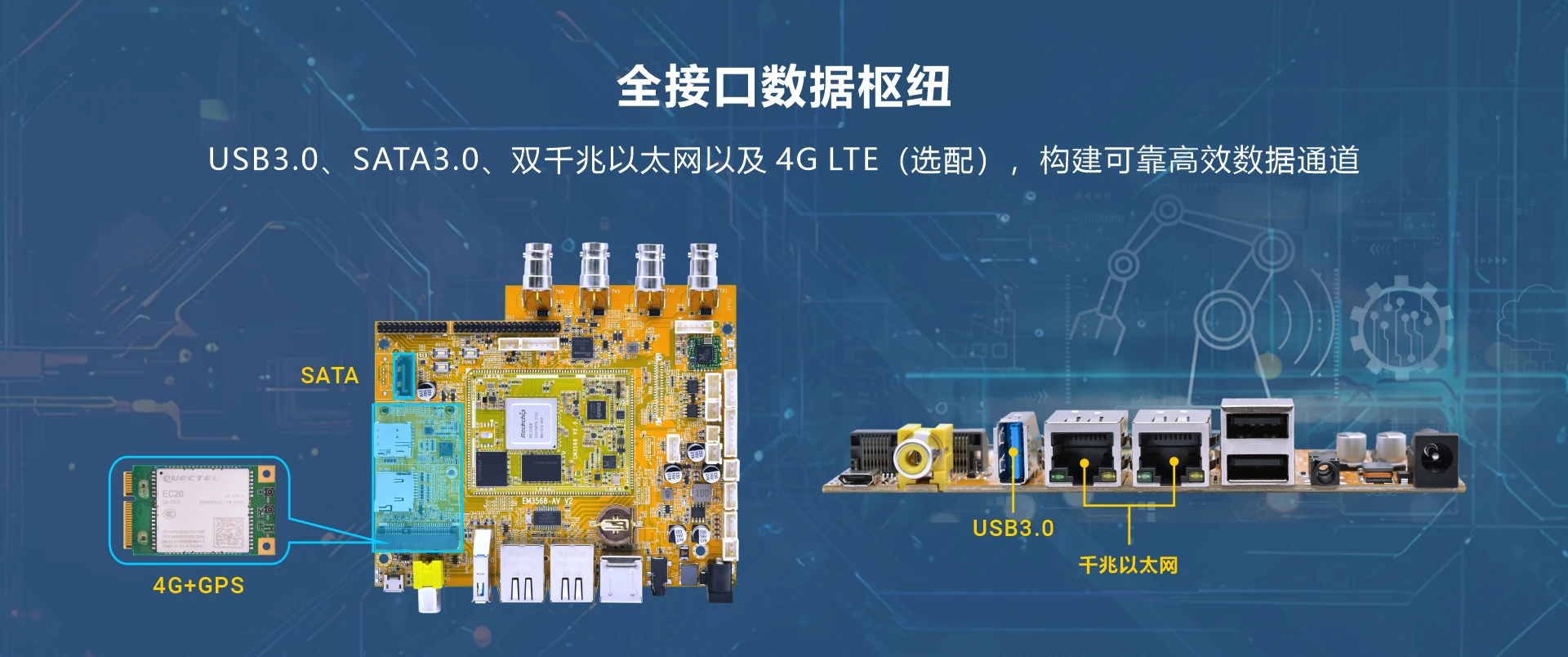

| Connectivity | 2x Gigabit Ethernet RJ45 ports via Realtek RTL8211F-CG controller
2.4G WiFi (802.11b/g/n) with Bluetooth 4.2
mPCIe socket with Nano SIM card port to support 4G model |
| Serial | 1x Serial port for debug, 3-pin connector
2x UART, 4-pin connector
1x RS485, 3-pin connector |

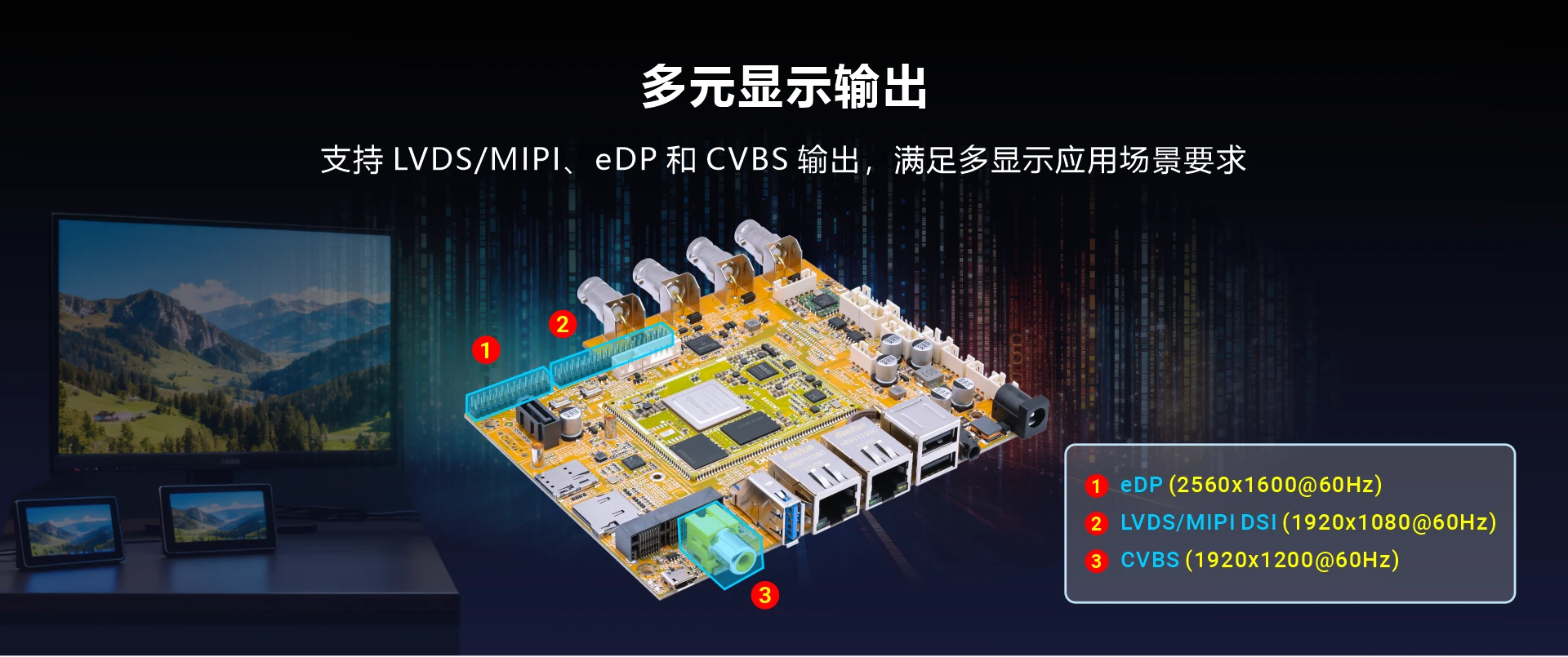

| Video | MIPI DSI/LVDS, up to 1080p60 (40-pin header)
eDP 1.3, up to 2560 x 1600@60Hz (30-pin header)
CVBS (HDMI to CVBS), supports MTSC and PAL |
| Audio | 3.5mm audio I/O jack
Speaker (2-pin connector) |

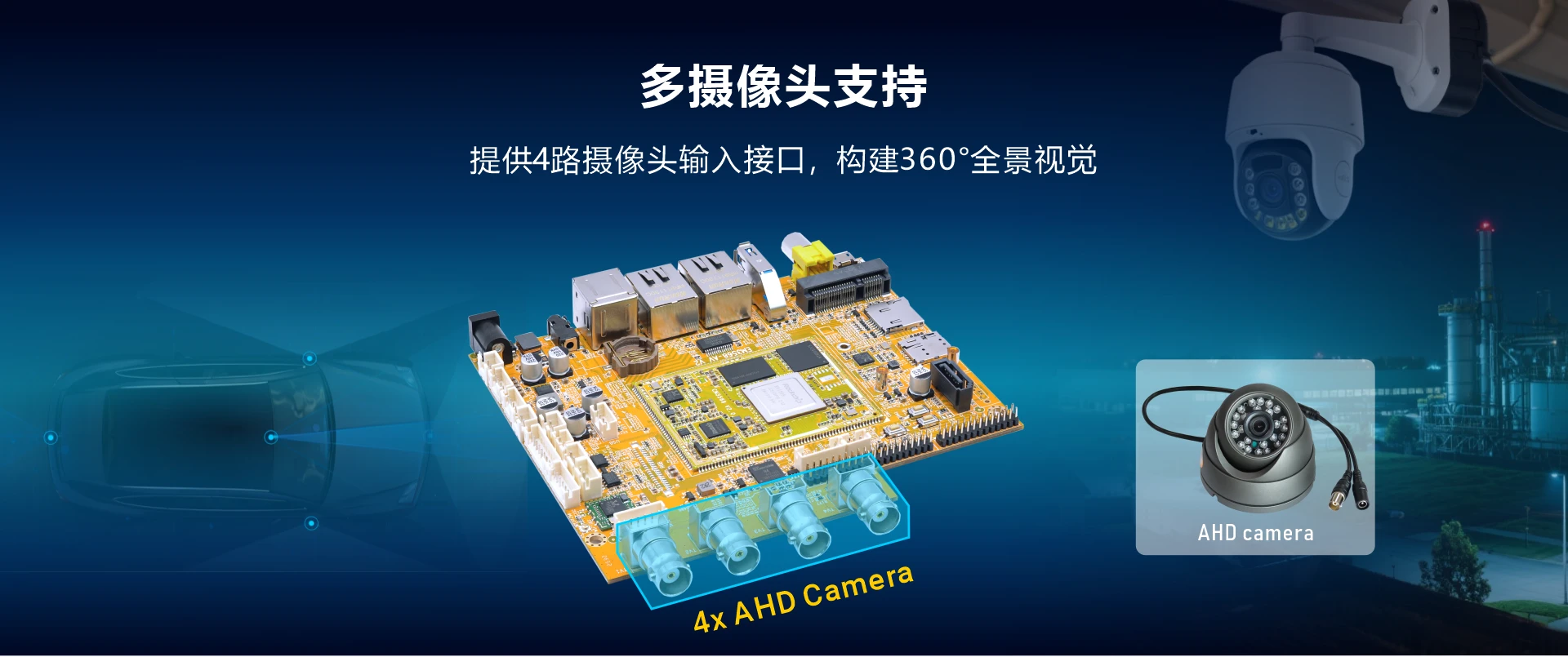

| Camera(optional) | 4x AHD Cameras |
| Keys | Recover, Reset, Power |
| Other features | RTC with battery connector, GPIO&SPI, CAN, Key connector (PWM3_IR/ Reset/ Recover/ Power) |
| Operating Temperature | 0° to + 70° C |
| Dimensions | Based board - 135.0 x 113.2 mm; CPU module - 60 x 45 mm |
