| Specifications |
|---|

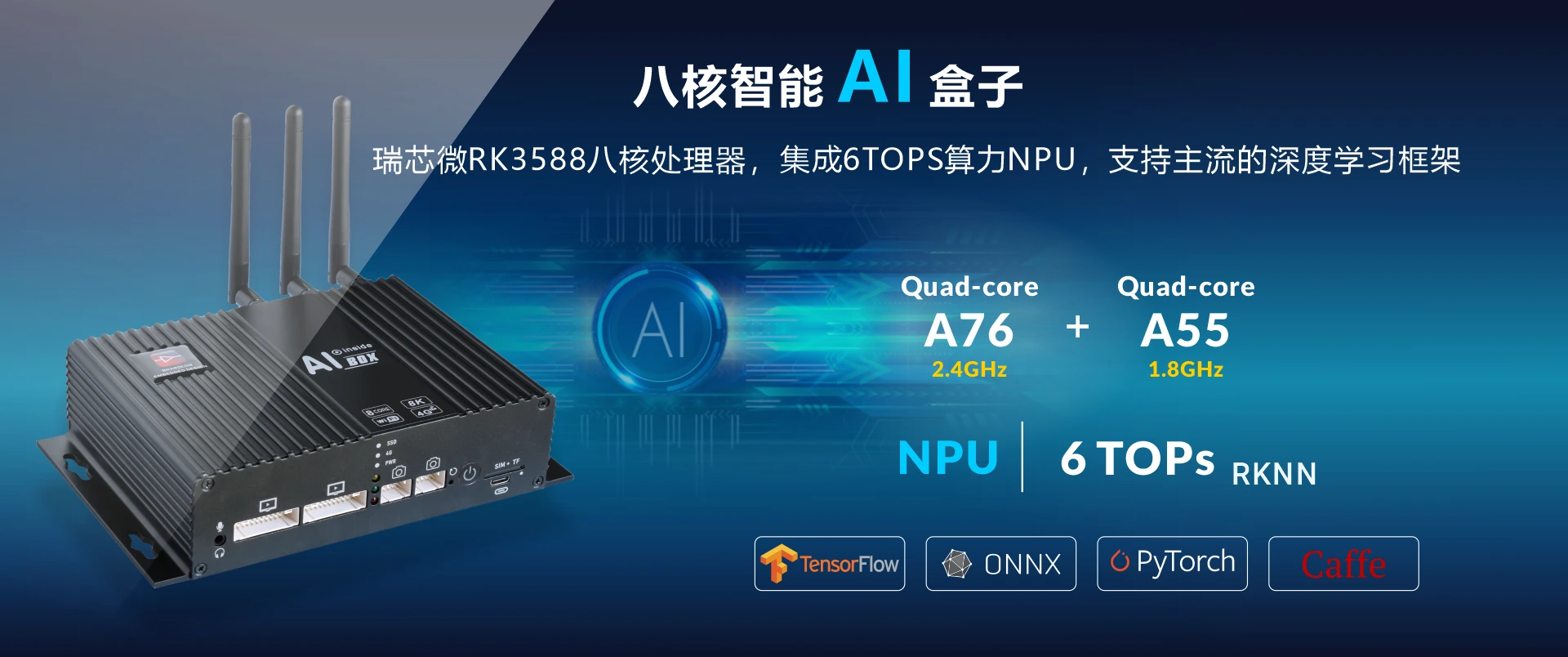

| SoC | Rockchip RK3588 Octa-core processor.
4x Cortex-A76 @ 2.4GHz, 4x Cortex-A55 @ 1.8GHz |
| NPU | 6TOPS |
| GPU | ARM Mali-G610 MP4 with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
| VPU | 8K@60fpsH.265/ VP9/ AVS2 video decoder
8K@30fps H.264/ H.265 video encoder |
| Memory | 8GB/16GB LPDDR4X |

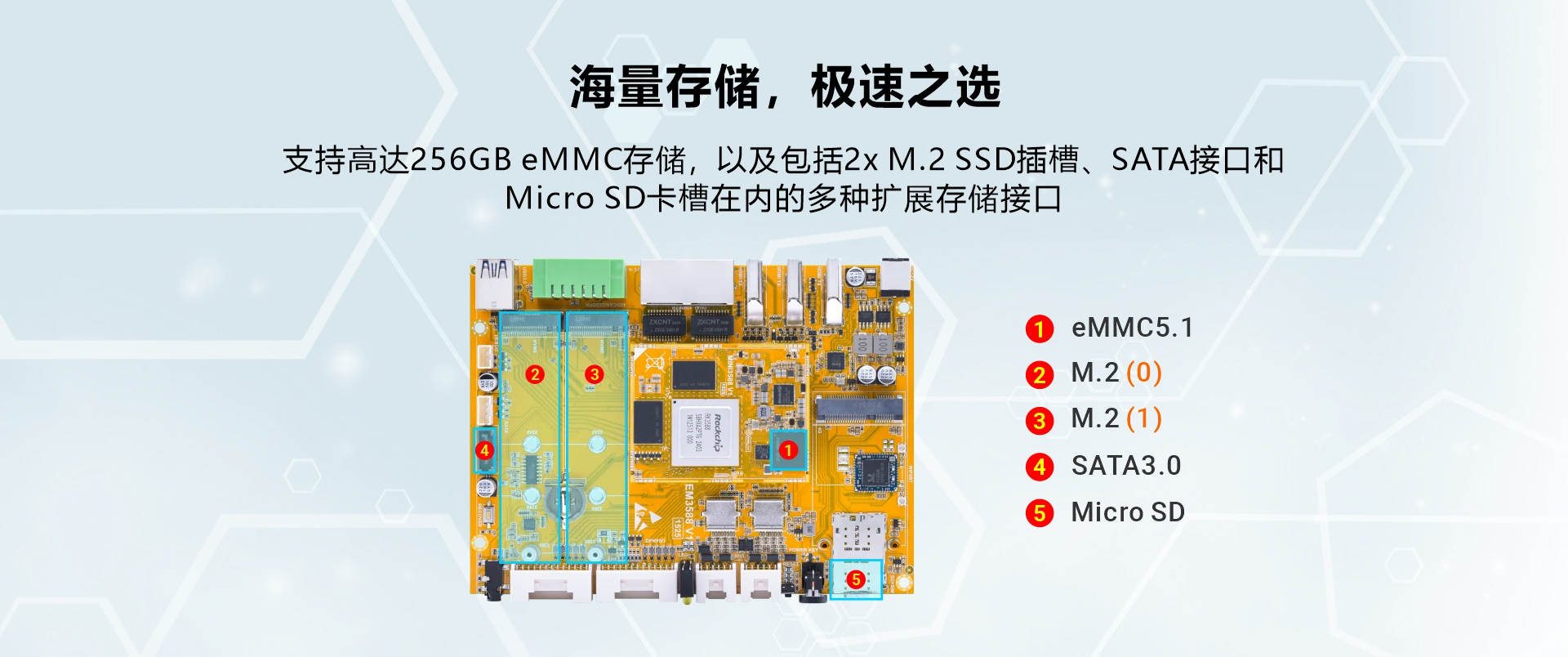

| Storage | 32GB/64GB/128GB/256GB eMMC
MicroSD card slot
1x SATA3.0 socket
2x M.2 SSD socket (M-Key) |
| Power Supply | 12V/3A DC input jack |
| USB | 1x USB3.1 Type-C
2x USB3.0 Host |

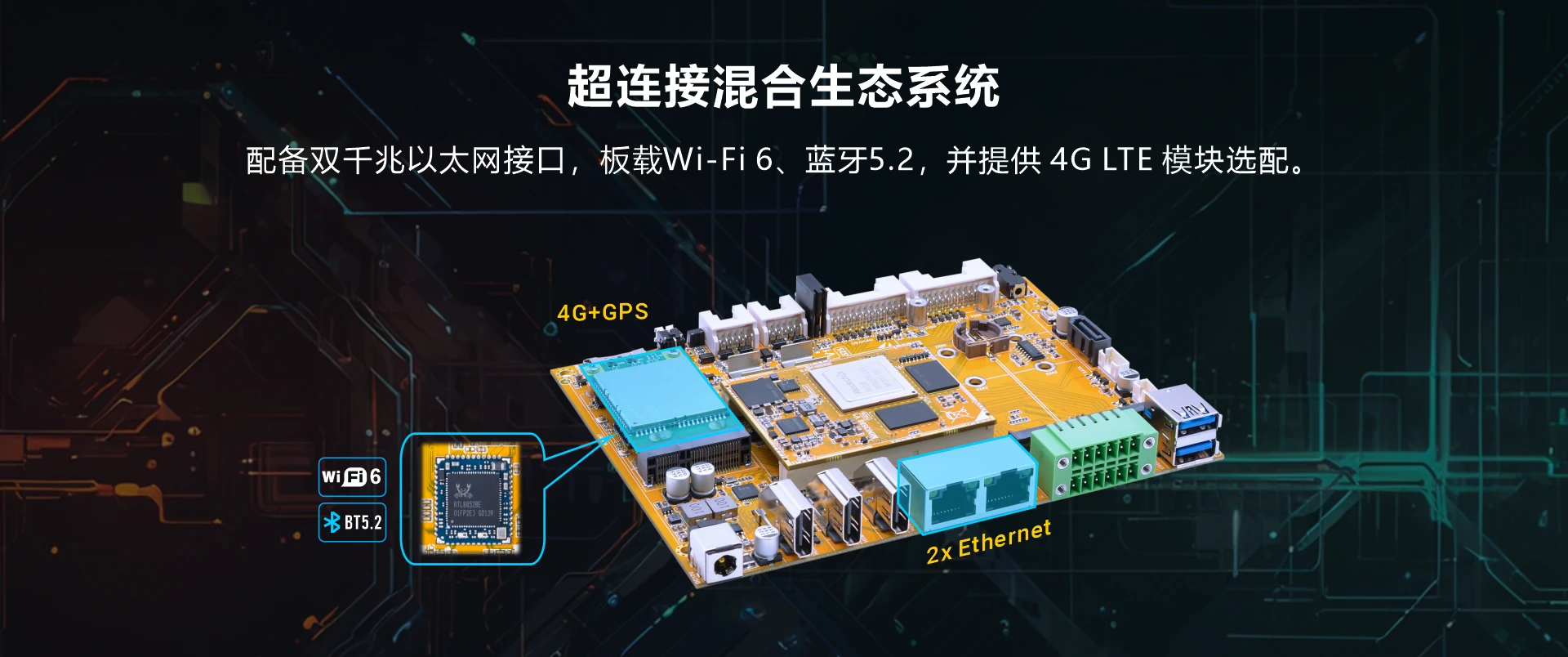

| Connectivity | 2x Gigabit Ethernet RJ45 port via Realtek RTL8211F-CG controller
PCIe 2.4G/5G 2T2R WiFi (802.11a/b/g/n/ac/ax) with Bluetooth5.2
Mini PCIe socket with Nano SIM card port to support 4G LTE module |
| Serial | 1x Serial port for debug, 3-pin connector
1x RS232, 12-pin pluggable terminal block
1x RS485, 12-pin pluggable terminal block |

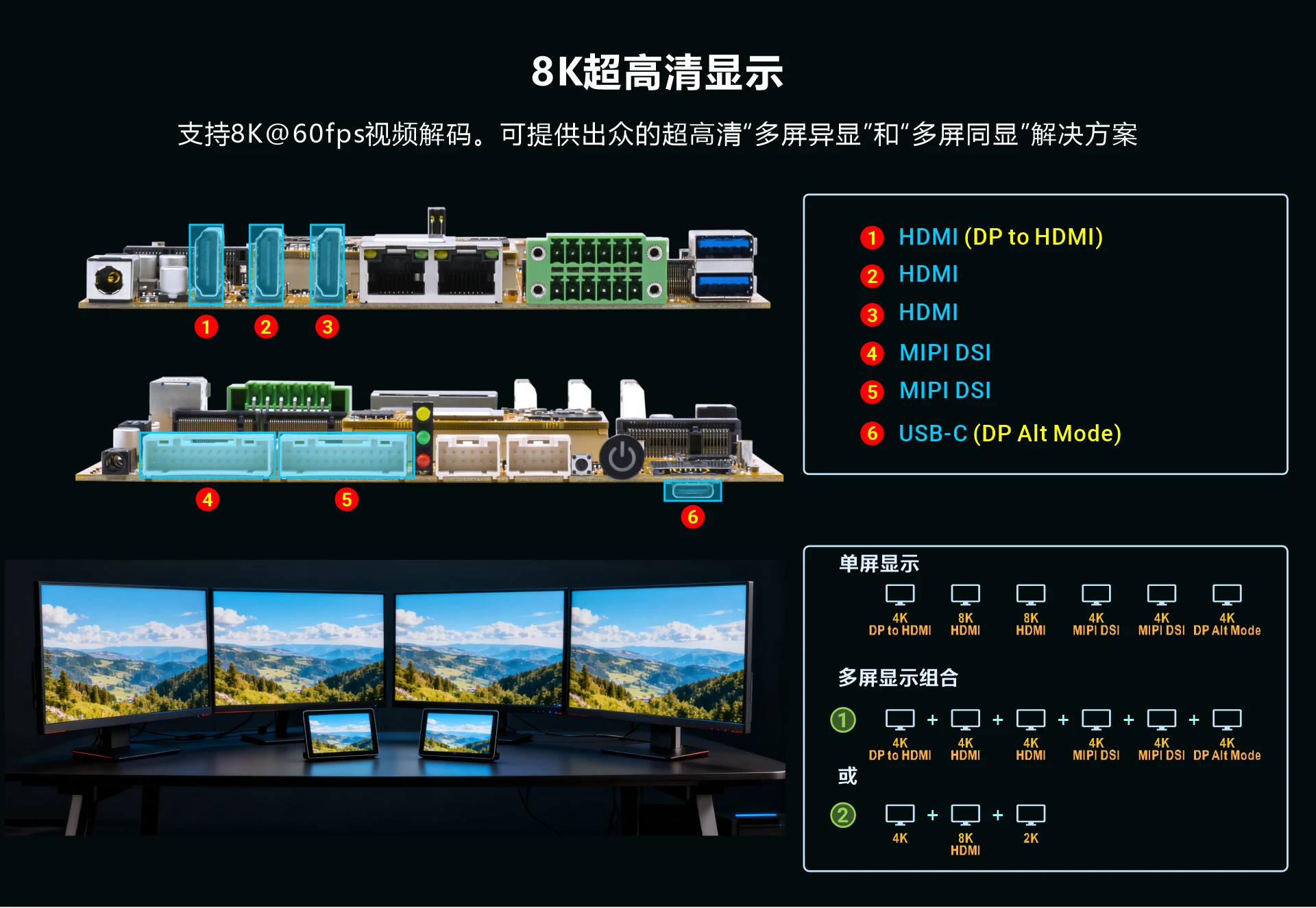

| Video | Output | 2x HDMI 2.1, up to 8Kp60
DP to HDMI2.0, up to 4Kp60
2x MIPI DSI, up to 4Kp60 |

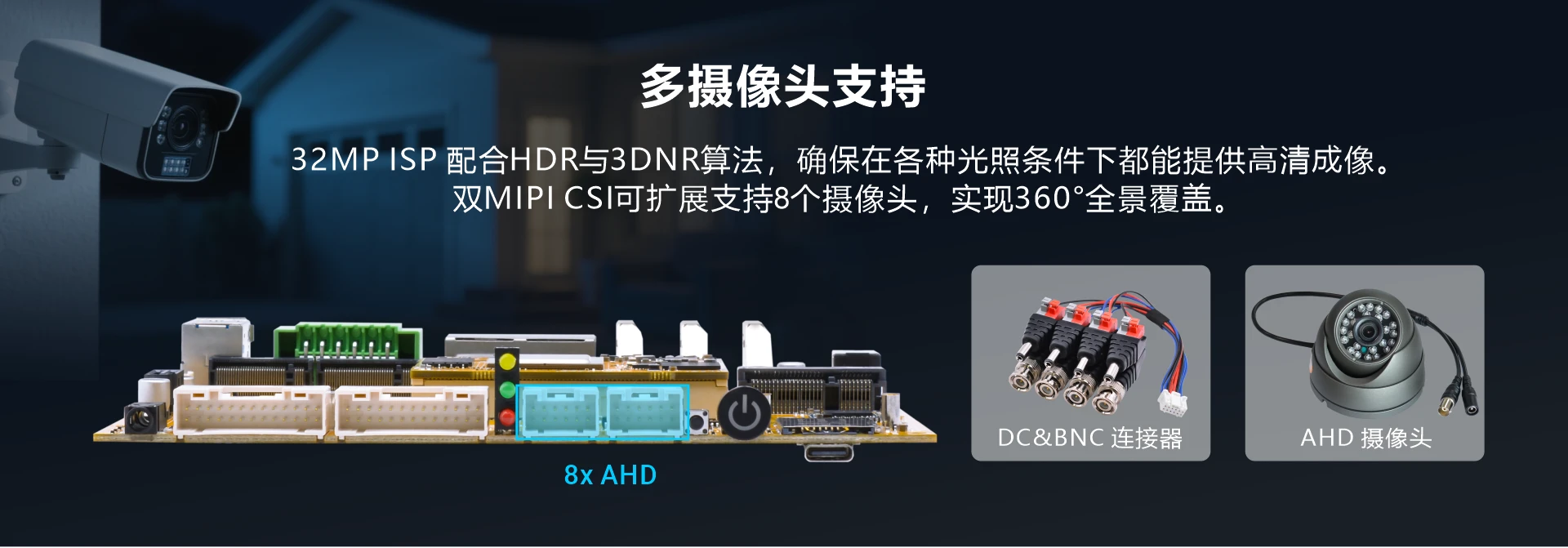

| Input | 2x MIPI CSI, for 8x AHD cameras |
| Audio | 3.5mmaudio I/O jack
2x Speaker via 12-pin pluggable terminal block
8-channel audio via HDMI |
| Keys | Recovery,Reset, Power |
| Other features | RTC with battery connector, CAN |
| Operating Temperature | 0° to + 70° C |
| Dimensions | Based board - 155 x 115 mm; CPU module - 62 x 48 mm |
