MINI2416

* Processor: Samsung ARM9 S3C2416X @400MHz
* RAM: 64MB
* Storage: 128MB/256MB/512MB/1GB optional
* Pin out: LCD&Touch screen, USB OTG&HOST, Audio I/O, SD card, UART, I2C, SPI, PWM, External interrupt, etc.
* Operating system: Linux2.6, WinCE6.0
* Board size: 40mm x 40mm
* Compatible module: CM9X35, MINI287
* Package: 120-pin, 1.27mm pitch

Overview
Hardware
Software
Download
Price&Order
FAQ

MINI2416 is a cost-effective ARM9 computer on module based on the Samsung S3C2416X, operating frequency up to 400MHz, and designed for projects requiring low power consumption and overall cost. It can be used as embedded core for handheld devices, GPS navigation systems, Security device, Electric power control system.

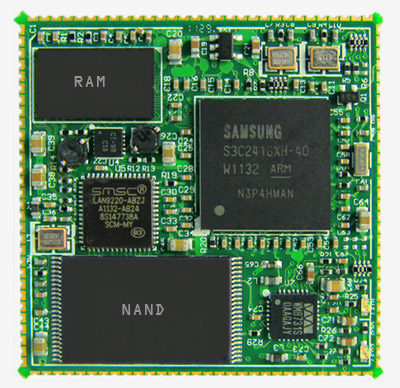

MINI2416 front view

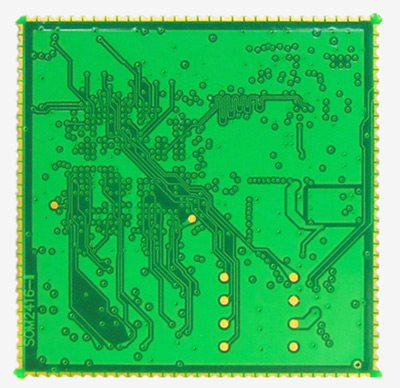

MINI2416 rear view

Specifications
CPU	Samsung ARM926EJS S3C2416, 400MHz
Memory	64MB DDR2
Storage	128MB/256MB/512MB/1GB SLC NAND optional
Supply Voltage	DC 3.3V
Pin out	LCD&Touch screen, USB OTG&HOST, Audio I/O, SD card, UART, I2C, SPI, PWM, External interrupt, etc.
Ethernet	10/100M Ethernet, LAN9220 controller
Dimensions	40 x 40 mm
Weight	6.2 gram
Package	120-pin, 1.27mm pitch
Application	Handheld device, GPS navigation system, Printer, Security device, Electric power control system, Industrial control terminal
Development Board	EM2000

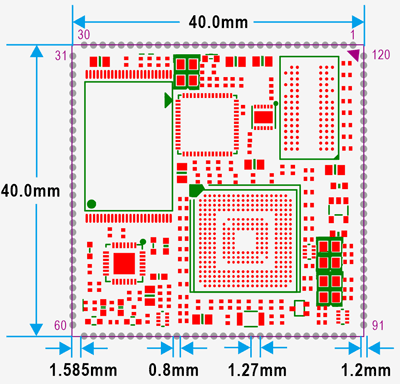

PCB Dimension

MINI2416 PCB dimension.

Pin Definition

Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	ETX-	31	VCC3.3V	61	AGND	91	nSD_CD
2	ETX+	32	LCD_PWR	62	TXD0	92	SDCLK
3	GND	33	HSYNC	63	RXD0	93	SDCMD
4	ERX-	34	PCLK	64	nCTS0	94	SDDAT0
5	ERX+	35	VSYNC	65	nRTS0	95	SDDAT1
6	LINK	36	VDEN	66	TXD1	96	SDDAT2
7	SPEED	37	GND	67	RXD1	97	SDDAT3
8	GND	38	VD2	68	nRTS1	98	GND
9	nRST	39	VD3	69	nCTS1	99	XP
10	RSMBWAIT	40	VD4	70	TXD2	100	YP
11	nWAIT	41	VD5	71	RXD2	101	XM
12	nOE	42	VD6	72	TXD3	102	YM
13	nWE	43	VD7	73	RXD3	103	AIN0
14	nCS3	44	VD10	74	I2C_SCL	104	AIN1
15	LADDR0	45	VD11	75	I2C_SDA	105	EINT0
16	LADDR1	46	VD12	76	SPIMISO	106	EINT3
17	LADDR2	47	VD13	77	SPICLK	107	EINT5
18	LADDR3	48	VD14	78	SPIMOSI	108	EINT6
19	LADDR4	49	VD15	79	nSS	109	EINT7
20	LADDR5	50	VD18	80	SD0CLK	110	EINT8
21	LADDR6	51	VD19	81	SD0CMO	111	EINT9
22	LDATA0	52	VD20	82	SD0DAT0	112	EINT10
23	LDATA1	53	VD21	83	SD0DAT1	113	EINT11
24	LDATA2	54	VD22	84	SD0DAT2	114	EINT12
25	LDATA3	55	VD23	85	SD0DAT3	115	GND
26	LDATA4	56	LPOUT	86	GND	116	UN1
27	LDATA5	57	RPOUT	87	VCC_RTC	117	UP1
28	LDATA6	58	MIC	88	OM3	118	VBUS
29	LDATA7	59	LIN	89	OM2	119	DN0
30	VCC3.3V	60	RIN	90	OM1	120	DP0

OS	Item	Feature	Description
Linux2.6.21	Bootloader	u-boot	u-boot-1.3.4 Main functions: 1. Supporting Nand Flash erase/write/read 2. Supporting net download Image 3. Supporting print, set, save Environment Variables 5. Supporting bootm, bootargs setting
		Sdboot	SD Card boot-up and download Image via NET(can replace JTAG)
		Image update	Support updating image from SD card or NET
	Kernel and drivers	Version	Linux 2.6.21
		File system Format	ROM/CRAM/EXT2/EXT3/FAT/NFS/JFFS2/YAFFS2
		Drivers	Serial ports, RTC, Ethernet, 3.5", 4.3" and 7" LCD including Touch Screen, MMD/SD, USB Host, LEDs, AC97, Nand Flash
	File System	File System	Yaffs File System
	File System	Function	Provided Lib (ALSA -lib, tslib, glibc), udev support
	Embedded GUI	Qt/Embedded	Qtopia 2.2.0
	Network protocol & application	Network Protocol	TCP/IP, Telnet, FTP, Boa Web server,Remote login (telnet)
	Network protocol & application	Cross compiler Environment	cross-4.2.2-eabi

OS	Item	Feature	Description
WinCE6.0	Bootloader		Providing Source code and STEPLDR.bin
		Eboot	Providing Source code and EBOOT.bin Eboot main functions: 1.support SD card update image 2. Format Nand Flash 3. Format BinFS 4. Low-level Format 5. update boot logo
		Image update	Support updating image from SD card
	System	Characteristic	Reboot, Watchdog, RTC
		Driver	4.3", 5.6", 7", 10.4" LCD and including Touch Screen
		Driver	SD card, AC97, Ethernet, USB Host, USB OTG, Serial ports, RTC, 2D Accelerator, POWERBUTTON, SERIAL Driver, Audio, LED, I2C
		Test program	Mediaplayer
			serial test program
			Activesync
			SD/HSMMC test
			net test
			Media player 9.0, Word and Internet Explorer 6.0
