MINI3188
* Processor: Rockchip RK3188, Quad-Core ARM Cortex-A9 @ 1.6GHz
* RAM: 512MB/1GB DDR3
* Storage: 4/8/16/32GB
* Pin out: USB Host, USB OTG, TTL LCD, LVDS, UART, Ethernet, VGA, HDMI, Audio, SDIO, SPI, GPIO&AD, I2C, I2S, etc.
* Operating system: Android5.1
* Board size: 67.0mm x 51.0mm
* Connectors: 1.0mm pitch, 2x50pins Header

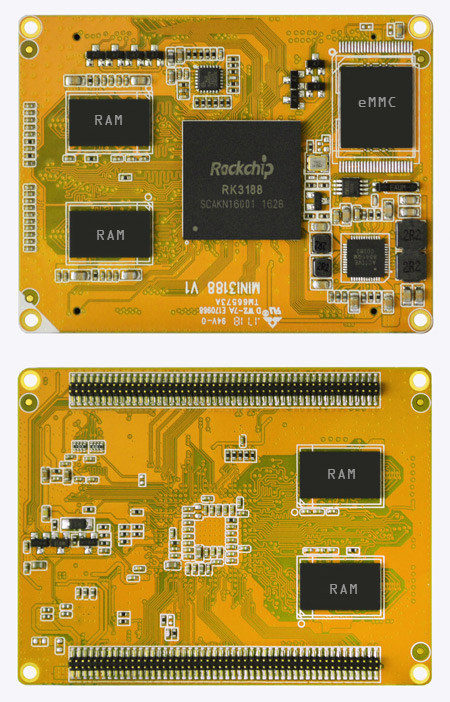

The MINI3188 is a Quad-Core ARM Cortex-A9 COM model, featuring 1GB DDR3 RAM, 4GB eMMC Flash and aimed at applications including Tablet, set-top boxes and other digital multimedia devices.
Boardcon offers a carrier board for development based on the MINI3188. An optional RK3188 development kit includes the MINI3188 module, carrier board, 10.1-inch capacitive touch-panel, 3G model, camera, power and communication cables.
| Specifications | |
|---|---|
| CPU | Rockchip RK3188, Quad-Core ARM Cortex-A9, 1.6GHz |
| Memory | 512MB/1GB DDR3 |
| Storage | 4/8/16/32GB eMMC |
| Supply Voltage | DC 5V |
| Pin out | USB Host, USB OTG, TTL LCD, LVDS, UART, Ethernet, VGA, HDMI, Audio, SDIO, SPI, GPIO&AD, I2C, I2S, etc. |
| PCB Layer | 6 |
| Dimensions | 67 x 51 mm |
| Connectors | 2 x 100-pin, 1.0mm pitch |
| Application | Tablet, set-top boxes and other digital multimedia devices |
| Development Board | EM3188 |

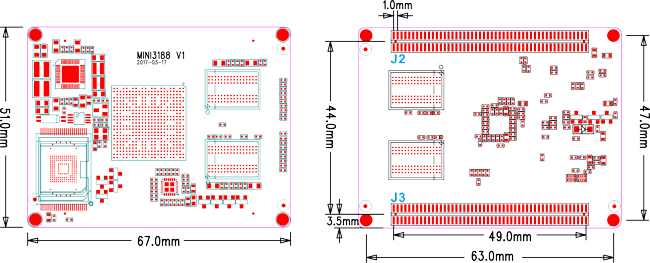

PCB Dimension
Pin Difinition
| Pin (J2) |
Signal | Pin (J2) |
Signal | Pin (J3) |
Signal | Pin (J3) |
Signal |
|---|---|---|---|---|---|---|---|
| 1 | VSYS | 2 | VCC28_CIF | 1 | VRTC | 2 | RTC_CLKOUT |
| 3 | VSYS | 4 | VCCIO_WL | 3 | USB_INT | 4 | DC_DET |
| 5 | GND | 6 | AVCC | 5 | BL_EN | 6 | GPIO0_A1 |
| 7 | GDN | 8 | VCC_ RMII | 7 | ALRT_N | 8 | GPIO0_A5 |
| 9 | VCC_IO | 10 | VCC18 | 9 | GPIO0_A3 | 10 | GPIO0_B4 |
| 11 | VCC_IO | 12 | VDD_JETTA | 11 | LCD_EN | 12 | GND |
| 13 | CIF0_PDN | 14 | CIF_VSYNC | 13 | GSENSOR_INT | 14 | CHG_DET |
| 15 | CIF_HREF | 16 | CIF_PDN | 15 | TP_INT | 16 | PWIC_PWRON |
| 17 | CIF_D14 | 18 | CIF_D15 | 17 | GND | 18 | TP_RST |
| 19 | CIF_D12 | 20 | CIF_F13 | 19 | SPI0_CSN0 | 20 | SPI0_RXD |
| 21 | I2C3_SDA | 22 | I2C3_SCL | 21 | SPI0_TXD | 22 | SPI0_CLK |
| 23 | CIF_D8 | 24 | CIF_D9 | 23 | I2C4_SCL | 24 | I2C4_SDA |
| 25 | CIF_D6 | 26 | CIF_D7 | 25 | I2S0_SDI | 26 | I2S0_SDO0 |
| 27 | CIF_D4 | 28 | CIF_D5 | 27 | I2S0_LRCK_TX | 28 | I2S0_CLK |
| 29 | CIF_D2 | 30 | CIF_D3 | 29 | I2S0_LRCK_RX | 30 | I2S0_SCLK |
| 31 | CIF_CLKOUT | 32 | CIF_CLKIN | 31 | OTG_DP | 32 | GND |
| 33 | GPIO2_D6 | 34 | GND | 33 | OTG_DM | 34 | OTG_DET |
| 35 | GPIO2_D4 | 36 | GPIO2_D5 | 35 | HOST_DP | 36 | OTG_ID |
| 37 | LCDC_HSYNC | 38 | LCDC_VSYNC | 37 | HOST_DM | 38 | GND |
| 39 | GND | 40 | LCDC_DE | 39 | GPIO0_C3 | 40 | GPIO0_C4 |
| 41 | LCDC_D23 | 42 | LCDC_DCLK | 41 | GPIO0_C0 | 42 | GPIO0_C1 |
| 43 | LCDC_D21 | 44 | LCDC_D22 | 43 | GPIO0_C5 | 44 | GPIO0_C6 |
| 45 | LCDC_D19 | 46 | LCDC_D20 | 45 | GPIO0_C2 | 46 | GPIO0_C7 |
| 47 | LCDC_D17 | 48 | LCDC_D18 | 47 | GND | 48 | SDMMC_CLK |
| 49 | GND | 50 | LCDC_D16 | 49 | SDMMC_D3 | 50 | SDMMC_CMD |
| 51 | LCDC_D15 | 52 | LCDC_D14 | 51 | SDMMC_D1 | 52 | SDMMC_D2 |
| 53 | LCDC_D13 | 54 | LCDC_D12 | 53 | GND | 54 | SDMMC_D0 |
| 55 | LCDC_D11 | 56 | LCDC_D10 | 55 | W_TXN | 56 | GND |
| 57 | LCDC_D9 | 58 | LCDC_D8 | 57 | W_TXP | 58 | UART3_RX |
| 59 | GND | 60 | LCDC_D7 | 59 | GND | 60 | UART3_TX |
| 61 | LCDC_D6 | 62 | LCDC_D5 | 61 | W_RXN | 62 | UART3_CTSN |
| 63 | LCDC_D4 | 64 | LCDC_D3 | 63 | W_RXP | 64 | UART3_RTSN |
| 65 | LCDC_D2 | 66 | LCDC_D1 | 65 | GND | 66 | SPI1_RXD |
| 67 | LCDC_D0 | 68 | GND | 67 | GR- | 68 | SPI1_CLK |
| 69 | GND | 70 | LCD0_D23 | 69 | YE+ | 70 | SPI1_CSN0 |
| 71 | LCD0_D22 | 72 | LCD0_D21 | 71 | LCD_BL | 72 | SPI1_TXD |
| 73 | LCD0_D20 | 74 | LCD0_D19 | 73 | PWM2 | 74 | PWM1 |
| 75 | LCD0_D18 | 76 | LCD0_D17 | 75 | UART0_RX | 76 | UART0_TX |
| 77 | LCD0_D16 | 78 | GND | 77 | UART0_RTS | 78 | UART0_CTS |
| 79 | LCD0_D15 | 80 | LCD0_D14 | 79 | SDMMC0_RSTN | 80 | SDMMC_DET |
| 81 | LCD0_D13 | 82 | LCD0_D12 | 81 | DUART2_TX | 82 | OMP_INT |
| 83 | LCD0_D11 | 84 | LCD0_D10 | 83 | DUART2_RX | 84 | SDMMC_PWR |
| 85 | LCD0_D9 | 86 | LCD0_D8 | 85 | SDMMC0_WP | 86 | SPDIF_TX |
| 87 | GND | 88 | LCD0_D7 | 87 | JETTA_RST | 88 | GND |
| 89 | LCD0_D6 | 90 | LCD0_D5 | 89 | GND | 90 | RECOVER |
| 91 | LCD0_D4 | 92 | LCD0_D3 | 91 | I2C2_SDA | 92 | SARADC_ANI2 |
| 93 | LCD0_D2 | 94 | LCD0_D1 | 93 | I2C2_SCL | 94 | SARADC_ANI0 |
| 95 | LCD0_D0 | 96 | GND | 95 | OTG_DRV | 96 | I2C0_SCL |
| 97 | LCD0_DCLK | 98 | LCD0_DEN | 97 | GND | 98 | I2C0_SDA |
| 99 | LCD0_HSYNC | 100 | LCD0_VSYNC | 99 | GND | 100 | GND |
| OS | Item | Feature | Description |
|---|---|---|---|
| Android5.1 | Boot | Bootloader | RK3188Loader(L)_V2.31.bin |
| Kernel | Version | Linux 3.0.101+ | |
| Drivers | HDMI out | Support 1080P resolution | |
| Audio | RK616/WM8960 (optional) chip | ||
| SD card | On-board 1x Micro SD card slot | ||
| USB | 2x USB2.0 Host and 1x USB2.0 OTG | ||
| Ethernet | 1x 10/100 Mbit/s Ethernet RJ45 connector | ||
| WIFI | Realtek RTL8188EUS, support IEEE 802.11n/b/g | ||
| Camera | 1x 24Pin FPC connector for OV5640, 5Mega | ||
| LCD | Support 4.3"/5"/7" RGB-TTL LCD panel (optional); Support 10.1" High-definition LVDS LCD panel; Support LCD panel and HDMI dual display. |
||
| Capacitive touch panel | Match the corresponding 4.3"/5"/7"/10.1" LCD display screen | ||
| 3G | UMTS/HSPA+, Multiband optional, 1x MINI PCI-E connector |
||
| Debug | 1x DB-9 (RS232) Debug serial port, Micro OTG USB for ADB | ||
| Buttons | Recover, Power on/off (system) | ||
| Serial Port | 1x DB-9 (RS232) serial port for external communication | ||
| CAN | 1x CAN port with CAN V2.0 B technical specification | ||
| GPS | Uses ublox 7 chipset which is high performance u-blox 7 multi-GNSS (GPS, GLONASS, QZSS, SBAS – Galileo and Compass ready) position engine delivers exceptional sensitivity and acquisition times | ||
| RS485 | 1x RS485 port with ANSI Standards TIA/EIA-485-A | ||
| GPIOS | 1x 26Pin(2.0mm pitch) connector for GPIOS and power | ||
| Embedded GUI | Android5.1.1 | Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, videoplayer, Music, GPS etc. | |
| Cross-compiler Environment | VMware V7+ ubuntu-12.04, jdk-7u80-linux-x64.tar.gz | ||
| Debug Tools | SecureCRT, AndroidTool.exe, ADB | ||
| Datasheet |
|
|
| Reference Manual |
|
|
| Tools |
|
|
If you order the System-on-Module or any question, please feel free to contact us at market@armdesigner.com
