EM1126

* Processor: Rockchip RV1126 Quad-core Cortex-A7 @ 1.5 GHz + RISC-V MCU @ 400 MHz
* NPU: 2 TOPS
* RAM: 2GB LPDDR4
* Storage: 8GB

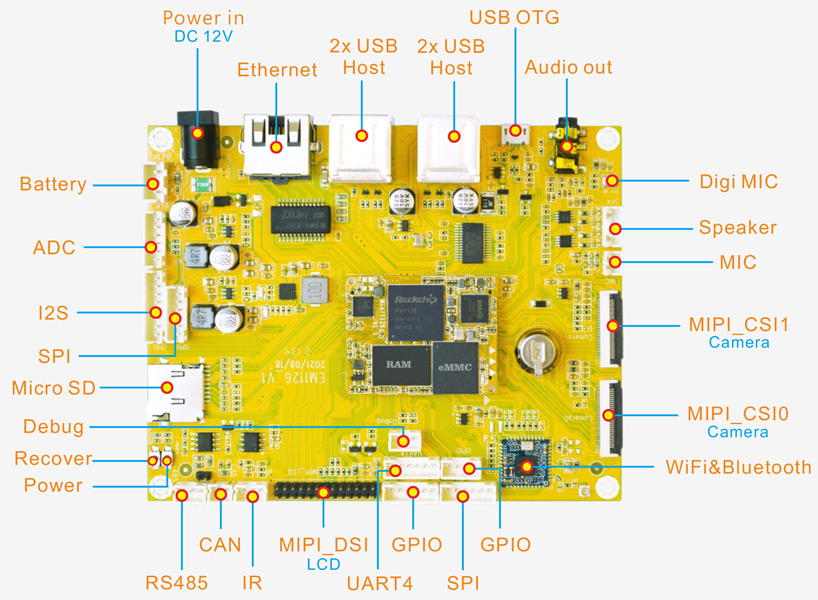

* Interfaces: UART, Debug, CAN, RS485, 4x USB2.0 Host, USB2.0 OTG, Gigabit Ethernet, MIPI DSI, MIPI CSI, GPIO, SPI, I2S, ADC, SD, Audio I/O, etc.
* Operating system: Buildroot

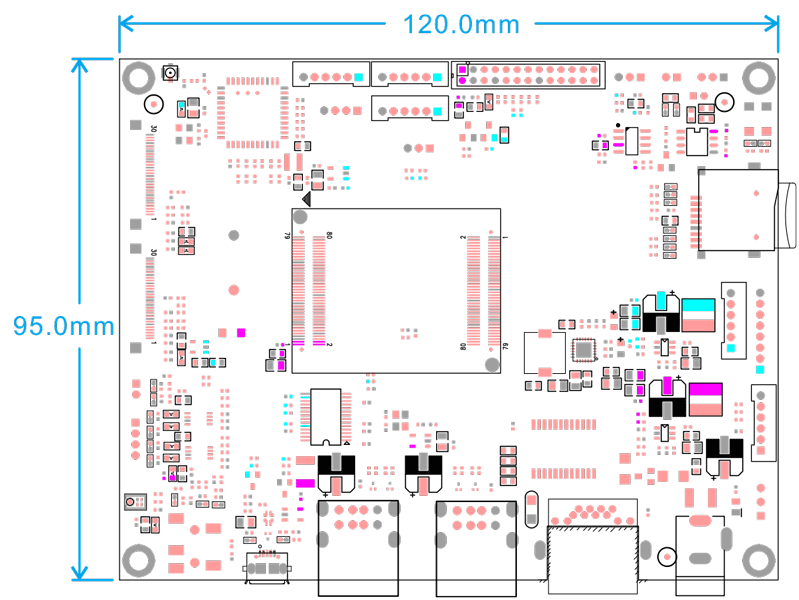

* Board size: 120mm x 95mm
* Expansion Module: WiFi, Camera, 10.1" LCD

     MINI1126 system on module

 EM1126 is a single board computer (SBC) powered by Rockchip RV1126 SoC with a quad-core ARM Cortex-A7 and RISC-V MCU and a neural network acceleration with performance up to 2.0 TOPS. The kit is comprised of a RV1126 module with 2GB RAM and 8GB eMMC flash and carrier board. It can flexibly upgrade product at a low cost just by replacing a CPU module.
The EM1126 SBC is equipped with a microSD slot plus GbE Ethernet port, four USB2.0 Host, two MIPI-CSI interfaces to connect camera module, on-board Wi-Fi and Bluetooth module. It is focus on applications related to video conference, video capture cards, Smart Home, and 4K wireless projectors.

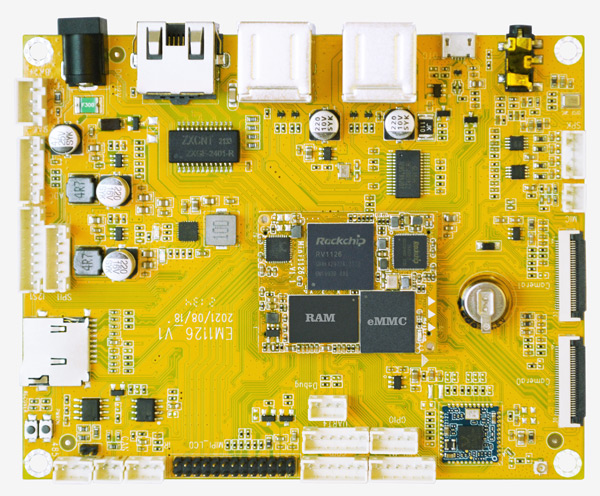

RV1126 single board computer

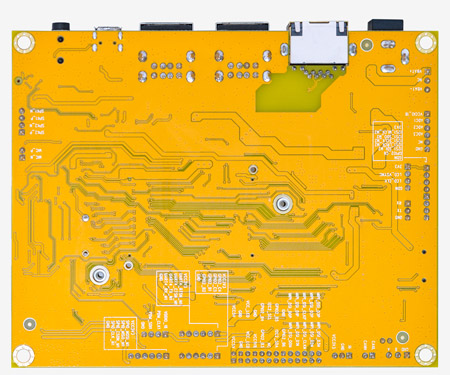

EM1126-V2_rear

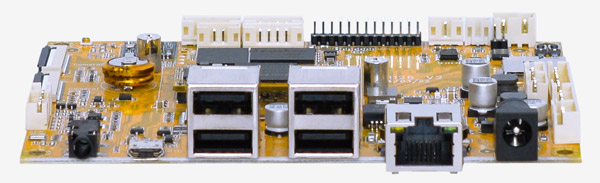

EM1126-V2_angle
