* Processor: Rockchip RV1108, Single-core Cortex-A7 up to 1.0GHz
* RAM: 512MB
* Storage: 8GB

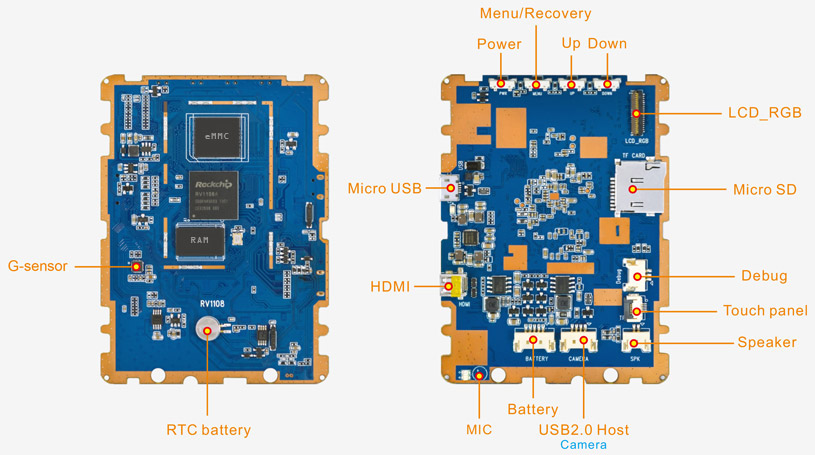

* Interfaces: USB2.0 OTG, USB2.0 Host, Debug, SD/MMC, RGB, HDMI, speaker, MIC, battery
* Operating system: buildroot
* Board size: 90.5 x 66.7mm

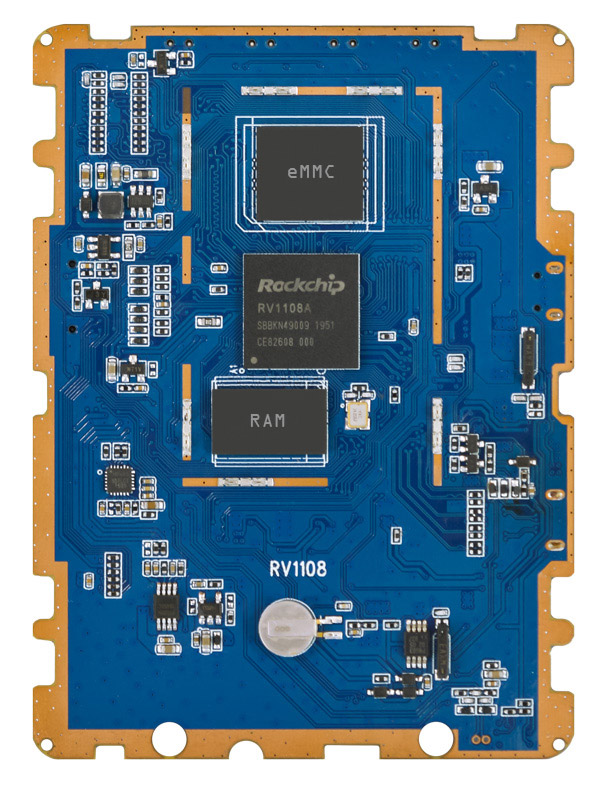

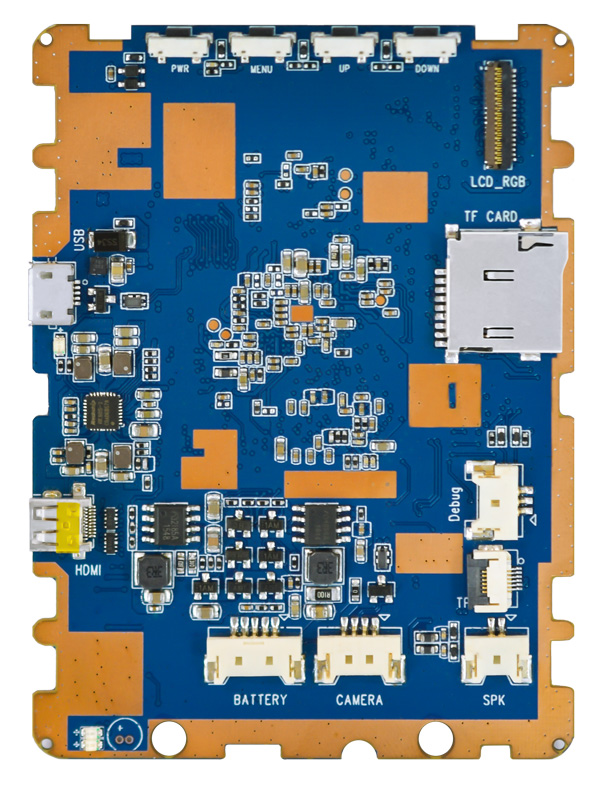

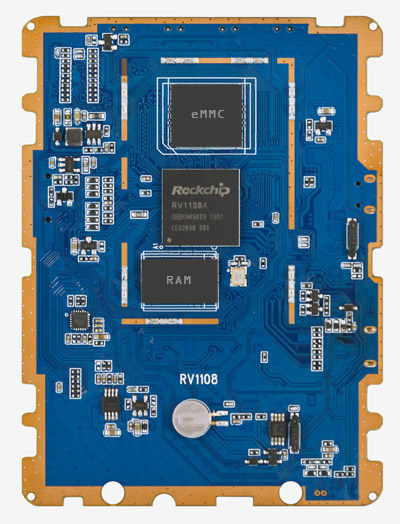

The SBC1108 is a single board computer (SBC) based on the Rockchip RV1108 ARM Cortex A7 SoC with a 400 MHz DSP and 8-channel I2S audio codec and 1440p H.264 video encoder and decoder.
This RV1108-based board comes in small form factor, designed to be energy-efficient, and supports Fast Startup (less than 4 seconds), making it suitable for space-constrained, battery-operated and low-power applications.
Boardcon RV1108 SBC is flexible and can be customized for various embedded applications depending on the specific project requirements.
Specifications | |
---|---|
CPU | Rockchip RV1108 Single-core Cortex-A7, 1.0 GHz |
DSP | CEVA XM4 DSP |
ISP | Embedded 8M ISP with WDR |
Memory | 512MB |
Storage | 8GB eMMC flash MicroSD card slot |
Power Supply | 5V/2A via Micro USB 4.2V battery |
Video Decode | 1440p@30fps H.264 |
Video Encode | 1440P@30fps H.264 |
Display | RGB LCD, 30-pin FPC connector HDMI1.4, up to 1080P@60Hz |
USB | 1x USB2.0 OTG (Micro USB) 1x USB2.0 Host (4-pin connector, default for USB camera) |
Audio | MIC, Speaker |
Debug | 3-pin connector |
G-sensor | Six-Axis (Gyro + Accelerometer) |
Misc | 4x buttons (Memu/Recovery, Power, Up, Down), 3x LED, RTC |
Dimensions | 90.5 x 66.7mm |

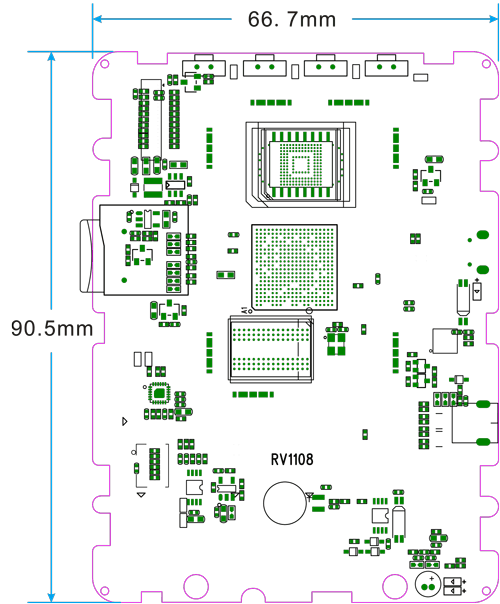

PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Buildroot | Bootloader | Boot | rv1108loader.bin |
Kernel | Version | 3.10.104 | |
Drivers | SPI+ LCD | RGB LCD | |
SD card | Micro SD | ||
Button | 4x buttons | ||
Camera | USB camera | ||
Embedded GUI | Mini GUI | ||
Cross-compiler Environment | ubuntu-16.04 | ||
Debug Tools | SecureCRT, AndroidTool.exe, ADB |
