MINI1126

* Processor: Rockchip RV1126 Quad-core Cortex-A7 @ 1.5GHz +RISC-V MCU @ 400 MHz
* NPU: 2 TOPS
* RAM: 2GB/4GB LPDDR4
* Storage: 8/16/32/64/128GB
* Pin out: 5x UART, 1x Debug, USB2.0 Host, USB2.0 OTG, 1000M GMAC, MIPI DSI, 2x MIPI CSI, GPIO, SPI, ADC, SDMMC, etc.
* Operating system: Buildroot
* Board size: 38.0mm x 30.0mm
* Connectors: 0.5mm pitch, 2 x 80pins Female Connectors

Overview
Hardware
Software
Download
Price&Order
FAQ

The MINI1126 system-on-module (SOM) is powered by Rockchip’s quad-core cortex-A7 based RV1126 with up to 2.0 TOPS NPU and 4K H.264/H.265 encoder and decoder. With a complete hardware-based 14-megapixel ISP and post-processor, the SOM can run several algorithms for all-time real-time processing features that make it suitable for intelligent AI devices.

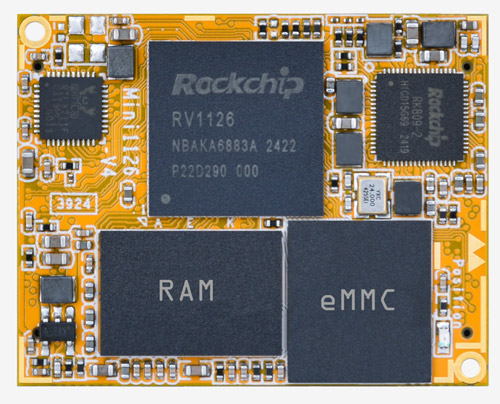

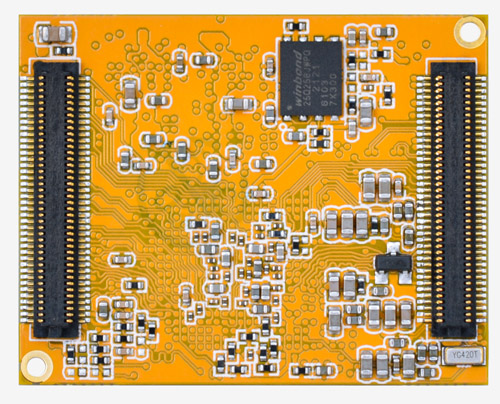

RV1126-system-on-module-MINI1126 RV1126 SOM

Specifications
CPU	Rockchip RV1126 Quad-core Cortex-A7 @ 1.5GHz +RISC-V MCU @ 400 MHz
GPU	2D graphics engine
NPU	2.0 TOPS with support for INT8/ INT16
Memory	2/4 GB LPDDR4
Storage	8/16/32/64/128GB eMMC
Supply Voltage	DC 5V
Pin out	5x UART, 1x Debug, 24-bit RGB LCD, MIPI DSI, 2x MIPI CSI, DVP, USB2.0 Host, USB2.0 OTG, 1000M GMAC, 2x SDMMC, 5x I2C, 2x SPI, 3x I2S, 11x PWM, 3x ADC IN
PCB Layer	8
Dimensions	38 x 30mm
Weight	6.1 gram
Connectors	160pins (2x 80 Pin), 0.5mm pitch
Application	IPC/CVR devices, AI Camera devices, intelligent interactive devices, and mini robots
Development Board	EM1126
Operating system	Buildroot

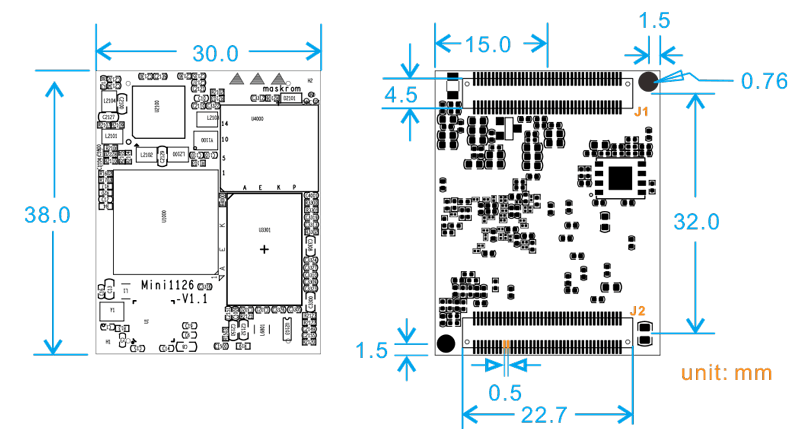

Indicator PCB Dimension

MINI1126-PCB-dimension

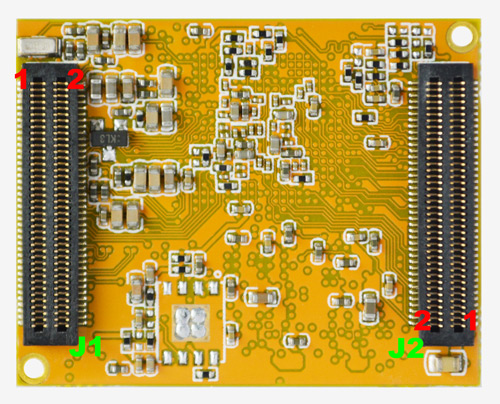

Indicator Pin Definition

Pin (J1)	Signal	Pin (J1)	Signal	Pin (J2)	Signal	Pin (J2)	Signal
1	VCC5V0_SYS	41	MIPI_CSI_RX1_D2P	1	GND	41	MIPI_DSI_D0N
2	VCC5V0_SYS	42	MIPI_CSI_RX1_CLKP	2	LCDC_D0_3V3	42	UART2_RX_3V3
3	VCC5V0_SYS	43	MIPI_CSI_RX1_D3N	3	LCDC_D16_3V3	43	MIPI_DSI_D0P
4	VCC5V0_SYS	44	UART1_RX_3V3	4	LCDC_D1_3V3	44	UART2_TX_3V3
5	GND	45	MIPI_CSI_RX1_D3P	5	LCDC_D17_3V3	45	MIPI_DSI_D1N
6	SNSP	46	UART1_TX_3V3	6	LCDC_D2_3V3	46	LCDC_CLK_3V3
7	GND	47	WIFI_REG_ON	7	LCDC_D18_3V3	47	MIPI_DSI_D1P
8	SNSN	48	SDMMC0_DET	8	LCDC_D3_3V3	48	GND
9	CLKO_32K	49	BT_RST	9	LCDC_D19_3V3	49	MIPI_DSI_CLKN
10	GND	50	BT_WAKE	10	LCDC_D4_3V3	50	PCM_RX
11	PWRON	51	WIFI_WAKE_HOST	11	LCDC_D20_3V3	51	MIPI_DSI_CLKP
12	BATDIV	52	BT_WAKE_HOST	12	LCDC_D5_3V3	52	PCM_CLK
13	MIC_L	53	MIPI_CSI_RX0_D0N	13	LCDC_D21_3V3	53	MIPI_DSI_D3N
14	VCC_RTC	54	MIPI_CSI_RX0_D2N	14	LCDC_D6_3V3	54	PCM_SYNC
15	MIC_R	55	MIPI_CSI_RX0_D0P	15	LCDC_D22_3V3	55	MIPI_DSI_D3P
16	SDMMC0_CLK	56	MIPI_CSI_RX0_D2P	16	LCDC_D7_3V3	56	PCM_TX
17	GND	57	MIPI_CSI_RX0_D1N	17	LCDC_D23_3V3	57	MIPI_DSI_D2N
18	SDMMC0_CMD	58	MIPI_CSI_RX0_D3N	18	LCDC_D8_3V3	58	GPIO1_D0
19	HPR_OUT	59	MIPI_CSI_RX0_D1P	19	UART0_TX	59	MIPI_DSI_D2P
20	SDMMC0_D0	60	MIPI_CSI_RX0_D3P	20	LCDC_D9_3V3	60	SDIO_D2
21	HP_SNS	61	GND	21	UART0_RX	61	GND
22	SDMMC0_D1	62	MIPI_CSI_RX0_CLKN	22	LCDC_D10_3V3	62	SDIO_D3
23	HPL_OUT	63	PDM_CLK	23	UART0_RTSN	63	MDI3-
24	SDMMC0_D2	64	MIPI_CSI_RX0_CLKP	24	LCDC_D11_3V3	64	SDIO_CMD
25	I2C1_SDA	65	SPI0_CLK_M1	25	UART0_CTSN	65	MDI3+
26	SDMMC0_D3	66	SPI0_CS0n_M1	26	LCDC_D12_3V3	66	GND
27	I2C1_SCL	67	SPI0_MISO_M1	27	CAN_RX_3V3	67	MDI2-
28	I2C2_SDA_3V3	68	SPI0_CS1n_M1	28	LCDC_D13_3V3	68	SDIO_CLK
29	MIPI_CSI_CLK0	69	SPI0_MOSI_M1	29	CAN_TX_3V3	69	MDI2+
30	I2C2_SCL_3V3	70	PDM_SDI0	30	LCDC_D14_3V3	70	SDIO_D0
31	GND	71	PDM_SDI1	31	ADKEY_IN0	71	MDI1-
32	MIPI_CSI_PWDN0	72	PDM_SDI2	32	LCDC_D15_3V3	72	SDIO_D1
33	MIPI_CSI_CLK1	73	PDM_CLK1	33	ADCIN1	73	MDI1+
34	MIPI_CSI_RX1_D0N	74	OTG_ID	34	GPIO1_D1	74	LED2/CFG_LDO1
35	MIPI_CSI_RX1_D1N	75	OTG_DET_1V8	35	ADCIN2	75	MDI0-
36	MIPI_CSI_RX1_D0P	76	USB_CTRL	36	LCDC_DEN_3V3	76	LED1/CFG_LDO0
37	MIPI_CSI_RX1_D1P	77	OTG_DM	37	ADCIN3	77	MDI0+
38	GND	78	USB_HOST_DM	38	LCDC_VSYNC_3V3	78	VCC1V2_DVDD
39	MIPI_CSI_RX1_D2N	79	OTG_DP	39	GND	79	VCC2V8_AVDD
40	MIPI_CSI_RX1_CLKN	80	USB_HOST_DP	40	LCDC_HSYNC_3V3	80	VCC3V3_SD

OS	Item	Feature	Description
Buildroot	Bootloader	Boot	MiniLoaderAll.bin
		Boot mode	Boot from eMMC
		Download	Download via USB OTG
	Kernel	Version	4.19.111
		File system format	Buildroot 2018.02-rc3
		Serial port	1x Debug serial, 1x UART
		RTC	support
		Ethernet	10/100/1000 Mbit/s Ethernet
		RS485	support
		CAN	support
		RTC	support
		SPI	2x SPI
		WIFI	Wireless - 2.4GHz, 802.11b/g/n
		Bluetooth	Bluetooth4.0
		USB Host	4x USB 2.0
		USB OTG	support
		LCD	Mipi 1280*800
		IR	support
		Audio I/O	RK809 Audio CODEC. 3.5mm jack for Audio output. 2x MIC IN
		eMMC	Support eMMC 5.1
		MMC/SD	Micro SD
		GPIO	support
		ADC	3x ADC in
		Camera	2x Camera
	File system	TCP/IP	support
		Network ping	support
		Ifconfig, route	support
	Basic tool	linux common commands	support
	Basic tool	Tools	SecureCRT, RKDevTool.exe
