RK3399 Smart Home Device

* Processor: Rockchip RK3399, Dual 64-bit Cortex-A72 + Quad Cortex-A53 @ 1.8GHz
* RAM: 4GB LPDDR4
* Storage: 8GB

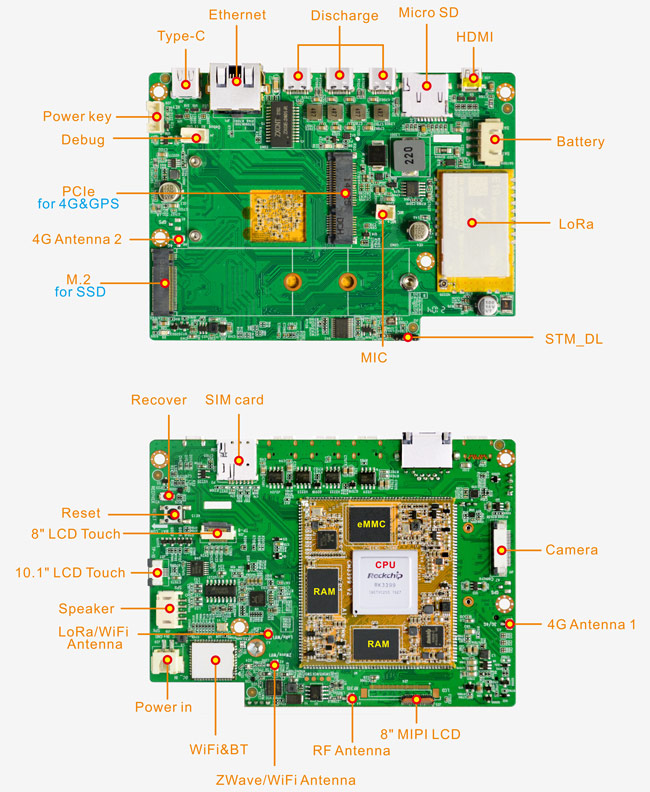

* Interfaces: GbE, USB Type-C, HDMI, 3x for power out (discharge), Audio, Battery, MIPI LCD, Camera, Speaker, MIC, Micro SD, PCI-E(4G), M.2 slot(SSD), SIM slot, Serial port(Debug), etc.
* Operating system: Android 9.0
* Board size: 120mm x 88mm

Overview
Hardware
Software
Download
Price&Order
FAQ

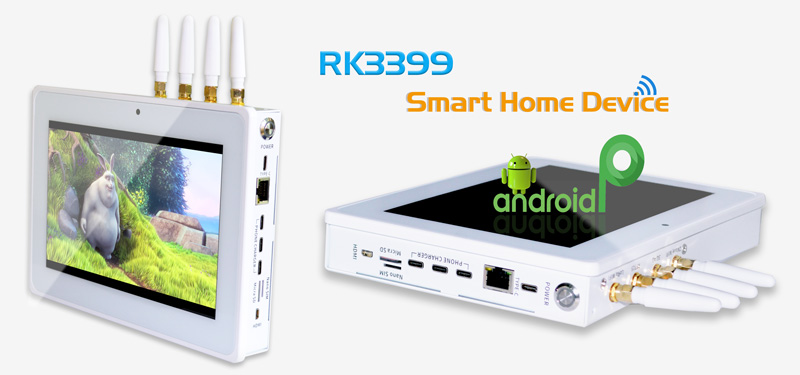

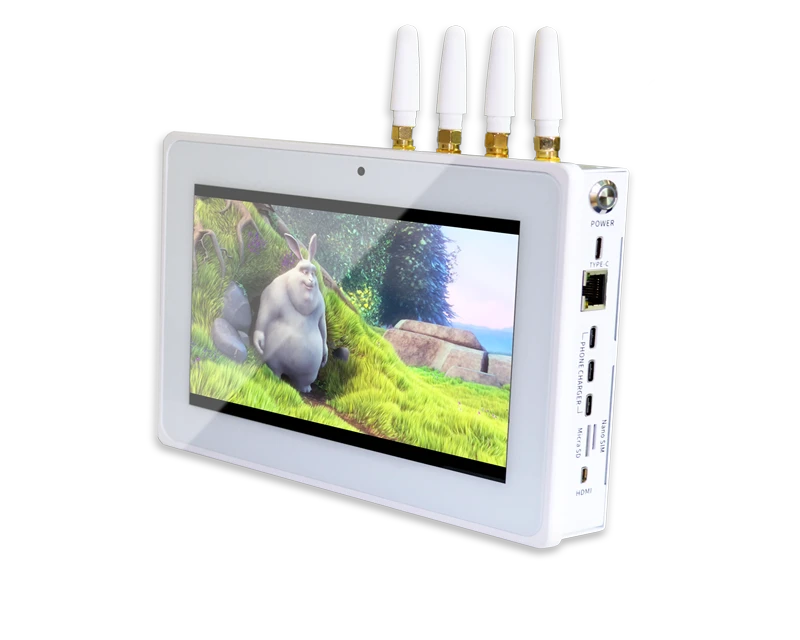

RK3399-Smart-Home-Device-BOX

Rockchip RK3399 is a low power, high performance processor for computing, personal mobile internet devices and other smart device applications. Based on Big.Little architecture, it integrates dual-core Cortex-A72and quad-core Cortex-A53 with separate NEON coprocessor.
Boardcon RK3399 Smart Home Device is powered by Rockchip RK3399 and equipped with 4GB RAM, 8GB eMMC flash with interfaces including PCIe, SATA, Gigabit Ethernet, HDMI 2.0, MIPI DSI/CSI and more.
This RK3399 device runs Android9.0 operating system, and supports WiFi&BT, LoRa, RF315 and 4G&GPS module. it can be used in Intelligent Control, Remote monitoring, Solar energy systems, etc.

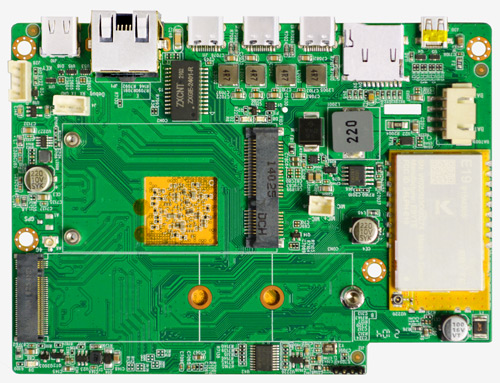

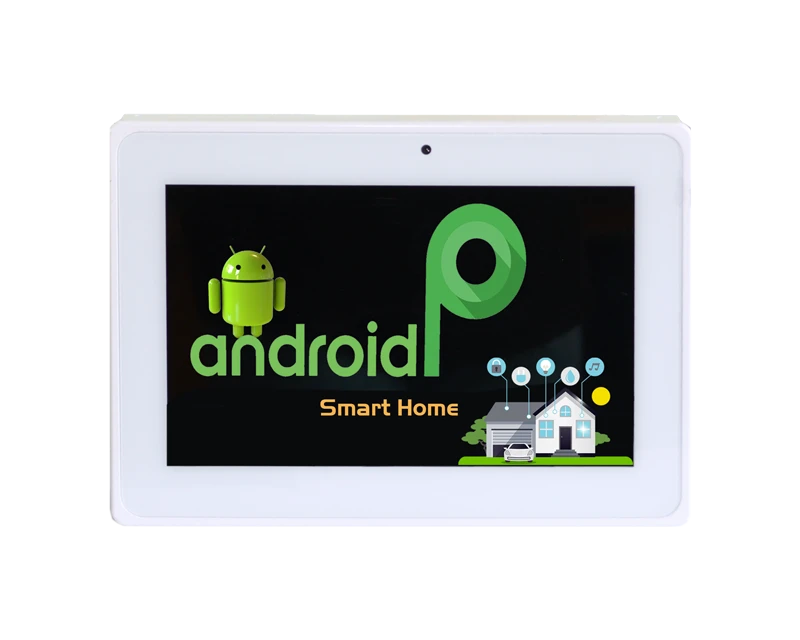

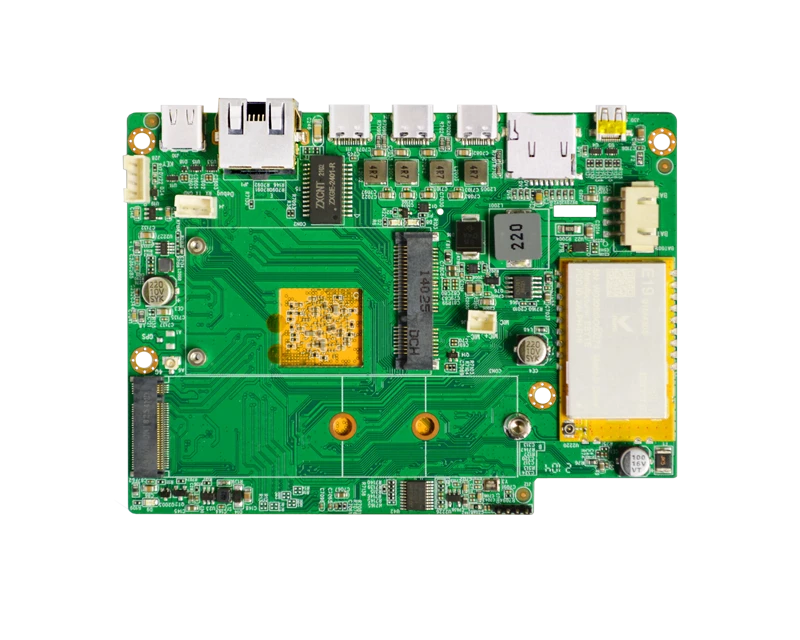

RK3399-Smart-Home-Device-front

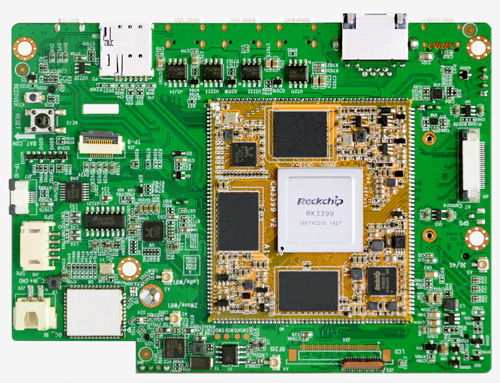

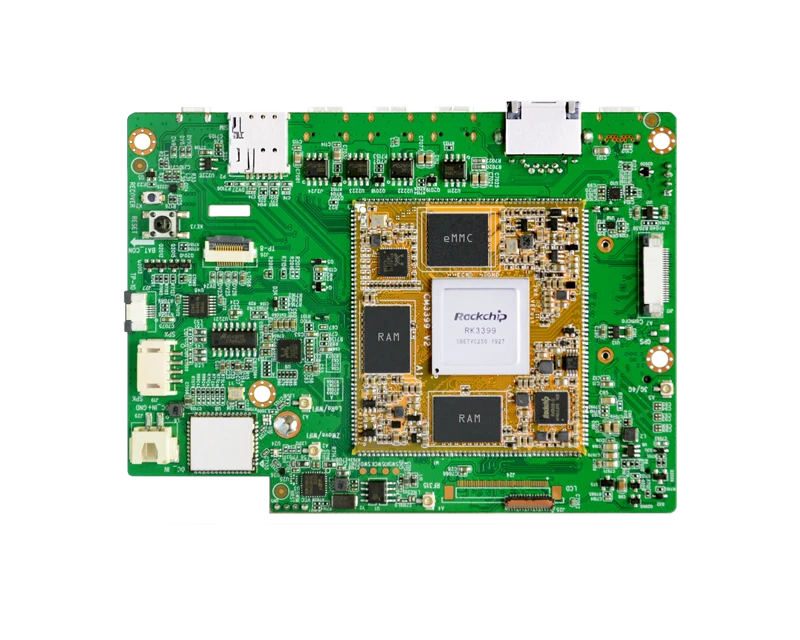

RK3399-Smart-Home-Device-rear

Specifications
CPU	- Rockchip RK3399. Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU - 28nm HKMG process - 1MB unified L2 Cache for Big cluster, 512KB unified L2 Cache for Little cluster
GPU	- ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 etc. - Supports AFBC (ARM Frame Buffer Compression)
Memory	4GB LPDDR4
Storage	- 8GB eMMC flash - MicroSD slot - 1x M.2 SSD interface
Power	DC 12V/3A Power Adapter, or 3.7V/24A Li-Battery
USB	4x USB Type-C. 1x USB3.0 for download, 3x for power out (discharge)
Audio	Realtek ALC5651 Audio CODEC. 2-pin connector for MIC, 4-pin connector for Speaker
Display	- HDMI 2.0 for 4K@60Hz with HDCP 1.4/2.2 - MIPI LCD
Connectivity	- Gigabit Ethernet port (RJ45) via Realtek RTL8211E - 2.4GHz/5GHz 802.11 a/b/g/n/ac WiFi. Bluetooth 4.1 - LoRa 915MHz - RF315 - Optional 4G module (with GPS) via mini PCIe socket + SIM card slot
UART	1x 3pin connector for debug
Buttons	Recover, Reset
Camera (optional)	1x MIPI CSI, 24pin FPC connector

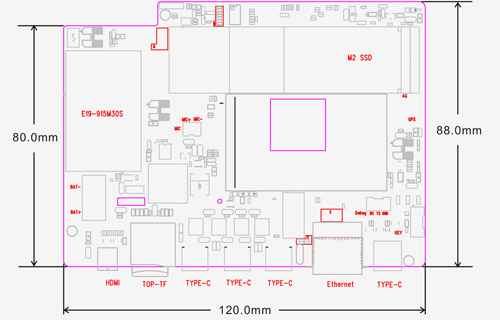

Dimension	Baseboard - 120mm x88mm; CPU board - 55mm x 50mm

OS	Item	Feature	Description
Android 9.0	Boot	U-Boot 2017.09	U-Boot 2017.09
	Kernel	Version	linux-4.4.167
	Drivers	HDMI	Support 4K, 1080P, 720P, 480P resolution
		Audio	Audio in/out
		SD card	Micro SD card
		USB	USB 2.0
		Ethernet	10/100/1000 Mbit/s Ethernet
		Camera	13 Megapixels camera module
		Dual WiFi	Wireless-2.4GHz/5GHz 802.11 a/b/g/n/ac
		Bluetooth	Bluetooth 5.0
		Serial Port	Debug serial
		PCI-E	Support nvme SSD, 4G, GPS
		eMMC	Support eMMC 5.1
		charger	Charger GPIO detect
		LCD	8-inch mipi LCD with capacitive touch screen
		RF315	EV1527 decode
		Battery	Cw2015 battery detect
		LoRa	LoRa 915MHz
	Embedded GUI	Android9.0	Support Files, Clock, Browser, Gallery, Calculator, Camera, Email, Explorer, Video player, Music etc.
	Cross-compiler Environment	ubuntu-16.04, java-8-openjdk-amd64.tar.bz2
	Debug Tools	SecureCRT, AndroidTool.exe, ADB
