Boardcon SBC3566 - An AI solution based on Rockchip RK3566 SoC

Author: Boardcon Embedded Design   Date: 2023-07-24

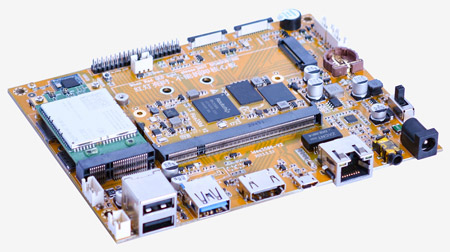

Boardcon SBC3566 is a Rockchip RK3566-based single board computer and designed especially for AI and Industrial IoT devices such as industrial controller, intelligent interactive devices, personal computers and robots.

SBC3566 specifications
System-on-Module – Boardcon PICO3566 with Rockchip RK3566 Quad-core Cortex-A55@ 1.8 GHz
- 8GB/16GB/32GB/64GB/128GB eMMC
- microSD card slot
- M.2 PCIe 2.0 socket for NVMe SSD
Video Interfaces
- Full-size HDMI 2.0 port
- MIPI DSI display connector
- MIPI CSI connector
Audio – 3.5mm audio jack, built-in buzzer
- Gigabit Ethernet RJ45 port
- 2.5G WiFi and Bluetooth 4.2
- Mini PCIe socket with Nano SIM card port to support 4G LTE Modem
USB – 1x USB3.0, 3x USB 2.0 host ports, 1x USB OTG port
- 2x UART Ports
- 1x Debug Port
- 1x SATA Power port
- 1x Buzzer
- 1x recover button
- 1x RTC battery socket
Power Supply
12V DC input via power jack
Dimensions – 110 x 140mm

More information may be found on the product page.
