4. Images Operation

4.1 Pack Image

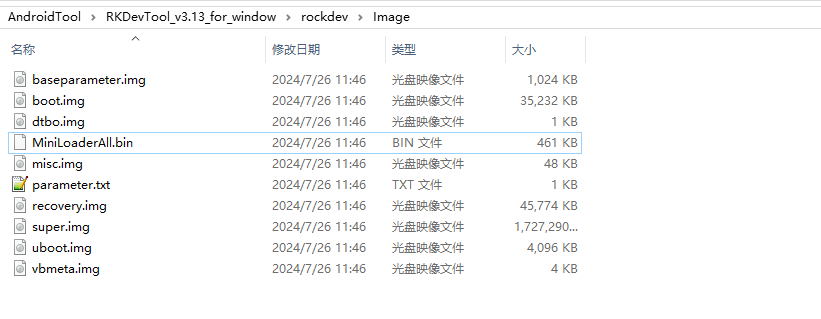

❶ Copy the firmware file to be packaged to AndroidTool\RKDevTool_v3.13_for_window\rockdev\Image

_images/Pack_Image.png

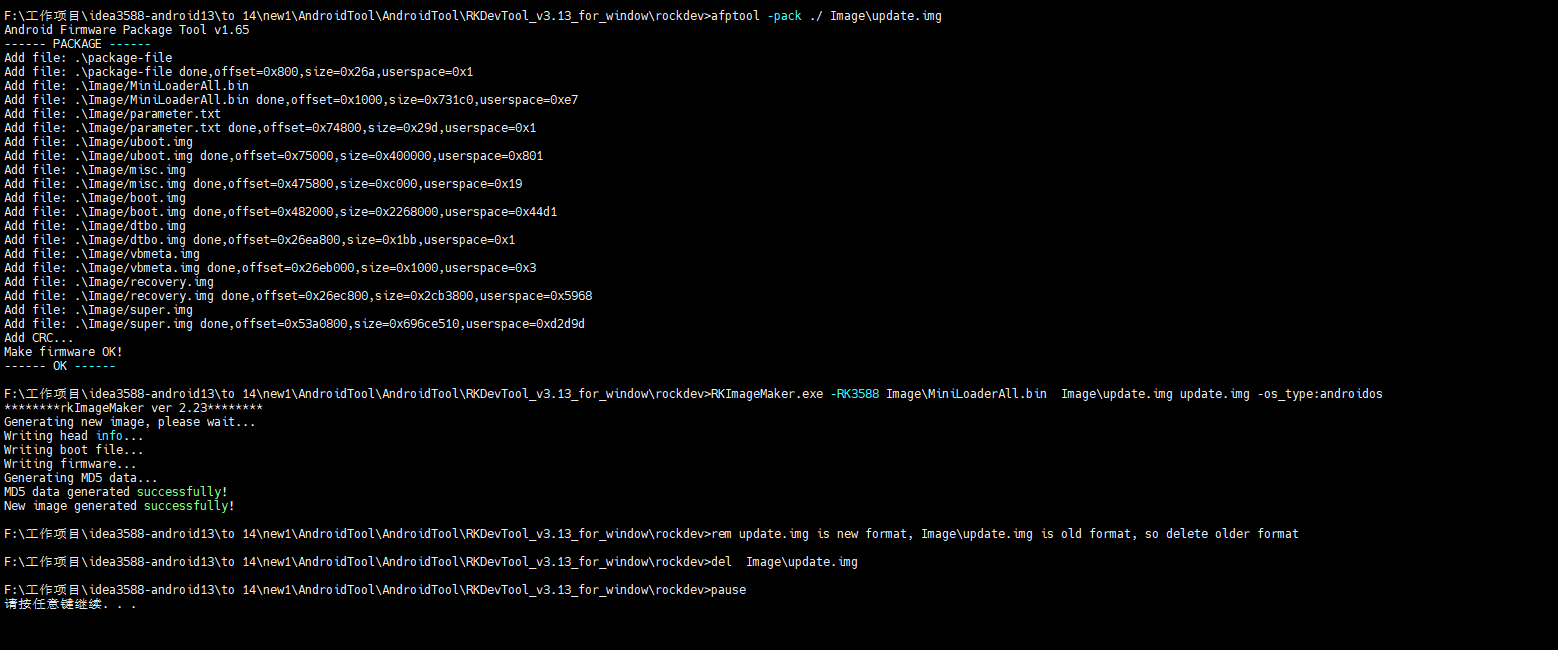

❷ Enter AndroidTool\RKDevTool_v3.13_for_window\rockdev, double-click to run mkupdate.bat

_images/run_rk3588-mkupdate.png

update.img will be generated in directory rockdev/

_images/update-img.png

4.2 Unzip Firmware

❶ Unzip AndroidTool.zip on Windows.

❷ Open RKDevTool.exe

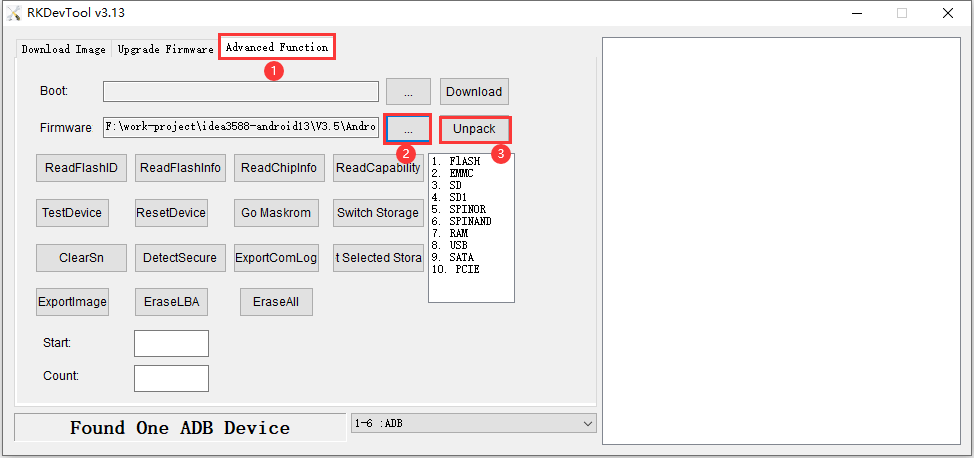

❸ Click Advanced Function ->Firmware, select update.img. Click Unpack to unzip.

_images/Android_Unzip_Firmware.png

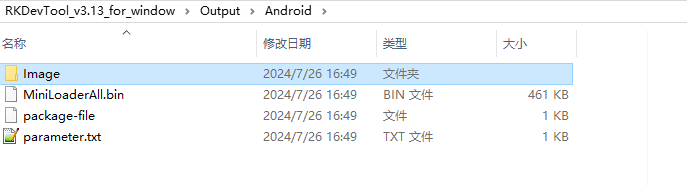

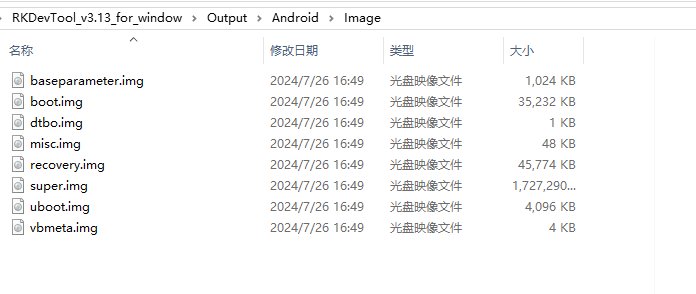

The unzip files will be generated in RKDevTool_v3.13_for_window\Output\Android\ and RKDevTool_v3.13_for_window\Output\Android\Image\

_images/Android_Unzip_Firmware_3.png
_images/Android_Unzip_Firmware_4.png
