* Processor: Rockchip RK3188, Quad-Core ARM Cortex-A9 @ 1.6GHz
* RAM: 1GB DDR3
* Storage: 4GB

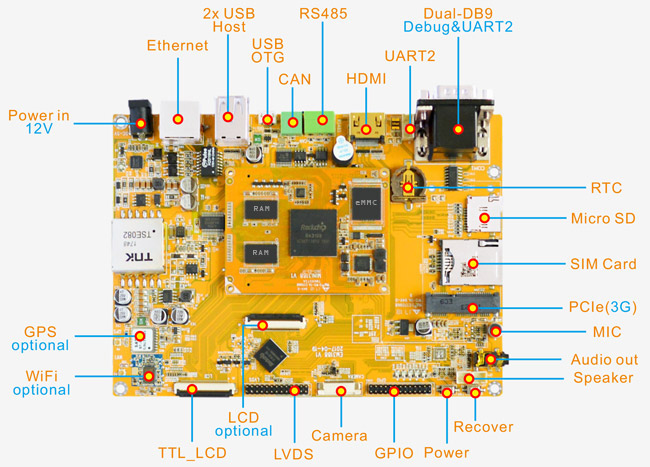

* Interface: 1x Ethernet, 2x USB Host, 1x USB OTG, CAN, RS485, HDMI, 2x UART(DB9/Header), Micro SD, SIM slot, PCI-E, Headphone, SPK, LVDS, GPIO, Camera, 2x TTL_LCD
* Operating system: Android5.1
* Board size: 161mm x 116mm
* Expansion Module: 3G model, GPS, WiFi, Camera, 10.1-inch LCD

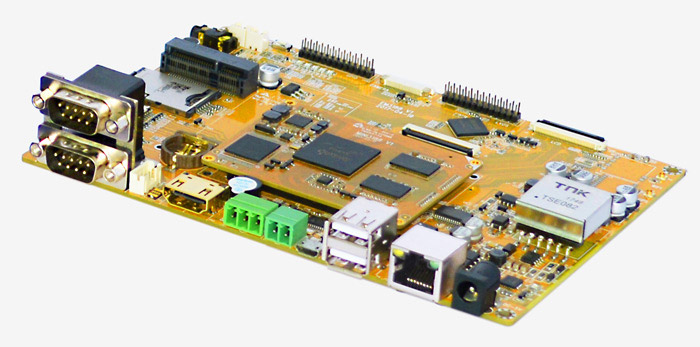

The Boardcon EM3188 is a single board computer (SBC) powered by Rochchip RK3188 processor, with 1GB DDR3 RAM, 4GB eMMC flash, supporting WiFi, 3G and GPS module, running at Android5.1 and designed for Tablet, set-top boxes and other digital multimedia applications.
EM3188 comes with Ethernet, CAN, RS485 and other basic ports such as USB2.0 OTG, dual USB2.0 HOST, dual DB9, a 3.5mm audio jack and a microSD card for additional storage. This RK3188 SBC features RK616 chipset(optional) that includes two RGB display input interface with double data rate. With the internal MUX function, it can output 1080P HDMI signal to TV and output RGB/LVDS signal to TFT panel. In this case, EM3188 can support dual panel(TV and TFT)display.
Specifications | |
---|---|
CPU | · Rockchip RK3188 , Quad-Core ARM Cortex-A9, up to 1.6GHz · 28nm HKMG process |
GPU | · Quad-Core Mali-400MP4 GPU, support OpenGL ES1.1/2.0 · High performance dedicated 2D processor |
Memory | 1GB DDR3 |
Storage | 4GB eMMC Flash |
Power | 12V/2A |
Ethernet | 10/100M, RJ45 interface. LAN8720A controller |
USB | 2x USB2.0 Host, 1x USB2.0 OTG |
CAN | 1x CAN. 2pin connector. |
RS485 | 1x RS485. 3pin connector. |
HDMI | HDMI V1.4, support 1080P |
UART | 2-CH UARTs. DUART: DB9_up/4-pin connector, for debug. UART2: DB9_down |
SD card | 1x Micro SD card slot |
RTC | Real Time Clock, powered by external lithium battery |
Audio | Microphone, MIC, Speakers. RK616 chip |
LCD | 2x 40-pin TTL_LCD connector for 4.3-, 7-inch Cap-touch spanel; 1x 26-pin LVDS for 10.1-inch HD Cap-touch panel. |
GPIO | 1x 26-pin header |
Button | Recover, Power |
WiFi(optional) | 2.4GHz WiFi, support 802.11 b/g/n |
Camera(optional) | 24pin FPC connector. OV5640 model, 5 Megapixels. |
GPS(optional) | ST-91-U7 model, ublox 7 chipset |
3G(optional) | PCI-E connector, UC20 model. |
Dimension | Baseboard - 161.0 x 116.0 mm; CPU board - 67.0 x 51.0mm |

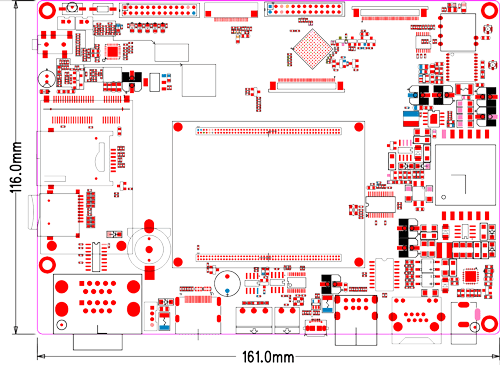

PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Android5.1 | Boot | Bootloader | RK3188Loader(L)_V2.31.bin |
Kernel | Version | Linux 3.0.101+ | |
Drivers | HDMI out | Support 1080P resolution | |
Audio | RK616/WM8960 (optional) chip | ||
SD card | On-board 1x Micro SD card slot | ||
USB | 2x USB2.0 Host and 1x USB2.0 OTG | ||
Ethernet | 1x 10/100 Mbit/s Ethernet RJ45 connector | ||
WIFI | Realtek RTL8188EUS, support IEEE 802.11n/b/g | ||
Camera | 1x 24Pin FPC connector for OV5640, 5Mega | ||
LCD | Support 4.3"/5"/7" RGB-TTL LCD panel (optional); Support 10.1" High-definition LVDS LCD panel; Support LCD panel and HDMI dual display. |
||
Capacitive touch panel | Match the corresponding 4.3"/5"/7"/10.1" LCD display screen | ||
3G | UMTS/HSPA+, Multiband optional, 1x MINI PCI-E connector |
||
Debug | 1x DB-9 (RS232) Debug serial port, Micro OTG USB for ADB | ||
Buttons | Recover, Power on/off (system) | ||
Serial Port | 1x DB-9 (RS232) serial port for external communication | ||
CAN | 1x CAN port with CAN V2.0 B technical specification | ||
GPS | Uses ublox 7 chipset which is high performance u-blox 7 multi-GNSS (GPS, GLONASS, QZSS, SBAS – Galileo and Compass ready) position engine delivers exceptional sensitivity and acquisition times | ||
RS485 | 1x RS485 port with ANSI Standards TIA/EIA-485-A | ||
GPIOS | 1x 26Pin(2.0mm pitch) connector for GPIOS and power | ||
Embedded GUI | Android5.1.1 | Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, videoplayer, Music, GPS etc. | |
Cross-compiler Environment | VMware V7+ ubuntu-12.04, jdk-7u80-linux-x64.tar.gz | ||
Debug Tools | SecureCRT, AndroidTool.exe, ADB |
Datasheet |
|
|
|
Reference Manual |
|
|
Tools |
|
Expansion Module | Module Detail | Android |
---|---|---|
![]() |
Quectel UC20 | √ |
![]() |
SATES ST-91-U7 | √ |
![]() |
OV5640. 5megapixel COMS camera module | √ |
![]() |
RTL8188EUS, WLAN 11b/g/n WIFI module | √ |
![]() |
10.1-inch Capacitive Touch Screen | √ |
![]() |
10.1-inch LCD module, 1280 x 800(RGB) resolution | √ |
If you order the kit or any question, please feel free to contact us at market@armdesigner.com
