MINI6410 　

* 处理器: 三星ARM11 S3C6410, ARM1176JZF-S, 主频667MHz
* 内存: 256MB mDDR
* 存储: 默认256MB SLC NAND Flash。可扩展为1GB NAND。
* 引出信号: Camera, I2C, 16bit BUS, UART, LCD, Touch Screen, USB OTG, USB HOST, Matrix Keypad, ADC, DAC, SPI, SDIO, AC97, EXT INT, GPIO等
* 操作系统: Linux2.6.28, WinCE6.0, Android2.3
* 规格尺寸: 52mm x 45mm

产品简介
硬件
软件
下载
订购
常见问题

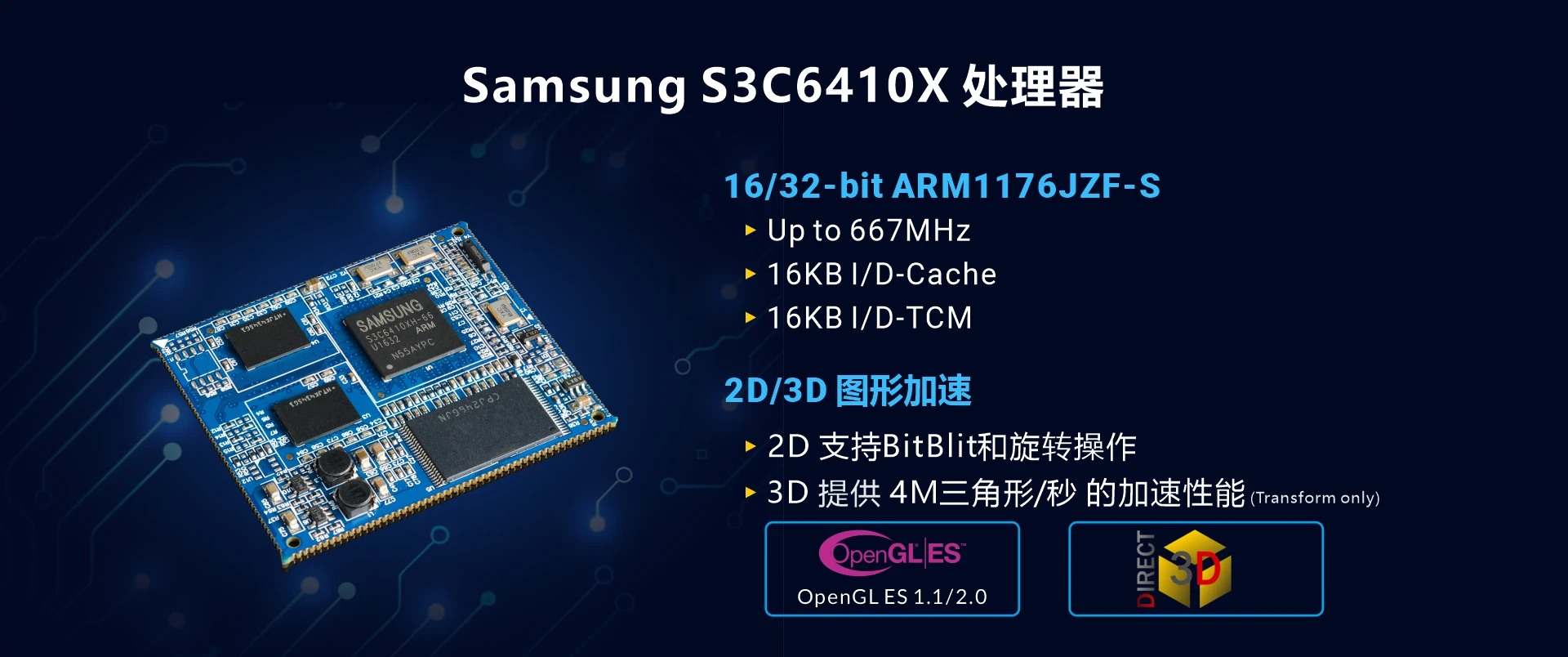

MINI6410核心板采用主频达667MHz的三星ARM11 S3C6410, 8层板工艺设计, 集成度高, 可移植性强, 且尺寸小, 功耗低, 性能稳定, 可广泛应用于智能手机、PDA、PND、车载系统、智能家居、数据终端等产品。

MINI6410核心板

MINI6410 arm11 核心板背面硬件图

icon 结构参数
* 尺寸: 52.0mm x 45.0mm x 2.8mm
* 引脚间距: 1mm
* 引脚焊盘尺寸: 0.8mm x 0.6mm
* 引脚数量: (J1+J2) x 50 + (J3+J4) x 42, 共184个引脚
* 板层: 8层板, HDI制作工艺, 布局布线充分考虑EMC/EMI规则

icon 硬件参数
* 处理器: 三星ARM11 S3C6410, ARM1176JZF-S., 主频667MHz
* 内存: 256MB mDDR
* Flash: 默认256MB SLC NAND Flash。可扩展为1GB NAND。
* 输入电压: 3.3V, 5V
* 引出信号: Camera, I2C, 16bit BUS, UART, LCD, Touch Screen, USB OTG, USB HOST, Matrix Keypad, ADC, DAC, SPI, SDIO, AC97, EXT INT, GPIO等

icon 操作系统
* 预装Linux2.6.28 或 WinCE6.0
* Linux Uboot版本: 1.1.6
* 内核版本: Linux 2.6.28

icon 结构布局

icon 引脚定义

pin	J1	function	J2	function	J3	function	J4	function
1	HSYNC	LCD	KP_COL0	KEYPAD	CAMRSTN	CAMERA	VDD5V	POWER
2	VCYNC		KP_COL1		CAMHREF		VDD5V
3	VCLK		KP_COL2		CAMCLK		VDD5V
4	VDEN		KP_COL3		CAMSYNC		VDD_MDDR
5	VD0		KP_COL4		CAMPCLK		VDD_MDDR
6	VD1		KP_COL5		CAMYD0		VDD_33V
7	VD2		KP_ROW0		CAMYD1		VDD_33V
8	VD3		KP_ROW1		CAMYD2		VDD_ARM
9	VD4		KP_ROW2		CAMYD3		VDD_ARM
10	VD5		KP_ROW3		CAMYD4		VDD_ARM
11	VD6		KP_ROW4		CAMYD5		VDD_ARM
12	VD7		KP_ROW5		CAMYD6		VDD_RTC
13	VD8		EINT4	EXT INT	CAMYD7		GND	GND
14	VD9		EINT9		I2CSDA0	I2C	GND
15	VD10		EINT12		I2CSCL0	I2C	GND
16	VD11		EINT1		DATA0	BUS	GND
17	VD12		EINT3		DATA1		GND
18	VD13		EINT5		DATA2		GND
19	VD14		EINT6		DATA3		OM1	BOOT SETTING
20	VD15		EINT8		DATA4		OM3
21	VD16		ADCIN0	ADC	DATA5		OM2
22	VD17		ADCIN1	ADC	DATA6		OM4
23	VD18		NBATF	NBATF	DATA7		TXD0	UART
24	VD19		OTGDP	USBOTG	DATA 8		RTSN0
25	VD20		OTGDM		DATA9		TXD1
26	VD21		VBUS		DATA10		RTSN1
27	VD22		USBDP	USB HOST	DATA11		TXD2
28	VD23		USBDN	USB HOST	DATA12		TXD3
29	PWM_TOUT1		OTGID	USBOTG	DATA13		RXD0
30	EINT11	EXT INT	AC97RSIN	AC97/I2S	DATA14		CTSN0
31	DAC_OUT0	DAC	AC97SDI		DATA15		RXD1
32	GPH9	GPIO	AC97BCLK		WEN		CTSN1
33	EINT0	EXT INT	AC97SD0		OEN		RXD2
34	EINT2	EXT INT	AC97SYNC		CSN1		RXD3
35	CLK_OUT0	CLKOUT	SD1_D0	SD CH1	IRQ_LAN		GPH6	GPIO
36	GPQ0	GPIO	SD1_D1		ADDR1		GPH7
37	OTG_VBUS	USB OTG	SD1_D2		ADDR2		GPH8
38	GP03	GPIO	SD1_D3		ADDR3		GPE0
39	SPICS0	SPI	SD1_CMD		NRESET		GPE1
40	SPIMIS00	SPI	SD1_CLK	SD CH1	KEY_RST	KEY_RST	GPE2
41	SPICLK0	SPI	SD1_CDN		PWRRGTON	PWR-EN	GPE3	GPIO
42	SPIMOSIO	SPI	SD1_WPN		GPO2	GPIO	GPE4	GPIO
43	GPC7	GPIO	SD0_D0	SD CH0
44	NLED1	GPIO	SD0_D1
45	NLED2	GPIO	SD0_D2
46	GPC6	GPIO	SD0_D3
47	TSYP	TOUCH	SD0_CMD
48	TSXP		SD0_CLK
49	TSYM		SD0_CDN
50	TSXM		SD0_WPN

操作系统	类别	功能	描述
Android2.3	Boot	Version	U-boot 1.3.4
		Boot Mode	Boot Android from SD card, NAND Flash
		Image update	Support updating image from SD card or USB
	Kernel and drivers	Version	Linux 2.6.36-Android
	Kernel and drivers	Drivers	SDROM, Flash, Serial ports, RTC, 4.3" and 7" LCD including Touch Screen, MMD/SD, High Speed SD card, user buttons, IIC, SPI, JPEG, MFC, TVOUT, LCD display rotate, USB Host, USB Device, 2D/3D, Hardware decode, OpenGLES1.1 & 2.0, D3DM
	File System	File System Format	Yaffs2 (Androidfs-sdk-m5-rc15)
	Embedded GUI	Android-2.3	Support file browser, Mediaplayer
		Application	Alarm Clock, ASTR0, Mediaplayer, Music, Picsay, Gallery, Browser, Panda Reader
	Cross compiler Environment	Arm-none-linux-gnueabi
	Debug Tools	DNW, MoviNAND_Fusing_Tool.exe

操作系统	类别	功能	描述
Linux2.6.28	Bootloader	u-boot	u-boot-1.1.6 Main functions: 1. Nand Flash erase/write/read 2. USB download Image 3. Print, set, save Environment Variables 4. Memory's contents display/compare/modify 5. bootm, bootargs setting
		Sdboot	1. SD Card boot-up and download Image via USB (can replace JTAG) 2. Replace booting LOGO
		Image update	Supporting Image update from SD Card or USB
	Kernel and drivers	Version	Linux 2.6.28
		File system Format	ROM/CRAM/EXT2/EXT3/FAT/NFS/JFFS2/UBIFS
		Drivers	Serial ports, RTC, Ethernet, 4.3” and 7” LCD including Touch Screen, MMD/SD, USB Host, LEDs, AC97, Camera, HSMMC, USB Keyboard and Mouse, Nand Flash, DMA, JPEG, MFC, TVOUT, OpenGLES1.1 & 2.0, D3DM, IIS, SPI
	File System	File System	Yaffs File System
	File System	Function	Provided Lib (ALSA -lib, tslib, glibc), udev support
	Embedded GUI	Qt/Embedded	Qtopia 2.2.0
	Network protocol & application	Network protocol	TCP/IP, Telnet, FTP, BOA Web Server
	Network protocol & application	Application	H.264 display, MPEG-4 display, H.263 display, VC-1 display, 4-windows display, Camera preview & MFC encoding, MFC decoding & Camera preview, Camera input and JPEG encoding, JPEG decoding and display, MFC decoding & Camera preview thru TV, H.264 decoding thru TVOUT
	Cross compiler Environment	3.3.2 , 3.4.1 , 4.3.3-eabi

操作系统	类别	功能	描述
WinCE6.0	Boot	Stepldr	Providing Source code and STEPLDR.bin
		Eboot	Providing Source code and EBOOT.bin Eboot main functions: 1. Ethernet download: Set static IP, HDCP gets Dynamic IP, Mac address setting, download kernel automatically by Ethernet when the system starts. 2. USB download: update the image via USB OTG 2.0 3. Format Nand Flash 4. Format BinFS 5. Low-level Format 6. Set boot-up delayed time Booting process bar
		Image update	Support updating image from SD card or USB
	System	Characteristic	KITL kernel debug, Reboot, Watchdog, RTC
		Driver	4.3” and7” LCD including Touch Screen, LEDs
		Driver	SD card, High speed SD card, SPI, AC97, Camera, Ethernet, USB Host, USB OTG, Serial ports, RTC, GPS, WIFI, MFC, powerbutton, Powercontrol, UA0, DrvLib
		Function	220MB NAND Flash for user
			Power Management (backlight drive, battery-driven, sleep/wake-up function), Hive registry support, ROM file system support
			Hive registry support
			ROM file system support
		Software features	2D/3D graphics accelerator, coming with source code of OpenGLES test program
			Media player 9.0, Word and Internet Explorer 6.0
			JPEG/JPG encoding and decoding, providing driver and test program.
			.NET Compact Framework 3.5
			Media player 9.0, Word and Internet Explorer 6.0
			J JPEG/JPG encoding and decoding, providing driver and test program.
			.NET Compact Framework 3.5
